StarTech.com SV565DUTPU

StarTech SV565DUTPU Dual-VGA USB KVM Extender over Cat5

Extend dual-VGA video plus USB keyboard and mouse control up to 650 ft (200 m) over two standard Cat5-or-better cables, with console access at both ends.

200 m / 650 ftDual VGA1920×12003-year warranty

StarTech SV565DUTPU Dual-VGA USB KVM Extender over Cat5

Key features

Up to 200 m extension

Extend a compatible USB and dual-VGA computer or KVM installation up to 650 ft (200 m).

Dual-monitor VGA

The extender supports two VGA displays and resolutions up to 1920 × 1200 at the maximum stated distance.

Standard UTP cabling

The host and remote units connect using two industry-standard Cat5-or-better UTP cables.

Local and remote console access

Console connections at both ends allow access to connected systems from either location.

What to know

Cabling requirementTwo Cat5-or-better UTP cable runs are required between the local and remote units.

AudioThe supplied specification lists audio support as No.

SoftwareThe extender is OS independent and requires no software or drivers.

Australian version and official StarTech.com warranty

This is the Australian version supplied by DeviceDeal and is covered by the official StarTech.com 3-year manufacturer warranty in Australia. Retain your DeviceDeal tax invoice as proof of purchase. Warranty coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.

Frequently asked questions

What is the StarTech SV565DUTPU?

SV565DUTPU is a dual-VGA USB KVM console extender that carries monitor, keyboard and mouse control between a local and remote location.

How far can it extend the KVM console?

StarTech specifies a maximum transfer distance of 650 ft (200 m).

What video resolution does it support?

The listed maximum analogue resolution is 1920 × 1200, including operation at the stated 200 m maximum distance.

How many network cables are required?

Two standard Cat5-or-better UTP cables are required between the host and remote units.

Can I access the computer from both ends?

Yes. Console connections are available at both the local and remote ends.

Does SV565DUTPU support audio?

No. The supplied exact-SKU specification lists audio support as No.

What comes in the box?

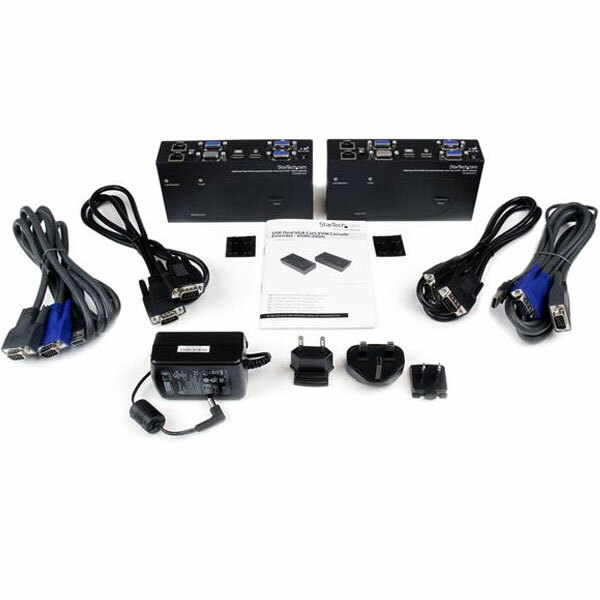

The package includes local and remote units, two 6 ft 2-in-1 USB VGA KVM cables, a universal power adapter, eight rubber feet and an instruction manual.

What warranty applies in Australia?

This Australian-version product is covered by the official StarTech.com 3-year manufacturer warranty in Australia, subject to StarTech.com warranty terms, eligibility and product assessment.

(SV565DUTPU)

Features and highlights

Up to 200 m extension

Extend a compatible USB and dual-VGA computer or KVM installation up to 650 ft (200 m).

Dual-monitor VGA

The extender supports two VGA displays and resolutions up to 1920 × 1200 at the maximum stated distance.

Standard UTP cabling

The host and remote units connect using two industry-standard Cat5-or-better UTP cables.

Local and remote console access

Console connections at both ends allow access to connected systems from either location.

Hot-key and push-button control

Use hot-key and push-button commands for local/remote switching and video adjustment.

Ready-to-use kit

Host and remote units, two 6 ft USB/VGA KVM cables and a universal power adapter are included.

Key highlights

200 m / 650 ft
Dual VGA
1920×1200
3-year warranty

Warranty confidence

Official StarTech.com 3-year manufacturer warranty in Australia for this Australian-version product, subject to StarTech.com terms and assessment.

Specifications

StarTech SV565DUTPU

Warranty Information

Warranty	3 Years

Hardware

Audio	No
Cables Included	Yes
KVM Ports	2
Number of Monitors Supported	2
PC Interface	USB
PC Video Type	VGA
Rack-Mountable	No

Performance

IP Control	No
Max Transfer Distance	200 m (656 ft)
Maximum Analog Resolutions	1920x1200
MTBF	65000 hours
Supported Resolutions	1920x1200 @ 650 ft (200m)

Connector(s)

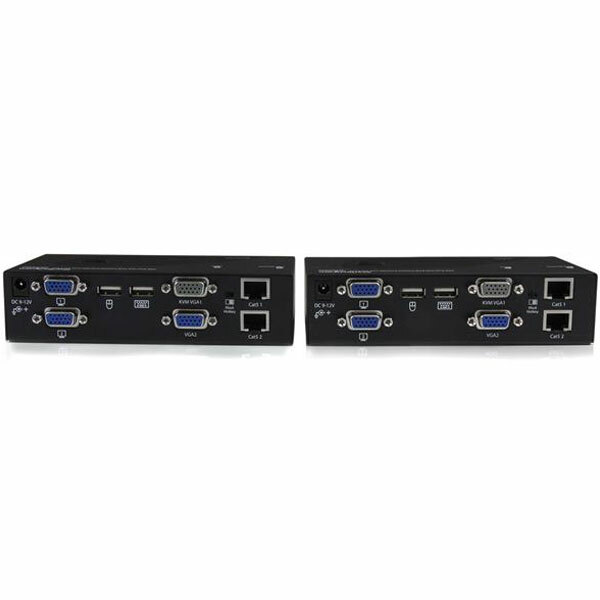

Console Interface(s)	2 - USB Type-A (4 pin) USB 2.0 Female 2 - VGA (15 pin, High Density D-Sub) Female
Host Connectors	2 - VGA (15 pin, High Density D-Sub) Female
Other Interface(s)	2 - RJ-45 Female

Software

OS Compatibility	OS independent; No software or drivers required

Special Notes / Requirements

Note	Product weights/measurements and connector types indicate a single unit only (either Host or Remote)

Power

Center Tip Polarity	Positive
Input Current	0.2A
Input Voltage	100 - 240 AC
Output Current	0.6A
Output Voltage	9 DC
Plug Type	M
Power Consumption (In Watts)	5.4
Power Source	AC Adapter Included

Environmental

Humidity	0~80% RH
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-10°C to 60°C (14°F to 140°F)

Physical Characteristics

Color	Black
Enclosure Type	Steel
Product Height	1.6 in [4 cm]
Product Length	6.1 in [15.5 cm]
Product Width	3.1 in [80 mm]
Weight of Product	18.9 oz [535 g]

Packaging Information

Package Height	3 in [75 mm]
Package Length	14.4 in [36.7 cm]
Package Width	9.4 in [23.9 cm]
Shipping (Package) Weight	5 lb [2.3 kg]

What's in the Box

Included in Package	1 - local unit 1 - remote unit 2 - 6 ft 2-in-1 USB VGA KVM cables 1 - universal power adapter (NA/EU/UK/AU) 8 - rubber feet 1 - instruction manual
