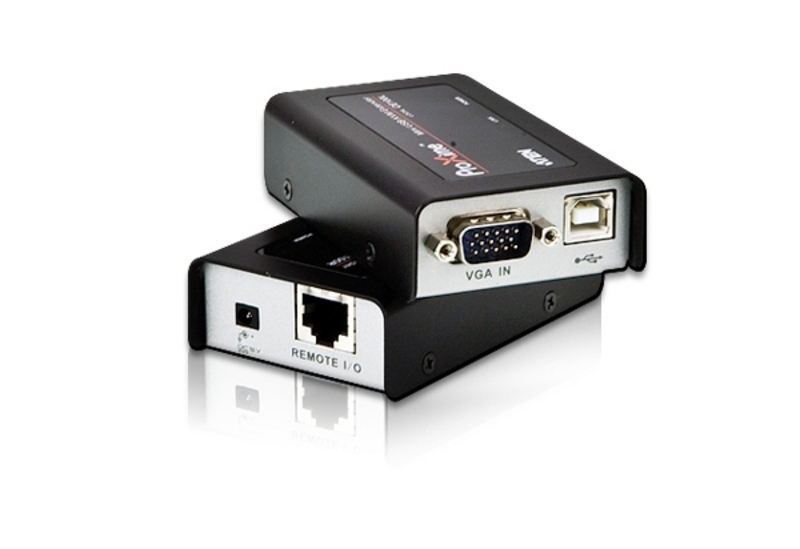

The CE100 USB KVM Extender with superior video quality and built-in ESD protection allows access to a computer system from a remote USB console (USB keyboard, USB mouse, and monitor).

The CE100 improves on previous designs by: 1) incorporating a compensation adjustment function at the Remote unit for greater video quality; and 2) using inexpensive Cat 5e cable, instead of bulky, expensive, standard cables, to provide a neater, more convenient, more reliable data transfer connection.

Package Contents

1x CE100L Mini USB KVM Extender (Local Unit)
1x CE100R Mini USB KVM Extender (Remote Unit)
1x KVM Cable (VGA, USB; 1.5m/5ft)
1x Power Adapter (for Remote Unit)
1x Mounting Kit
1x User Instructions

Extends local PC VGA/keyboard/Mouse to Remote side
Uses Cat 5e cable to connect the local and remote units
Easily add or remove computers connected to the installation
Supports real time DDC communication
Superior video quality – up to 1920 x 1200
Allow access to a computer from the remote console up to 100 m distance
Support manual compensation adjustment for better video quality
No external power supply needed for local unit
Built-in 8KV/15KV ESD protection (Contact voltage 8KV; Air voltage 15KV)
Wall mountable

MINI USB KVM Extender

Function	CE100L	CE100R
Connectors

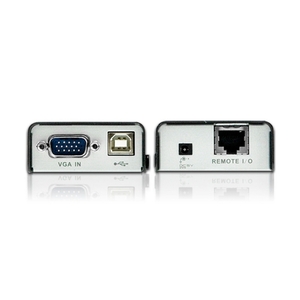

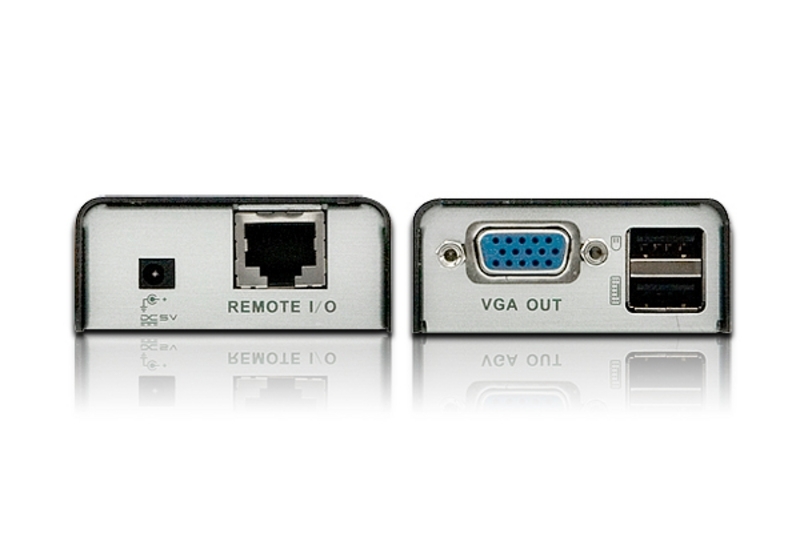

Console Ports	N/A	2 x USB Type A Female (White) 1 x HDB-15 Female (Blue)

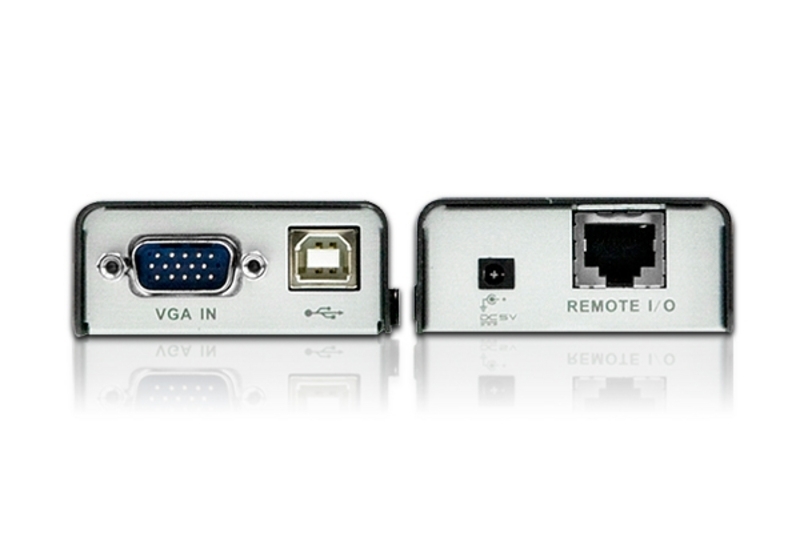

KVM Ports	1 x USB Type B Female (White) 1 x HDB-15 Male (Blue)	N/A
Power	1 x DC Jack	1 x DC Jack
Unit To Unit	1 x RJ-45 Female (Black)	1 x RJ-45 Female (Black)
Switches	N/A	1 x Knob
LEDs
Link	1 (Blue)	1 (Blue)
Power	1 (Green)	1 (Green)
Video	1920 x 1200 @ 60 Hz (30 m); 1280 x 1024 @ 60 Hz (100 m)	1920 x 1200 @ 60 Hz (30 m); 1280 x 1024 @ 60 Hz (100 m)
Power Consumption	DC5V:0.68W:7BTU	DC5V:0.99W:9BTU
Environmental
Operating Temperature	0–50°C	0–50°C
Storage Temperature	-20–60°C	-20–60°C
Humidity	0–80% RH, Non-condensing	0–80% RH, Non-condensing
Physical Properties
Housing	Metal	Metal
Weight	0.17 kg ( 0.37 lb )	0.17 kg ( 0.37 lb )
Dimensions (L x W x H)	9.10 x 5.74 x 2.40 cm (3.58 x 2.26 x 0.94 in.)	9.10 x 5.74 x 2.40 cm (3.58 x 2.26 x 0.94 in.)
Note	For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.

(CE100-AT-U)

Connectors
Console Ports	N/A	2 x USB Type A Female (White) 1 x HDB-15 Female (Blue)
KVM Ports	1 x USB Type B Female (White) 1 x HDB-15 Male (Blue)	N/A
Power	1 x DC Jack	1 x DC Jack
Unit To Unit	1 x RJ-45 Female (Black)	1 x RJ-45 Female (Black)
Switches	N/A	1 x Knob
LEDs
Link	1 (Blue)	1 (Blue)
Power	1 (Green)	1 (Green)
Video	1920 x 1200 @ 60 Hz (30 m); 1280 x 1024 @ 60 Hz (100 m)	1920 x 1200 @ 60 Hz (30 m); 1280 x 1024 @ 60 Hz (100 m)
Power Consumption	DC5V:0.68W:7BTU	DC5V:0.99W:9BTU
Environmental
Operating Temperature	0–50°C	0–50°C
Storage Temperature	-20–60°C	-20–60°C
Humidity	0–80% RH, Non-condensing	0–80% RH, Non-condensing
Physical Properties
Housing	Metal	Metal
Weight	0.17 kg ( 0.37 lb )	0.17 kg ( 0.37 lb )
Dimensions (L x W x H)	9.10 x 5.74 x 2.40 cm (3.58 x 2.26 x 0.94 in.)	9.10 x 5.74 x 2.40 cm (3.58 x 2.26 x 0.94 in.)
Note	For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.

SKU	CE100-AT-U
Barcode #	672792002960
Brand	ATEN
Shipping Weight	0.7800kg
Shipping Cubic	0.000780000m3

Manufacturer Warranty: 12 Months Limited Warranty
