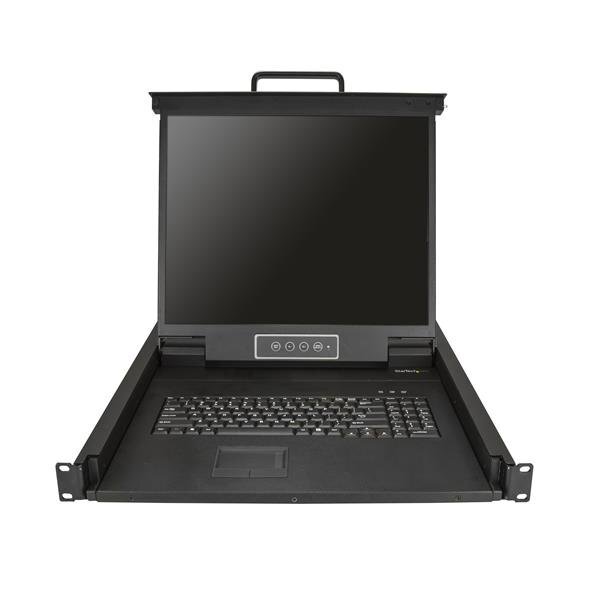

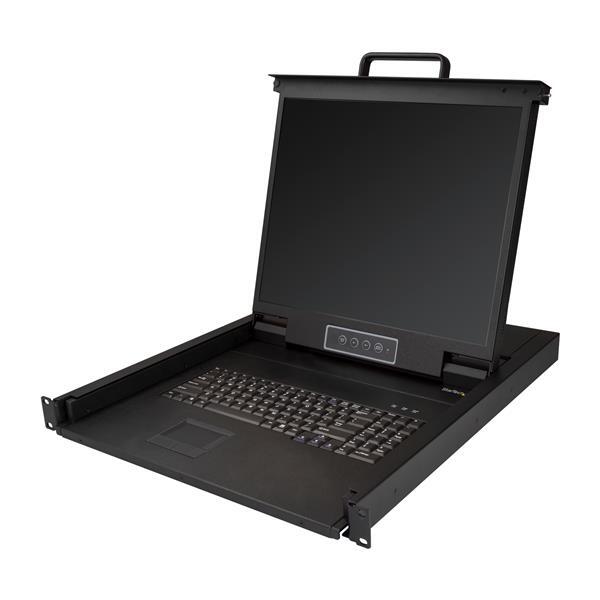

StarTech.com RKCONS1901

1U 19-inch VGA KVM console

A 1U rackmount console with a 19-inch Active Matrix TFT LCD, QWERTY keyboard and touchpad for controlling one VGA/USB system directly or multiple servers through a separate KVM switch.

19-inch TFT LCD1280 x 10241U rackmount2-year warranty

StarTech RKCONS1901 1U 19-inch VGA KVM console

Key capabilities

Larger 19-inch console display

Provides a 19-inch Active Matrix TFT LCD with resolutions up to 1280 x 1024.

Single-port VGA/USB

Connects directly to one compatible computer or server and can work with a separate KVM switch for broader access.

50,000-hour MTBF

The exact product specification lists a 50,000-hour MTBF.

Complete rack installation kit

Includes one KVM cable, variable-length mounting rails, M5 rack hardware and regional power cords including ANZ.

What to know before buying

This model has one direct KVM port. A separate compatible KVM switch is required for multiple-server control. Check the 19.7 to 30.7-inch (50 to 78 cm) rack mounting depth range before installation.

Australian version and manufacturer warranty

This item is the Australian version supplied by DeviceDeal and is covered by the official StarTech.com 2-year manufacturer warranty in Australia.

Please retain your DeviceDeal tax invoice as proof of purchase. Warranty coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.

Frequently asked questions

What is the StarTech RKCONS1901?

It is a 1U rackmount KVM console with an integrated 19-inch LCD, QWERTY keyboard and touchpad for controlling compatible VGA/USB systems.

What maximum display resolution is supported?

It supports resolutions up to 1280 x 1024.

How much rack space does the console use?

It installs in 1U of rack space.

Which computer interfaces does it use?

It uses VGA for video and USB for the computer interface.

Does it include the rack mounting hardware?

Yes. Mounting rails plus M5 cage nuts and screws are included.

What is included for server connections?

One KVM cable is included for the direct server or KVM-switch connection.

Can it control multiple servers?

Yes, but multiple-server control requires a separate compatible KVM switch because the console itself has one KVM port.

What warranty applies to the StarTech RKCONS1901 in Australia?

The Australian version supplied by DeviceDeal is covered by the official StarTech.com 2-year manufacturer warranty in Australia, subject to StarTech.com terms and product assessment.

(RKCONS1901)

Features and highlights

Larger 19-inch console display

Provides a 19-inch Active Matrix TFT LCD with resolutions up to 1280 x 1024.

Single-port VGA/USB

Connects directly to one compatible computer or server and can work with a separate KVM switch for broader access.

50,000-hour MTBF

The exact product specification lists a 50,000-hour MTBF.

Complete rack installation kit

Includes one KVM cable, variable-length mounting rails, M5 rack hardware and regional power cords including ANZ.

19-inch TFT LCD
1280 x 1024
1U rackmount
2-year warranty

Warranty confidence: Official StarTech.com 2-year manufacturer warranty in Australia, subject to StarTech.com warranty terms and assessment.

Specifications

Verified specifications for StarTech RKCONS1901.

Hardware

Warranty	2 Years
Audio	No
Cables included	Yes
Daisy-chain	Yes
Display size	19 in
KVM ports	1
Monitors supported	1
Panel type	Active Matrix TFT LCD
PC interface	USB
PC video type	VGA
Rack-mountable	Yes
U height	1U

Display and Performance

Brightness	250 cd/m²
Colour depth	8-bit, 16.7M colours
Contrast ratio	1000:1
IP control	No
Maximum analog resolution	1280 x 1024
Maximum users	1
MTBF	50,000 hours
Pixel pitch	0.264 x 0.264 mm
Supported resolutions	1024 x 768; 1280 x 720; 1280 x 1024; lower resolutions also supported

Connectors and Indicators

Console interface	1 × VGA (15-pin High Density D-Sub) female input
LED indicator	1 × Power / Status LED

Power and Environmental

Power consumption	17W
Operating temperature	0°C to 40°C (32°F to 104°F)
Storage temperature	-20°C to 60°C (-4°F to 140°F)
Humidity	10 - 80% RH

Physical Characteristics

Minimum mounting depth	19.7 in [50 cm]
Maximum mounting depth	30.7 in [78 cm]
Product height	1.7 in [4.3 cm]
Product length	21 in [53.3 cm]
Product width	19 in [48.3 cm]
Weight of product	27 lb [12.2 kg]

Packaging and In the Box

Package height	7.5 in [19 cm]
Package length	30.1 in [76.5 cm]
Package width	24.2 in [61.5 cm]
Shipping weight	35.4 lb [16 kg]
KVM console	1
KVM cable	1
M5 cage nuts	8
M5 screws	8
Regional power cords	5 - NA, JP, UK, EU, ANZ
Variable-length mounting rails	2
Quick-start guide	1

SKU	RKCONS1901
Barcode #	65030872492
Brand	STARTECH
Shipping Weight	19.1000kg
Shipping Width	0.620m
Shipping Height	0.180m
Shipping Length	0.770m
Shipping Cubic	0.085932000m3

2-year official manufacturer warranty

StarTech.com warranty in Australia

This item is the Australian version supplied by DeviceDeal and is covered by the official StarTech.com 2-year manufacturer warranty in Australia.

Please retain your DeviceDeal tax invoice as proof of purchase.

Warranty coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment. This wording does not promise automatic replacement or guaranteed claim approval.
