ATEN SKU KA7570-AX

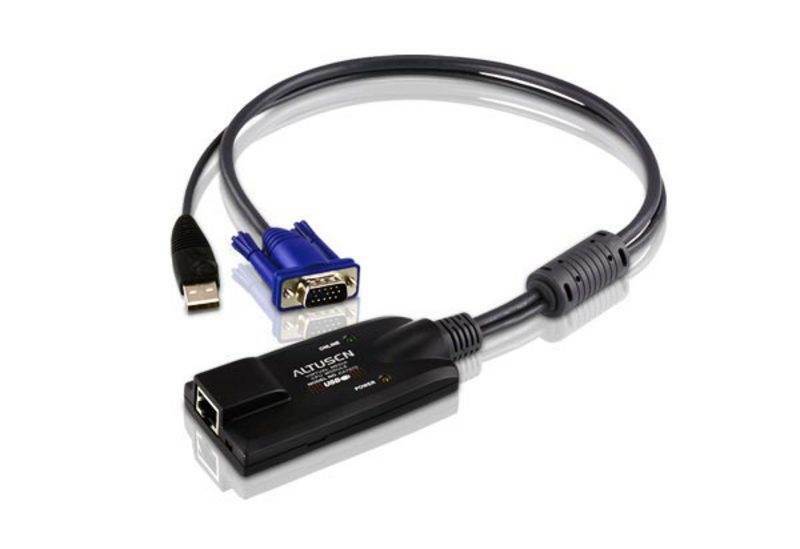

ATEN KA7570-AX USB VGA KVM Adapter Cable

The ATEN KA7570-AX connects a compatible KVM switch to a target computer through USB keyboard-and-mouse control and VGA video.

Keyboard and mouse emulation, hot-plug support and video up to 1920 x 1200 reduced blanking are packaged in a compact adapter with RJ-45 link connectivity.

USB and VGAUp to 1920 x 1200Hot pluggable12-month warrantyDeviceDeal authorised ATEN reseller

ATEN KA7570-AX USB VGA KVM Adapter Cable

Product overview

USB and VGA computer side

The supplied connector table lists one USB Type-A male and one HDB-15 male connector.

Up to 1920 x 1200

The source lists reduced-blanking video up to 1920 x 1200, dependent on transmission distance and the connected KVM switch.

Hot-plug operation

Computers can be added or removed without powering down the KVM switch, as stated in the source.

Source review: The description lists a 0.14kg weight, while the structured specification lists 0.15kg. The structured value is used below and the source difference is retained for review.

Frequently asked questions

Which computer interfaces does the KA7570-AX use?

The source lists USB Type-A and HDB-15 VGA male connectors.

What maximum resolution is listed?

The source lists up to 1920 x 1200 reduced blanking, subject to transmission distance.

Is the adapter hot pluggable?

Yes. The supplied description states that computers can be added or removed without powering down the switch.

What is included?

The source lists the KA7570 adapter, a rack-mount kit and a rack-mounting guide.

What warranty is supplied?

The source lists a 12-month limited ATEN manufacturer warranty.

(KA7570-AX)

Features

ATEN KA7570-AX USB VGA KVM Adapter Cable

Computer connection

1 x USB Type-A male
1 x HDB-15 male
1 x RJ-45 female link

Video and control

Up to 1920 x 1200 reduced blanking
Keyboard and mouse emulation
Distance-dependent maximum resolution

Deployment

Hot pluggable
Lifetime firmware upgrades stated
Rack-mount kit included
Compact plastic housing

Confirm the compatible KVM switch, transmission distance and required rack-mount position before purchase.

Technical specifications

ATEN KA7570-AX USB VGA KVM Adapter Cable

Product details
Brand	ATEN
Model / SKU	KA7570-AX
Product type	USB VGA KVM adapter cable
Connections and indicators
Link	1 x RJ-45 female
Computer	1 x USB Type-A male; 1 x HDB-15 male
Online LED	1 green
Power LED	1 orange
Video
Maximum stated	Up to 1920 x 1200 reduced blanking
Distance note	Maximum may vary with transmission distance and connected KVM switch
Environment and physical
Operating temperature	050°C
Storage temperature	-2060°C
Housing	Plastic
Weight	0.15kg structured source; 0.14kg description
Dimensions (L x W x H)	9.00 x 4.30 x 2.18cm
Package contents
Included	KA7570 adapter cable; rack-mount kit; rack-mounting guide

SKU	KA7570-AX
Barcode #	672792400421
Brand	Aten
Shipping Weight	0.6300kg
Shipping Width	0.215m
Shipping Height	0.095m
Shipping Length	0.260m
Shipping Cubic	0.005311000m3

Warranty information

ATEN KA7570-AX USB VGA KVM Adapter Cable

12-Month Limited ATEN Manufacturer Warranty

DeviceDeal is an authorised ATEN reseller. This product is covered by a 12-month limited ATEN manufacturer warranty in Australia, as listed in the supplied product information.
