ATEN CE920-AT-U DisplayPort HDBaseT 2.0 KVM Extender

The ATEN CE920-AT-U extends DisplayPort video, USB, stereo audio, Ethernet and RS-232 using HDBaseT 2.0 over a single Cat cable.

The source lists 4K up to 90m on Cat 5e or 100m on Cat 6/6a/ATEN 2L-2910, 1080p at 100m and long-reach Full HD operation up to 150m.

4K up to 100mDisplayPort and USBEthernet and RS-2321-year warrantyDeviceDeal authorised ATEN reseller

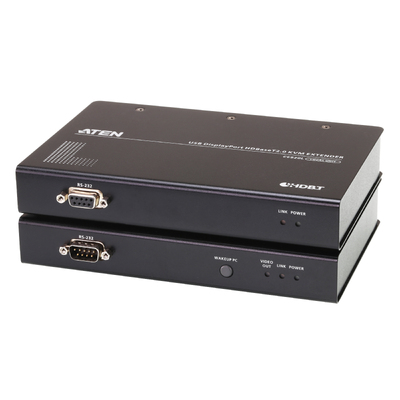

ATEN CE920-AT-U DisplayPort HDBaseT 2.0 KVM Extender shown in the supplied second product image

Product overview

DisplayPort 4K extension

The source lists up to 4096 x 2160 / 3840 x 2160 at 30Hz 4:4:4.

HDBaseT 2.0 distance

4K is listed up to 90m on Cat 5e and 100m on Cat 6/6a or ATEN 2L-2910 Cat 6.

CE920-AT Ethernet support

The product-specific note states that CE920-AT supports Ethernet extension.

Source review: DisplayPort v1.1 is listed with support up to 4K x 2K at 30Hz. Confirm display format, cable category and distance together before installation.

Frequently asked questions

How far can the CE920-AT-U extend 4K DisplayPort video?

The source lists 4K up to 90m on Cat 5e or 100m on Cat 6/6a/ATEN 2L-2910 Cat 6.

Does this CE920-AT variant support Ethernet?

Yes. The product-specific note states that CE920-AT supports Ethernet.

What maximum 4K format is listed?

The source lists 4096 x 2160 or 3840 x 2160 at 30Hz with 4:4:4 colour sampling.

What is included?

The source lists local and remote units, DisplayPort, USB, microphone and speaker cables, two mounting kits, two power adapters and user instructions.

What warranty is supplied?

The source lists a one-year ATEN manufacturer warranty.

(CE920-AT-U)

Features

ATEN CE920-AT-U DisplayPort HDBaseT 2.0 KVM Extender

Video and distance

DisplayPort 4K up to 90m on Cat 5e
4K up to 100m on Cat 6/6a/2L-2910
1080p at 100m
Long-reach Full HD up to 150m

Signals

DisplayPort video
USB
Stereo speaker and microphone
Ethernet extension
RS-232

Installation

HDBaseT 2.0
Single Cat cable
Metal housing
Mounting kits included
Wake-up pushbutton

Confirm the cable category and display refresh-rate requirement; the supplied DisplayPort v1.1 specification is limited to 4K at 30Hz.

Technical specifications

ATEN CE920-AT-U DisplayPort HDBaseT 2.0 KVM Extender

Product details
Brand	ATEN
Model / SKU	CE920-AT-U
Product type	USB DisplayPort HDBaseT 2.0 KVM extender
Units	CE920L local; CE920R remote
Ethernet function	Supported on CE920-AT
Video and extension
4K distance	90m on Cat 5e; 100m on Cat 6/6a/ATEN 2L-2910 Cat 6
1080p distance	100m on Cat 5e/6/6a
Long-reach statement	Full HD 1080p up to 150m
4K format	4096 x 2160 / 3840 x 2160 @ 30Hz 4:4:4
DisplayPort version note	DisplayPort v1.1; up to 4K x 2K @ 30Hz
Connections

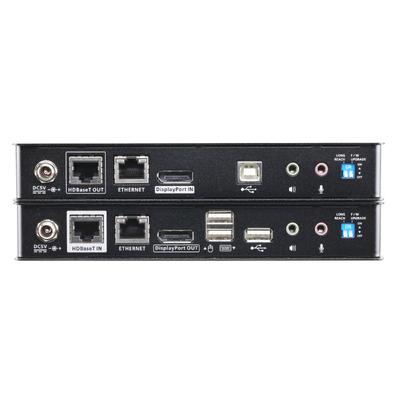

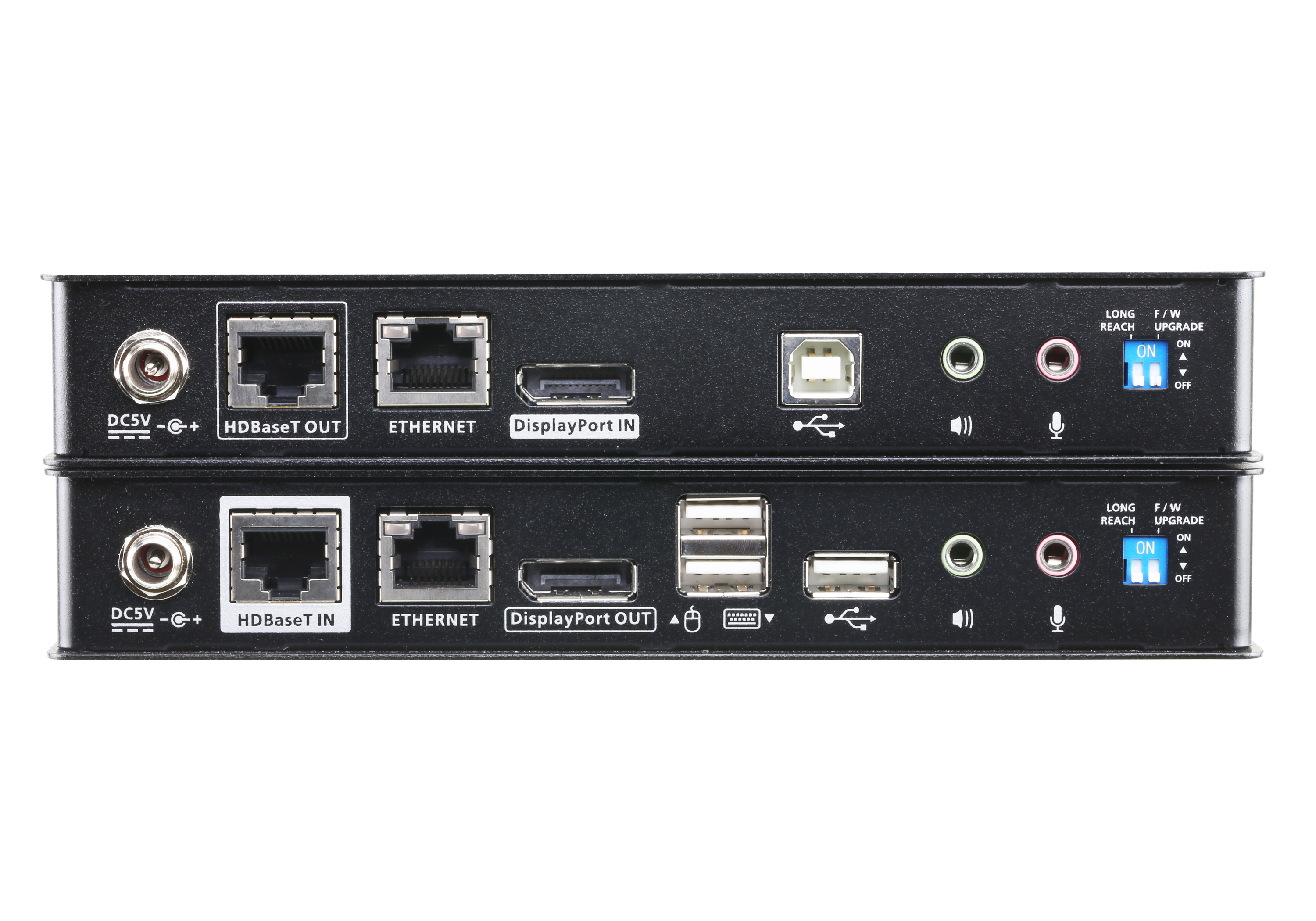

Local KVM ports	DisplayPort female; USB Type-B female; speaker and microphone jacks; RJ-45 Ethernet
Remote console	DisplayPort female; 3 x USB Type-A female; speaker and microphone jacks; RJ-45 Ethernet

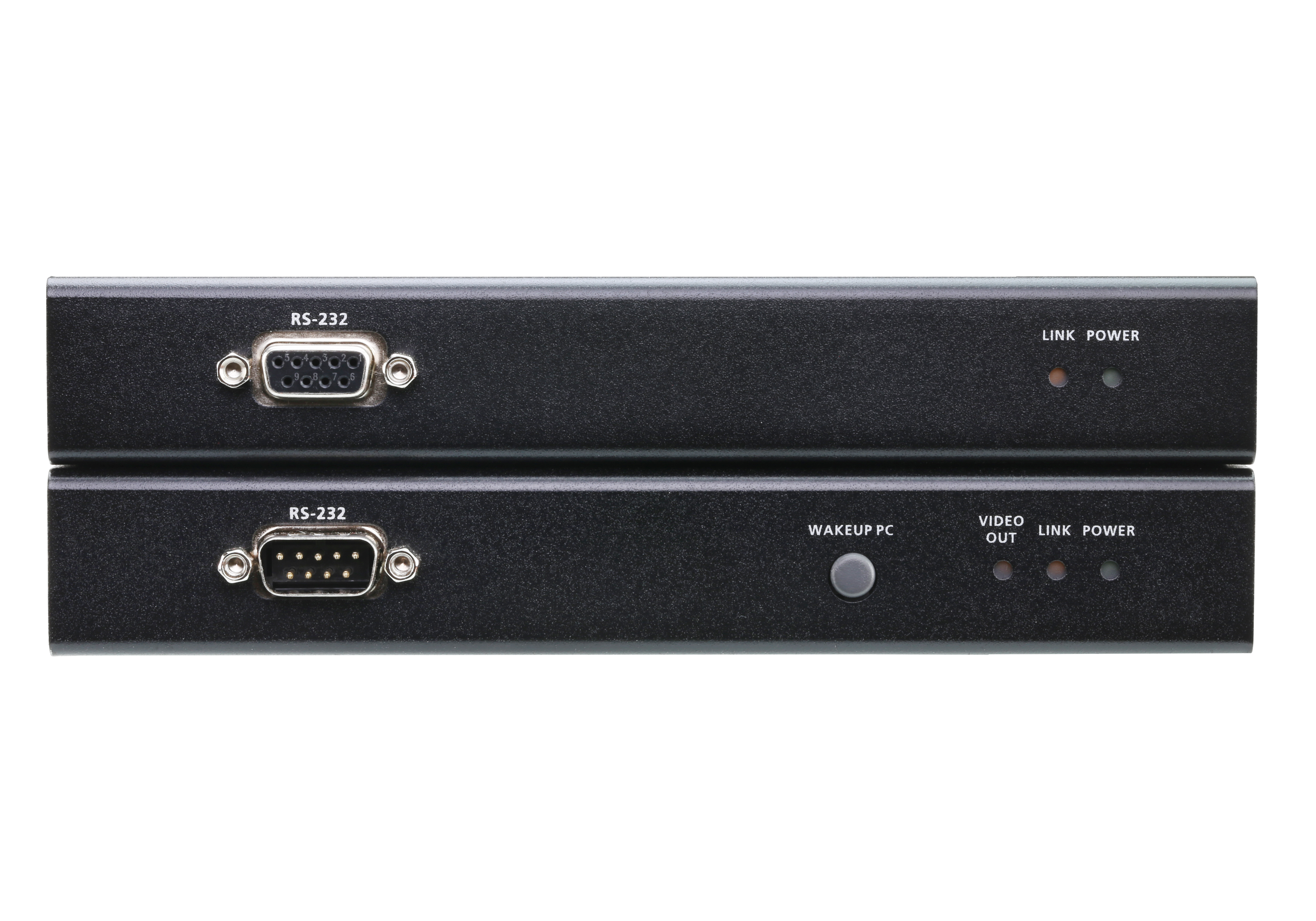

RS-232	DB-9 female local; DB-9 male remote
Unit-to-unit	1 x RJ-45 female on each unit
Power	Locking DC jack on each unit
Power and environment
Local power consumption	DC 5V; 3.99W; 19BTU
Remote power consumption	DC 5V; 6.74W; 47BTU
Operating temperature	040°C
Storage temperature	-2060°C
Humidity	080% RH, non-condensing
Physical properties
Housing	Metal
Local weight	0.63kg
Remote weight	0.64kg
Dimensions per unit (L x W x H)	18.20 x 12.19 x 2.87cm
Package contents
Included	CE920L local; CE920R remote; microphone cable; speaker cable; USB Type-A to Type-B cable; DisplayPort cable; 2 mounting kits; 2 power adapters; user instructions

SKU	CE920-AT-U
Barcode #	4719264646775
Brand	ATEN
Shipping Weight	2.1800kg

Warranty information

ATEN CE920-AT-U DisplayPort HDBaseT 2.0 KVM Extender

1-Year ATEN Manufacturer Warranty

DeviceDeal is an authorised ATEN reseller. This product is covered by a one-year ATEN manufacturer warranty in Australia, as listed in the supplied product information.
