CL1000N-ATA-AU

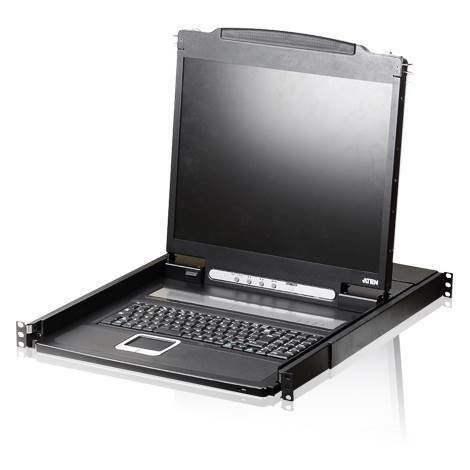

ATEN CL-1000NA Rackmount USB-PS/2 VGA Single Rail Slideaway 19" LCD KVM Console

The CL1000 is a LCD KVM console that serves as the front-end for standard KVM switches. The CL1000 features an integrated 17" or 19” LED-backlit LCD panel, full keyboard, and touchpad in a 1U, rack-mountable, Slideaway™ housing.

Users who already have a switch can take advantage of the space saving and efficiency benefits of the CL1000 LCD KVM console without the unnecessary expense of having to purchase a KVM switch. This model provides convenient ‘at the rack’ console access to KVM switches already installed at your site.

(CL1000N-ATA-AU)

Computer Connections
Direct 1 1
Connectors
KVM Ports 1 x SPHD Female (Yellow) 1 x SPHD Female (Yellow)
Power 1 x IEC 60320/C14 1 x IEC 60320/C14
Switches
Reset 1 x Semi-recessed Pushbutton 1 x Semi-recessed Pushbutton
Power 1 x Rocker Switch N/A
LCD Control 4 x Pushbutton 4 x Pushbutton
LCD Power N/A 1 x LED Pushbutton
LEDs
Power 1 x KVM Console (Dark Green)
1 x LCD (Orange)
1 x KVM Console (Dark Green)
1 x LCD (Orange)
Lock 1 x Num Lock (Green)
1 x Caps Lock (Green)
1 x Scroll Lock (Green)
1 x Num Lock (Green)
1 x Caps Lock (Green)
1 x Scroll Lock (Green)

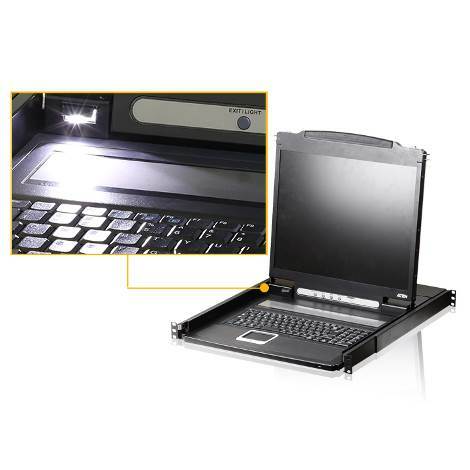

LED Illumination Light 1 x LED Illumination Light 1 x LED Illumination Light
Panel Spec
LCD Module 17" TFT-LCD 19" TFT-LCD
Resolution 1280 x 1024 @ 75 Hz 1280 x 1024 @ 75 Hz
Response time 5 ms 5 ms
Viewing Angle 170° (H), 160° (V) 170° (H), 160° (V)
Pixel Pitch 0.264 mm x 0.264 mm 0.294 mm x 0.294 mm
Support Color 16.7M colors 16.7M colors
Contrast Ratio 1000:1 1000:1
Luminance 250 cd/m² 250 cd/m²
Video
Input Video Resolution up to 1920 x 1200 @ 60Hz;
1280 x 1024 @ 75 Hz, DDC2B
up to 1920 x 1200 @ 60Hz;
1280 x 1024 @ 75 Hz, DDC2B
Emulation
Keyboard / Mouse PS/2, USB(via 2L-520xUP cables) PS/2, USB(via 2L-520xUP cables)
Maximum Input Power Rating 100-240 VAC; 50-60 Hz; 1A 100-240 VAC; 50-60 Hz; 1A
Power Consumption AC110V:19.6W:92BTU
AC220V:21.3W:100BTU
AC110V:29.2W:137BTU
AC220V:29.3W:137BTU
Environmental
Operating Temperature 0-50˚C 0-50˚C
Storage Temperature -20-60˚C -20-60˚C
Humidity 0-80% RH, Non-condensing 0-80% RH, Non-condensing
Physical Properties
Housing Metal+Plastic Metal+Plastic
Rail Type Single Rail Single Rail
Weight 12.02 kg ( 26.48 lb ) 11.06 kg ( 24.36 lb )
Dimensions (L x W x H) 48.00 x 53.83 x 4.40 cm
(18.9 x 21.19 x 1.73 in.)
48.30 x 58.52 x 4.40 cm
(19.02 x 23.04 x 1.73 in.)
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
SKU CL1000N-ATA-AU
Barcode # 672792005886
Brand Aten
Shipping Weight 15.0100kg
Shipping Width 0.660m
Shipping Height 0.140m
Shipping Length 0.720m
Shipping Cubic 0.066528000m3

Manufacturer Warranty: 3 Years Limited Warranty
