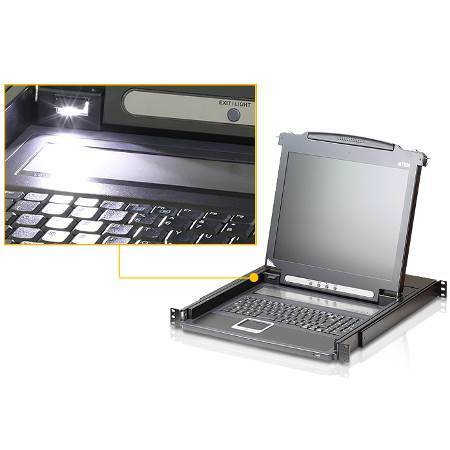

1U integrated console
The LCD, keyboard and touchpad slide into a housing designed for a 1U rack position.
ATEN CL1000 1U Rackmount PS/2 VGA 17" LCD Console
Model # CL1000M-ATA-AU
-
SKU: CL1000M-ATA-AU
- Pick Up Available
- Australian Warranty
- Checkout Securely
ATEN SKU CL1000M-ATA-AU
ATEN CL1000M-ATA-AU 17-inch 1U Rackmount LCD Console

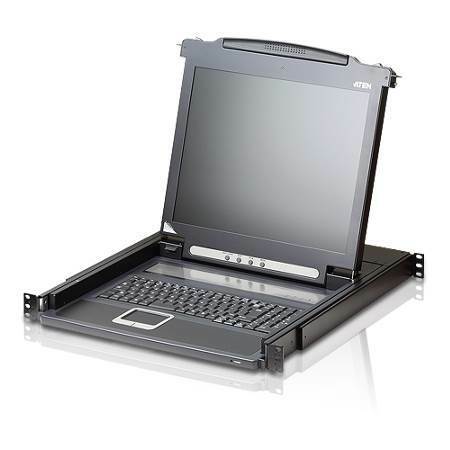

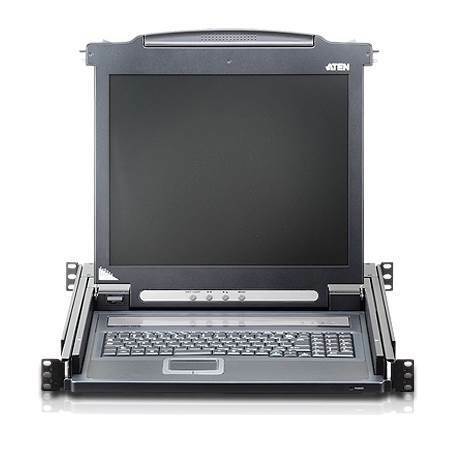

The ATEN CL1000M-ATA-AU integrates a 17-inch TFT LCD, keyboard and touchpad into a single-rail Slideaway housing for a 1U rack.
The supplied source lists a 1280 x 1024 at 75Hz panel, VGA input up to 1920 x 1200 at 60Hz, PS/2 connectivity with USB via compatible 2L-520xUP cables, an internal power supply and adjustable rack depth.
17-inch TFT LCD1U Slideaway consolePS/2 and VGA2-year warrantyDeviceDeal authorised ATEN reseller
Product overview
17-inch 1280 x 1024 panel
The relevant 17-inch source column lists 1280 x 1024 at 75Hz, 5ms response time and 170° horizontal / 160° vertical viewing angles.
PS/2 with optional USB cabling
The source lists PS/2 keyboard/mouse emulation and USB support through compatible 2L-520xUP cables.
Source review: The supplied specification table includes values for both 17-inch and 19-inch variants. This page uses the 17-inch CL1000M values and excludes the companion 19-inch column from the customer-facing specifications.
Frequently asked questions
What screen size is supplied with the CL1000M-ATA-AU?
The supplied product name and relevant specification column identify a 17-inch TFT LCD.
How much rack space does the console use?
The source describes a Slideaway housing for a 1U rack position.
Can it connect to USB KVM equipment?
The source lists USB keyboard/mouse support through compatible 2L-520xUP cables, in addition to PS/2.
What input video resolution is listed?
The source lists input video up to 1920 x 1200 at 60Hz, with the LCD panel operating at 1280 x 1024 at 75Hz.
What warranty is supplied?
The source lists a two-year limited ATEN manufacturer warranty.
(CL1000M-ATA-AU)
Features
ATEN CL1000M-ATA-AU 17-inch 1U Rackmount LCD Console
Console
- 17-inch TFT LCD
- Integrated keyboard and touchpad
- Slideaway single-rail housing
- LCD rotates up to 115°
Video and control
- Panel: 1280 x 1024 @ 75Hz
- Input video up to 1920 x 1200 @ 60Hz
- DDC, DDC2 and DDC2B
- PS/2; USB through 2L-520xUP cables
Rack installation
- 1U
- Adjustable rack depth
- Internal power supply
- Single-person installation option
- Metal and plastic housing
Confirm the rack-depth requirement, target KVM switch and required PS/2 or 2L-520xUP USB cable before purchase.
Technical specifications
ATEN CL1000M-ATA-AU 17-inch 1U Rackmount LCD Console
| Product details | |
|---|---|
| Brand | ATEN |
| Model / SKU | CL1000M-ATA-AU |
| Product type | 1U rackmount LCD console |
| Rail type | Single rail |
| Computer connections | 1 direct |
| Display | |
| LCD module | 17-inch TFT LCD |
| Panel resolution | 1280 x 1024 @ 75Hz |
| Response time | 5ms |
| Viewing angle | 170° horizontal; 160° vertical |
| Pixel pitch | 0.264 x 0.264mm |
| Colours | 16.7 million |
| Contrast ratio | 1000:1 |
| Luminance | 250cd/m² |
| Input video | Up to 1920 x 1200 @ 60Hz; 1280 x 1024 @ 75Hz DDC2B |
| Connections and power | |
| KVM port | 1 x SPHD female |
| Power input | 1 x IEC 60320 C14 |
| Keyboard / mouse emulation | PS/2; USB via 2L-520xUP cables |
| Maximum input power rating | 100240V AC; 5060Hz; 1A |
| Power consumption | AC 110V: 19.6W / 92BTU; AC 220V: 21.3W / 100BTU |
| Environment | |
| Operating temperature | 050°C |
| Storage temperature | -2060°C |
| Humidity | 080% RH, non-condensing |
| Physical properties | |
| Housing | Metal and plastic |
| Weight | 12.02kg |
| Dimensions (L x W x H) | 48.00 x 53.83 x 4.40cm |
| Platform and language support | |
| Platforms stated | Windows 2000/XP/Vista; Linux; FreeBSD |
| Keyboard languages stated | English US/UK; German; German Swiss; French; Spanish; Traditional Chinese; Japanese; Korean; Swedish; Italian; Russian; Hungarian |
| SKU | CL1000M-ATA-AU |
| Barcode # | 672792005817 |
| Brand | Aten |
| Shipping Weight | 14.5400kg |
| Shipping Width | 0.620m |
| Shipping Height | 0.140m |
| Shipping Length | 0.660m |
| Shipping Cubic | 0.057288000m3 |
Warranty information
ATEN CL1000M-ATA-AU 17-inch 1U Rackmount LCD Console
2-Year Limited ATEN Manufacturer Warranty
DeviceDeal is an authorised ATEN reseller. This product is covered by a two-year limited ATEN manufacturer warranty in Australia, as listed in the supplied product information.
