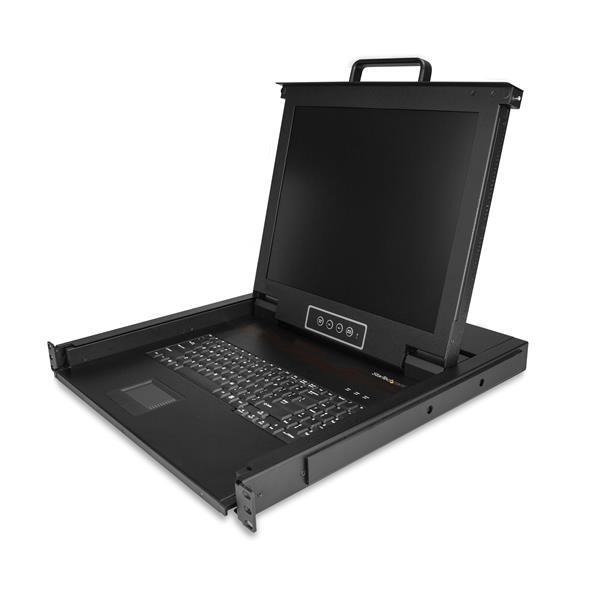

StarTech.com RKCONS1701

1U 17-inch single-port VGA KVM console

A space-efficient 1U rack console with a 17-inch Active Matrix TFT LCD, QWERTY keyboard and touchpad for controlling one VGA/USB server directly or multiple systems through a separate KVM switch.

17-inch TFT LCD1280 x 10241U rackmount2-year warranty

StarTech RKCONS1701 1U 17-inch single-port VGA KVM console

Key capabilities

Integrated console controls

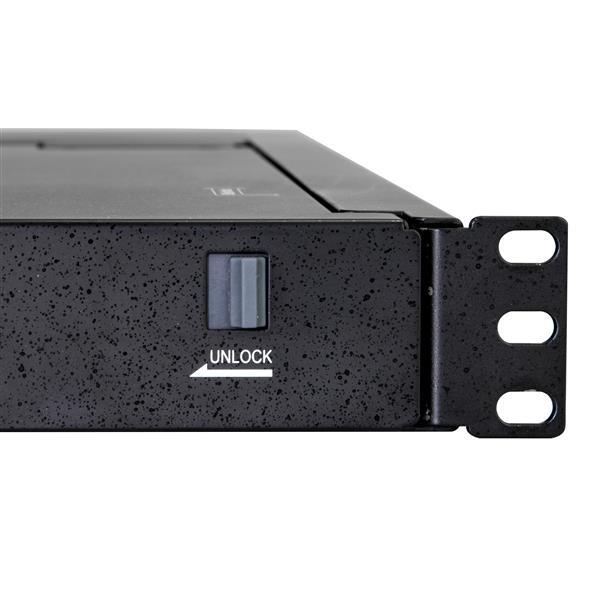

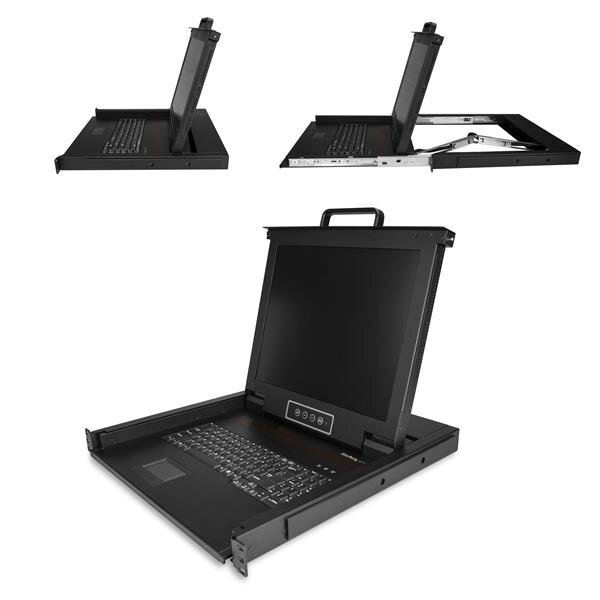

Combines a 17-inch LCD, QWERTY keyboard and touchpad in a sliding 1U rack drawer.

1280 x 1024 resolution

Supports analog VGA resolutions up to 1280 x 1024 at 60Hz.

Single-port VGA/USB

Connects directly to one compatible computer or server, or to a separate KVM switch for broader system access.

Installation kit included

Includes one KVM cable, two mounting rails, M5 cage nuts and screws, plus regional power cords including ANZ.

What to know before buying

This model has one direct KVM port. To control multiple servers from the console, connect it through a compatible separate KVM switch. Check the rack mounting depth range of 17.7 to 31.1 inches (45 to 79 cm).

Australian version and manufacturer warranty

This item is the Australian version supplied by DeviceDeal and is covered by the official StarTech.com 2-year manufacturer warranty in Australia.

Please retain your DeviceDeal tax invoice as proof of purchase. Warranty coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.

Frequently asked questions

What is the StarTech RKCONS1701?

It is a 1U rackmount KVM console with an integrated 17-inch LCD, QWERTY keyboard and touchpad for controlling compatible VGA/USB systems.

What maximum display resolution is supported?

It supports resolutions up to 1280 x 1024 at 60Hz.

How much rack space does the console use?

It installs in 1U of rack space.

Which computer interfaces does it use?

It uses VGA for video and USB for the computer interface.

Does it include the rack mounting hardware?

Yes. Mounting rails plus M5 cage nuts and screws are included.

What is included for server connections?

One KVM cable is included for the direct server or KVM-switch connection.

Can it control multiple servers?

Yes, but multiple-server control requires a separate compatible KVM switch because the console itself has one KVM port.

What warranty applies to the StarTech RKCONS1701 in Australia?

The Australian version supplied by DeviceDeal is covered by the official StarTech.com 2-year manufacturer warranty in Australia, subject to StarTech.com terms and product assessment.

(RKCONS1701)

Features and highlights

Integrated console controls

Combines a 17-inch LCD, QWERTY keyboard and touchpad in a sliding 1U rack drawer.

1280 x 1024 resolution

Supports analog VGA resolutions up to 1280 x 1024 at 60Hz.

Single-port VGA/USB

Connects directly to one compatible computer or server, or to a separate KVM switch for broader system access.

Installation kit included

Includes one KVM cable, two mounting rails, M5 cage nuts and screws, plus regional power cords including ANZ.

17-inch TFT LCD
1280 x 1024
1U rackmount
2-year warranty

Warranty confidence: Official StarTech.com 2-year manufacturer warranty in Australia, subject to StarTech.com warranty terms and assessment.

Specifications

Verified specifications for StarTech RKCONS1701.

Hardware

Warranty	2 Years
Audio	No
Cables included	Yes
Daisy-chain	No
Display size	17 in
KVM ports	1
Monitors supported	1
Panel type	Active Matrix TFT LCD
PC interface	USB
PC video type	VGA
Rack-mountable	Yes
U height	1U

Display and Performance

Aspect ratio	5:4
Brightness	250 cd/m²
Colour depth	8-bit, 16.7M colours
Contrast ratio	1000:1
IP control	No
Maximum analog resolution	1280 x 1024
Maximum users	1
MTBF	50,000 hours
Pixel pitch	0.264 x 0.264 mm
Response time	5 ms
Supported resolution	Up to 1280 x 1024 @ 60Hz
Viewing angle	170° horizontal / 160° vertical

Connectors and Indicators

Host connector	1 × VGA (15-pin High Density D-Sub) female input
LED indicator	1 × Power / Status LED

Power and Environmental

Input current	1.5A
Input voltage	100 - 240 AC
Power consumption	13W
Power source	International power cords
Operating temperature	0°C to 40°C (32°F to 104°F)
Storage temperature	-20°C to 60°C (-4°F to 140°F)
Humidity	10 - 80% RH, non-condensing

Physical Characteristics

Cable length	6 ft
Colour	Black
Enclosure type	Steel
Minimum mounting depth	17.7 in [45 cm]
Maximum mounting depth	31.1 in [79 cm]
Product height	1.7 in [4.3 cm]
Product length	18.5 in [47.1 cm]
Product width	17.6 in [44.8 cm]
Weight of product	25.9 lb [11.7 kg]

Packaging and In the Box

Package height	7.5 in [19 cm]
Package length	30.1 in [76.5 cm]
Package width	24.2 in [61.5 cm]
Shipping weight	37.8 lb [17.1 kg]
KVM console	1
KVM cable	1
M5 cage nuts	8
M5 screws	8
Regional power cords	5 - NA, JP, UK, EU, ANZ
Mounting rails	2
Quick-start guide	1

SKU	RKCONS1701
Barcode #	65030872522
Brand	Startech
Shipping Weight	17.8700kg
Shipping Width	0.620m
Shipping Height	0.180m
Shipping Length	0.770m
Shipping Cubic	0.085932000m3
