ATEN SKU KA7120-AX

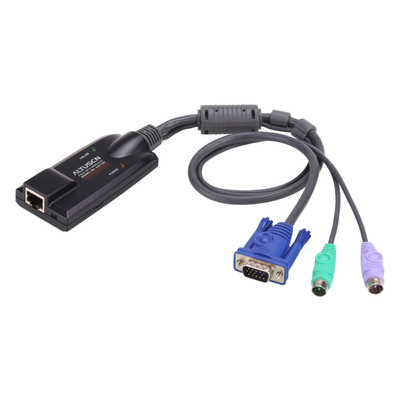

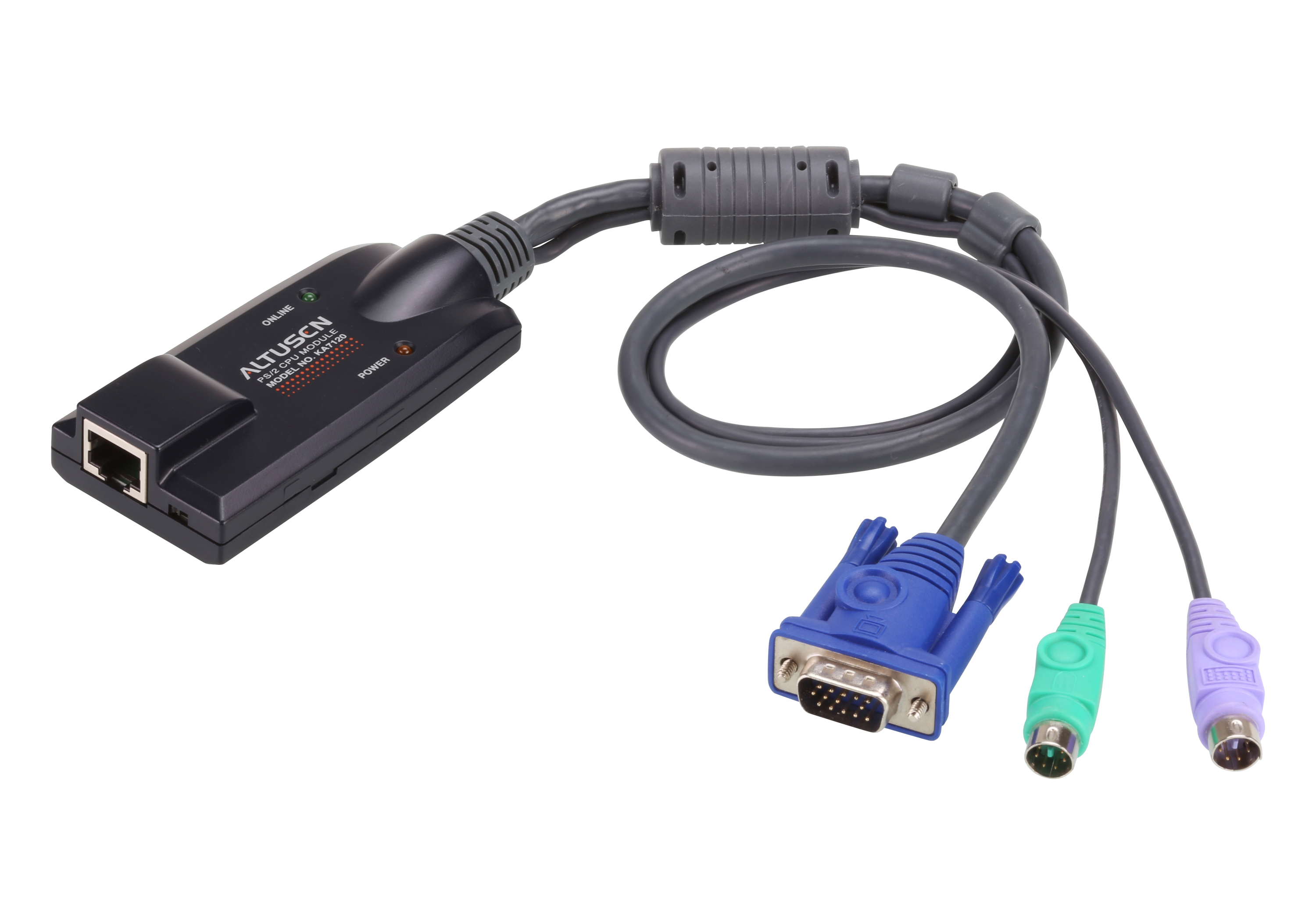

ATEN KA7120-AX PS/2 VGA KVM Adapter Cable

The ATEN KA7120-AX connects a compatible KVM switch to a target computer through PS/2 keyboard, PS/2 mouse and VGA video interfaces.

Auto Signal Compensation, keyboard and mouse emulation and video up to 1920 x 1200 reduced blanking support reliable server access across the listed compatible ATEN KVM platforms.

PS/2 and VGAUp to 1920 x 1200Auto Signal Compensation2-year warrantyDeviceDeal authorised ATEN reseller

ATEN KA7120-AX PS/2 VGA KVM Adapter Cable

Product overview

PS/2 and VGA computer access

The computer side provides two 6-pin Mini-DIN male connectors and one HDB-15 male video connector.

Automatic signal compensation

ASC adjusts for different transmission distances without DIP-switch configuration.

Up to 1920 x 1200

The supplied source lists 1920 x 1200 reduced blanking, with the achievable maximum dependent on transmission distance and the connected KVM switch.

Source review: The product name mentions composite-video support, but the supplied connector table only identifies VGA and PS/2. Confirm the required composite-video arrangement before purchase.

Frequently asked questions

Which computer interfaces does the KA7120-AX use?

The supplied connector table lists two PS/2 Mini-DIN connectors and one HDB-15 VGA connector.

What maximum resolution is listed?

The source lists up to 1920 x 1200 reduced blanking, dependent on transmission distance.

Does it require distance DIP-switch settings?

No. The source lists Auto Signal Compensation without DIP-switch settings.

How does it link to the KVM switch?

The supplied specification lists one RJ-45 female link port.

What warranty is supplied?

The source lists a two-year ATEN manufacturer warranty.

(KA7120-AX)

Features

ATEN KA7120-AX PS/2 VGA KVM Adapter Cable

Computer interfaces

2 x 6-pin Mini-DIN male
1 x HDB-15 male
PS/2 keyboard and mouse emulation

Signal and video

Auto Signal Compensation
Up to 1920 x 1200 reduced blanking
Built-in ASIC
Distance-dependent maximum resolution

Deployment

1 x RJ-45 female link
Lifetime firmware upgrades stated
Compact plastic housing
Windows, Mac and Sun interface conversion stated

Check the exact KVM-switch model and transmission distance against the supplied compatibility list before purchase.

Technical specifications

ATEN KA7120-AX PS/2 VGA KVM Adapter Cable

Product details
Brand	ATEN
Model / SKU	KA7120-AX
Product type	PS/2 VGA KVM adapter cable
Connections and indicators
Link	1 x RJ-45 female
Computer	2 x 6-pin Mini-DIN male; 1 x HDB-15 male
Online LED	1 green
Power LED	1 orange
Video
Maximum stated	Up to 1920 x 1200 reduced blanking
Distance note	Maximum may vary with transmission distance and connected KVM switch
Environment and physical
Operating temperature	050°C
Storage temperature	-2060°C
Housing	Plastic
Weight	0.15kg
Dimensions (L x W x H)	9.00 x 4.30 x 2.18cm
Compatible ATEN products supplied
Models	KH1508A, KH1508Ai, KH1516A, KH1516Ai, KH1532A, KH2508A, KH2516A, KL1108V, KL1116V, KL1508A, KL1508Ai, KL1516A, KL1516Ai, KM0532, KM0932, KN1108VA, KN1116VA, KN1132V, KN2116A, KN2116VA, KN2124VA, KN2132VA, KN2140VA, KN2140v, KN4116VA, KN4124VA, KN4132, KN4132VA, KN4140VA, KN4164V, KN8132V, KN8164V, RCM416, RCM464V, RCM816, KM0032, KN1108v, KN1116v, KN2116v, KN2124v, KN2132, KN2132v, KN4116, KN4116v, KN4124v, KN4132v, KN4140v

SKU	KA7120-AX
Barcode #	4710423775862
Brand	ATEN
Shipping Weight	0.2500kg

Warranty information

ATEN KA7120-AX PS/2 VGA KVM Adapter Cable

2-Year ATEN Manufacturer Warranty

DeviceDeal is an authorised ATEN reseller. This product is covered by a two-year ATEN manufacturer warranty in Australia, as listed in the supplied product information.
