ATEN SKU CL3800NW-ATA-AU

ATEN CL3800NW-ATA-AU 18.5-inch Full HD Dual-Rail Console

The ATEN CL3800NW-ATA-AU is a short-depth dual-rail LCD console with an 18.5-inch Full HD widescreen, integrated keyboard and touchpad for 19-inch equipment cabinets.

HDMI, DVI and VGA inputs provide flexible computer and external-console connections, while front USB mouse access and stereo-audio ports support day-to-day operation.

18.5-inch Full HDHDMI, DVI and VGADual rail12-month warrantyDeviceDeal authorised ATEN reseller

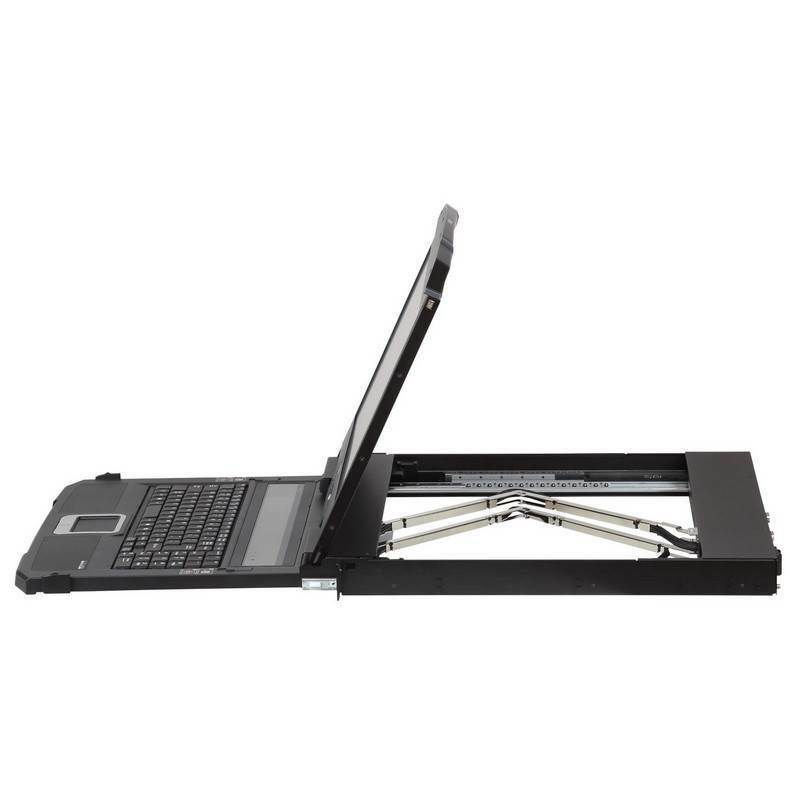

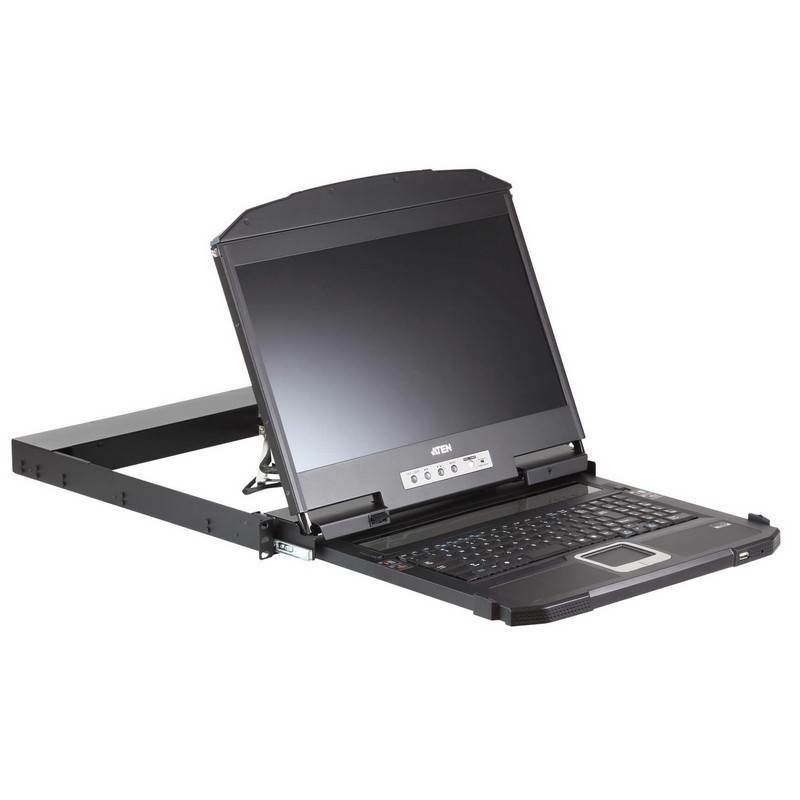

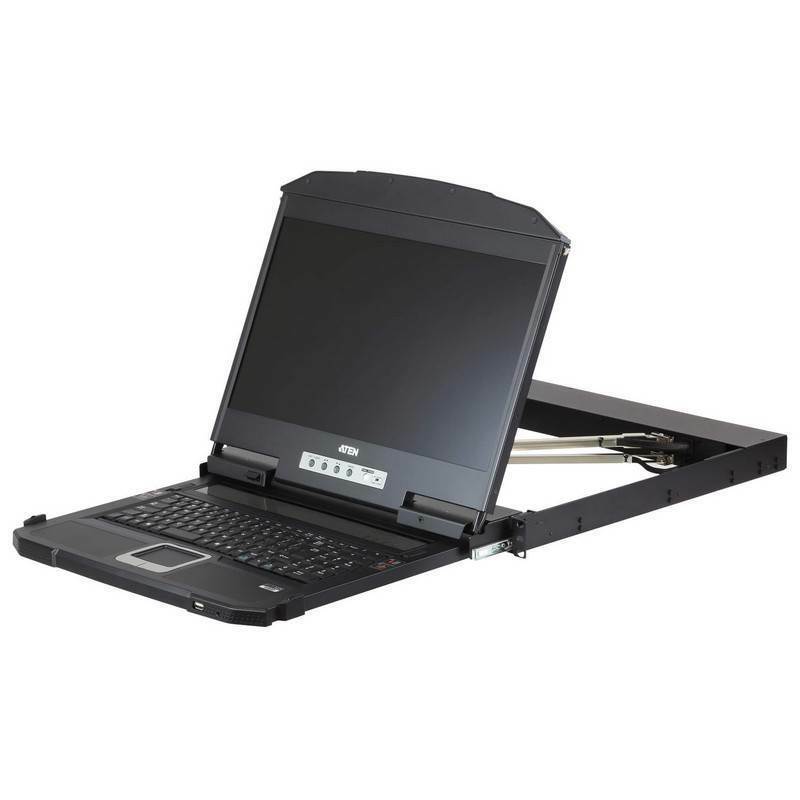

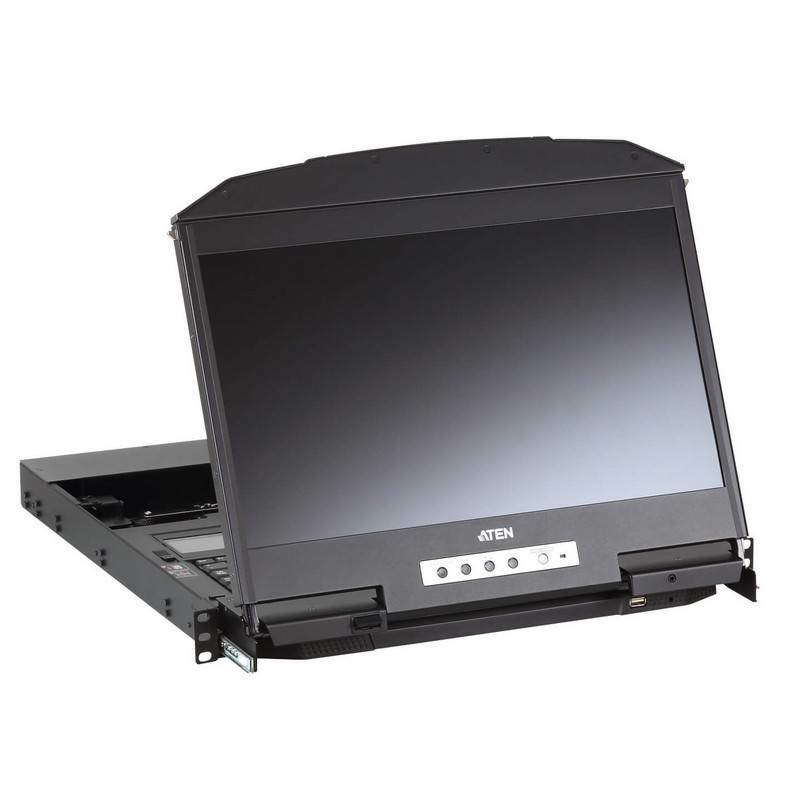

ATEN CL3800NW-ATA-AU 18.5-inch Full HD Dual-Rail Console shown in the supplied second product image

Product overview

Three video interfaces

The console accepts HDMI, DVI or VGA video, allowing the installation to use the appropriate source connection.

Independent dual rails

The LCD and keyboard/touchpad modules can move independently, so the input module can be stored while the display remains visible.

Short-depth deployment

The supplied description positions the console for shallow 19-inch racks, compact control rooms and outside-broadcast environments.

Source review: The supplied record identifies a Full HD 1920 x 1080 panel and includes the standard rack-mount kit.

Frequently asked questions

Which video inputs does the CL3800NW-ATA-AU support?

The supplied source lists HDMI, DVI and VGA.

What is the LCD resolution?

The supplied specification lists an 18.5-inch Full HD screen at 1920 x 1080.

Can the LCD and keyboard modules operate independently?

Yes. The source describes a dual-rail design with independently movable LCD and keyboard/touchpad modules.

Is a rack-mount kit included?

Yes. The supplied specification states that a standard rack-mount kit is included.

What warranty is supplied?

The source lists a 12-month limited ATEN manufacturer warranty.

(CL3800NW-ATA-AU)

Features

ATEN CL3800NW-ATA-AU 18.5-inch Full HD Dual-Rail Console

Display

18.5-inch LED-backlit widescreen
Full HD 1920 x 1080
Thin-profile LCD module
Console lock

Connectivity

HDMI, DVI and VGA video
External USB keyboard and mouse support
Front external USB mouse port
Stereo speaker connections

Rack operation

Short-depth format
Dual-rail design
19-inch equipment-cabinet compatibility
Standard rack-mount kit included

Confirm the rack depth and select one supported video interface for both the console and computer connection.

Technical specifications

ATEN CL3800NW-ATA-AU 18.5-inch Full HD Dual-Rail Console

Product details
Brand	ATEN
Model / SKU	CL3800NW-ATA-AU
Product type	Short-depth dual-rail LCD console
Rack format	19-inch equipment cabinets
Display and video
LCD module	18.5-inch LED-backlit widescreen
Resolution	1920 x 1080 Full HD
Video inputs	HDMI; DVI; VGA
Console access
Integrated controls	Keyboard and touchpad
External console	USB keyboard/mouse with HDMI, DVI or VGA monitor
Front USB	External USB mouse port
Audio	2 x mini stereo ports for speakers
Installation
Rail design	Dual rail
Rack-mount kit	Standard kit included
Console lock	Included feature
Illumination	Exclusive LED illumination light

SKU	CL3800NW-ATA-AU
Barcode #	672792008382
Brand	Aten
Shipping Weight	14.2700kg
Shipping Cubic	0.014270000m3

Warranty information

ATEN CL3800NW-ATA-AU 18.5-inch Full HD Dual-Rail Console

12-Month Limited ATEN Manufacturer Warranty

DeviceDeal is an authorised ATEN reseller. This product is covered by a 12-month limited ATEN manufacturer warranty in Australia, as listed in the supplied product information.
