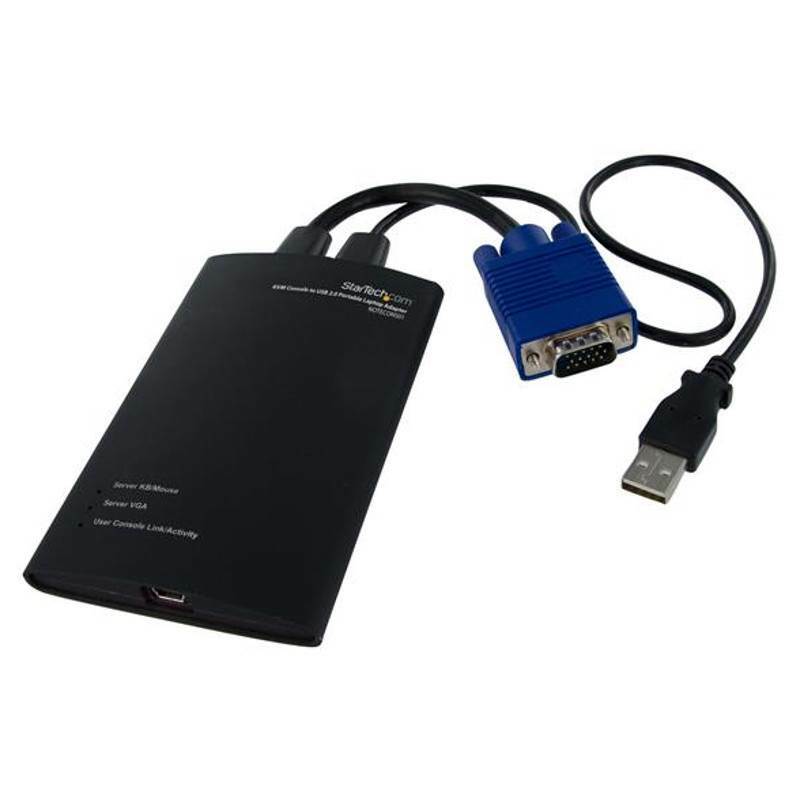

The NOTECONS01 KVM Console to USB 2.0 Portable Laptop Crash Cart Adapter turns your notebook or netbook into a portable server crashcart, eliminating the need to lug around a large, heavy and awkward video screen, keyboard, and mouse. This adapter delivers the VGA stream from any host computer to a laptop and emulates the laptop mouse and keyboard outputs for simple access and control of connected servers, PCs or other "headless" devices.

"StarTech.com's USB KVM may be your new best friend for trips to the datacenter... you can use this from the back of the rack. So if you are handling issues that require moving cables or network connections... this can be a major timesaver."
- everythingUSB.com

"The CRN Test Center recommends StarTech's Crash Cart Adapter for any company with a data center or with technicians servicing computers in the field"
-CRN

CRN TechInnovator 2010 Runner-up Award

With portability for the mobile administrator or repair technician in mind, this USB-powered adapter features a small-footprint design that requires no additional accessories to connect to most servers, and requires no server-side software installation. Plus, the pocket-sized adapter draws its power from the server-side USB connections, allowing the laptop/netbook to last longer without consuming battery power.

Ensuring full control of the connected units, the Laptop KVM Server Console Adapter provides immediate access to the POST screen and BIOS, plus the ability to handle full configuration of the attached PC or machine; administrators can connect to a headless server/device without the need of an expensive LCD rackmount console or bulky monitor, keyboard and mouse solution.

How it works:
Laptop KVM - how it works

(NOTECONS01)

Warranty Information
Warranty 2 Years
Hardware
Audio No
Cables Included Yes
Daisy-Chain No
KVM Ports 1
Number of Monitors Supported 1
PC Interface USB and PS/2
PC Video Type VGA
Rack-Mountable No
Performance
Hot-Key Selection No
IP Control No
Maximum Analog Resolutions 1920x1200 @ 60Hz
Maximum Number of Users 1
MTBF 284000 Hrs
On-Screen Display No
Connector(s)
Console Interface(s) 1 - USB Mini-B (5 pin) Female Input
Host Connectors 1 - PS/2 (6 pin, Mini-DIN) Male
1 - USB Type-A (4 pin) USB 2.0 Male
1 - VGA (15 pin, High Density D-Sub) Male
Software
OS Compatibility Windows® XP, Vista, 7, 8, 8.1, 10
Windows Server® 2008 R2, 2012, 2016, 2019
Mac OS® 10.6 to 10.14
Linux 2.6.x to 4.11.x (LTS Versions Only)
Special Notes / Requirements
Note If you're interfacing with a Linux device, this adapter is only compatible with standard QWERTY keyboards in U.S English configuration
Indicators
LED Indicators 1 - Host/Server Keyboard/Mouse (USB,PS/2) Link
1 - Host/Server Video (VGA) Link
1 - User Console/USB Link
Power
Power Source USB-Powered
Environmental
Humidity 80% RH
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -40°C to 70°C (-40°F to 158°F)
Physical Characteristics
Cable Length 1 x 15in (385mm) USB host cable, 1 x 3in (76mm) VGA host cable, 1 x 6ft (1.8m) USB Console cable
Color Black
Enclosure Type Plastic
Product Depth 4.5 in [115 mm]
Product Height 0.6 in [1.5 cm]
Product Width 2.9 in [74 mm]
Weight of Product 6 oz [170 g]
Packaging Information
Package Height 6.3 in [16 cm]
Package Length 1.8 in [45 mm]
Package Width 11.8 in [30 cm]
Shipping (Package) Weight 0.9 lb [0.4 kg]
What's in the Box
Included in Package 1 - USB PS/2 KVM Console Adapter
1 - USB Cable
1 - USB to PS/2 Adapter
1 - USB Software Key
SKU NOTECONS01
Barcode # 65030835312
Brand STARTECH
Shipping Weight 0.3900kg
Shipping Width 0.100m
Shipping Height 0.050m
Shipping Length 0.300m
Shipping Cubic 0.001500000m3
Manufacturer Warranty: 2 Years Limited Warranty

Be The First To Review This Product!

Help other Device Deal users shop smarter by writing reviews for products you have purchased.

Write a product review

StarTech KVM Console to USB 2.0 Portable Laptop Crash Cart Adapter - NOTECONS01

Model # NOTECONS01

  • SKU: NOTECONS01

$773.00
In Stock
