StarTech.com SVA12M2NEUA

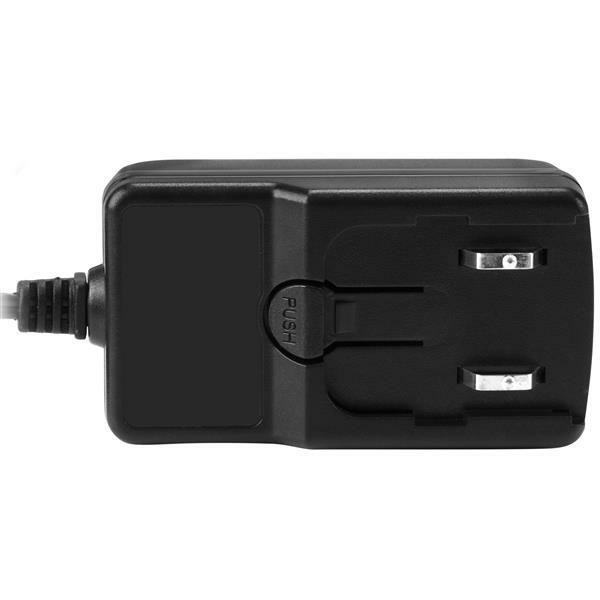

StarTech SVA12M2NEUA 12V 2A DC Power Adapter with M-Type Barrel

A replacement or spare 12V DC power supply for compatible electronics requiring up to 2A through an M-type 5.5 mm outer / 2.1 mm inner barrel connector.

12V DCUp to 2AM-type barrel2-year warranty

StarTech SVA12M2NEUA 12V 2A DC Power Adapter with M-Type Barrel

Key features

12V / 2A output

Provides 12V DC at up to 2A for compatible devices.

M-type barrel plug

Uses an M-type barrel connector with 5.5 mm outer and 2.1 mm inner diameter.

Positive centre tip

The specified centre-tip polarity is positive.

100240V AC input

Supports 100240V AC at 50/60Hz.

What to know

CompatibilityMatch voltage, polarity and connector exactly; the target current requirement must be 2A or less.

Rated powerThe supplied specification lists 24W.

Use caseSuitable as a replacement or spare for compatible equipment that meets all power and connector requirements.

Australian version and official StarTech.com warranty

This is the Australian version supplied by DeviceDeal and is covered by the official StarTech.com 2-year manufacturer warranty in Australia. Retain your DeviceDeal tax invoice as proof of purchase. Warranty coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.

Frequently asked questions

What is the StarTech SVA12M2NEUA?

SVA12M2NEUA is a replacement or spare 12V DC power adapter for compatible devices that use an M-type barrel connector and require up to 2A.

What output does it provide?

It provides 12V DC with up to 2A output current.

What size is the M-type connector?

The specification lists a 5.5 mm outer diameter and 2.1 mm inner diameter M-type barrel connector.

What is the connector polarity?

The centre-tip polarity is positive.

What AC input is supported?

It supports 100240V AC input at 50/60Hz.

How long is the power cable?

The supplied specification lists a 48 in (1219 mm) cable length.

What power clips are included?

The package includes NA, EU, UK and AU regional power options.

What warranty applies in Australia?

This Australian-version product is covered by the official StarTech.com 2-year manufacturer warranty in Australia, subject to StarTech.com warranty terms, eligibility and product assessment.

(SVA12M2NEUA)

Features and highlights

12V / 2A output

Provides 12V DC at up to 2A for compatible devices.

M-type barrel plug

Uses an M-type barrel connector with 5.5 mm outer and 2.1 mm inner diameter.

Positive centre tip

The specified centre-tip polarity is positive.

100240V AC input

Supports 100240V AC at 50/60Hz.

48 in DC cable

The supplied specification lists a 48 in (1219 mm) cable length.

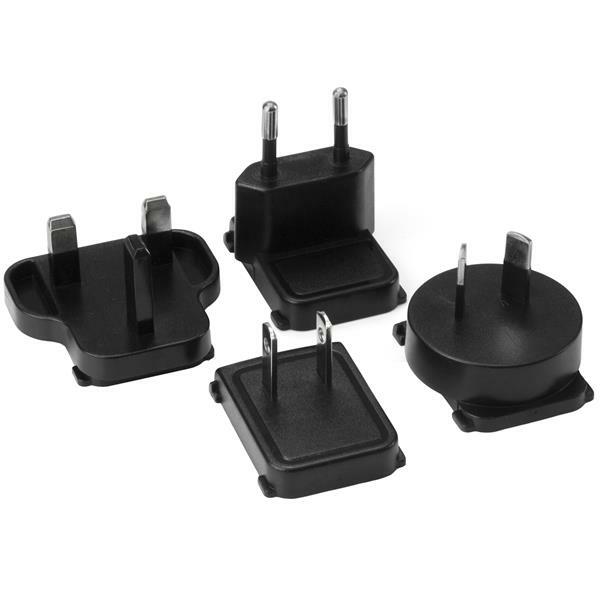

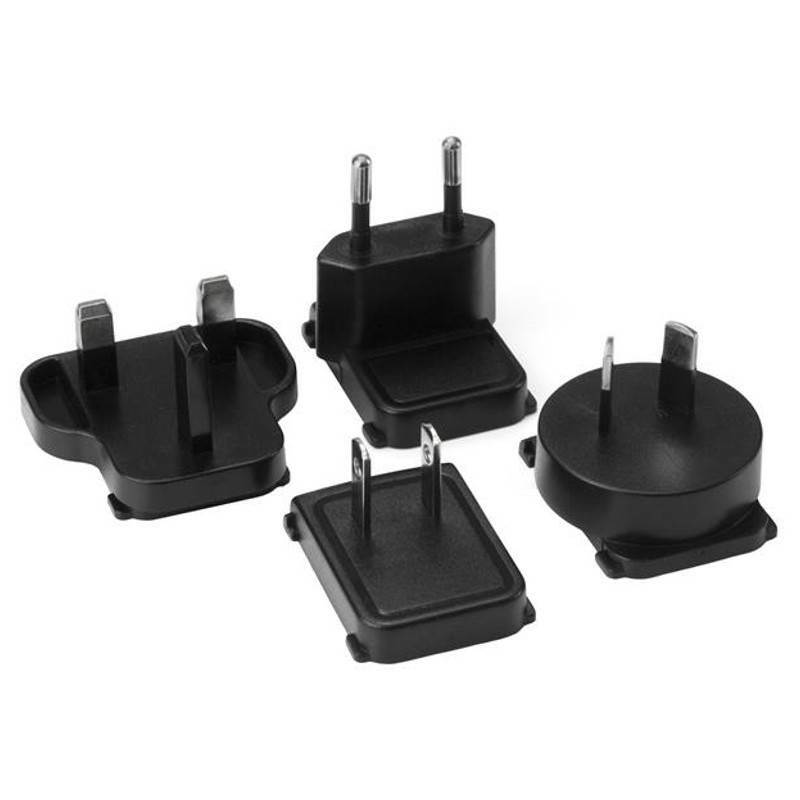

Regional power options

NA, EU, UK and AU power clips are included with the universal adapter.

Key highlights

12V DC
Up to 2A
M-type barrel
2-year warranty

Warranty confidence

Official StarTech.com 2-year manufacturer warranty in Australia for this Australian-version product, subject to StarTech.com terms and assessment.

Specifications

StarTech SVA12M2NEUA

Warranty Information

Warranty	2 Years

Connector(s)

Output Connectors	1 - M-Type Barrel (Inner Diameter: 2.1 mm, Outer Diameter: 5.5 mm) Plug Output

Power

Center Tip Polarity	Positive
Input Current	0.6 A
Input Voltage	100 - 240 AC
Input Voltage Frequency	50/60Hz
Output Current	2 A
Output Voltage	12 DC
Plug Type	M
Power Consumption (In Watts)	24
Power Source	AC Adapter Included

Physical Characteristics

Cable Length	48 in [1219 mm]
Product Height	1.7 in [4.3 cm]
Product Length	3 in [75 mm]
Product Width	1.6 in [40 mm]
Weight of Product	4.8 oz [137 g]

Packaging Information

Package Height	2.4 in [60 mm]
Package Length	4.1 in [10.4 cm]
Package Width	3.5 in [89 mm]
Shipping (Package) Weight	0.5 lb [0.2 kg]

What's in the Box

Included in Package	1 - universal power adapter (NA, EU, UK, AU)

SKU	SVA12M2NEUA
Barcode #	65030865746
Brand	Startech
Shipping Weight	0.2100kg
Shipping Width	0.100m
Shipping Height	0.050m
Shipping Length	0.100m
Shipping Cubic	0.000500000m3
