Small Form Factor Business Desktop

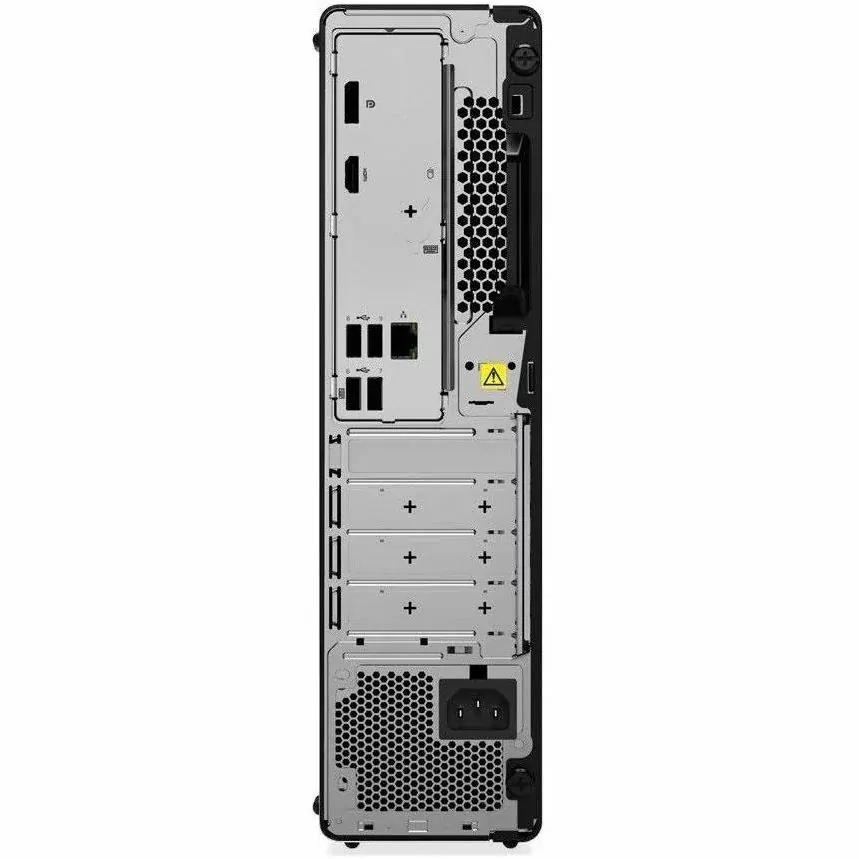

Lenovo ThinkCentre M70s Gen 5 Small Form Factor Desktop

The Lenovo ThinkCentre M70s Gen 5 is a compact small form factor desktop configured with a 14th Gen Intel Core i5-14400 processor, 16GB DDR5 memory and a 512GB PCIe 4.0 NVMe SSD. Wired and wireless networking, Windows 11 Pro and included USB input devices make up the supplied business-ready configuration.

Intel Core i5-1440010 cores, 16 threads and up to 4.70GHz turbo speed

16GB DDR52 x 8GB installed memory

512GB NVMeM.2 PCIe 4.0 x4 SSD

3-Year OnsiteThree-year onsite warranty stated in the supplied description

Designed Around the Supplied Configuration

Key product details based on the two descriptions provided for this SKU.

Compact SFF Chassis

The black small form factor chassis measures 339.5 x 92.5 x 297.7mm and weighs approximately 5.30kg.

Practical Connectivity

Nine USB ports are listed, including front USB-C with USB 5Gbps and 15W charging, together with rear HDMI, DisplayPort and Gigabit Ethernet.

Wired and Wireless Networking

Gigabit Ethernet, IEEE 802.11ax wireless LAN and Bluetooth are included in the supplied configuration.

Technical Specifications

Configuration details supplied for SKU 12U30016AU.

Processor	14th Gen Intel Core i5-14400; 10 cores; 16 threads; 2.50GHz; up to 4.70GHz turbo
Memory	16GB DDR5 (2 x 8GB)
Storage	512GB M.2 PCIe 4.0 x4 NVMe SSD
Graphics	Integrated Intel UHD Graphics 730
Networking	Gigabit Ethernet; IEEE 802.11ax wireless LAN; Bluetooth
USB	9 USB ports, including front USB-C with USB 5Gbps and 15W charging
Display Outputs	HDMI and DisplayPort
Dimensions	339.5 x 92.5 x 297.7mm
Weight	Approximately 5.30kg
Operating System	Windows 11 Pro in English
Included Accessories	USB traditional keyboard and USB Calliope mouse
Warranty	3 years onsite
SKU	12U30016AU

Frequently Asked Questions

Quick answers based only on the supplied product information.

Which processor is installed?

A 14th Gen Intel Core i5-14400 with 10 cores, 16 threads and up to 4.70GHz turbo speed.

How much memory and storage are included?

It includes 16GB DDR5 memory in a 2 x 8GB configuration and a 512GB M.2 PCIe 4.0 x4 NVMe SSD.

Does it include wireless connectivity?

Yes. The supplied specifications list IEEE 802.11ax wireless LAN and Bluetooth.

Which accessories are included?

A USB traditional keyboard and USB Calliope mouse are included.

What warranty is listed?

The supplied product description lists a three-year onsite warranty.

(12U30016AU)

Lenovo ThinkCentre M70s Gen 5 12U30016AU Specifications

Processor, memory, storage, connectivity, physical, environmental and warranty information.

Specification	Details
Product Details
Brand	Lenovo
Product Name	ThinkCentre M70s Gen 5 12U30016AU
Manufacturer Part Number	12U30016AU
Product Type	Desktop Computer
Release Year	2024
Processor and Chipset
Processor	Intel Core i5-14400
Generation	14th Gen
Cores / Threads	10 cores / 16 threads
Processor Speed	2.50GHz
Maximum Turbo Speed	4.70GHz
Chipset	Intel Q670
vPro / Systems Management	No vPro support
Memory and Storage
Memory	16GB DDR5 SDRAM
Memory Configuration	2 x 8GB
Memory Slots	2 total; 2 occupied
Maximum Memory	64GB
Storage	512GB M.2 SSD
SSD Interface	PCI Express NVMe 4.0 x4
Graphics and Operating System
Graphics	Intel UHD Graphics 730
Graphics Memory	Shared DDR5 SDRAM
Operating System	Windows 11 Pro, English
Networking
Wireless LAN	Yes, IEEE 802.11ax
Bluetooth	Yes
Ethernet	Gigabit Ethernet, 1 port
Interfaces and Ports
Total USB Ports	9
Front USB-C	1 x USB-C (USB 5Gbps / USB 3.2 Gen 1), with 15W charging
Rear USB 2.0	4
USB 3.2 Gen 1	4
Rear HDMI	Yes
Rear DisplayPort	1
Power and Physical
Power Supply	260W maximum
Form Factor	Small Form Factor
Colour	Black
Dimensions	339.5 x 92.5 x 297.7mm (H x W x D)
Weight	Approximately 5.30kg
Included Items and Features
Package Contents	ThinkCentre M70s Gen 5 12U30016AU; USB Traditional Keyboard; USB Calliope Mouse
Keyboard Localisation	English
Features	Security Slot
Environmental and Warranty
Environmental Certifications	GREENGUARD; EPEAT Gold; TCO Certified 9.0; ENERGY STAR 8.0
Energy Efficiency Compliance	Energy-related Products Directive Lot 3 (ErP Lot 3)
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Warranty	3-year, Onsite

SKU	12U30016AU
Barcode #	198154493103
Brand	LENOVO
Shipping Weight	6.5000kg
Shipping Width	0.190m
Shipping Height	0.430m
Shipping Length	0.390m
Shipping Cubic	0.031863000m3
