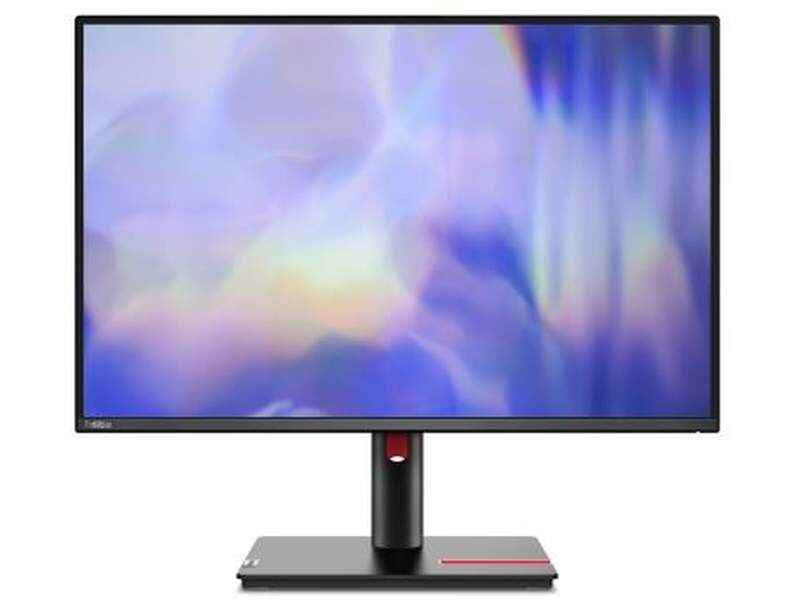

Lenovo ThinkVision T24d-30 63FFMAR1AU Specifications

24-inch WUXGA 100Hz IPS business monitor with integrated USB hub

Screen 24-inch IPS

Resolution 1920 x 1200

Refresh Rate Up to 100Hz

Colour 99% sRGB

General

Brand

Lenovo ThinkVision

Product model

ThinkVision T24d-30

Part number

63FFMAR1AU

Product type

WUXGA IPS business monitor

Case colour

Raven Black

Display

Screen size

24 inches

Panel type

In-Plane Switching

Backlight

WLED

Resolution

1920 x 1200 WUXGA

Aspect ratio

16:10

Active view area

518.4 x 324mm

Pixel pitch

0.27 x 0.27mm

Pixel density

94 pixels per inch

Surface treatment

Anti-glare

Viewing angles

178° horizontal and 178° vertical

Bezel design

Four-sided ultra-thin bezel

Image Quality and Performance

Brightness

300 cd/m² typical

Contrast ratio

1500:1 typical

Refresh rate

48Hz to 100Hz

Response time

4ms Extreme Mode and 6ms Normal Mode

Colour coverage

99% sRGB

Colour depth

8-bit

Colour support

16.7 million colours

Video Connectivity

HDMI

1 x HDMI 1.4

DisplayPort

1 x DisplayPort 1.2

VGA

1 x VGA

Audio output

1 x 3.5mm audio-out connection

USB Connectivity

USB upstream

1 x USB-B, USB 5Gbps

USB downstream

4 x USB-A, USB 5Gbps

Charging port

1 x USB-A port with BC 1.2 charging support

Audio and Camera Support

Speakers

2 x 2W integrated speakers

Microphone

Not integrated

Webcam

Not integrated

Optional webcam support

Lenovo ThinkVision MC60 monitor webcam, sold separately

Optional soundbar support

Lenovo ThinkVision MS30 monitor soundbar, sold separately

Stand and Mounting

Height adjustment

Up to 155mm

Tilt

-5° to +23.5°

Swivel

-45° to +45°

Pivot

-90° to +90°

VESA mounting

100 x 100mm

Cable management

Supported

Phone holder

Integrated into the stand base

Security slot

Kensington Security Slot

Dimensions and Weight

Highest stand position

533 x 199.7 x 535.7mm, W x D x H

Lowest stand position

533 x 199.7 x 380.7mm, W x D x H

Monitor head only

533 x 47.8 x 344.3mm, W x D x H

Packaging dimensions

615 x 161 x 417mm, W x D x H

Weight with stand

Approximately 5.14kg

Monitor head weight

Approximately 3.16kg

Packaged weight

Approximately 7.84kg

Power

Power supply

Integrated power supply

Voltage requirement

AC 100 to 240V, 50 to 60Hz

Typical consumption

15W

Maximum consumption

59.4W

Eye Comfort and Software

Low blue light

Natural Low Blue Light technology

Eyesafe

Eyesafe Display 2.0 certified

Flicker Free

TÜV Rheinland Flicker Free certified

Low Blue Light certification

TÜV Low Blue Light hardware solution certified

Display software

Lenovo ThinkColour, Lenovo Accessories and Display Manager

Environmental Certifications

Certifications

ENERGY STAR, EPEAT Gold, TCO Certified 9.0, TCO Edge 2.0 and RoHS compliant

Included Items

Monitor and stand

Included

DisplayPort cable

1.8m cable included

USB cable

1.8m USB-B to USB-A cable included

Power cable

1.8m cable included

Documentation

Quick Setup Guide

Warranty

Base warranty

Three-year limited warranty

(63FFMAR1AU)

24in WUXGA (1920x1200) 16:10 IPS panel with extra vertical space
100Hz refresh rate for smoother everyday productivity
300 nits brightness, 99% sRGB and anti-glare coating
HDMI 1.4, DisplayPort 1.2 and VGA inputs
Built-in USB 3.2 hub with 4x USB-A 5Gbps downstream ports
Integrated 2W x 2 stereo speakers
Full ergonomic stand: tilt, swivel, pivot and 155mm height adjust

Screen Size: 24in (16:10) Resolution: 1920x1200 (WUXGA) Panel: IPS, WLED, anti-glare Refresh Rate: 100Hz (48-100Hz) Response Time: 4ms (Extreme) / 6ms (Normal) Adaptive Sync: Not specified HDR: No Ports: 1x HDMI 1.4, 1x DisplayPort 1.2, 1x VGA, 3.5mm audio out; USB hub (1x USB-B upstream, 4x USB-A 5Gbps) USB-C PD: None (no USB-C) Speakers: Yes (2W x 2) Stand: Tilt, swivel, pivot (90 deg), height adjust up to 155mm; VESA 100x100 Warranty: 3 Year
