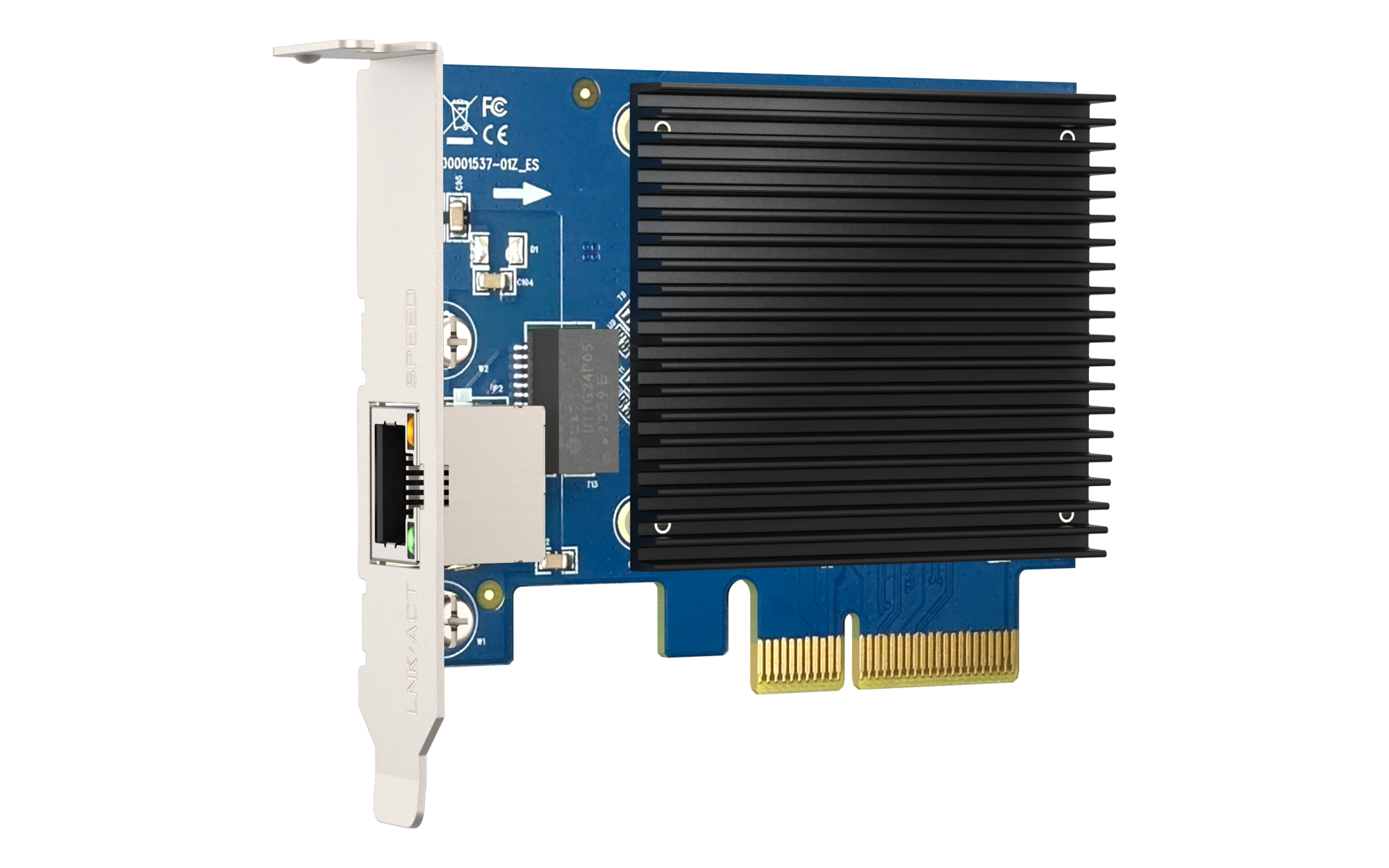

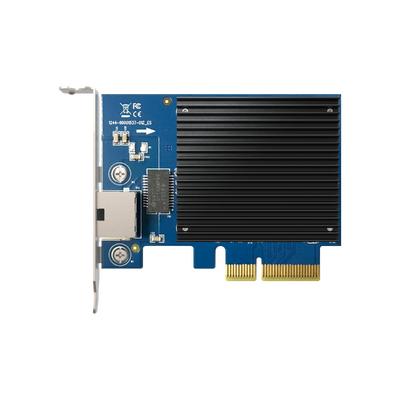

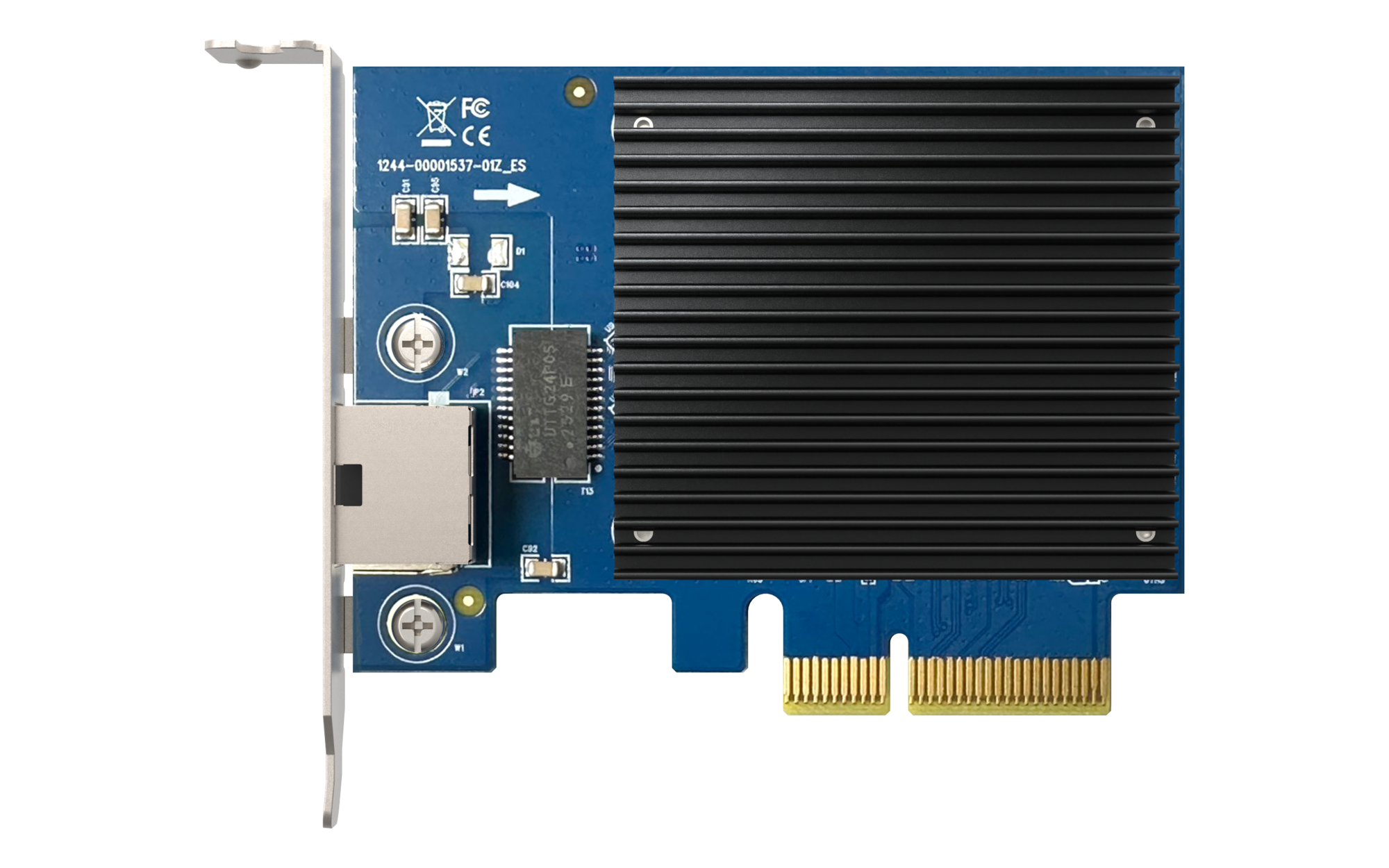

Single-Port 5-Speed 10GbE Network Expansion Card

QNAP QXG-10G1TD

The QXG-10G1TD is a single-port 10GbE RJ45 network expansion card for compatible QNAP NAS, Windows® and Linux® systems. It supports 10GbE, 5GbE, 2.5GbE, 1GbE and 100MbE network speeds through one NBASE-T RJ45 port, providing a flexible upgrade path for high-speed networking.

What is the QNAP QXG-10G1TD?

The QXG-10G1TD is a PCIe Gen 3.0 x2 network expansion card that adds one 5-speed NBASE-T RJ45 port. It is designed for compatible QNAP NAS, Windows® and Ubuntu® systems and supports transmission rates up to 10Gbps.

10GbEUp to 10Gbps network transmission

5 Speeds10G / 5G / 2.5G / 1G / 100M

RJ45Single NBASE-T copper network port

PCIe Gen 3PCIe Gen 3.0 x2 host interface

Flexible 5-Speed Network Connectivity

Multi-Gigabit support enables a practical transition from existing Ethernet networks to 10GbE.

The QXG-10G1TD supports 10GbE, 5GbE, 2.5GbE, 1GbE and 100MbE transmission rates. This five-speed design provides backward compatibility with existing network infrastructure while allowing compatible systems to move to higher bandwidth as network requirements grow.

Key Network Card Features

Designed for straightforward copper-network upgrades, efficient operation and easier monitoring.

RJ45 Network Upgrade

Uses a standard NBASE-T RJ45 port for copper Ethernet connectivity, avoiding the need to move to fibre cabling.

Energy-Efficient Controller

The supplied product information describes a next-generation controller designed to reduce power draw and heat generation while maintaining high-speed performance.

Jumbo Frame Support

Supports Jumbo Frames to reduce packet-processing overhead and improve transfer efficiency for large files and intensive backup traffic.

NAS and PC Support

Can be installed in compatible QNAP NAS, Windows® and Ubuntu® systems, subject to the listed operating-system and PCIe requirements.

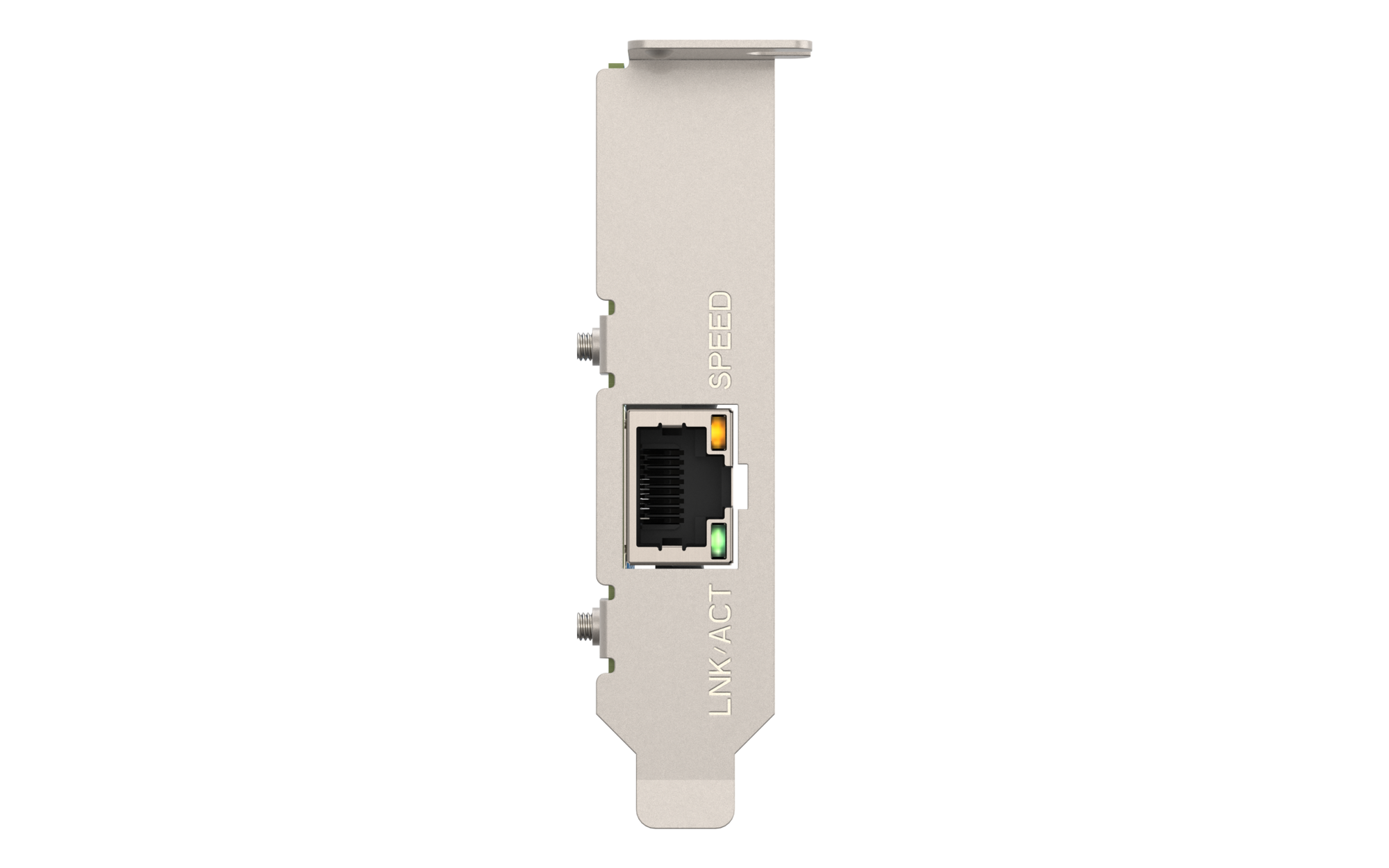

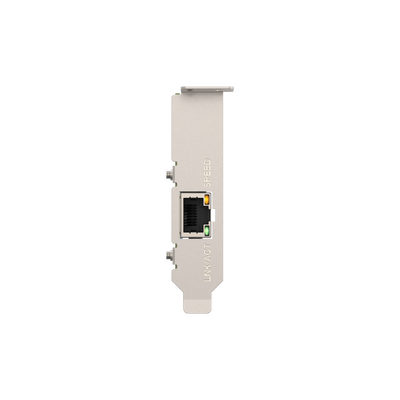

LED Status Indicators

Clear LED indicators provide visible network-port status information to assist monitoring and troubleshooting.

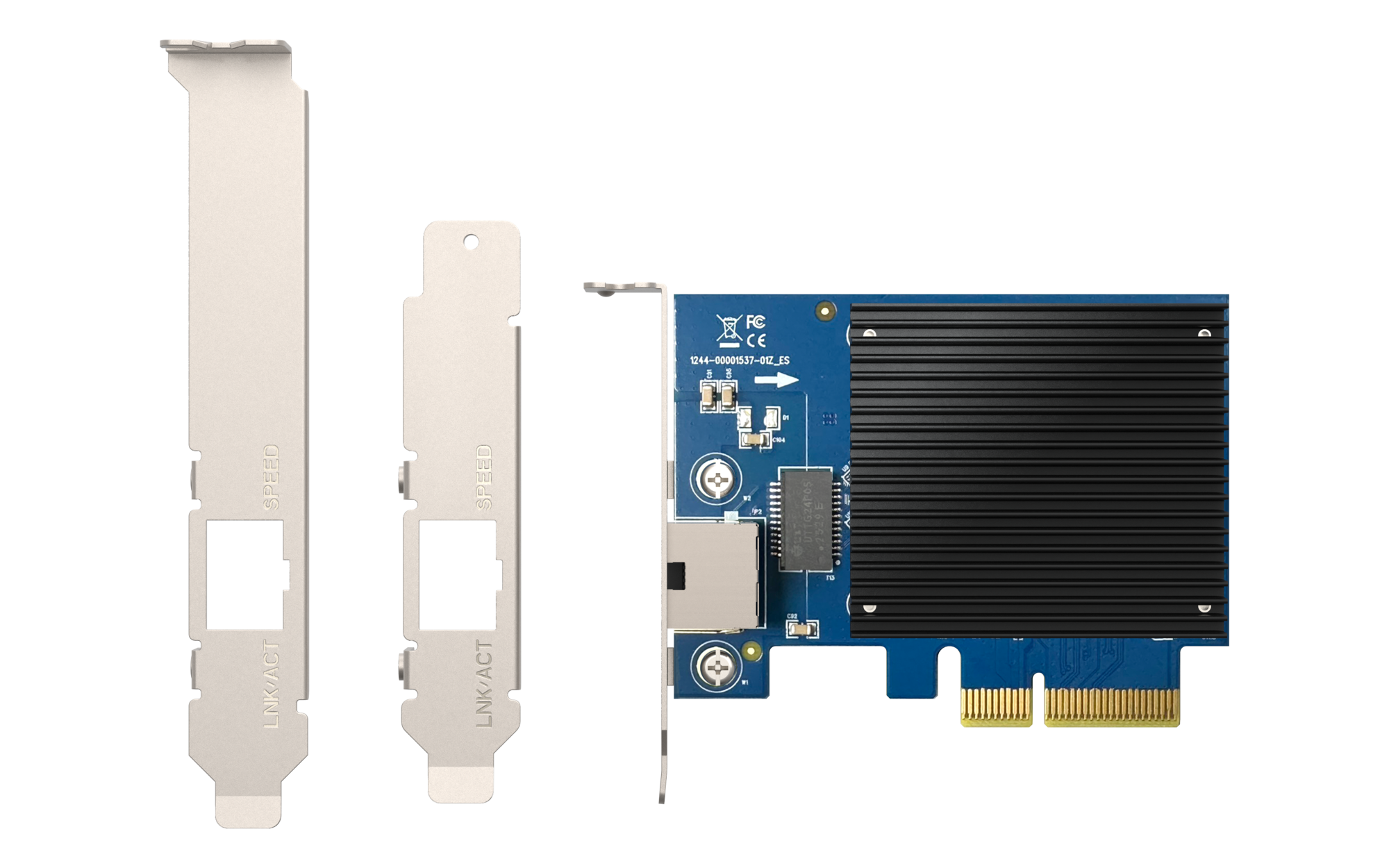

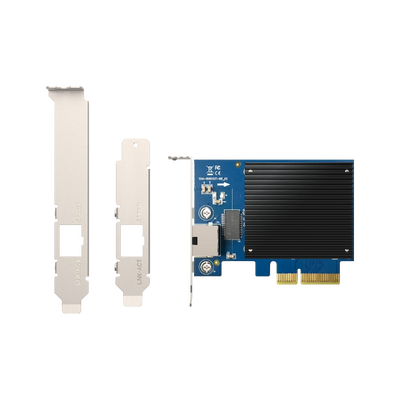

Multiple Brackets Included

A low-profile bracket is pre-installed, with full-height and specialised brackets for selected QNAP NAS models also included.

Supported Platforms

Review the operating-system and installation requirements before purchase.

QNAP NAS

Supports QTS 5.2.9 or later and QuTS hero h5.2.9 or later. A supported QNAP NAS with one free PCIe slot is required.

Windows®

Supports Windows 11® 25H2 and Windows Server 2022® or 2025®. Driver installation is required.

Ubuntu®

Supports Ubuntu® 22.04 LTS and 24.04 LTS. Driver installation is required.

Driver Installation Notes

Use the driver type specified for the installed operating system.

Windows 11: Use the Win11 Auto Installation Program (NetAdapterCx).
Windows Server: Use the corresponding NDIS driver version.
Ubuntu: Use the 10G Ethernet Linux driver (r8127).

Build a 10GbE Network Environment

Pair the expansion card with suitable network infrastructure to support higher-bandwidth storage workflows.

The supplied product information recommends pairing the QXG-10G1TD with QNAP 10GbE switches to create a high-speed network ecosystem for NAS, workstations and storage applications. Its multi-speed design allows connected devices to negotiate supported speeds across mixed network environments.

Frequently Asked Questions

Quick answers about the QNAP QXG-10G1TD.

What network speeds does the QXG-10G1TD support?

It supports 10Gbps, 5Gbps, 2.5Gbps, 1Gbps and 100Mbps transmission rates.

How many network ports does it provide?

It provides one NBASE-T RJ45 network port.

Which systems support the QXG-10G1TD?

The supplied information lists compatible QNAP NAS, Windows 11 25H2, Windows Server 2022 or 2025, and Ubuntu 22.04 LTS or 24.04 LTS systems.

Does the card require a PCIe slot?

Yes. It uses a PCIe Gen 3.0 x2 interface. A supported QNAP NAS requires one free PCIe slot.

Are mounting brackets included?

Yes. A low-profile bracket is pre-installed, and full-height plus specialised brackets for selected QNAP NAS models are bundled.

What is included in the package?

The package includes one network card, one quick installation guide and three brackets.

What is the standard warranty?

The supplied datasheet lists a standard three-year warranty.

Compatibility depends on the host system, available PCIe slot and supported operating-system version. Product images are for illustrative purposes only and may differ from the actual product. Designs and specifications are subject to change without notice.

(QXG-10G1TD)

QNAP QXG-10G1TD Specifications

Review the network interface, host interface, compatibility, physical dimensions, included parts and warranty details.

Specification	Details
Product Details
Product Type	Single-port, 10GbE network expansion card
Controller	RTL8127AT
Network Interface
Number of Ports	1 x NBASE-T (RJ45)
Connector	NBASE-T (RJ45)
Transmission Rates	10Gbps / 5Gbps / 2.5Gbps / 1Gbps / 100Mbps
IEEE Standards	IEEE 802.3an IEEE 802.3 IEEE 802.3az IEEE 802.3u IEEE 802.3bz IEEE 802.3ab
Port and Cable	RJ45; over CAT-6 class cable
Host Interface
PCIe and Lanes	PCIe Gen 3.0 x2
Bracket	Low-profile bracket pre-installed; full-height and specialised brackets for selected QNAP NAS are bundled
System Compatibility
Supported NAS Operating Systems	QTS 5.2.9 or later QuTS hero h5.2.9 or later
Supported QNAP NAS	Models with PCIe slot(s); one free slot required
Ubuntu Support	Ubuntu 22.04 LTS / 24.04 LTSDriver installation required. Use the 10G Ethernet Linux driver (r8127).
Windows Support	Windows 11 25H2Driver installation required. Use the Win11 Auto Installation Program (NetAdapterCx).
Windows Server Support	Windows Server 2022 / 2025Driver installation required. Use the corresponding NDIS driver version.
Physical Specifications
Dimensions (L x W x H)	88.85 x 67.9 x 14.7 mm
Package Contents and Warranty
Package Contents	1 x Network card 1 x QIG 3 x Brackets
Standard Warranty	3 years
