Expansion Card

M2D18

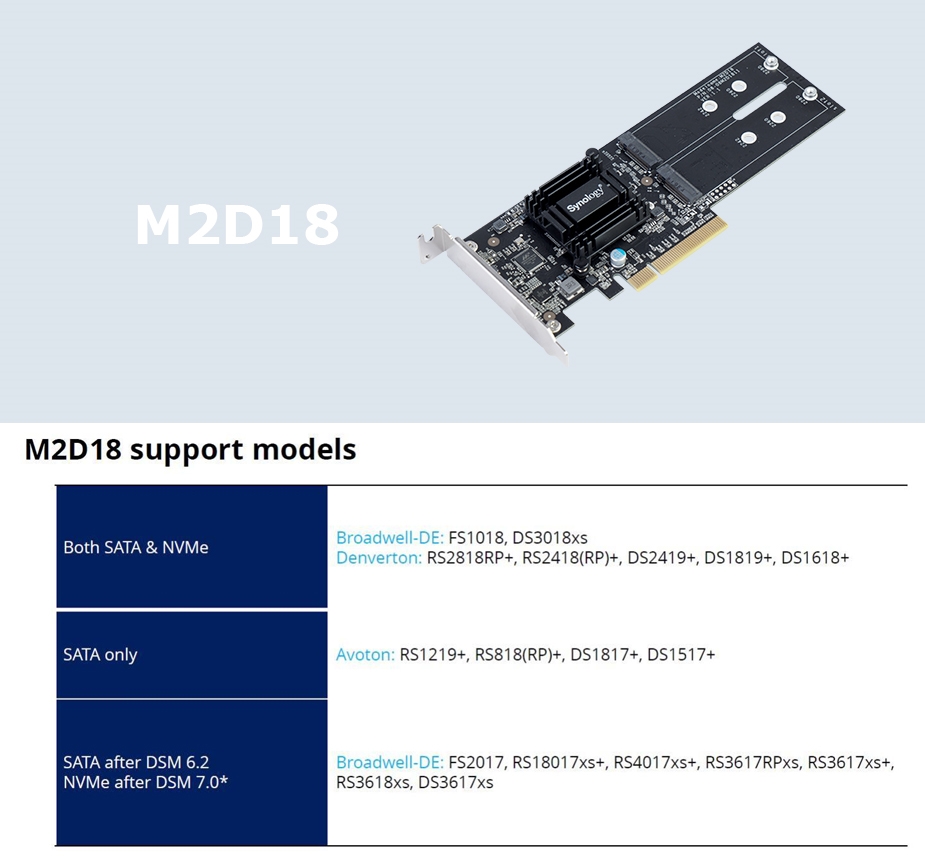

Name: Synology M2D18 PCIe Gen2 x8 for Dual M.2 SSD Adapter Card
Brand: SYNOLOGY
SKU: M2D18
Price: 213 AUD
Availability: InStock

Enterprise-grade expansion card storage solution

Designed to supercharge your NAS I/O performance, Synology M.2 SSD adapter M2D18 significantly reduces random I/O latency, benefiting applications such as photo indexing, file search, and virtualization environments.

(M2D18)

PCIeGen2 x8 adapter card for Dual M.2 SSDslot
Support form factor: 2280/2260/2242
Support SSD cache without sacrificing bays for normal volume
Both SATA nd NVMe - FS1018, DS3018xs, RS2818RP+ , RS2418+ , RS2418RP+ , DS2419+, DS1819+, DS1618+
SATA Only - RS1219+, RS818+ , RS818RP+, DS1817+ , DS1517+
SATA after DSM 6.2 NVMe afetr DSM7.0 - FS2017, RS18017xs+, RS4017xs+, RS3617RPxs, RS3617xs+, RS3618xs, DS3617xs

Technical Specifications

Complete hardware and software specifications

General

Host Bus Interface PCIe 2.0 x8

Bracket Height Low Profile and Full Height

Size (Height x Width x Depth) 70 mm x 180 mm x 18 mm

Operating Temperature 0°C to 40°C (32°F to 104°F)

Storage Temperature -20°C to 60°C (-5°F to 140°F)

Relative Humidity 5% to 95% RH

Warranty 3 Years

Notes The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more)

Storage

Storage Interface PCIe NVMe / SATA

Supported Form Factor 2280 / 2260 / 2242

Connector Type and Quantity M-key, 2 Slots

Applied Models

NVMe & SATA SSD FS series: FS1018 22 series: RS822RP+, RS822+ 21 series: RS1221RP+, RS1221+ 20 series: RS820RP+, RS820+ 19 series: DS2419+II, DS2419+, DS1819+ 18 series: RS2818RP+, RS2418RP+, RS2418+, DS3018xs, DS1618+

SATA SSD FS series: FS2017 19 series: RS1219+ 18 series: RS3618xs, RS818RP+, RS818+ 17 series: RS18017xs+, RS4017xs+, RS3617xs+, RS3617RPxs, DS3617xsII, DS3617xs, DS1817+, DS1517+

Notes DSM version requirement: 6.2-23739-2 onward (or 6.1-15284-2 onward with DSM 6.1) Operating system requirement for RS1221RP+, RS1221+, RS822RP+, and RS822+: DSM 7.2-64551 or later. RS1221RP+, RS1221+, RS822RP+, and RS822+ support M.2 NVMe SSD with the M2D18 add-in card.

SKU	M2D18
Barcode #	846504003099
Brand	SYNOLOGY
Shipping Weight	0.4010kg
Shipping Width	0.130m
Shipping Height	0.040m
Shipping Length	0.300m
Shipping Cubic	0.001560000m3

Manufacturer Warranty: 2 Years Limited Warranty
Manufacturer Contact Info: http://www.synology.com
