Up to two M.2 SSDs
Supports up to two M.2 PCIe SSD positions.
QNAP QM2-2P-344A Dual M.2 PCIe SSD expansion card
Model # QM2-2P-344A
-
SKU: QM2-2P-344A
- Pick Up Available
- Australian Warranty
- Checkout Securely
QNAP QM2-2P-344A

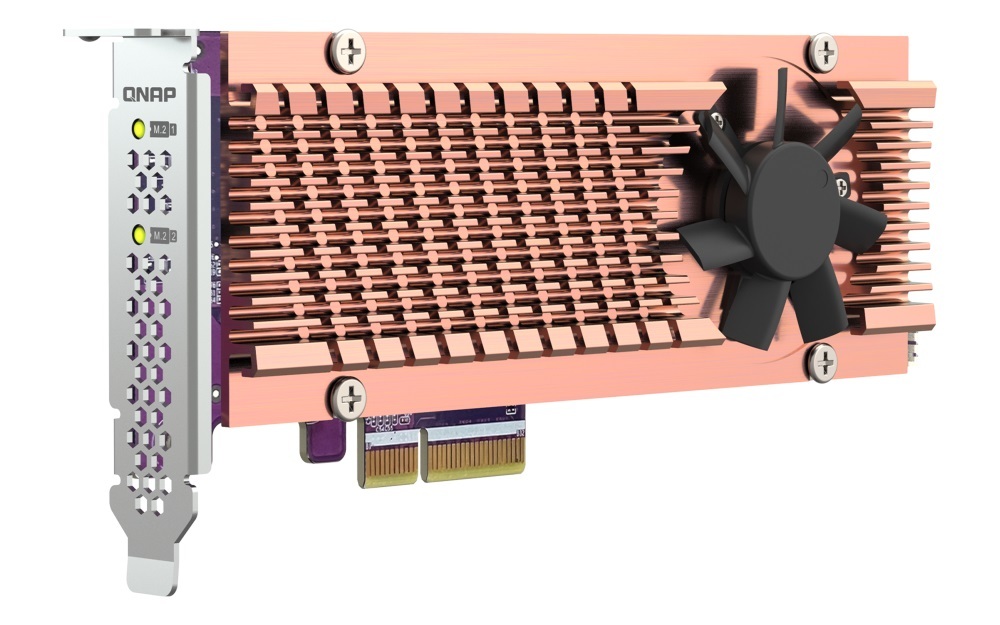

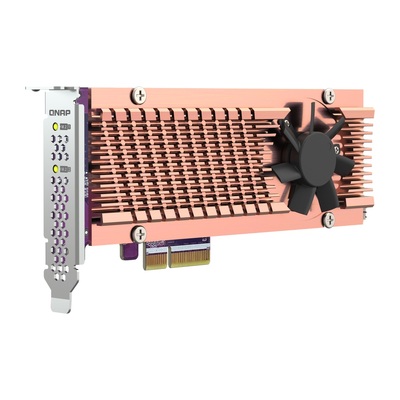

QNAP QM2-2P-344A Dual M.2 PCIe Gen3 SSD Expansion Card
A QNAP PCIe Gen3 x4 expansion card supporting up to two M.2 2280 or 22110 PCIe Gen3 x4 SSDs for the supplied QNAP applied-model list.
M.2 slotsUp to 2
Form factors2280 / 22110
Host interfacePCIe Gen3 x4
Brackets3 configurations
Dual M.2 PCIe Gen3 storage expansion
The QM2-2P-344A uses the supplied PCIe Gen3 x4 host interface and supports up to two M.2 PCIe Gen3 x4 SSDs in 2280 or 22110 form factors.
Supplied applied-model list
- TVS-hx74
- TVS-1282T3
- TS-hx87XU-RP
- TS-1655
Bracket configurations
- Low-profile bracket pre-loaded
- Low-profile flat bracket bundled
- Full-height bracket bundled
Need help choosing the right NAS?
Compare NAS types, storage planning and buying considerations in the DeviceDeal NAS Buying Guide.
Compatibility guidance
Use the card only with a listed or separately confirmed QNAP system and a suitable PCIe Gen3 x4 slot. SSDs are not stated as included.
Frequently asked questions
Quick answers based on the supplied information for QM2-2P-344A.
How many M.2 SSDs can the QM2-2P-344A accept?
The supplied description states support for up to two M.2 PCIe SSDs.
Which M.2 form factors are listed?
M.2 2280 and M.2 22110 are listed.
Which host interface does the card use?
The supplied product information states a PCIe Gen3 x4 host interface.
Which interface is specified for the SSDs?
The installed M.2 SSD interface is described as PCIe Gen3 x4.
Which brackets are supplied?
A low-profile bracket is pre-loaded, while low-profile flat and full-height brackets are bundled.
Which QNAP models are listed?
The supplied applied models are TVS-hx74, TVS-1282T3, TS-hx87XU-RP and TS-1655.
(QM2-2P-344A)
Features and highlights
QNAP QM2-2P-344A Dual M.2 PCIe Gen3 SSD Expansion Card
2280 and 22110 sizes
Accepts the two supplied M.2 form factors.
PCIe Gen3 x4
The host and SSD interface wording are both supplied as PCIe Gen3 x4.
Three bracket formats
Includes pre-loaded low-profile plus bundled low-profile flat and full-height brackets.
Key details to check before purchase
- Host interface: PCIe Gen3 x4
- SSD support: up to 2 × M.2 PCIe Gen3 x4
- Form factors: M.2 2280 and 22110
- Applied models: TVS-hx74, TVS-1282T3, TS-hx87XU-RP and TS-1655
QNAP QM2-2P-344A Dual M.2 PCIe Gen3 SSD Expansion Card specifications
Technical information below is organised from the supplied product data.
| Specification | Details |
|---|---|
| Product Details | |
| Brand | QNAP |
| SKU | QM2-2P-344A |
| Product Type | Dual M.2 PCIe SSD expansion card |
| Interfaces and Storage | |
| Host Interface | PCIe Gen3 x4 |
| M.2 SSD Slots | Up to 2 |
| Supported M.2 Form Factors | 2280 and 22110 |
| SSD Interface Wording | PCIe Gen3 x4 |
| Brackets | |
| Pre-Loaded Bracket | Low-profile |
| Additional Bundled Brackets | Low-profile flat and full-height |
| Applied Models | |
| Supplied Compatibility | TVS-hx74; TVS-1282T3; TS-hx87XU-RP; TS-1655 |
Compatibility is limited to the supplied applied-model list unless a different system is separately confirmed.
SSDs and their capacities are not stated as included.
| SKU | QM2-2P-344A |
| Model # | QM2-2P-344A |
| Barcode # | 4711103082812 |
| Brand | QNAP |
| Shipping Weight | 1.2000kg |
QNAPManufacturer warranty
QNAP manufacturer warranty
The QNAP QM2-2P-344A is supplied with the applicable QNAP manufacturer warranty.
No warranty duration was included in the supplied product information. Warranty coverage, eligibility and claim assessment are subject to QNAP terms. Please retain your DeviceDeal tax invoice as proof of purchase.
