Expansion Card

E10G22-T1-Mini

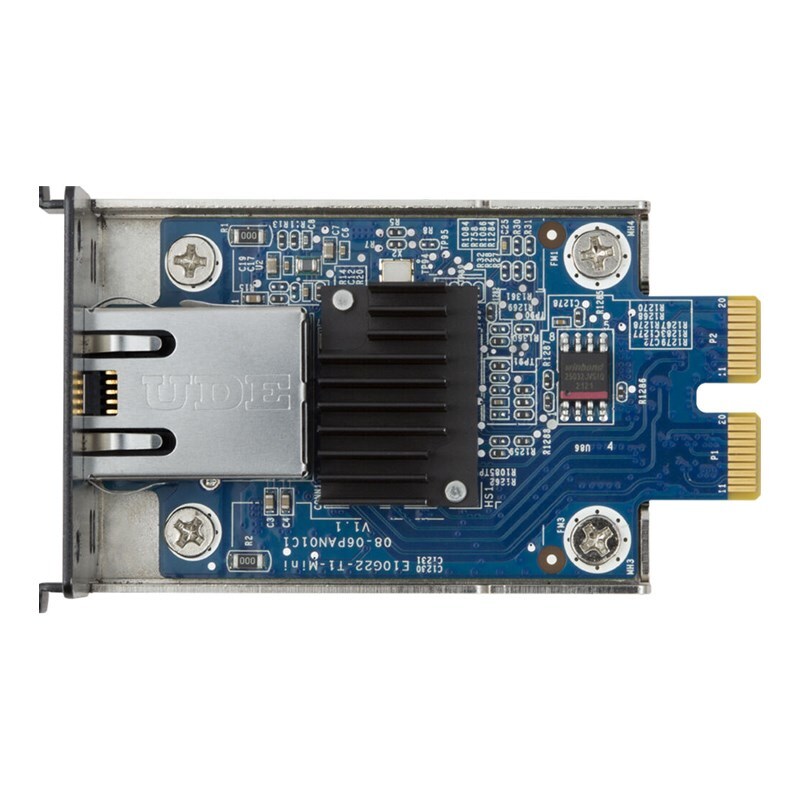

Name: Synology 10GbE RJ45 PCIe 3.0 Upgrade Module for Synology NAS
Brand: SYNOLOGY
SKU: E10G22-T1-Mini
Price: 224 AUD
Availability: InStock

Enterprise-grade expansion card storage solution

The Synology E10G22-T1-Mini Network Upgrade Module is designed to easily and quickly upgrade your Synology system with 10GbE connectivity.

Simple installation

Install the E10G22-T1-Mini through the dedicated and easily-accessible network upgrade slot to instantly upgrade bandwidth availability in Synology servers featuring compact-size enclosures.Check compatibility

Multi-gig support

Integrates easily into any network using standard Ethernet cabling. Autonegotiation automatically determines the best data rate (between 10, 5, 2.5, 1 Gbps, and 100 Mbps) for your network environment, simplifying network setup.

(E10G22-T1-Mini)

Technical Specifications

Complete hardware and software specifications

General

Host Bus Interface PCIe 3.0 x2

Size (Height x Width x Depth) 26.37 mm x 45.38 mm x 75.7 mm

Operating Temperature 0°C to 40°C (32°F to 104°F)

Storage Temperature -20°C to 60°C (-5°F to 140°F)

Relative Humidity 5% to 95% RH

Warranty 3 Years

Notes The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more)

Network

IEEE Specification Compliance IEEE 802.3x Flow Control IEEE 802.3u Fast Ethernet IEEE 802.3ab Gigabit Ethernet IEEE 802.3bz 2.5Gbps / 5Gbps Ethernet IEEE 802.3an 10Gbps Ethernet

Data Transfer Rates 10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps

Supported Features 9 KB Jumbo Frame TCP/UDP/IP Checksum Offloading Auto-negotiation between 100Mb/s, 1Gb/s, 2.5Gb/s, 5Gb/s, and 10Gb/s TCP Segmentation Offload (TSO) Large Send Offload (LSO) Receive Side Scaling (RSS) Generic Receive Offload (GRO) Generic Segmentation Offload (GSO)

Applied Models

Applied Models DP series: DP340 25 series: DS1525+ 23 series: DS923+, DS723+ 22 series: RS422+, DS1522+

Notes DSM version requirement: 7.1.1-42962 Update 4 or later version

SKU	E10G22-T1-Mini
Barcode #	846504004485
Brand	SYNOLOGY
Shipping Weight	0.0200kg
Shipping Width	0.140m
Shipping Height	0.100m
Shipping Length	0.050m
