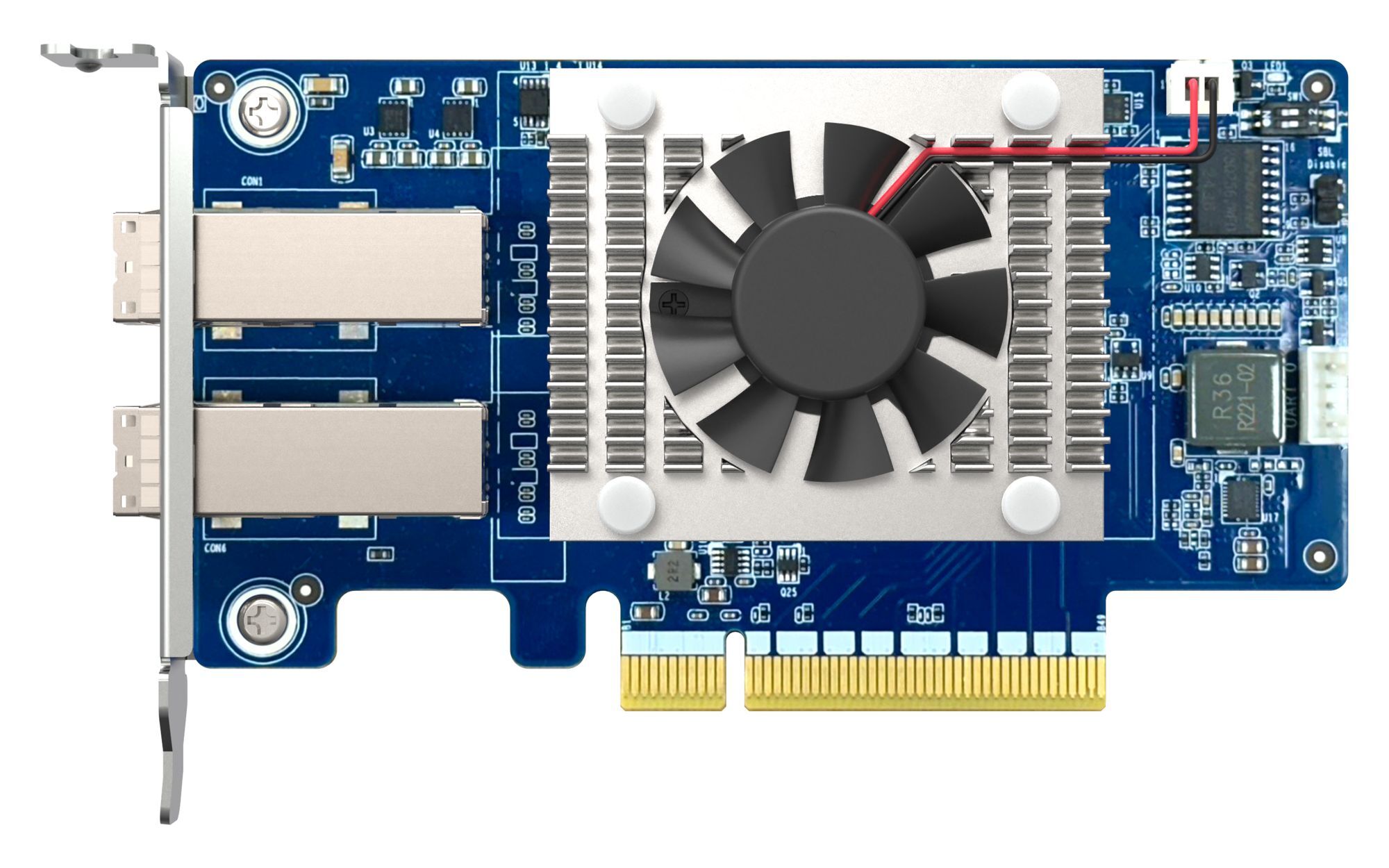

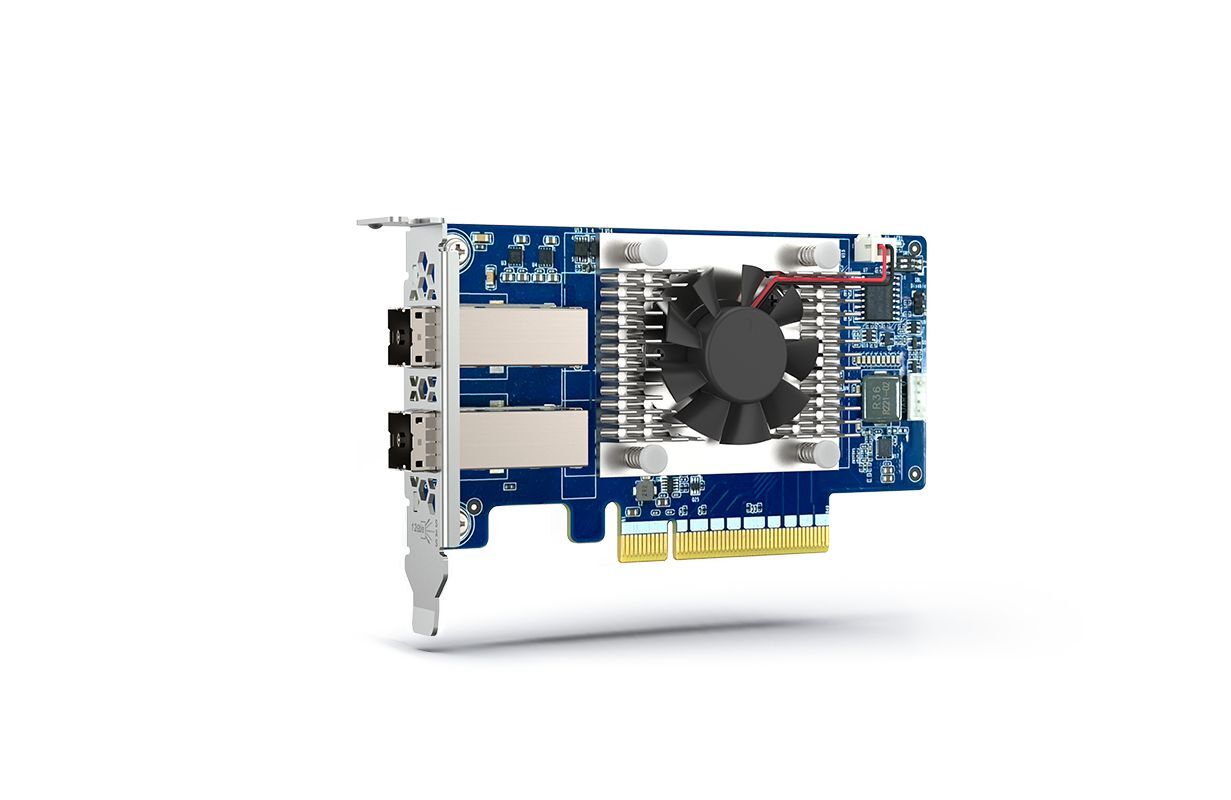

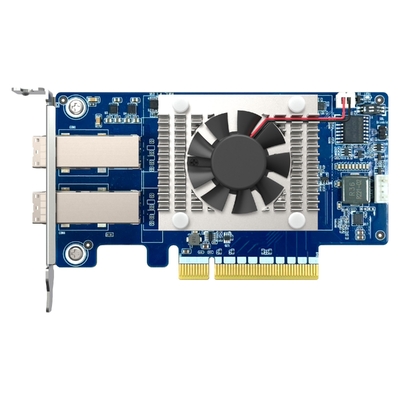

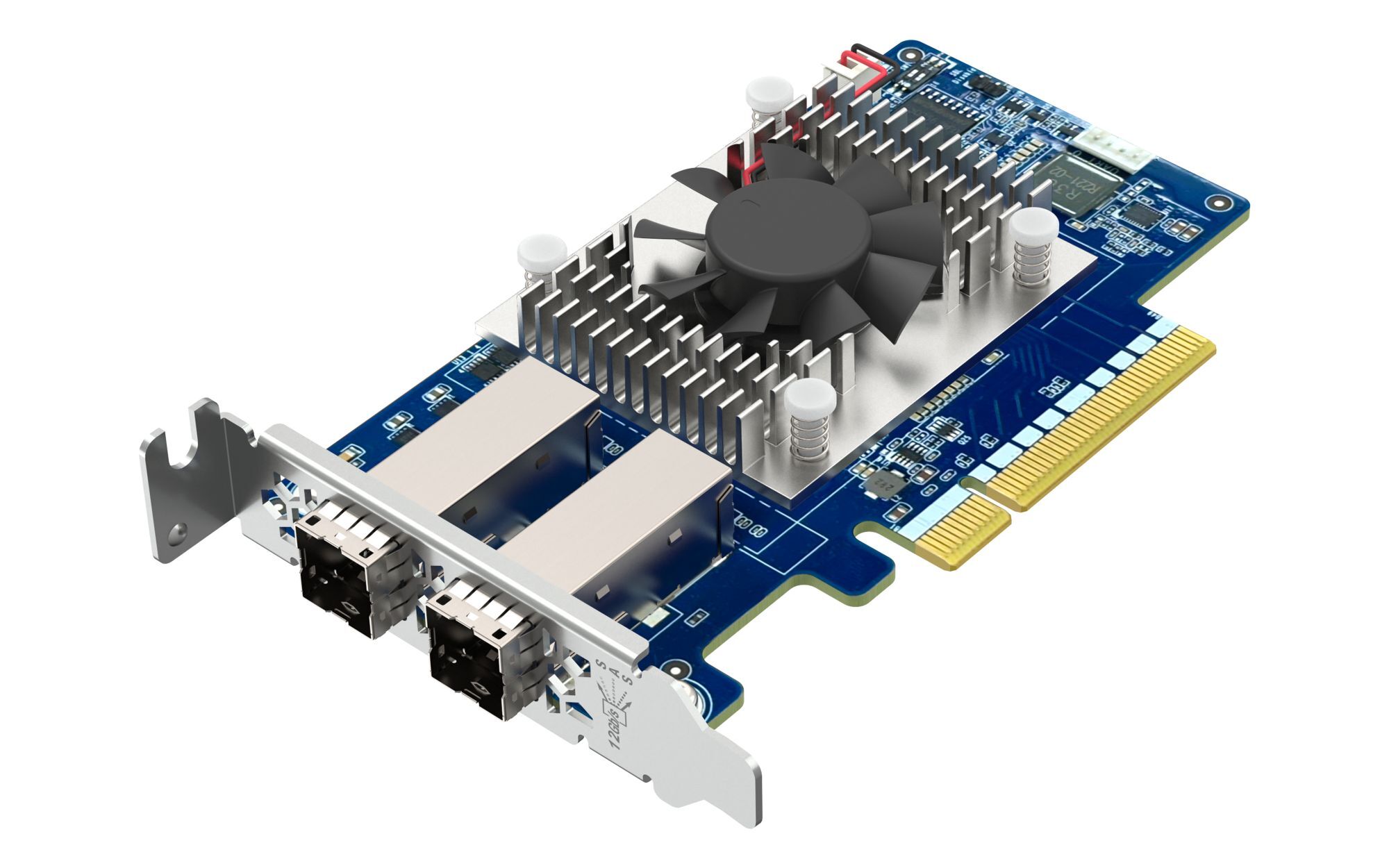

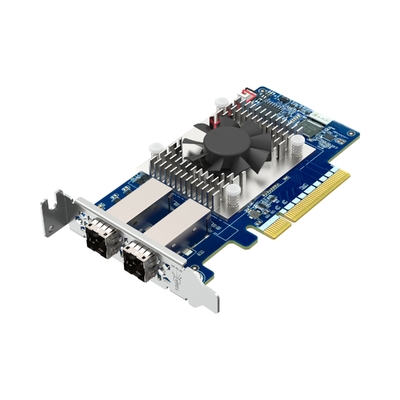

QNAP QXP-830S-3808 Dual-port external SAS 12Gb/s storage expansion card with PCIe 4.0 interface
Model # QXP-830S-3808
-
SKU: QXP-830S-3808
- Pick Up Available
- Australian Warranty
- Checkout Securely
The QXP-830S-3808 is a PCIe SAS HBA expansion card designed for expanding QNAP NAS storage capacity by connecting TL SAS JBOD enclosures. Ideal for creating a highly reliable IT infrastructure, this SAS-based solution supports demanding workloads such as virtualization, surveillance, big data, video editing, and TV broadcast storage.
NAS system minimum requirements: QTS 5.2.5.3145; QuTS hero h5.2.5.3138; QES 20250306-2.2.1.2220
Always consult the compatibility list before purchasing add-ons and accessories for your NAS.
Petabyte-scale expansion
Expand your storage by daisy-chaining multiple SAS JBOD expansion units.
Note: The maximum expandable capacity will vary depending on the NAS model specifications.
High-speed PCIe Gen 4 x8
The PCIe Gen 4 x8 interface boosts data transfer speeds for seamless and efficient storage expansion.
Expand storage capacity up to 2.3PB
A NAS with a QXP-830S-3808 expansion card can be daisy-chained with up to 8 units of TL SAS JBOD enclosures.
Note: QNAP calculates the effective capacity assuming RAID 60 with 24TB hard drives, PB-to-PiB conversion, and using storage utilization processes such as pool over-provisioning.
(QXP-830S-3808)
Check Compatible NAS Models
4 Bays
TS-473A, TVS-h474
6 Bays
QVP-63B, TS-673A, TS-h686, TVS-h674
8 Bays
QVP-85B, TS-855eU, TS-855eU-RP, TS-855X, TS-873A, TS-873AeU, TS-873AeU-RP, TS-873AU, TS-873AU-RP, TS-877XU, TS-877XU-RP, TS-h886, TVS-h874
9 Bays
TS-977XU, TS-977XU-RP, TS-h987XU-RP
10 Bays
TS-h1077AFU, TS-h1090FU
12 Bays
TS-1273AU-RP, TS-1277XU-RP, TS-h1277AFX, TS-h1277AXU-RP, TS-h1277XU-RP
16 Bays
ES1686dc, ES1686dc R2, TS-1655, TS-1673AU-RP, TS-1677XU-RP, TS-h1677AXU-RP, TS-h1677XU-RP, TS-h1683XU-RP, TVS-AIh1688ATX
18 Bays
TS-1886XU-RP, TS-h1886XU-RP, TS-h1886XU-RP R2, TS-h1887XU-RP
22 Bays
TS-h2287XU-RP
24 Bays
ES2486AFdc, ES2486dc, TDS-h2489FU, TDS-h2489FU R2, TS-2477XU-RP, TS-h2477AXU-RP, TS-h2483XU-RP, TS-h2490FU
30 Bays
TS-h3077AFU, TS-h3087XU-RP, TS-h3088XU-RP
Always consult the compatibility list before purchasing add-ons and accessories for your NAS.
Dual-port External SAS 12Gb/s storage expansion card
| Standard Warranty | 3 years |
| Controller | Broadcom SAS3808 |
| Connector | Two (x4) SFF-8644 |
| PCIe and Lanes | PCIe Gen 4 x8 |
| Tri-mode | 12Gb/s SAS, 6Gb/s SATA, and PCIe (NVMe)* up to 8.0 GT/s
A wide port with four SAS signals. |

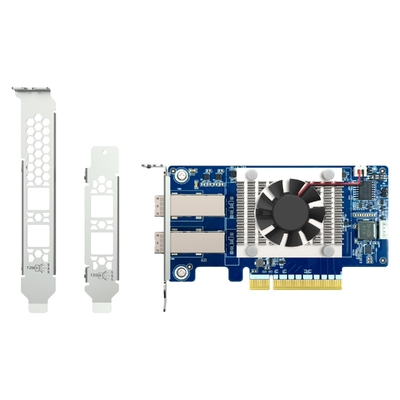

| Bracket | Low-profile (default). Desktop and Full-height brackets are also included. |

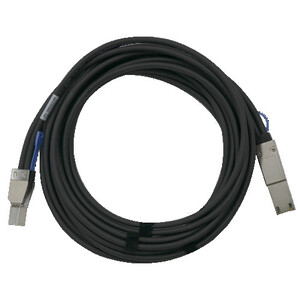

| Supported Cable | CAB-SAS05M-8644, CAB-SAS10M-8644, CAB-SAS20M-8644, CAB-SAS30M-8644
Only passive cables are supported. Passive cables are sold separatedly. |
Note: QNAP reserves the right to replace partial parts or accessories if the original is no longer available from its manufacturer/supplier. Any replacement would be fully tested and verified to meet strict compatibility and stability guidelines and will deliver identical performance to the original.
Product images are for illustrative purposes only and may differ from the actual product. Due to differences in monitors, colors of products may also appear different to those shown on the site.
Designs and specifications are subject to change without notice.
| SKU | QXP-830S-3808 |
| Barcode # | 4711103089781 |
| Brand | QNAP |
| Shipping Weight | 0.0100kg |
Manufacturer Warranty: 3 Year Manufacturer Warranty
