Expansion Card

E10G30-F2

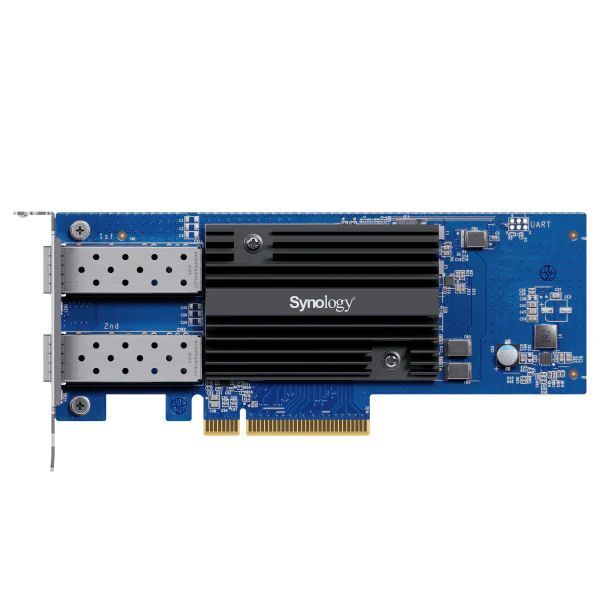

Name: Synology E10G30-F2 Dual-Port 10GbE SFP+ Network Adapter
Brand: SYNOLOGY
SKU: E10G30-F2
Price: 454 AUD
Availability: InStock

Enterprise-grade expansion card storage solution

Synology E10G30-F2 is a powerful storage server.

High-performance connectivity upgrade

Support for short-range and long-range transceivers as well as DAC options enables flexible connectivity choices.

5-year warranty

At Synology, we are committed to product innovation and quality. Synology guarantees a robust and reliable data management experience with a 5-year limited warranty, providing responsive technical support and hardware replacement services to maximize your return on investment.Learn more

High performance storage systems

High-speed connectivity for enterprise networks

Powered by Synology DiskStation Manager

Enterprise-grade software solutions included

Flexible SFP+ options

Support for short-range and long-range transceivers as well as DAC options enables flexible connectivity choices.

Link aggregation

Dual 10GbE ports can be combined into a Link Aggregation Group to boost throughput up to 20 Gb/s, while also providing port failover and load balancing functionality.

CPU offloading and load balancing

Support for CPU offloading and load balancing technologies enables optimal system performance.

(E10G30-F2)

Technical Specifications

Complete hardware and software specifications

General

Host Bus Interface PCIe 3.0 x8

Bracket Height Low Profile and Full Height

Size (Height x Width x Depth) 69 mm x 168 mm x 17.3 mm

Operating Temperature 0°C to 40°C (32°F to 104°F)

Storage Temperature -20°C to 60°C (-5°F to 140°F)

Relative Humidity 5% to 95% RH

Warranty 5 Years

Notes The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more)

Network

IEEE Specification Compliance IEEE 802.3ad Link Aggregation IEEE 802.3ae 10Gbps Ethernet

Data Transfer Rates 10 Gbps

Supported Features TCP Segmentation Offload (TSO) Receive Side Scaling (RSS) Generic Segmentation Offload (GSO) 1.5 - 9 KB Jumbo Frame TCP/UDP Checksum Offload Transmit side scaling (TSS) SR-IOV Large receive offload (LRO)

Applied Models

Applied Models FS series: FS6400, FS3600, FS3410, FS3400, FS2500 HD series: HD6500 SA series: SA6400, SA3610, SA3600, SA3410, SA3400D, SA3400, SA3200D UC series: UC3400, UC3200 25 series: RS2825RP+, DS1825+ 23 series: RS2423RP+, RS2423+, DS1823xs+ 22 series: RS822RP+, RS822+, DS3622xs+, DS2422+ 21 series: RS4021xs+, RS3621xs+, RS3621RPxs, RS2821RP+, RS2421RP+, RS2421+, RS1221RP+, RS1221+, DS1821+, DS1621xs+, DS1621+ 20 series: RS820RP+, RS820+ 19 series: RS1619xs+, DS2419+II, DS2419+, DS1819+ 18 series: RS3618xs, RS2818RP+, RS2418RP+, RS2418+ 17 series: RS4017xs+, RS3617xs+, RS3617RPxs, DS3617xsII, DS3617xs

Notes DSM version requirement: 7.1.1-42962 Update 5 or later version
