QNAP dual-port multi-speed 10GbE card

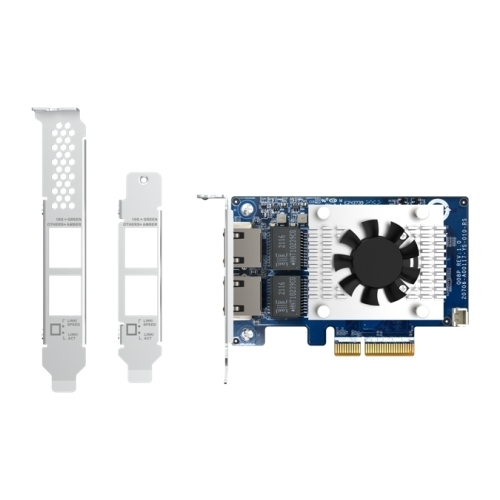

QNAP QXG-10G2T Dual-Port Multi-Speed 10GbE RJ45 Network Card

A dual-port NBASE-T RJ45 network expansion card supporting 10G, 5G, 2.5G, 1G and 100M, with a Marvell AQtion AQC107S controller, SR-IOV and iSCSI.

Network ports2 × NBASE-T RJ45

Speeds10G to 100M

ControllerMarvell AQC107S

FeaturesSR-IOV + iSCSI

Dual-port five-speed copper networking

Both NBASE-T RJ45 ports support 10Gbps, 5Gbps, 2.5Gbps, 1Gbps and 100Mbps. The supplied description lists the Marvell AQtion AQC107S controller and identifies SR-IOV and iSCSI support.

Operating-system and installation requirements

QNAP operating-system support is listed as QTS 4.5.2 or later and QuTS hero h4.5.2 or later.
Windows and Linux are listed with driver requirements.
A low-profile bracket is pre-installed, with full-height and specialised QNAP NAS brackets bundled.
RJ45 cabling over CAT-6 class cable is recommended in the supplied description.

PCIe specification requires confirmation

The supplied source conflicts on the host interface, referring to both PCIe Gen 3 and PCIe 2.0 x4. Confirm the exact card revision and host slot before purchase or installation.

Frequently asked questions

Answers below are based only on the supplied product information for QXG-10G2T.

Which network speeds does the QXG-10G2T support?

The supplied information lists 10Gbps, 5Gbps, 2.5Gbps, 1Gbps and 100Mbps.

How many network ports does it provide?

It provides two NBASE-T RJ45 network ports.

Which controller is specified?

The supplied description identifies a Marvell AQtion AQC107S controller.

Which QNAP operating-system versions are listed?

The source lists QTS 4.5.2 or later and QuTS hero h4.5.2 or later.

Which PCIe interface does the card use?

The supplied data conflicts, referring to both PCIe Gen 3 and PCIe 2.0 x4. The exact revision should be confirmed before installation.

What warranty applies to the QXG-10G2T?

The product is covered by the applicable QNAP manufacturer warranty; the exact duration should be confirmed for this SKU.

(QXG-10G2T)

Features and highlights

QNAP QXG-10G2T Dual-Port Multi-Speed 10GbE RJ45 Network Card

Two NBASE-T RJ45 ports

Each port supports 10G, 5G, 2.5G, 1G and 100M.

Marvell AQC107S controller

The controller is identified in the supplied description.

SR-IOV and iSCSI

Both functions are listed in the supplied product information.

QTS, QuTS hero, Windows and Linux

Operating-system and driver requirements are supplied.

Additional supplied highlights

Low-profile bracket pre-installed.
Full-height and specialised QNAP NAS brackets bundled.
CAT-6 class cable recommended.
PCIe Gen 3 versus PCIe 2.0 x4 conflict requires confirmation.

Technical specifications

Specifications below are organised from the supplied product information for QXG-10G2T.

Specification	Details
Product Details
Model	QXG-10G2T
Product Type	Dual-port 10GbE network expansion card
Controller	Marvell AQtion AQC107S
Network Interface
Network Connectors	2 × NBASE-T RJ45
Transmission Rates	10Gbps / 5Gbps / 2.5Gbps / 1Gbps / 100Mbps
Features	SR-IOV and iSCSI
Host Interface
PCIe Generation and Lanes	Conflicting supplied values: PCIe Gen 3 and PCIe 2.0 x4; confirm the exact card revision before installation
System Compatibility
QNAP Operating Systems	QTS 4.5.2 or later QuTS hero h4.5.2 or later
Computer Operating Systems	Windows and Linux; driver required
Applied Models	PCIe-supported QNAP NAS
Bracket and Cabling
Bracket	Low-profile bracket pre-installed; full-height and specialised brackets for selected QNAP NAS are bundled
Port and Cable	RJ45; over CAT-6 class cable recommended

SKU	QXG-10G2T
Model #	QXG-10G2T
Barcode #	4711103084373
Brand	QNAP
Shipping Width	0.350m

QNAPManufacturer warranty

QNAP manufacturer warranty

The QNAP QXG-10G2T is covered by the applicable QNAP manufacturer warranty.

Warranty coverage, duration, eligibility and claim assessment are subject to QNAP terms for the exact product. Please retain your DeviceDeal tax invoice as proof of purchase.
