Five Ethernet speeds
Supports 10G, 5G, 2.5G, 1G and 100M.

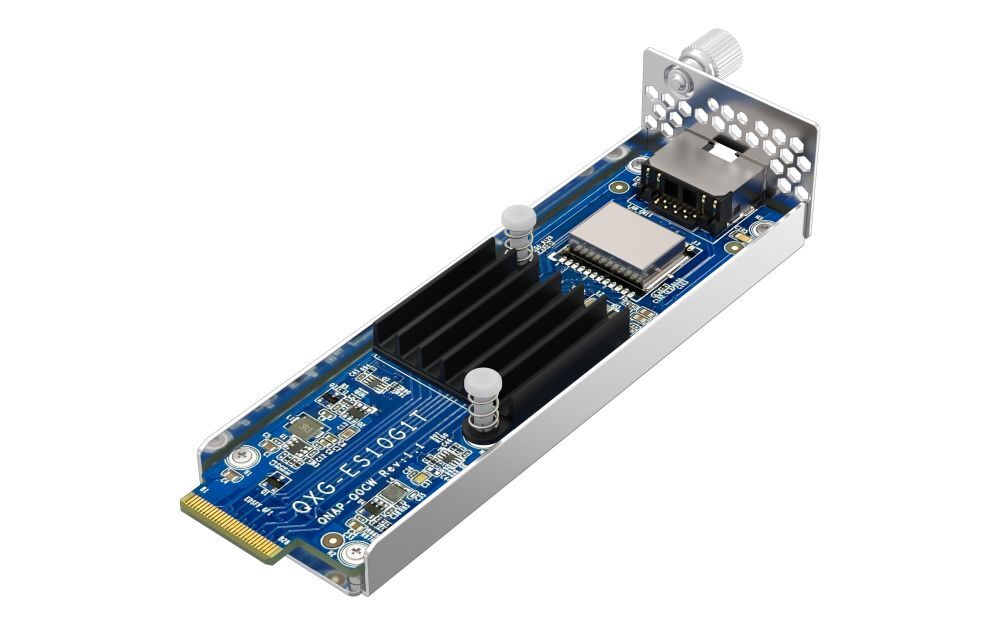

QNAP QXG-ES10G1T E1.S to Single 10Gb LAN Module
Model # QXG-ES10G1T
-
SKU: QXG-ES10G1T
- Pick Up Available
- Australian Warranty
- Checkout Securely
QNAP E1.S five-speed 10GbE module

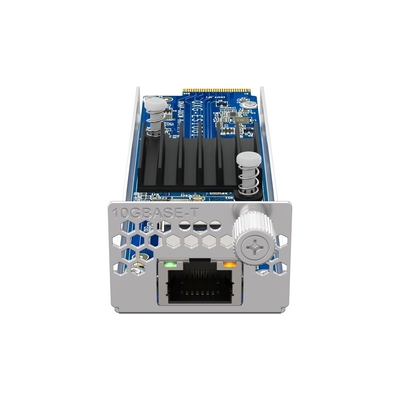

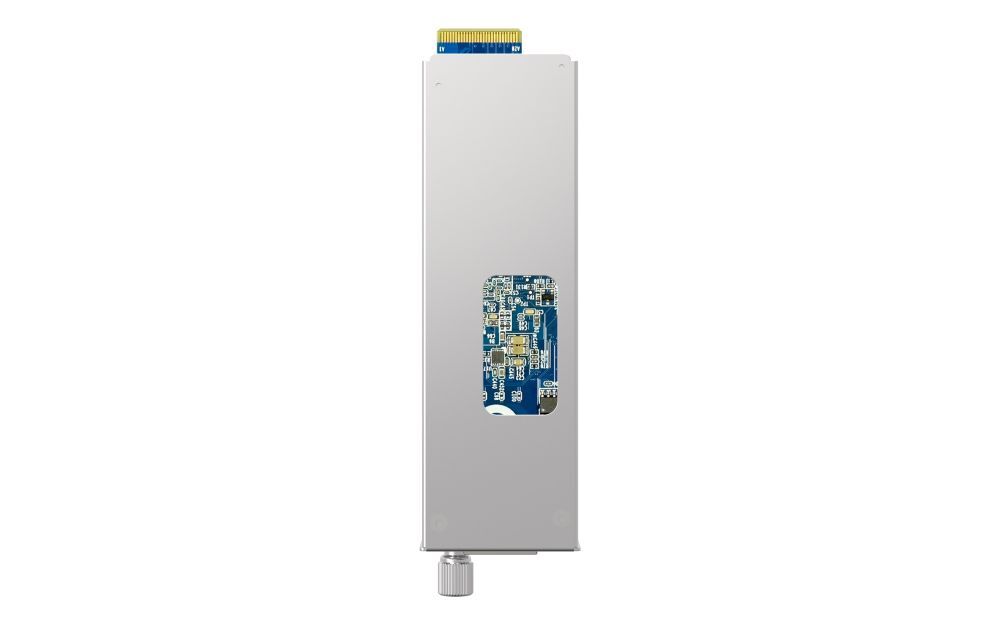

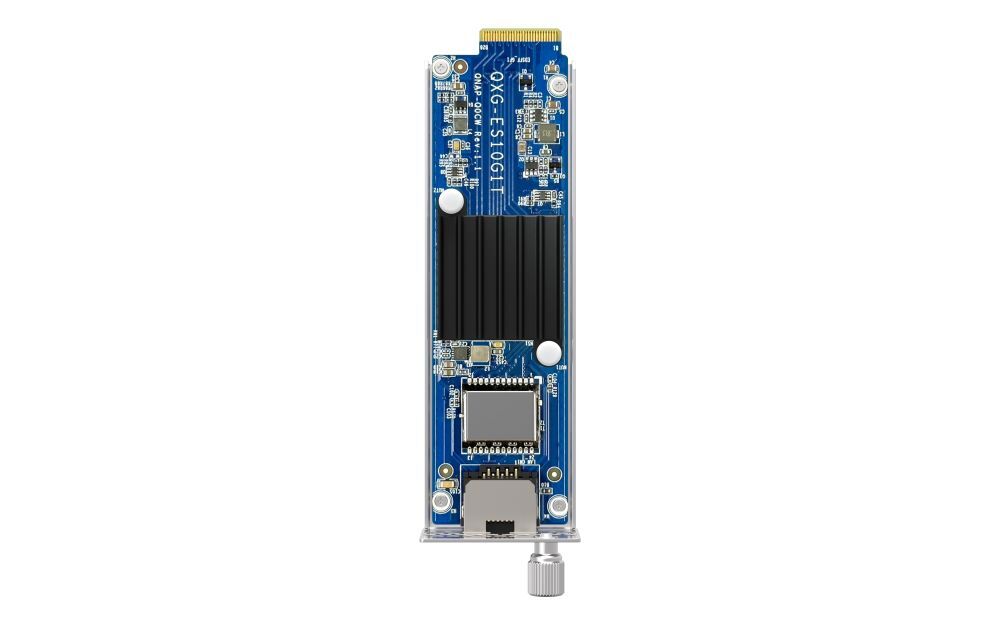

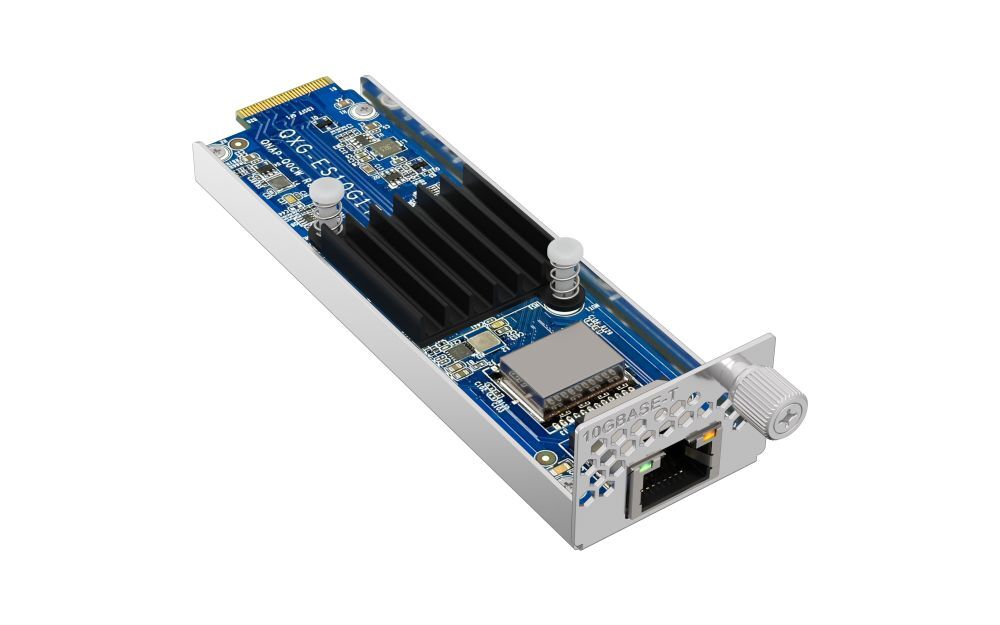

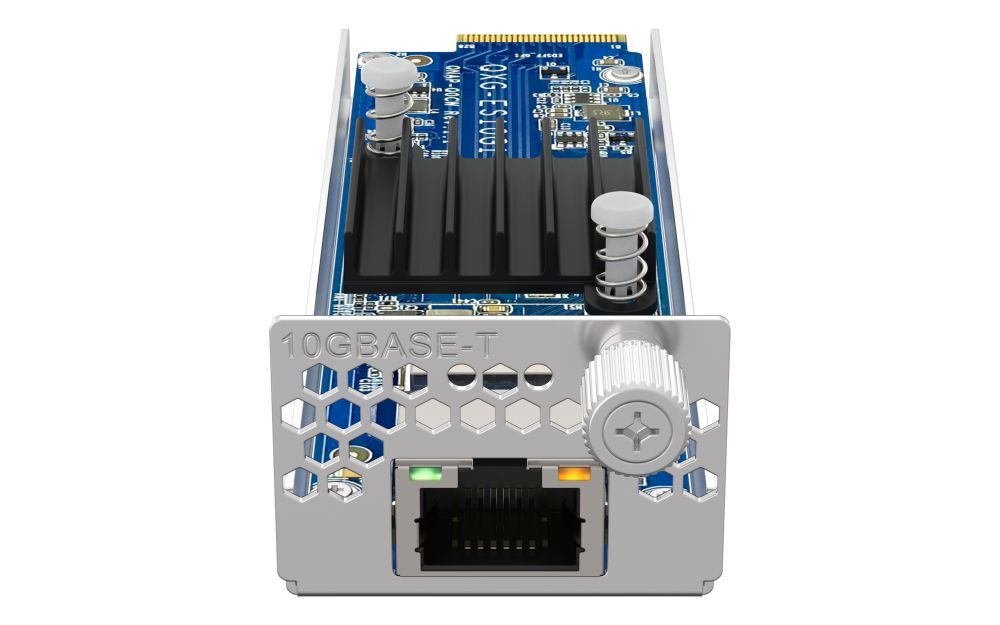

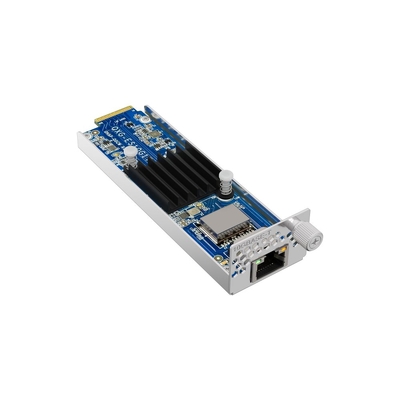

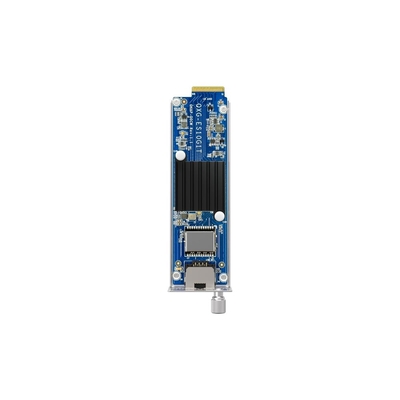

QNAP QXG-ES10G1T E1.S Single-Port 10GbE Network Module
An E1.S network module with one NBASE-T RJ45 port, five Ethernet speeds, PCIe 3.0 x4 and a hand-screw installation design.
Network port1 × NBASE-T RJ45
Supported speeds10G to 100M
Host interfacePCIe 3.0 x4
Warranty3 years
Five-speed 10GbE over RJ45
The single NBASE-T RJ45 port supports 10Gbps, 5Gbps, 2.5Gbps, 1Gbps and 100Mbps using the supplied CAT-6 class cable wording.
Controller, host interface and installation
- The description identifies a Marvell Scalable mGig AQC113 controller.
- The separate specifications describe a Marvell AQtion Ethernet Controller.
- PCIe 3.0 x4 is specified, with up to 32Gbps host-interface bandwidth stated in the description.
- A hand-screw design is identified for tool-free installation.
QNAP operating-system support
- QTS 5.x or QuTS hero h5.x or later is listed.
- An upgrade to the latest version is recommended in the supplied specifications.
- A driver is not required for QTS and QuTS hero according to the supplied specifications.
- The package contents list one network card.
Confirm the target E1.S platform
Check the exact QNAP NAS, supported E1.S bay or slot, firmware and operating-system requirements, physical clearance and suitable CAT-6 class network cabling before installation.
Frequently asked questions
Answers below are based only on the supplied product information for QXG-ES10G1T.
Which network speeds does the QXG-ES10G1T support?
The supplied information lists 10Gbps, 5Gbps, 2.5Gbps, 1Gbps and 100Mbps.
How many network ports does it provide?
It provides one NBASE-T RJ45 port.
Which controller is identified?
The description identifies a Marvell Scalable mGig AQC113 controller, while the specifications use the broader Marvell AQtion Ethernet Controller wording.
Which PCIe interface and QNAP operating systems are listed?
PCIe 3.0 x4 is specified, with QTS 5.x or QuTS hero h5.x or later listed.
Is a driver required for QTS or QuTS hero?
The supplied specifications state that a driver is not required for QTS and QuTS hero.
What warranty applies to the QXG-ES10G1T?
The supplied specifications state a 3-year QNAP manufacturer warranty.
(QXG-ES10G1T)
Features and highlights
QNAP QXG-ES10G1T E1.S Single-Port 10GbE Network Module
NBASE-T RJ45
One copper network port is specified.
PCIe 3.0 x4
Up to 32Gbps host-interface bandwidth is stated.
Tool-free hand-screw
The supplied description identifies a hand-screw installation design.
Additional supplied highlights
- Marvell AQC113 / AQtion controller wording is supplied.
- QTS 5.x and QuTS hero h5.x or later are listed.
- Driver not required for QTS and QuTS hero, according to the supplied specifications.
- One network card is listed in the package contents.
- Three-year QNAP manufacturer warranty.
Technical specifications
Specifications below are organised from the supplied product information for QXG-ES10G1T.
| Specification | Details |
|---|---|
| Product Details | |
| Model | QXG-ES10G1T |
| Product Type | E1.S to single-port 10GbE network module |
| Controller in Description | Marvell Scalable mGig AQC113 |
| Controller Wording in Specifications | Marvell AQtion Ethernet Controller |
| Installation Design | Hand-screw, tool-free installation |
| Network and Host Interface | |
| Number of Ports | 1 × NBASE-T RJ45 |
| Connector | NBASE-T RJ45 |
| Transmission Rates | 10Gbps / 5Gbps / 2.5Gbps / 1Gbps / 100Mbps |
| PCIe and Lanes | PCIe 3.0 x4 |
| Host-interface Bandwidth Stated | Up to 32Gbps |
| IEEE Standards | IEEE 802.3an IEEE 802.3bz |
| Compatibility and Cabling | |
| Supported NAS Operating Systems | QTS 5.x / QuTS hero h5.x or later; upgrade to the latest version recommended |
| QTS / QuTS hero Driver | Driver not required, according to the supplied specifications |
| Port and Cable | RJ45 over CAT-6 class cable |
| Package and Warranty | |
| Package Contents | 1 × network card |
| Warranty | 3 years |
| SKU | QXG-ES10G1T |
| Brand | QNAP |
| Shipping Weight | 1.0000kg |
QNAP3-year
QNAP manufacturer warranty
The QNAP QXG-ES10G1T is supplied with a 3-year QNAP manufacturer warranty.
Warranty coverage, eligibility and claim assessment are subject to QNAP terms for the exact product. Please retain your DeviceDeal tax invoice as proof of purchase.
