Expansion Card

M2D20

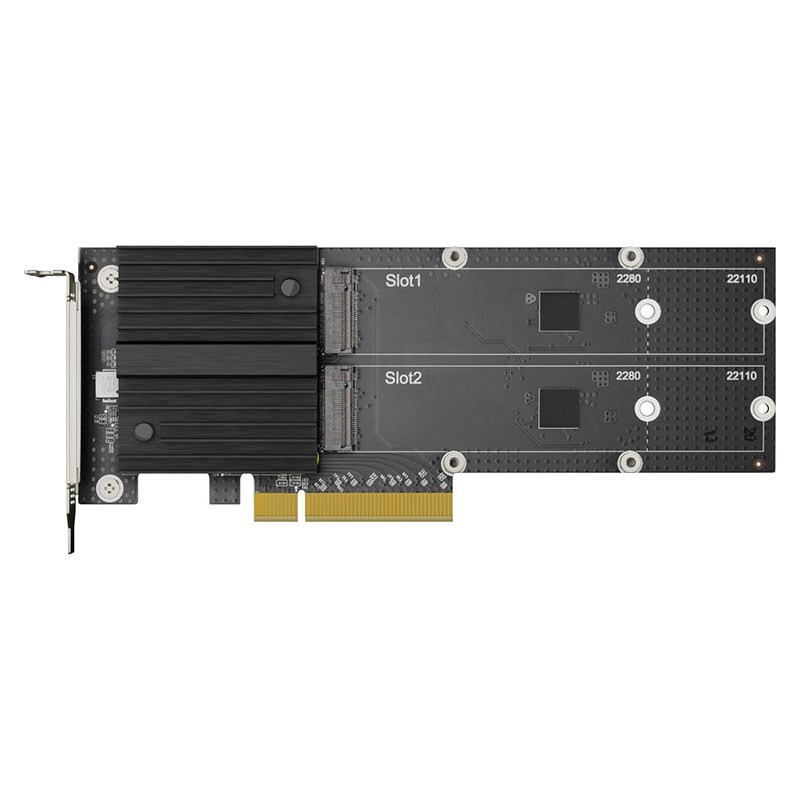

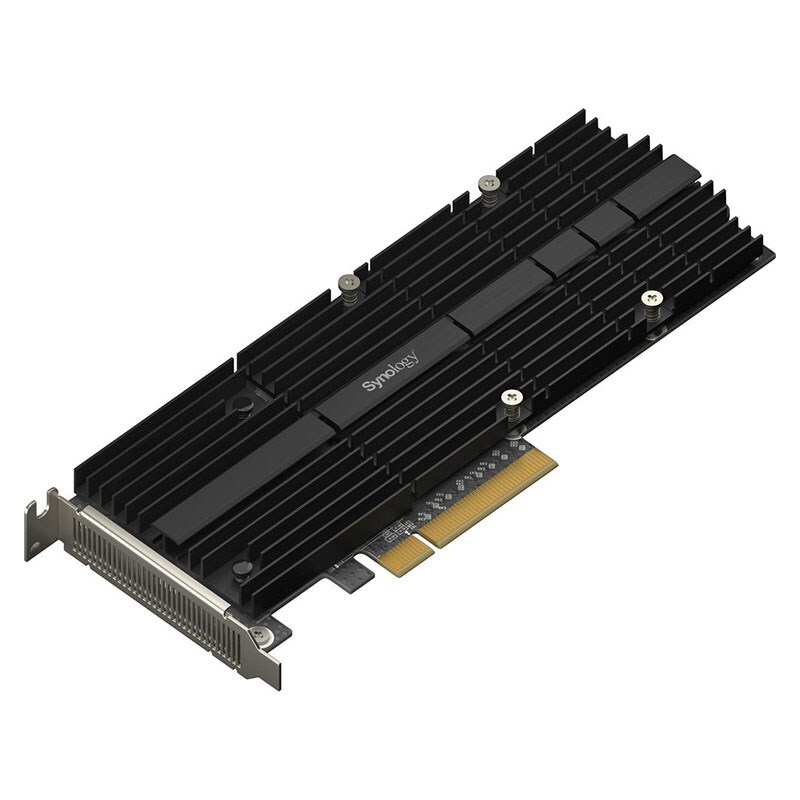

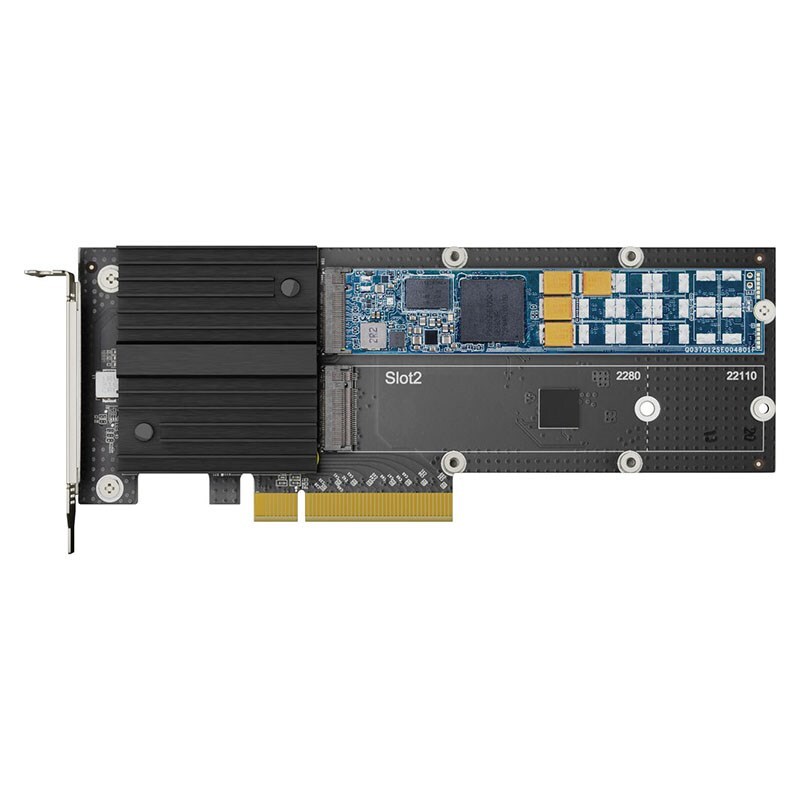

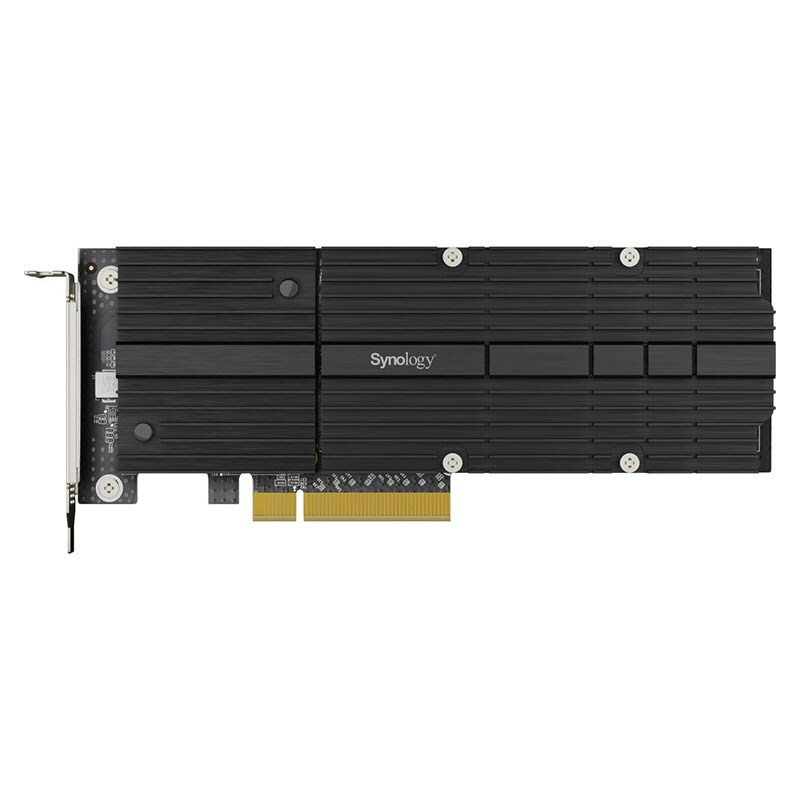

Name: Synology M2D20 Dual-slot M.2 NVMe SSD Adapter Card
Brand: SYNOLOGY
SKU: M2D20
Price: 328 AUD
Availability: InStock

Enterprise-grade expansion card storage solution

Synology M2D20 is a M.

(M2D20)

Technical Specifications

Complete hardware and software specifications

General

Host Bus Interface PCIe 3.0 x8

Bracket Height Low Profile and Full Height

Size (Height x Width x Depth) 71.75 mm x 181.9 mm x 15.8 mm

Operating Temperature 0°C to 40°C (32°F to 104°F)

Storage Temperature -20°C to 60°C (-5°F to 140°F)

Relative Humidity 5% to 95% RH

Warranty 5 Years

Notes The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more)

Storage

Storage Interface PCIe NVMe

Supported Form Factor 22110 / 2280

Connector Type and Quantity M-key, 2 Slots

Applied Models

NVMe SSD SA series: SA6400, SA3610, SA3600, SA3410, SA3400 25 series: RS2825RP+ 23 series: RS2423RP+, RS2423+ 22 series: RS822RP+, RS822+, DS3622xs+, DS2422+ 21 series: RS4021xs+, RS3621xs+, RS3621RPxs, RS2821RP+, RS2421RP+, RS2421+, RS1221RP+, RS1221+ 20 series: RS820RP+, RS820+ 19 series: DS2419+II, DS2419+, DS1819+ 18 series: RS3618xs, RS2818RP+, RS2418RP+, RS2418+, DS3018xs, DS1618+ 17 series: RS18017xs+, RS4017xs+, RS3617xs+, RS3617RPxs, DS3617xsII, DS3617xs

Notes DSM version requirement: 6.2.3-25426 or later version DSM version requirement for RS18017xs+, RS4017xs+, RS3618xs, RS3617xs+, RS3617RPxs, DS3617xs and DS3617xsII: 7.0.1 or later version

SKU	M2D20
Barcode #	846504003907
Brand	SYNOLOGY
Shipping Weight	0.5000kg
Shipping Width	0.190m
Shipping Height	0.270m
Shipping Length	0.040m
