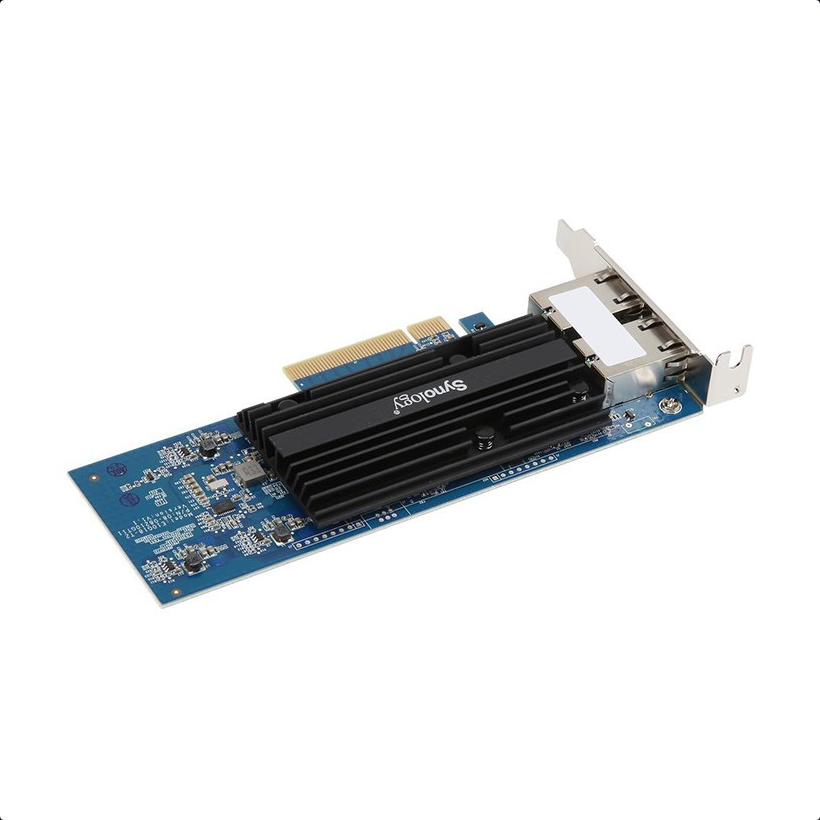

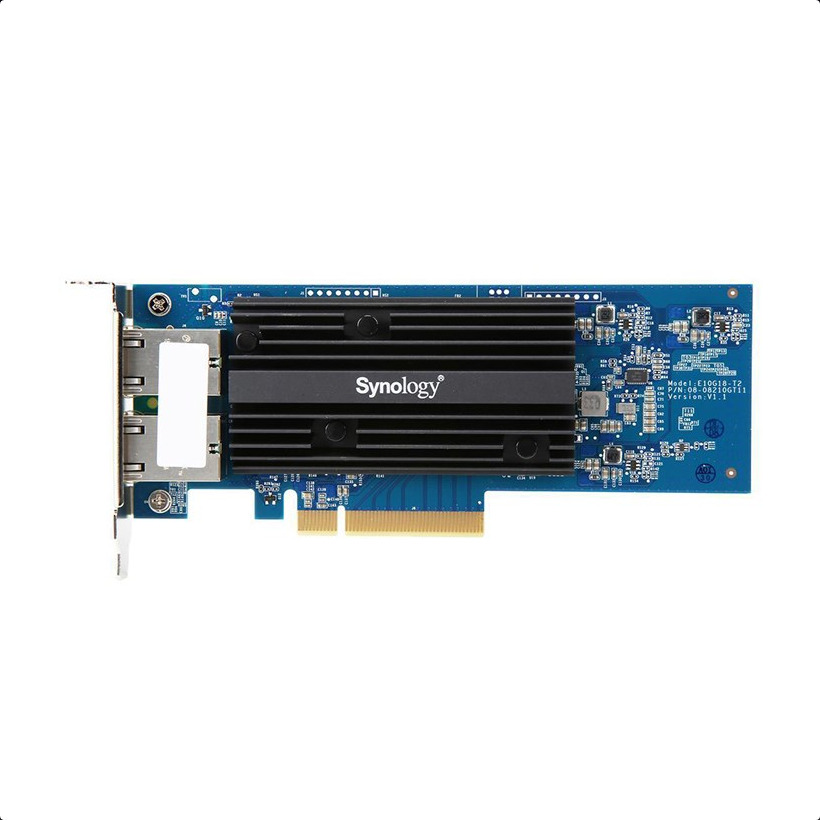

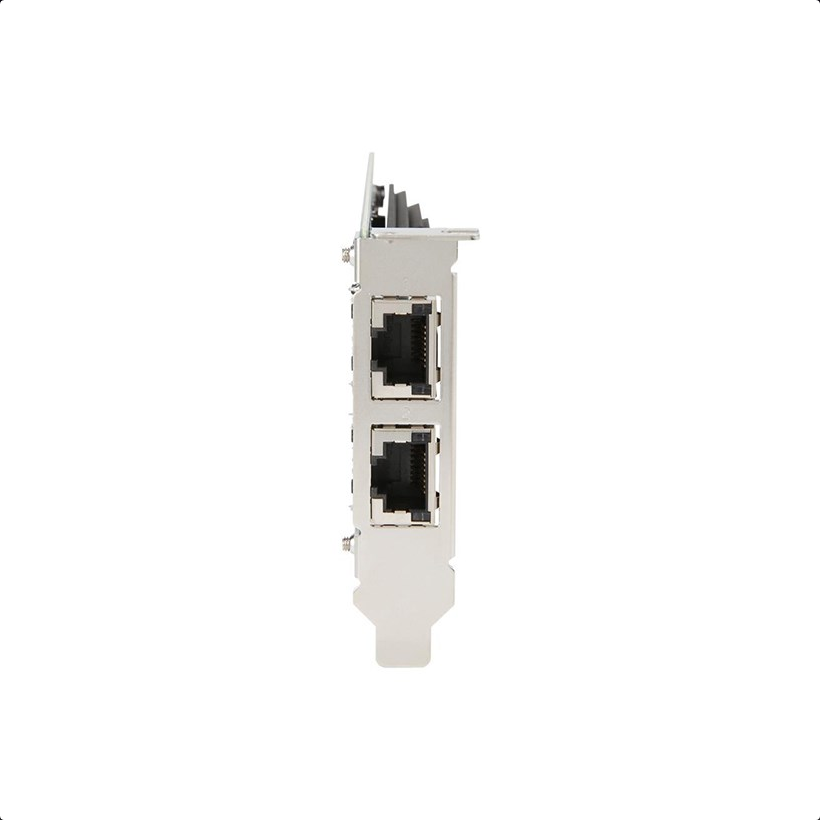

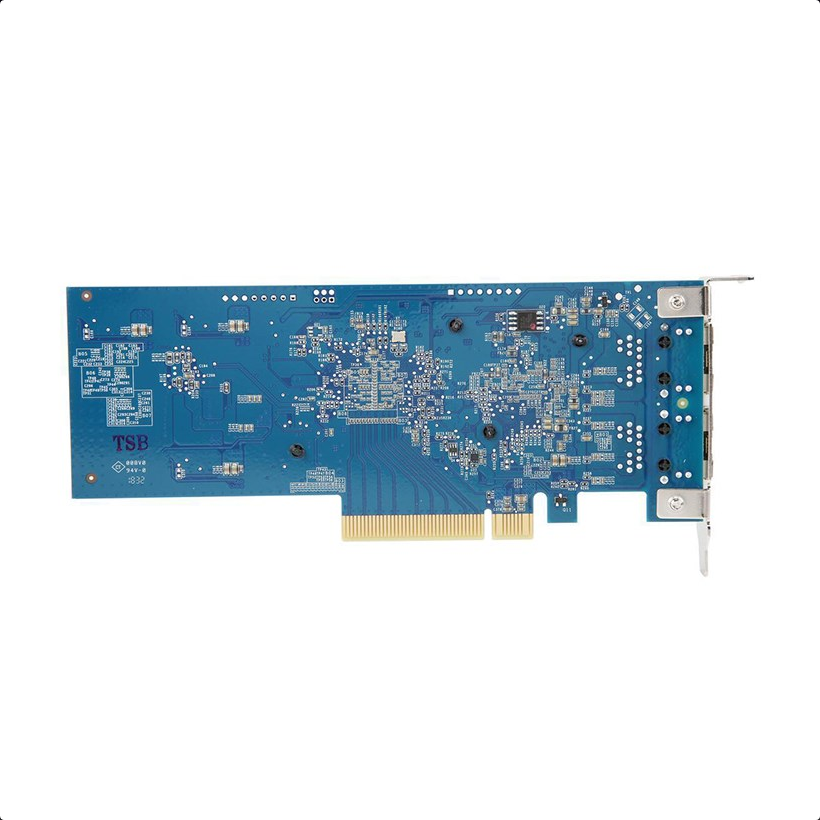

Synology E10G18-T2 Dual Port 10 Gigabit PCI Express Ethernet Adapter - Dual RJ45 Ports provides a total data rate of 20Gbps - Supports IEEE 802.3an/ab (10GBASE-T/1000BASE-T) and 802.3x - PCIe Interface: PCIe 3.0 x8 - Bracket Height: Low Profile and Full Height - 5 Years Limited Warranty



General Specifications
Standards
  • IEEE 802.3an 10Gbps Ethernet
  • IEEE 802.3ab Gigabit Ethernet
  • IEEE 802.3ad Link Aggregation
  • IEEE 802.3x Flow Control
Data Transfer Rates 10 Gbps
Network Operation Mode Full Duplex
Supported Features
  • 9 KB Jumbo Frame
  • TCP/UDP/IP Checksum Offloading
  • TCP Segmentation Offload (TSO)
Applied Models
  • FS3017
  • FS2017
  • FS1018
  • RS18017xs+
  • RS18016xs+
  • RS10613xs+
  • RS4017xs+
  • RS3618xs
  • RS3617xs+
  • RS3617RPxs
  • RS3617xs
  • RS3614xs+
  • RS3614RPxs
  • RS3614xs
  • RS3413xs+
  • RS3412RPxs
  • RS3412xs
  • RS3411RPxs
  • RS3411xs
  • RS2818RP+
  • RS2418RP+
  • RS2418+
  • RS1619xs+
  • RS1219+
  • RS818RP+
  • RS818+
  • RC18015xs+
  • DS3617xs
  • DS3615xs
  • DS3612xs
  • DS3611xs
  • DS3018xs
  • DS1819+
  • DS1817+
  • DS1618+
  • DS1517+
Note DSM version requirement: 6.2.1-23824 or later version
Hardware Specifications
PCIe Interface PCIe 3.0 x8
Bracket Height Low Profile and Full Height
Size (Height x Width x Depth) 170.6 mm x 68.9 mm x 13.6 mm
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -20°C to 60°C (-5°F to 140°F)
Relative Humidity 5% to 95% RH
Warranty 5 Years

(E10G18-T2)

SKU E10G18-T2
Barcode # 846504003112
Brand SYNOLOGY
Shipping Weight 1.0000kg
Manufacturer Warranty: 5 Years Limited Warranty
Manufacturer Contact Info: http://www.synology.com
