Dual-port 100GbE design
Two high-bandwidth network ports are stated in the product-aligned description.
QNAP Dual-port 100 GbE network expansion card(QXG-100G2SF-E810)
Model # QXG-100G2SF-E810
-
SKU: QXG-100G2SF-E810
- Pick Up Available
- Australian Warranty
- Checkout Securely
QNAP dual-port 100GbE expansion card

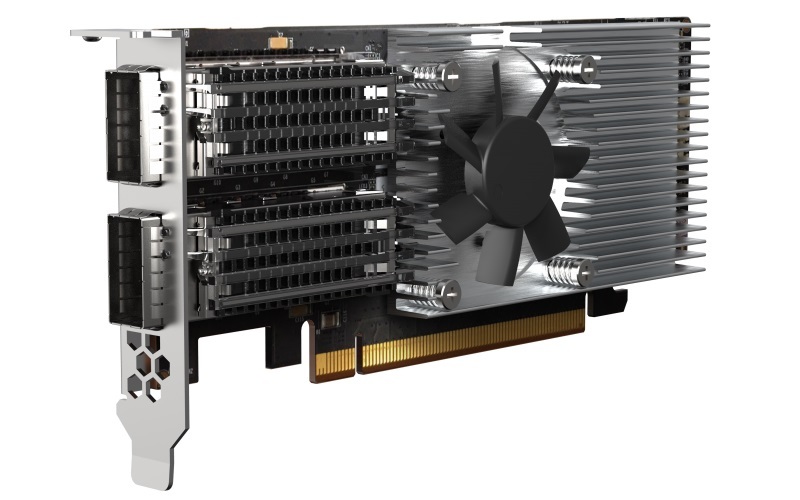

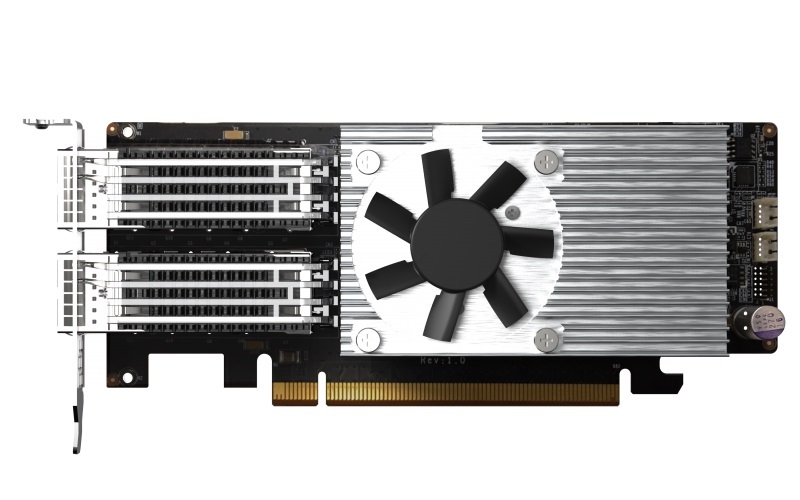

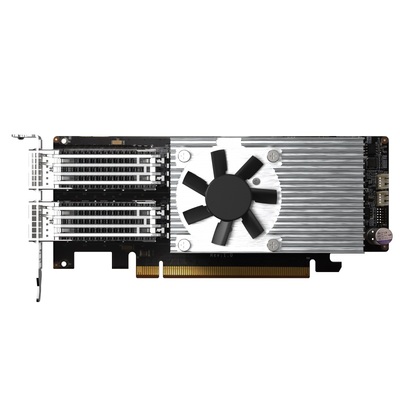

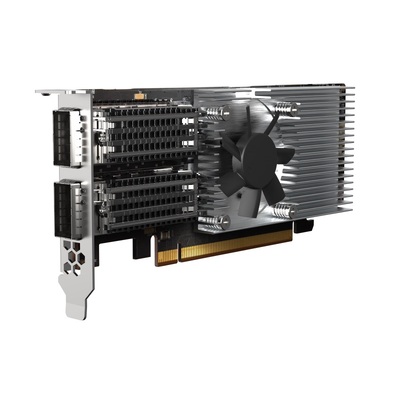

QNAP QXG-100G2SF-E810 Dual-Port 100GbE PCIe 4.0 Network Card
A dual-port 100GbE PCIe 4.0 network expansion card using an Intel Ethernet Controller E810, with the QNAP TS-h2490FU listed as the applied model.
Network class100GbE
Port countDual-port
Host interfacePCIe 4.0
ControllerIntel E810
High-bandwidth network expansion
The supplied product-aligned description identifies two 100GbE ports, up to 100Gbps bandwidth, a PCIe 4.0 host interface and an Intel Ethernet Controller E810. It lists the TS-h2490FU for I/O-intensive and latency-sensitive environments.
Product-aligned supplied scope
- Model QXG-100G2SF-E810 is described as a dual-port 100GbE network expansion card.
- The TS-h2490FU is the only applied QNAP model explicitly listed in the supplied product-aligned description.
- Data-centre, virtualisation and all-flash storage environments are identified as intended uses in the supplied text.
- iWARP/RDMA and SR-IOV availability are marked as coming soon in the supplied source and should be confirmed before deployment.
Conflicting source specification block
The separate Specifications cell describes a different dual-port 25GbE SFP28 card using an NVIDIA Mellanox ConnectX-6 Lx controller. Those unrelated values are excluded from the customer-facing technical table and require source correction.
Frequently asked questions
Answers below are based only on the supplied product information for QXG-100G2SF-E810.
What is the QNAP QXG-100G2SF-E810?
It is described as a dual-port 100GbE PCIe 4.0 network expansion card.
Which controller is specified for this model?
The product-aligned description specifies an Intel Ethernet Controller E810.
Which QNAP model is explicitly listed?
The supplied product-aligned information lists the TS-h2490FU as the applied model.
What bandwidth is stated?
The supplied description lists up to 100Gbps bandwidth.
Are iWARP/RDMA and SR-IOV confirmed as available?
No. The supplied source marks iWARP/RDMA and SR-IOV availability as coming soon, so current support should be confirmed.
What warranty applies to the QXG-100G2SF-E810?
The product is covered by the applicable QNAP manufacturer warranty; the exact duration should be confirmed for this SKU.
(QXG-100G2SF-E810)
Features and highlights
QNAP QXG-100G2SF-E810 Dual-Port 100GbE PCIe 4.0 Network Card
PCIe 4.0 host interface
The supplied description identifies PCIe 4.0.
Intel E810 controller
Uses an Intel Ethernet Controller E810, as supplied.
TS-h2490FU listed
The supplied product-aligned description names this applied QNAP model.
Additional supplied highlights
- Up to 100Gbps bandwidth is stated.
- I/O-intensive, latency-sensitive, data-centre and all-flash use contexts are listed.
- iWARP/RDMA and SR-IOV are marked as coming soon and require confirmation.
- The unrelated 25GbE specification block is not used for this exact SKU.
Technical specifications
Specifications below are organised from the supplied product information for QXG-100G2SF-E810.
| Specification | Details |
|---|---|
| Product Details | |
| Brand | QNAP |
| Model | QXG-100G2SF-E810 |
| Product Type | Dual-port 100GbE network expansion card |
| Network and Host Interface | |
| Port Count | Dual-port |
| Network Class | 100GbE |
| Bandwidth Stated | Up to 100Gbps |
| Host Interface | PCIe 4.0 |
| Controller | Intel Ethernet Controller E810 |
| Compatibility and Intended Environments | |
| Applied QNAP Model Listed | TS-h2490FU |
| Intended Environments Stated | I/O-intensive and latency-sensitive virtualisation, data centres and all-flash storage |
| Feature Status | |
| iWARP/RDMA | Marked as coming soon in the supplied source |
| SR-IOV | Marked as coming soon in the supplied source |
| SKU | QXG-100G2SF-E810 |
| Model # | QXG-100G2SF-E810 |
| Barcode # | 4713213519141 |
| Brand | QNAP |
| Shipping Weight | 0.5000kg |
