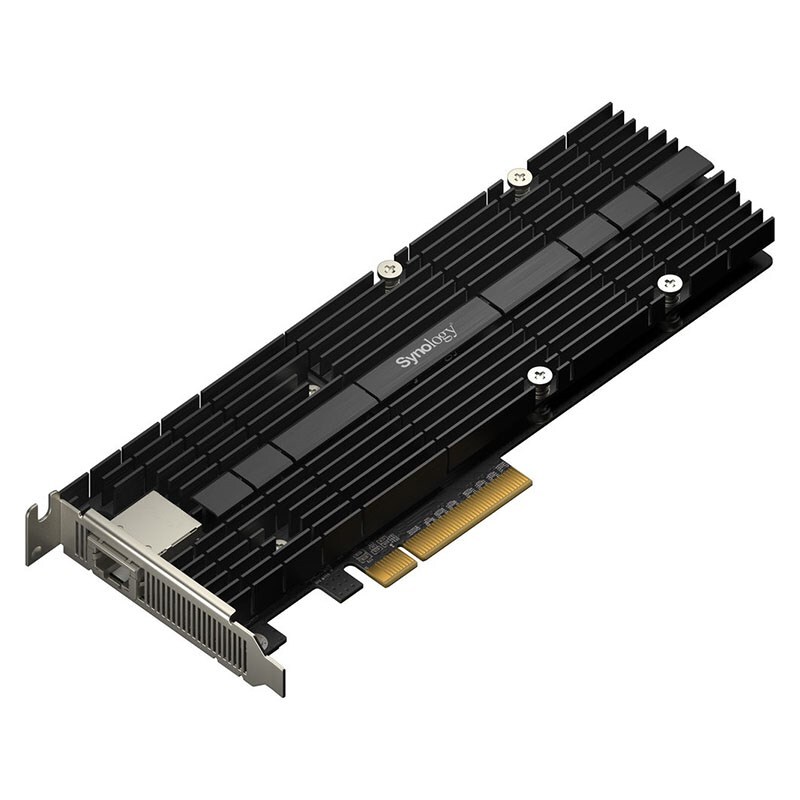

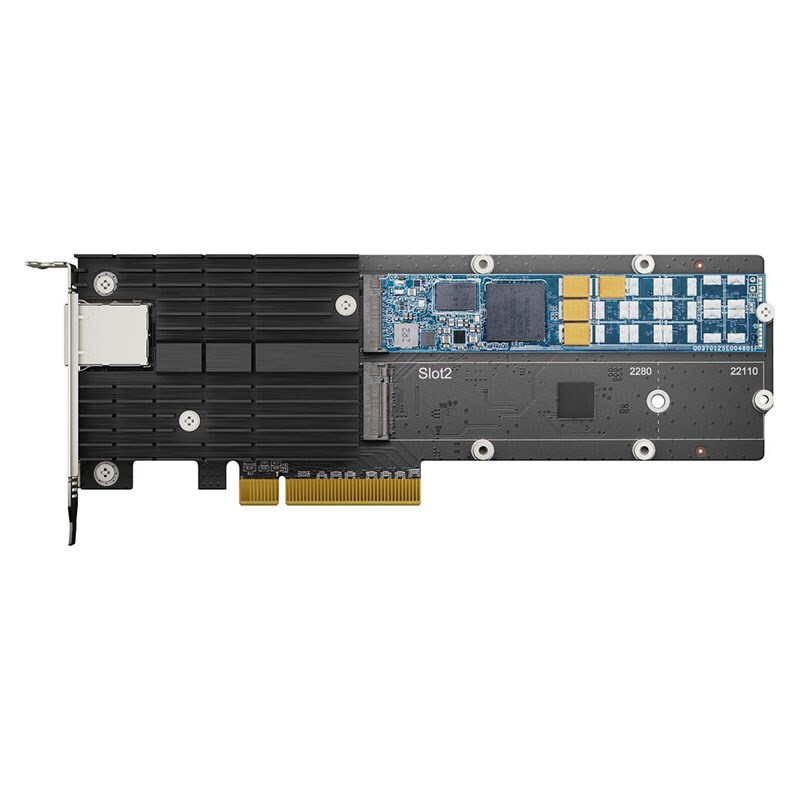

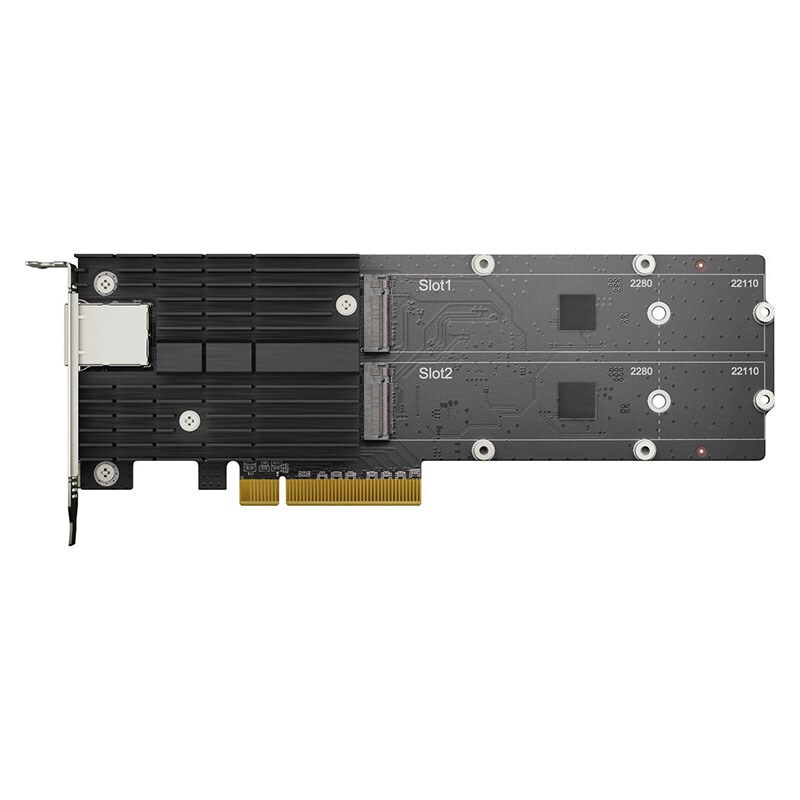

Synology E10M20-T1 M.2 SSD & 10GbE Combo Adapter Card
Model # E10M20-T1
-
SKU: E10M20-T1
Don't pay: $550.00
$463.00
SAVE $87.00 (16%)
- Pick Up Available
- Australian Warranty
- Checkout Securely
Expansion Card
E10M20-T1
Enterprise-grade expansion card storage solution
Synology E10M20-T1 helps you boost I/O performance and network bandwidth simultaneously using just one PCIe expansion slot on your Synology NAS.
(E10M20-T1)
Technical Specifications
Complete hardware and software specifications
General
Host Bus Interface PCIe 3.0 x8
Bracket Height Low Profile and Full Height
Size (Height x Width x Depth) 71.75 mm x 200.05 mm x 17.70 mm
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -20°C to 60°C (-5°F to 140°F)
Relative Humidity 5% to 95% RH
Warranty 5 Years
Notes The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more)
Storage
Storage Interface PCIe NVMe
Supported Form Factor 22110 / 2280
Connector Type and Quantity M-key, 2 Slots
Network
IEEE Specification Compliance IEEE 802.3x Flow Control IEEE 802.3u Fast Ethernet IEEE 802.3ab Gigabit Ethernet IEEE 802.3bz 2.5Gbps / 5Gbps Ethernet IEEE 802.3an 10Gbps Ethernet
Data Transfer Rates 10 Gbps
Network Operation Mode Full Duplex
Supported Features 9 KB Jumbo Frame TCP/UDP/IP Checksum Offloading Auto-negotiation between 100Mb/s, 1Gb/s, 2.5Gb/s, 5Gb/s, and 10Gb/s TCP Segmentation Offload (TSO) Large Send Offload (LSO) Receive Side Scaling (RSS) Generic Receive Offload (GRO) Generic Segmentation Offload (GSO)
Applied Models
NVMe SSD SA series: SA6400, SA3610, SA3600, SA3410, SA3400 25 series: RS2825RP+ 23 series: RS2423RP+, RS2423+ 22 series: RS822RP+, RS822+, DS3622xs+, DS2422+ 21 series: RS4021xs+, RS3621xs+, RS3621RPxs, RS2821RP+, RS2421RP+, RS2421+, RS1221RP+, RS1221+ 20 series: RS820RP+, RS820+ 19 series: DS2419+II, DS2419+, DS1819+ 18 series: RS3618xs, RS2818RP+, DS3018xs, DS1618+ 17 series: RS18017xs+, RS4017xs+, RS3617xs+, RS3617RPxs, DS3617xsII, DS3617xs
Notes DSM version requirement: 6.2.3-25426 or later version DSM version requirement for RS18017xs+, RS4017xs+, RS3618xs, RS3617xs+, RS3617RPxs, DS3617xs and DS3617xsII: 7.0.1 or later version
| SKU | E10M20-T1 |
| Barcode # | 846504003488 |
| Brand | SYNOLOGY |
| Shipping Weight | 0.3000kg |
| Shipping Width | 0.190m |
| Shipping Height | 0.270m |
| Shipping Length | 0.040m |
Manufacturer Warranty: 2 Years Limited Warranty
