Dual M.2 SATA slots
Adds two M.2 slots specifically described for SATA SSDs.

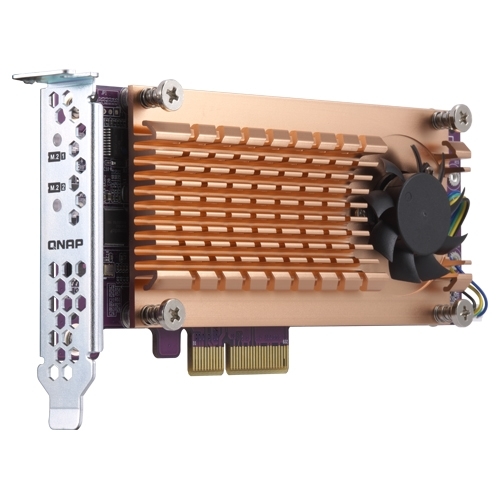

QNAP QM2-2S-220A Dual M.2 22110/2280 SATA SSD Expansion Card
Model# QM2-2S-220A
-
SKU: QM2-2S-220A
- Pick Up Available
- Australian Warranty
- Checkout Securely
QNAP dual M.2 SATA expansion card
QNAP QM2-2S-220A Dual M.2 22110/2280 SATA SSD Expansion Card
The QNAP QM2-2S-220A adds two M.2 SATA SSD slots supporting 22110 and 2280. The supplied sources conflict on the host interface: PCIe 3.0 x4 in the description and PCIe Gen2 x2 in the separate Specifications cell.
M.2 slots2 × SATA
M.2 sizes22110 and 2280
PCIe interfaceSource conflict
Included bracketsLow-profile and full-height
Key product details
- Provides two M.2 SATA SSD slots supporting the 22110 and 2280 form factors.
- The plain-text description states PCIe 3.0 x4, while the separate Specifications cell states PCIe Gen2 x2.
- A low-profile bracket is fitted by default; low-profile flat and full-height brackets are also listed as included.
- The supplied Specifications cell states QTS 4.3.4 or later for recommended models.
Compatibility and purchase guidance
Confirm the exact hardware revision and host interface before purchase because the supplied sources conflict. Also verify M.2 SSD compatibility, QNAP model support, available slot and software requirements.
Frequently asked questions
Answers below are based only on the supplied product information.
Does the QM2-2S-220A support SATA or NVMe SSDs?
The supplied information specifies M.2 SATA SSDs.
How many M.2 slots and sizes are supported?
It provides two M.2 SATA slots supporting the 22110 and 2280 form factors.
Which PCIe interface does the card use?
The supplied sources conflict: the description states PCIe 3.0 x4, while the separate Specifications cell states PCIe Gen2 x2. Confirm the exact revision before purchase.
Which brackets are listed as included?
A low-profile bracket is fitted by default, and low-profile flat plus full-height brackets are also listed as included.
What software requirement is stated?
The supplied Specifications cell states QTS 4.3.4 or later for recommended models.
What warranty applies to the QM2-2S-220A?
The product is supplied with the applicable QNAP manufacturer warranty. No warranty duration was included in the supplied information.
(QM2-2S-220A)
Features and highlights
QNAP QM2-2S-220A Dual M.2 22110/2280 SATA SSD Expansion Card
22110 and 2280 sizes
Supports both supplied M.2 form factors.
Three bracket formats
Lists default low-profile plus low-profile flat and full-height brackets.
QTS requirement
States QTS 4.3.4 or later for recommended models.
Key details to check before purchase
- Storage: 2 × M.2 SATA SSD slots
- M.2 form factors: 22110 and 2280
- Host-interface conflict: PCIe 3.0 x4 versus PCIe Gen2 x2
- Confirm the exact revision and compatibility before installation
QNAP QM2-2S-220A Dual M.2 22110/2280 SATA SSD Expansion Card specifications
Technical information below is organised from the supplied product data.
| Specification | Details |
|---|---|
| Product Details | |
| Brand | QNAP |
| SKU | QM2-2S-220A |
| Product Type | Dual M.2 SATA SSD expansion card |
| Supplied Host Types | NAS or PC |
| Storage | |
| M.2 Slots | 2 × M.2 SATA |
| Supported M.2 Form Factors | 22110 and 2280 |
| Supplied Uses | Caching or additional storage capacity |
| PCIe Interface Source Conflict | |
| Plain-Text Description | PCIe 3.0 x4 |
| Separate Specifications Cell | PCIe Gen2 x2 |
| Brackets and Software | |
| Default Bracket | Low-profile |
| Additional Included Brackets | Low-profile flat and full-height |
| Supplied QTS Note | QTS 4.3.4 or later for recommended models |
The supplied description and separate Specifications cell conflict on PCIe generation and lane width. No value was silently selected; confirm the exact hardware revision.
The supplied Specifications cell recommends checking the QNAP M.2 SSD compatibility list and QM2 Installation Guide.
| SKU | QM2-2S-220A |
| Model # | QM2-2S-220A |
| Barcode # | 4713213512906 |
| Brand | QNAP |
| Shipping Weight | 0.2000kg |
| Shipping Width | 0.010m |
| Shipping Height | 0.010m |
| Shipping Length | 0.010m |
QNAPManufacturer warranty
QNAP manufacturer warranty
The QNAP QM2-2S-220A is supplied with the applicable QNAP manufacturer warranty.
No warranty duration was included in the supplied product information. Warranty coverage, eligibility and claim assessment are subject to QNAP terms. Please retain your DeviceDeal tax invoice as proof of purchase.
