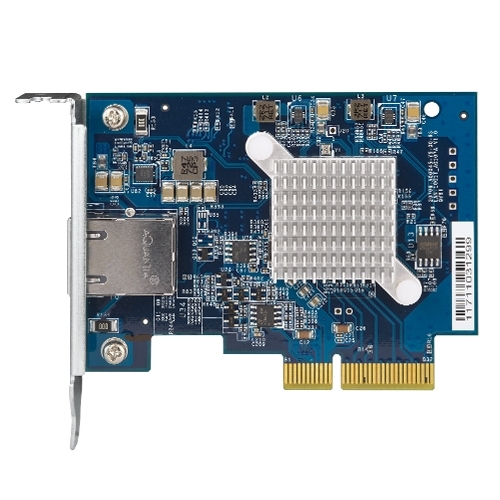

QNAP QXG-10G1T Single-Port 10GBASE-T Network Expansion Card

A PCIe 3.0 x4 network expansion card that adds one 10GBASE-T RJ45 port to a compatible QNAP NAS or computer, with 1Gbps and 100Mbps operation also listed.

Network port1 × 10GBASE-T

ConnectorRJ45

Host interfacePCIe 3.0 x4

Warranty1-year limited

Copper 10GbE expansion

The QXG-10G1T adds one 10GBASE-T RJ45 connection for the video editing, virtualisation and large-file-transfer uses identified in the supplied description. The source also lists 1Gbps and 100Mbps operation.

Host, cabling and bracket requirements

Supported operating systems are listed as QTS 4.3.4.0486 or newer, Windows and Linux.
A supported QNAP NAS requires one free PCIe slot.
A low-profile bracket is pre-installed; full-height and specialised brackets for selected QNAP NAS models are bundled.
The specification recommends Cat 6a cable, while the description also identifies Cat 7 cabling for 10GBASE-T.

Confirm host and cabling

Check the available PCIe slot, operating-system support, driver requirements and cable category for the intended 10GbE link before installation.

Frequently asked questions

Answers below are based only on the supplied product information for QXG-10G1T.

How many network ports does the QXG-10G1T provide?

It provides one 10GBASE-T RJ45 network port.

Which additional network speeds are listed?

The supplied description lists 1Gbps and 100Mbps operation in addition to 10GbE.

Which host interface is specified?

The supplied specification identifies PCIe 3.0 x4.

Which operating systems are listed?

The supplied data lists QTS 4.3.4.0486 or newer, Windows and Linux.

Which mounting brackets are included?

A low-profile bracket is pre-installed, and full-height plus specialised brackets for selected QNAP NAS models are bundled.

What warranty applies to the QXG-10G1T?

The supplied specification states a 1-year limited QNAP manufacturer warranty.

(QXG-10G1T)

Features and highlights

QNAP QXG-10G1T Single-Port 10GBASE-T Network Expansion Card

One 10GBASE-T RJ45 port

Adds a copper 10GbE connection to a compatible host.

PCIe 3.0 x4 interface

Requires one suitable free PCIe slot.

QTS, Windows and Linux listed

Operating-system support remains subject to host and driver requirements.

Multiple brackets supplied

Low-profile, full-height and specialised QNAP NAS brackets are listed.

Additional supplied highlights

1Gbps and 100Mbps operation are also listed.
Cat 6a cabling is recommended in the supplied specification.
Video editing, virtualisation and large file transfers are identified uses.
One-year limited QNAP manufacturer warranty.

Technical specifications

Specifications below are organised from the supplied product information for QXG-10G1T.

Specification	Details
Product Details
Model	QXG-10G1T
Product Type	Single-port 10GbE network expansion card
Network Port	1 × 10GBASE-T RJ45
Network Speeds Stated	10Gbps, 1Gbps and 100Mbps
Host Interface and Cabling
Interface	PCIe 3.0 x4
Port and Cable	RJ45; Cat 6a cable recommended
Additional Cable Type in Description	Cat 7 is also identified for 10GBASE-T
System Requirements
Supported Operating Systems	QTS 4.3.4.0486 or newer Windows Linux
Supported QNAP NAS	Models with PCIe slot(s); one free slot required
Mounting and Warranty
Bracket	Low-profile bracket pre-installed; full-height and specialised brackets for selected QNAP NAS are bundled
Warranty	1-year limited warranty

SKU	QXG-10G1T
Model #	QXG-10G1T
Barcode #	4713213512739
Brand	QNAP
Shipping Weight	3.0000kg
Shipping Width	0.160m
Shipping Height	0.169m
Shipping Length	0.219m
Shipping Cubic	0.005922000m3

QNAP1-year

QNAP manufacturer warranty

The QNAP QXG-10G1T is supplied with a 1-year QNAP manufacturer warranty.

Warranty coverage, duration, eligibility and claim assessment are subject to QNAP terms for the exact product. Please retain your DeviceDeal tax invoice as proof of purchase.
