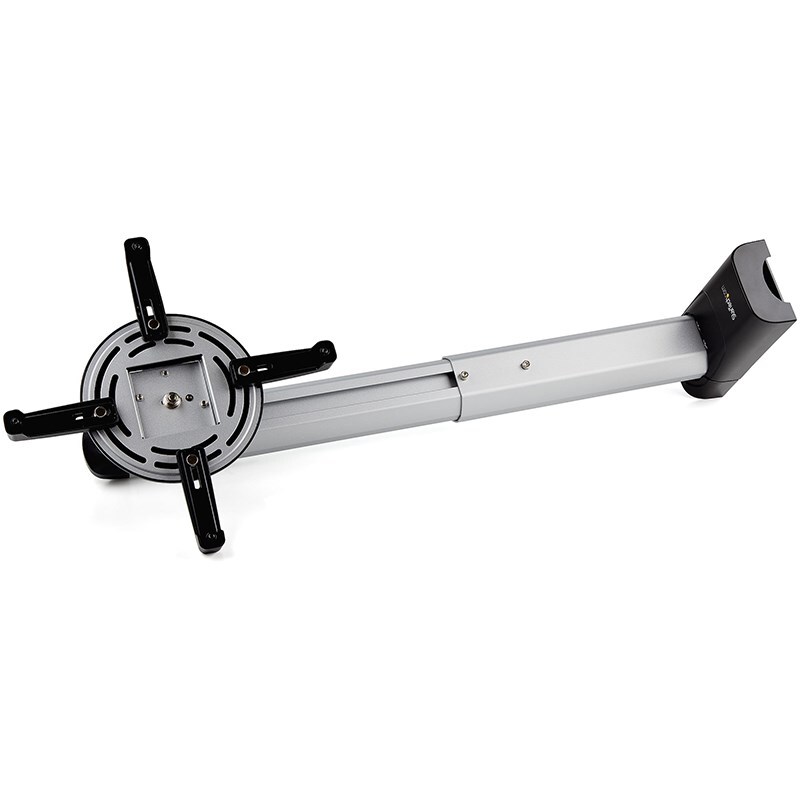

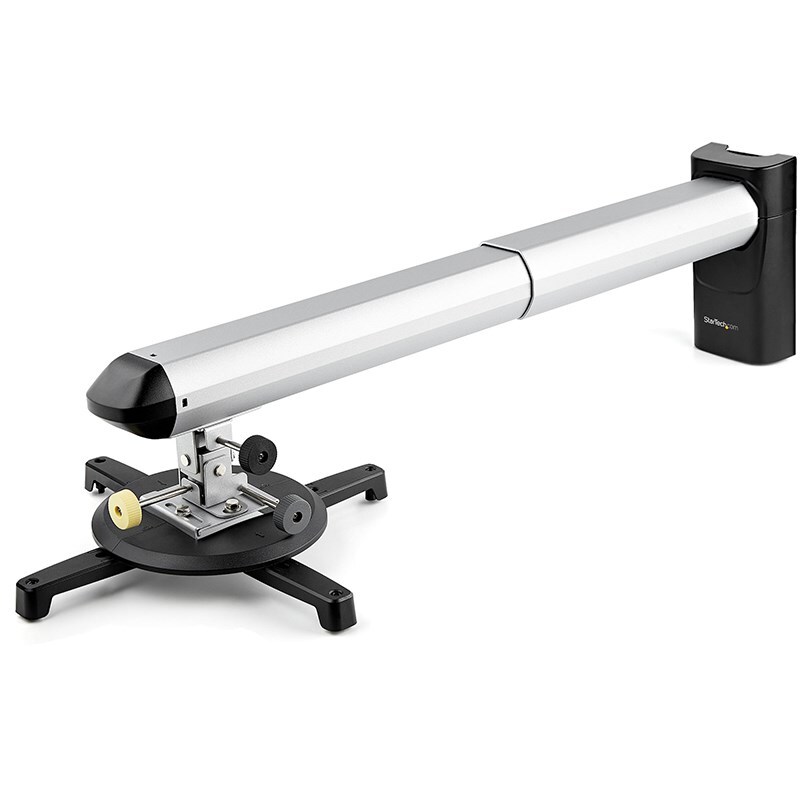

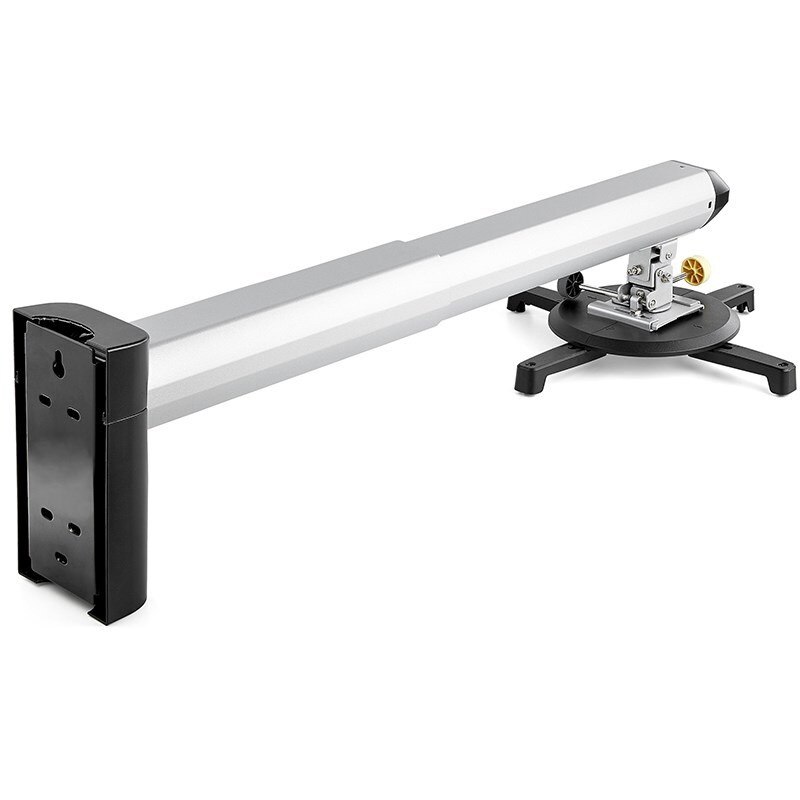

The adjustable mount for short throw projectors helps you create a large image from a short distance and keeps your projector out of the way. It's ideal for classrooms, boardrooms, hospitality venues, and many other meeting spaces.

Wide Compatibility with Short Throw Projectors

Supporting a wide range of projector brands, the short throw projector wall mount features a universal mounting pattern of 12.8" (325 mm) diameter and supports a weight capacity of 33.3 lb. (15 kg).

Adjust the Distance from the Wall

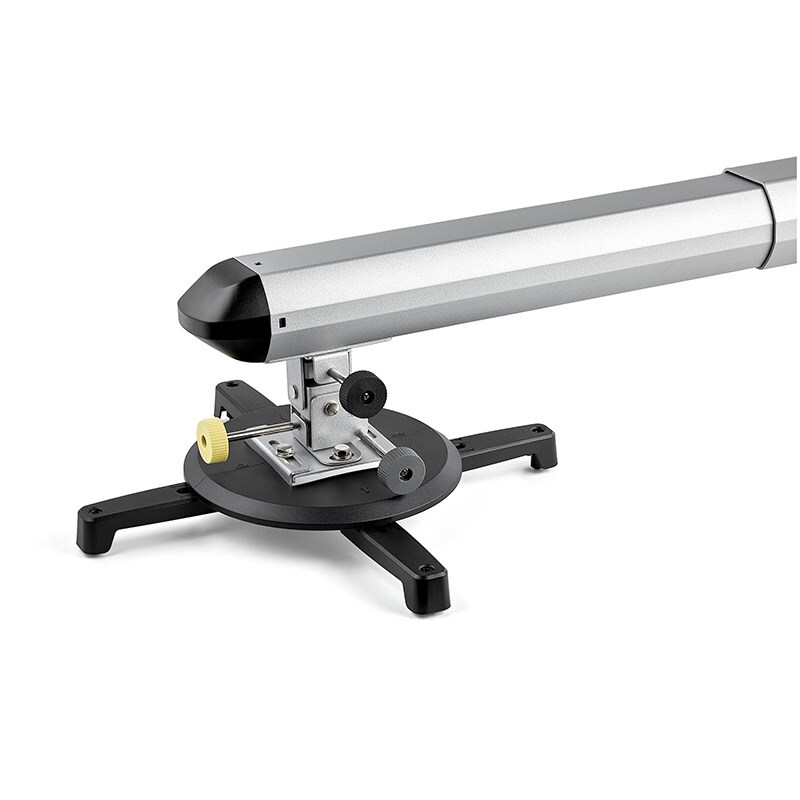

Adjust the distance of your projector from the wall using the telescopic arm, which extends from 16.5" to 27.7" (420 mm to 705 mm). The arm on the low-profile projector wall mount also tilts +5/- 5 degrees to help you find the ideal position.

The Choice of IT Pros Since 1985

StarTech.com conducts thorough compatibility and performance testing on all our products to ensure we are meeting or exceeding industry standards and providing high-quality products to IT Professionals. Our local StarTech.com Technical Advisors have broad product expertise and work directly with our StarTech.com Engineers to provide support for our customers both pre and post-sales.

(PROJWALLMNT)

Specifications

Warranty Information Warranty 2 Years
Environmental Operating Temperature 0°C to 40°C (32°F to 104°F)
  Storage Temperature -20°C to 60°C (-4°F to 140°F)
  Humidity 40~60% RH
Packaging Information Package Height 5.7 in [14.5 cm]
  Package Length 22.4 in [57.0 cm]
  Shipping (Package) Weight 9.7 lb [4.4 kg]
  Package Width 11.2 in [28.5 cm]
Performance General Specifications Supports Short-Throw Ratio: 0.4:1
    Universal Mounting Pattern: 325 mm Diameter (12.8")
    Weight Capacity: 15kg (33.1 lb.)
    Wall Mount Arm Tilt: +/- 5°
    Lockable Ball Joint: 360° Swivel, +/- 25° Horizontal & Vertical Tilt
  Minimum Arm Extension 16.5 in [42 cm]
  Maximum Arm Extension 27.8 in [70.5 cm]
Physical Characteristics Product Height 7.7 in [19.5 cm]
  Product Length 28.9 in [73.5 cm]
  Weight of Product 7.5 lb [3.4 kg]
  Product Width 7.1 in [18.0 cm]
  Material Steel
What's in the Box 1 - Included in Package Wall Bracket
    Projector Pole
    Pole End Cap
    Upper, Decorative Wall Cover
    Lower, Decorative Wall Cover
    Adjustment Module
    Right, Adjustment Module Cover
    Left, Adjustment Module Cover
  4 - Included in Package Mounting Arms
    Mounting Arm Covers
  1 - Included in Package Hinge Connector
  6 - Included in Package Wall Anchors
  4 - Included in Package Washers
  6 - Included in Package Mounting Screws
  1 - Included in Package Wrench (10mm)
    5 mm Hex Key
  4 - Included in Package M3 x 24 mm Screws
    M4 x 24 mm Screws
    M5 x 24 mm Screws
    M6 x 8 mm Hex Screws
  2 - Included in Package M6 x 10 mm Screws
  1 - Included in Package M6 x 24 mm Screws
    M6 x 25 mm Hex Screw
  4 - Included in Package Nuts
  1 - Included in Package User Manual
SKU PROJWALLMNT
Barcode # 65030884143
Brand Startech
Shipping Weight 3.3900kg
Shipping Width 0.015m
Shipping Height 0.058m
Shipping Length 0.028m

Manufacturer Warranty: 2 Years Limited Warranty
