StarTech.com | PROJCEILMNT2

Universal ceiling projector mount

A height-adjustable ceiling mount for compatible projectors, designed for classrooms, boardrooms, hospitality spaces and other fixed projection installations.

522.7 in ceiling distance15 kg capacity360° swivel+/-25° tilt

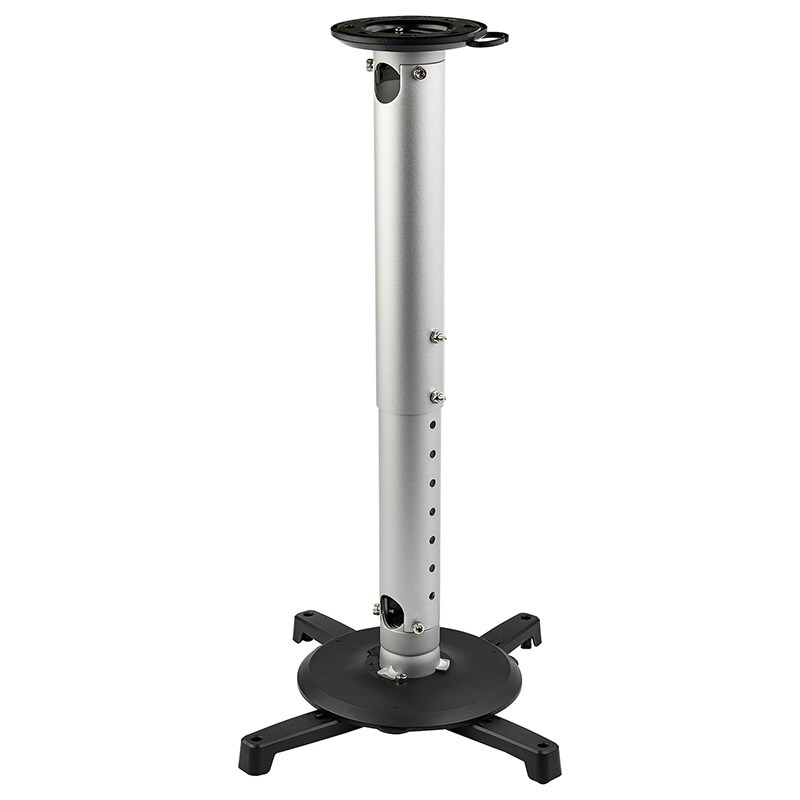

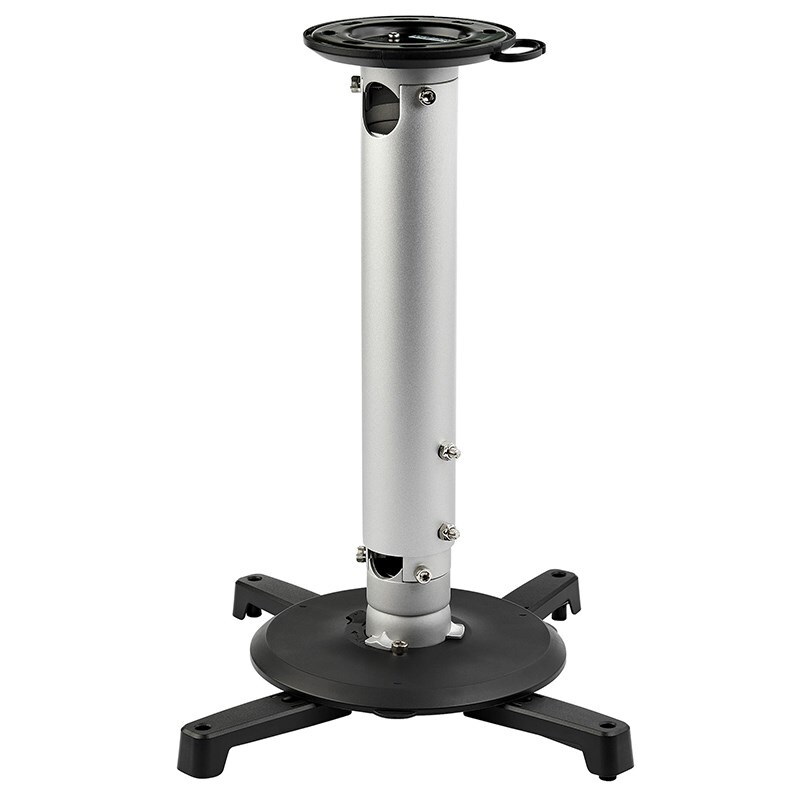

StarTech PROJCEILMNT2 Universal ceiling projector mount

Flexible ceiling positioningInstall the projector approximately 5 to 22.7 inches (127.7 to 577.7 mm) from the ceiling using the supplied mount components.

Universal mounting patternSupports a universal projector mounting pattern up to 325 mm (12.8 in) in diameter.

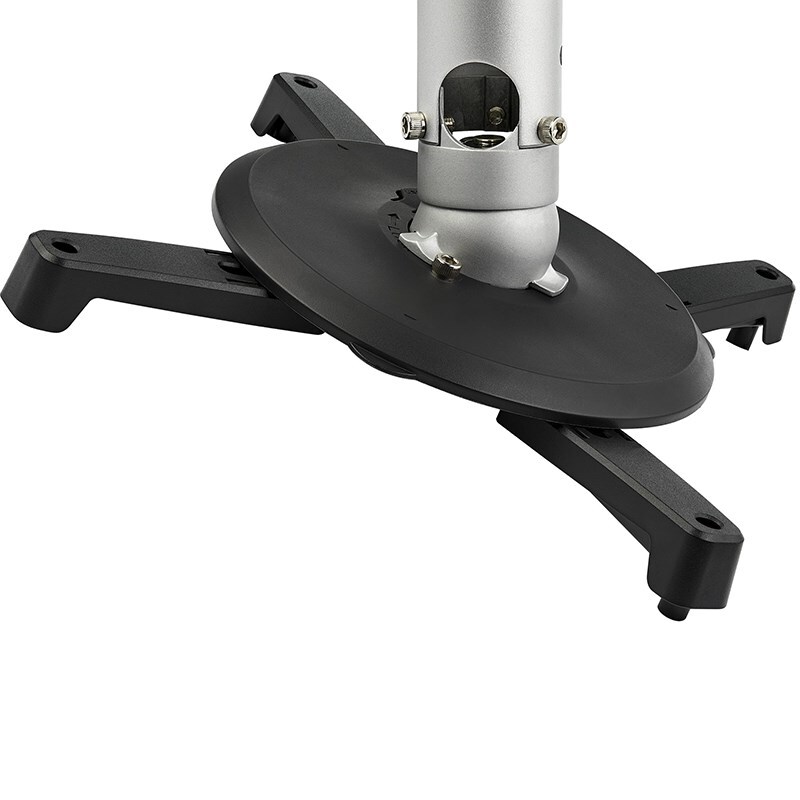

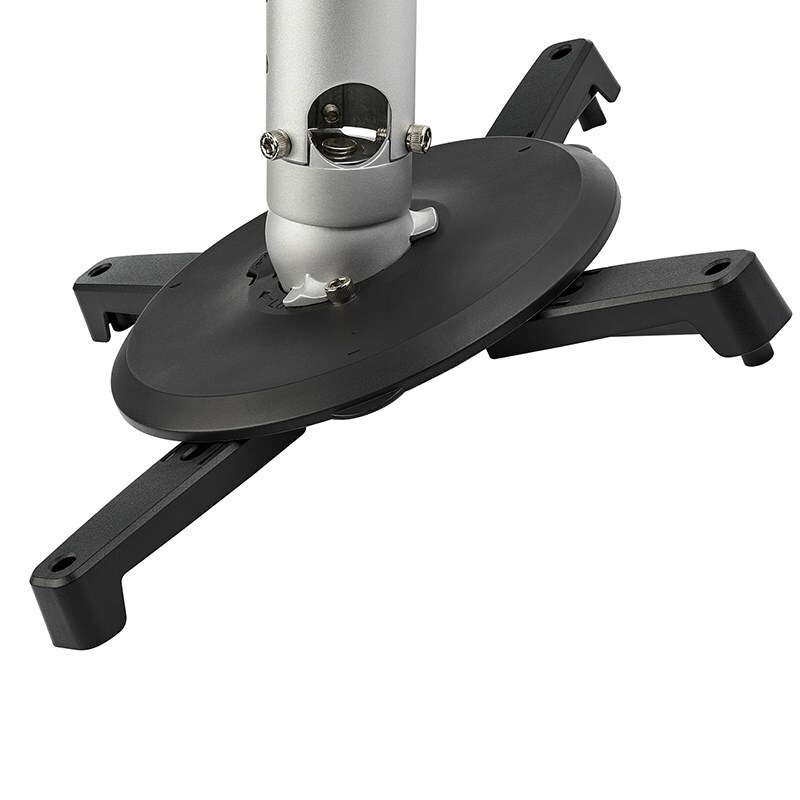

Fine viewing adjustmentThe lockable ball-joint mechanism provides 360° swivel and +/-25° horizontal and vertical tilt for alignment.

Heavy-duty supportSteel construction supports projectors up to 15 kg (about 33 lb), subject to correct installation and ceiling structure.

What to know before buying

The mount is designed for installations approximately 5 to 22.7 inches (127.7 to 577.7 mm) from the ceiling. The package includes the mounting structure, projector plate, poles, mounting arms, installation hardware, hex key and user manual.

Australian version with official StarTech.com warranty

This is the Australian version supplied by DeviceDeal and is covered by the official StarTech.com 2-year manufacturer warranty in Australia. Please retain your DeviceDeal tax invoice as proof of purchase. Warranty coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.

Frequently asked questions

What is the StarTech PROJCEILMNT2?

The PROJCEILMNT2 is a universal height-adjustable ceiling mount for compatible projectors.

How far can the projector sit from the ceiling?

The mount is designed for installations approximately 5 to 22.7 inches (127.7 to 577.7 mm) from the ceiling.

What projector mounting pattern does it support?

It uses a universal mounting pattern up to 325 mm (12.8 inches) in diameter.

How much weight can it support?

The stated weight capacity is 15 kg (about 33 lb), subject to correct installation and a suitable ceiling structure.

Can the projector angle be adjusted?

Yes. The lockable ball joint provides 360° swivel and +/-25° horizontal and vertical tilt.

What is included in the package?

The package includes the mounting structure, projector plate, poles, mounting arms, installation hardware, hex key and user manual.

Does installation require a suitable ceiling structure?

Yes. The ceiling structure and mounting method must be suitable for the mounted equipment and installation should follow applicable safety and building requirements.

What warranty applies in Australia?

The Australian version supplied by DeviceDeal is covered by the official StarTech.com 2-year manufacturer warranty in Australia, subject to StarTech.com terms and assessment.

(PROJCEILMNT2)

Features and highlights

Flexible ceiling positioning

Install the projector approximately 5 to 22.7 inches (127.7 to 577.7 mm) from the ceiling using the supplied mount components.

Universal mounting pattern

Supports a universal projector mounting pattern up to 325 mm (12.8 in) in diameter.

Fine viewing adjustment

The lockable ball-joint mechanism provides 360° swivel and +/-25° horizontal and vertical tilt for alignment.

Heavy-duty support

Steel construction supports projectors up to 15 kg (about 33 lb), subject to correct installation and ceiling structure.

Installation hardware included

The supplied package includes the ceiling bracket, projector plate, poles, ball joint, mounting arms, screws, anchors, washers, nuts, hex key and manual.

2-year warranty

Covered by the official StarTech.com two-year manufacturer warranty in Australia.

Key highlights

Height-adjustable ceiling projector installation
Universal 325 mm mounting pattern
Up to 15 kg supported load
360° swivel with +/-25° tilt
Installation hardware included

Warranty confidence: Official StarTech.com 2-year manufacturer warranty in Australia, subject to StarTech.com terms and assessment.

Specifications

StarTech PROJCEILMNT2 specifications compiled from the supplied DeviceDeal product information and exact-product official StarTech.com sources.

Performance

Universal mounting pattern	325 mm diameter (12.8 in)
Weight capacity	15 kg (33.1 lb)
Ball-joint adjustment	360° swivel; +/-25° horizontal and vertical tilt
Minimum ceiling distance	5.0 in (12.8 cm)
Maximum stated installation distance	22.7 in (577.7 mm)

Physical Characteristics

Material	Steel
Product height	13.9 in (35.2 cm)
Product length	13.9 in (35.2 cm)
Product width	22.7 in (57.8 cm)
Product weight	4.9 lb (2.2 kg)

Packaging

Package height	3.8 in (97 mm)
Package length	13.6 in (34.5 cm)
Package width	10.5 in (26.7 cm)
Shipping weight	5.1 lb (2.3 kg)

In the Box

Included components	Ceiling bracket; projector plate; projector plate cover; upper pole; lower pole; ball-joint mechanism; mounting arms and covers; wall anchors; mounting screws; M3/M4/M5/M6 hardware; washers; nuts; 5 mm hex key; user manual

Warranty

Warranty	2 Years

SKU	PROJCEILMNT2
Barcode #	65030884136
Brand	Startech
Shipping Weight	2.3000kg
Shipping Width	0.010m
Shipping Height	0.035m
Shipping Length	0.027m
