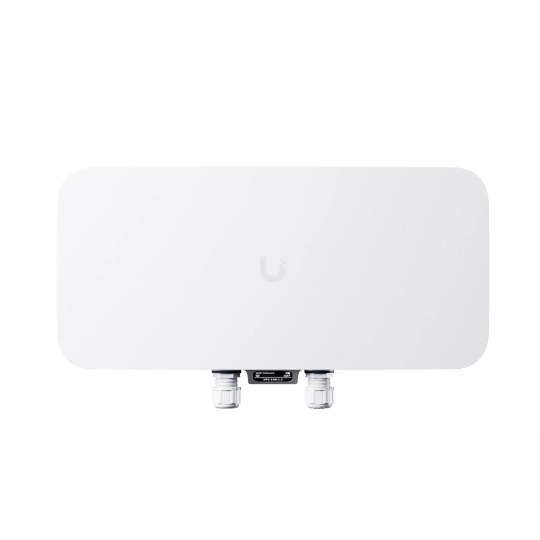

Enterprise-grade, indoor/outdoor access point designed for high-density environments with 12-stream 5 GHz and 6 GHz WiFi 7 performance, a 10 GbE uplink, and a redundant GbE port for high availability.

WiFi 7 with 6 GHz support

12 spatial streams

Real-time spectral analysis for enhanced channel selection

High selectivity PRISM™ RF filtering technology

Dedicated spectral analyzer radio

Selectable directional beamforming antenna (15 dBi, 50° or 11 dBi, 90°) allows for cell size optimization

Long-range 6 GHz performance with AFC*

465+ m² (5,000+ ft²) open space coverage

1,500+ connected devices

(1) 10 GbE RJ45 port and (1) GbE RJ45 port for power & data redundancy

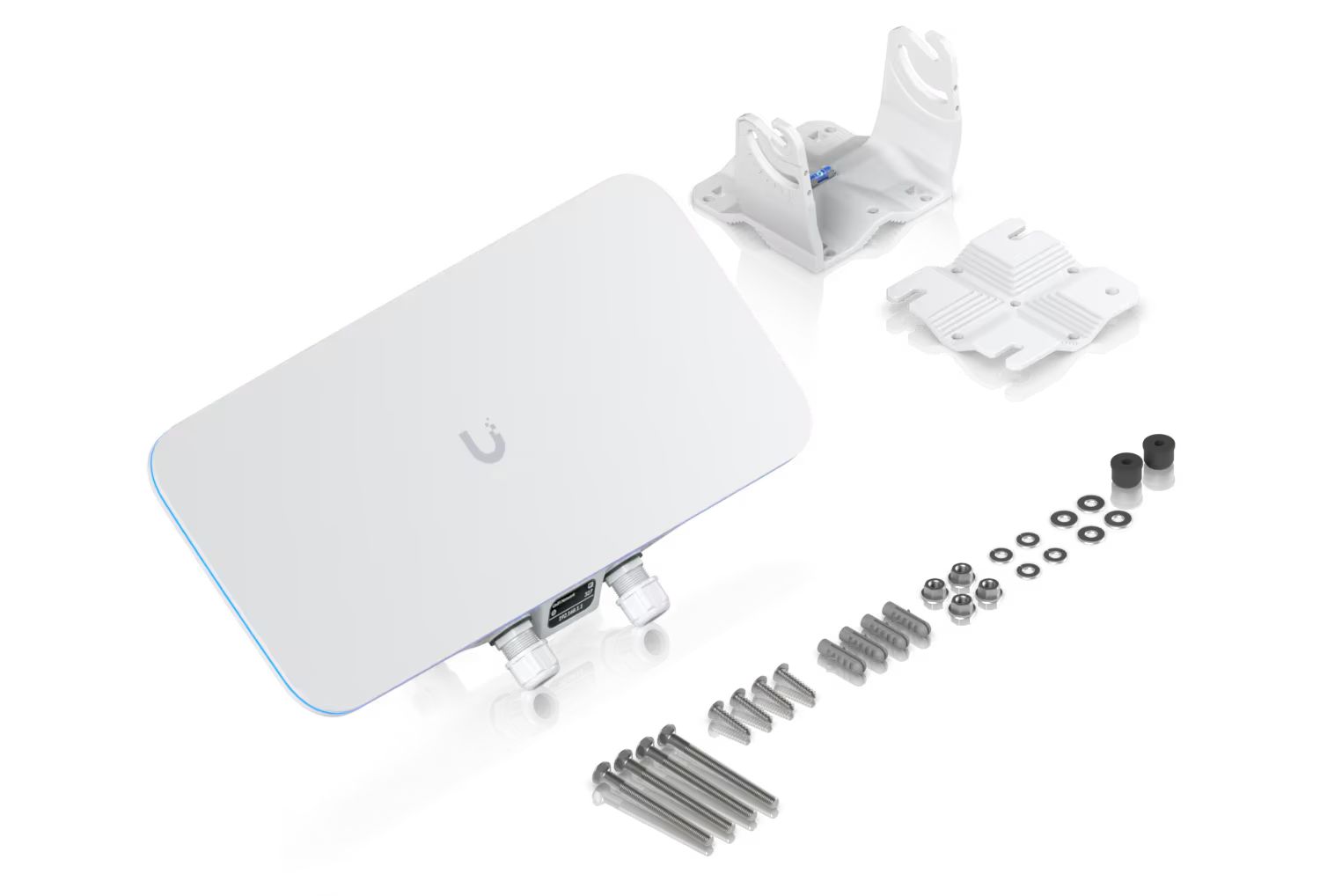

Versatile wall and pole mounting

Powered using PoE++

IP68 Waterproof









(E7-Audience)

Mechanical

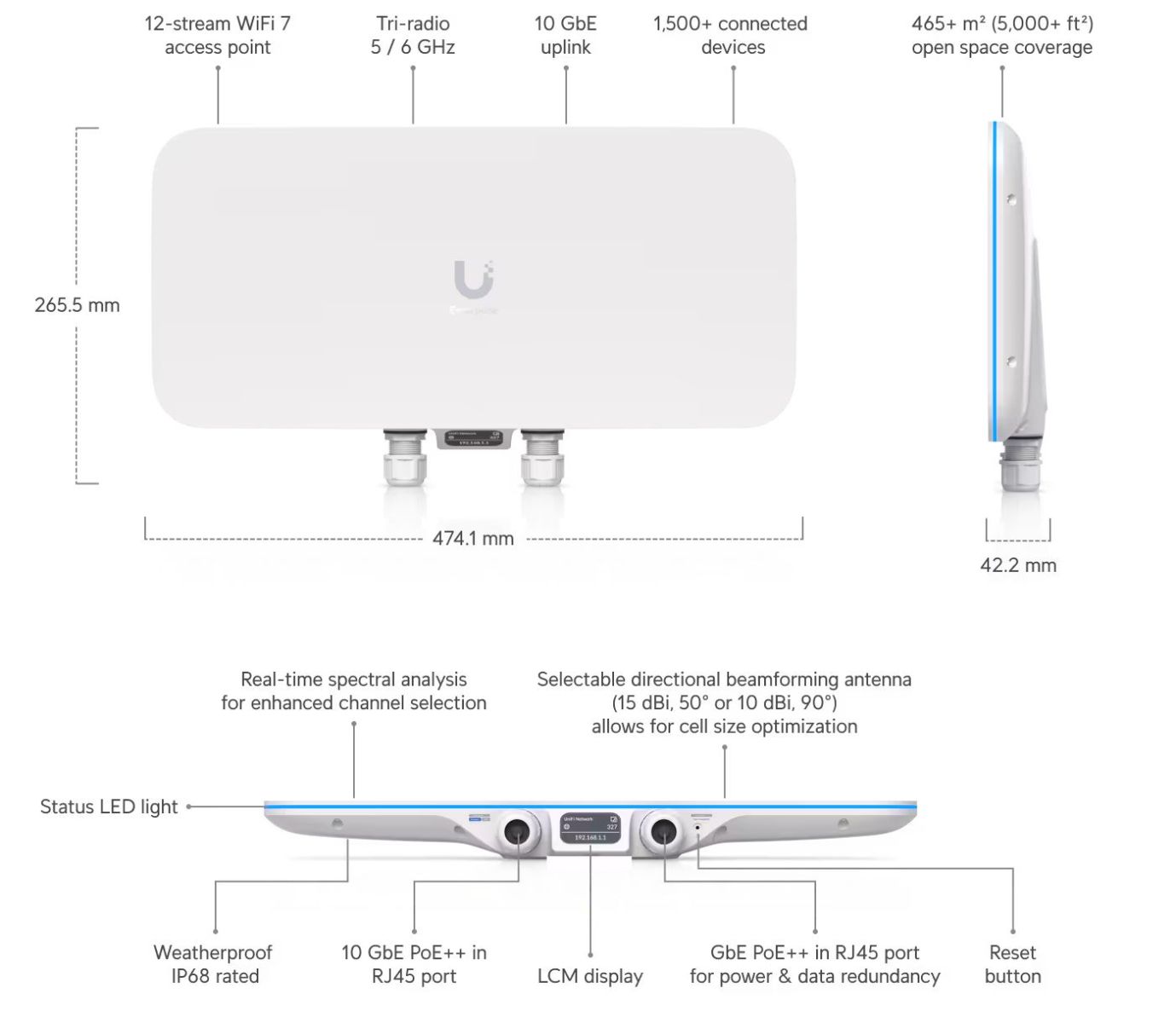

Dimensions Device: 474.1 x 265.5 x 42.2 mm (18.7 x 10.5 x 1.7")
Bracket: 150.4 x 113.6 x 125 mm (5.9 x 4.5 x 4.9")
Weight Without mount: 3.3 kg (7.3 lb)
With mount: 4.3 kg (9.5 lb)
Enclosure material Aluminum alloy, UV-stabilized polycarbonate
Mount material Aluminum alloy
Weatherproofing IP68
Wind survivability 164.75 N at 200 km/h (37 lbf at 125 mph)
Pole mount diameter 1~3" (25~76 mm) on pipe outer diameter
Hardware
Networking interface (1) 10 GbE RJ45 port
(1) GbE RJ45 port
Management interface Ethernet
Power method PoE++
Max. power consumption 51W
Supported voltage range 42.5—57V DC
Max. TX power
2.4 GHz
5 GHz
6 GHz


30 dBm
Low / High band: 30 dBm (36 dBm EIRP)*
*With 6 GHz Extended Range mode. Available in FCC/IC region only.
MIMO
2.4 GHz
5 GHz
6 GHz


4 x 4 (DL/UL MU-MIMO)
Low / High band: 4 x 4 (DL/UL MU-MIMO)
Max. data rate
2.4 GHz
5 GHz
6 GHz


8.6 Gbps (BW240)
Low / High band: 11.5 Gbps (BW320)
Antenna gain
2.4 GHz
5 GHz
6 GHz


Small cell: 15 dBi / Large cell: 11 dBi
Small cell: 15 dBi / Large cell: 11 dBi
Antenna beamwidth
Small cell
Large cell

50°
90°
Antenna Internal with directional patterns
LEDs R/G/B
Button Factory reset
Mounting VESA-compatible mount, pole/wall (Brackets included)
Ambient operating temperature -40 to 60° C (-40 to 140° F)
Ambient operating humidity 5 to 95% noncondensing
Certifications FCC, IC
Software
WiFi standards 802.11 a/b/g/n/ac/ax/be
Wireless security WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)
VLAN 802.1Q
Advanced QoS Per-user rate limiting
Guest traffic isolation Supported
Concurrent clients 1,500+
Ubiquiti specific features High selectivity PRISM™ RF filtering technology
Dedicated spectral analyzer radio
Supported Data Rates
802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11g 1, 2, 5.5, 11 Mbps
802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n 6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40)
802.11ac 6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)
802.11ax 7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)
802.11be 7.3 Mbps to 11.5 Gbps (MCS0 - MCS13 NSS1/2/3/4, EHT 20/40/80/160/240/320)
SKU E7-Audience
Brand Ubiquiti
Shipping Weight 3.3000kg

Manufacturer Warranty
