Interchangeable Isolation Antennas for PrismStation

With a range of different beam widths, the isolation antennas are interchangeable and feature high-performance beam patterns ideal for a range of deployment needs. Used with the PrismStation 5AC and IsoStation radios, these antennas deliver superb co‐location performance without sacrificing gain.


Modular Design

The isolation antennas are interchangeable and feature high-performance beam patterns for a range of demanding deployment needs. Combined with the PrismStation 5AC or IsoStation radio, the system gets maximum gain out of the smallest footprint.



Symmetrical horn antenna

30° and 45° versions offer breakthrough scalability options for wireless systems. Unique beam performance and great co‐location characteristics allow for a higher density of sectors than traditional sector technology.



Asymmetrical horn antennas

60° and 90° versions have naturally attenuated side lobes and extremely low back radiation. They offer the best front-to-back ratio in the industry and the lowest side lobe radiation. Asymmetrical horn antennas are ideal for cluster sector installations with high co-location requirements.

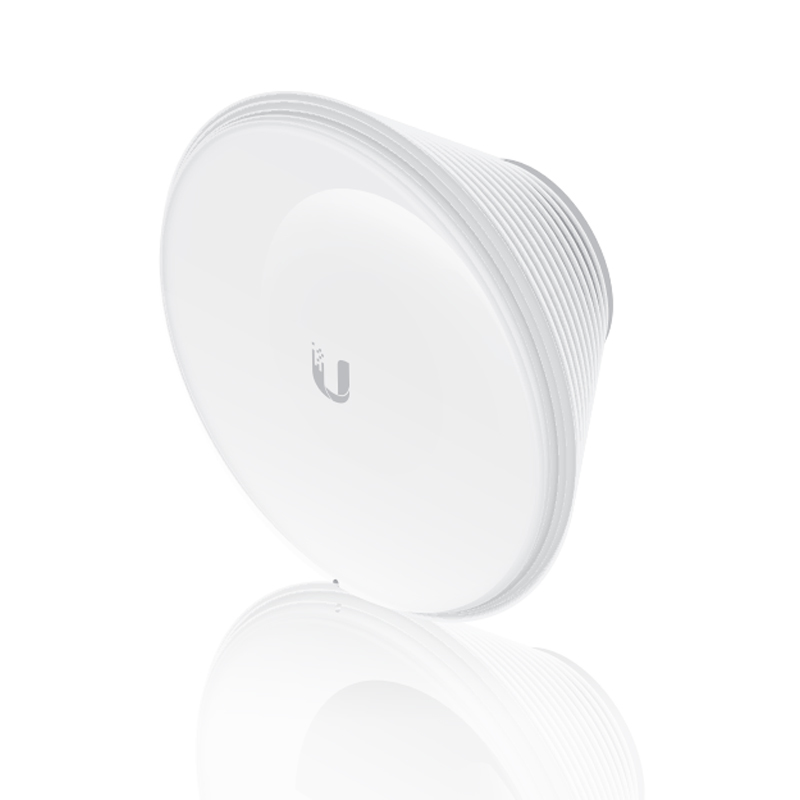

Ubiquiti Networks UBNT 5GHz PrismAP Antenna 45 degree - PRISMAP-5-45 - 12 Months Limited Warranty


Gain15.5 dBi

Frequency5.15 ‑ 5.85 GHz

Beam Width45°

Barcode # 817882022712
Brand Ubiquiti
Shipping Weight 0.5591kg
Shipping Width 0.020m
Shipping Height 0.012m
Shipping Length 0.020m
Shipping Cubic 0.000005000m3
Manufacturer Warranty
1 Year Manufacturer Warranty
Manufacturer Contact Info

Be The First To Review This Product!

Help other DeviceDeal users shop smarter by writing reviews for products you have purchased.

Write a product review

Ubiquiti Networks 5GHz PrismAP Antenna 45 degree PRISMAP-5-45

Model# PRISMAP-5-45

  • SKU: PRISMAP-5-45
