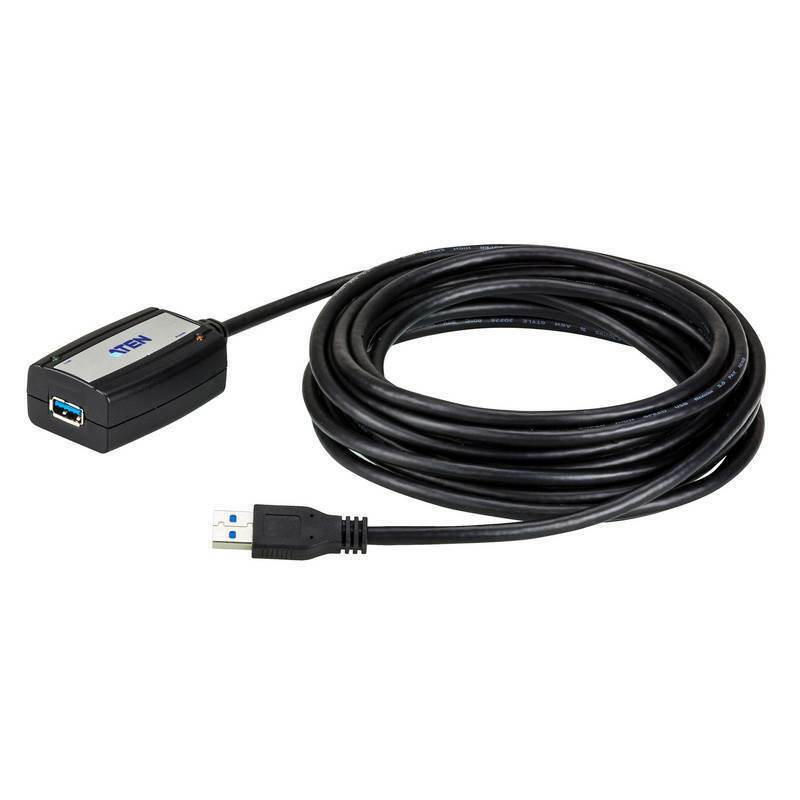

As USB 3.1 Gen1 devices are getting popular, the demand for extending the distance covered by USB devices is growing notably. ATEN’s UE350A USB 3.1 Gen1 Extender Cable not only extends the distance for the USB devices up to 5 meters, but also delivers a throughput of up to 5 Gbps when used in conjunction with a USB 3.1 Gen1 host and device – an astounding increase that is ten times the capability of USB 2.0.

In addition to its robust speed and transfer rate, the UE350A also provides a durable, high quality connection that harnesses the full capability of the USB 3.1 Gen1 standard; at the same time, it is backwards compatible with USB 2.0 and 1.1 to ensure reliable data communication. With UE350A, extending the distance of your USB 3.1 Gen1 device is quick and easy, making it an ideal addition to your USB system setups.

Package Contents

1x UE350A USB 3.1 Gen1 Extender Cable

Extends the distance of one USB device up to 5 m (16ft)
USB 3.1 Gen 1, 2.0 and 1.1 compatible
Built-in USB 3.1 Gen 1 Hub IC – fully supports hot swapping for a variety of USB 1.1/2.0/3.1 Gen 1 devices.
Supports USB super-speed (5 Gbps)
Plug and play – no additional software installation required
Multiplatform support – Windows and Mac
Non-powered *

* Some USB devices may require a separate power adapter.

USB 3.0 Extender - 5M

Connectors
USB Port	1 x USB Type A Male
Downstream	1 x USB Type A Female
USB Specification	3.0 / 2.0 / 1.1 for Super / High / Full or Low speed
Cable Length	5 m
Data Rate	Up to 5 Gbps
Environmental
Operating Temperature	0–40°C
Storage Temperature	-20–60°C
Humidity	0-80% RH, Non-condensing
Physical Properties
Housing	Plastic
Weight	0.27 kg ( 0.6 lb )
Note	For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.

Datasheet

ue350a_usb_extender_ss_en.pdf (1.77 MB)

We are here to help! Please visit ATEN eService for technical assistance.

(UE350A-AT)

Connectors
USB Port	1 x USB Type A Male
Downstream	1 x USB Type A Female
USB Specification	USB 3.0 / 2.0 / 1.1 for Super / High / Full or Low speed
Cable Length	5 m
Data Rate	Up to 5 Gbps
Environmental
Operating Temperature	0–40°C
Storage Temperature	-20–60°C
Humidity	0-80% RH, Non-condensing
Physical Properties
Housing	Plastic
Weight	0.22 kg ( 0.48 lb )
Dimensions (L x W x H)	6.02 x 4.00 x 2.40 cm (2.37 x 1.57 x 0.94 in.)
Note	For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.

SKU	UE350A-AT
Barcode #	672792004537
Brand	ATEN
Shipping Weight	0.2700kg
Shipping Width	0.060m
Shipping Height	0.160m
Shipping Length	0.120m
Shipping Cubic	0.001152000m3
