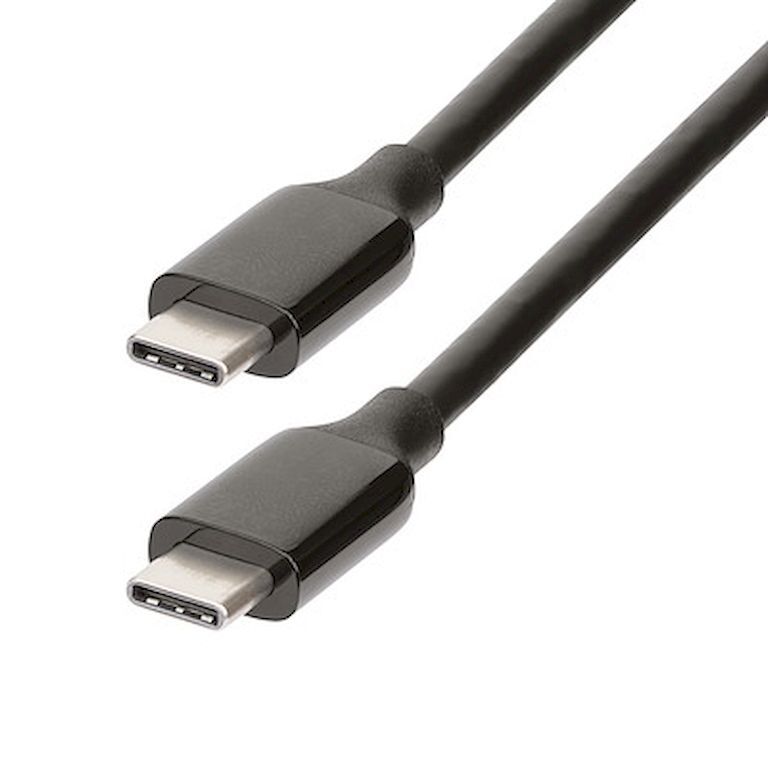

StarTech UCC-3M-10G-USB-CABLE 3m Active USB-C Cable USB 3.2 10 Gbps
Model # 6100202
-
SKU: UCC-3M-10G-USB-CABLE
- Pick Up Available
- Australian Warranty
- Checkout Securely
3m Active USB-C 10Gbps Cable
A 3m active USB-C cable supporting up to 10Gbps USB data, DisplayPort 1.4 Alt Mode video and up to 60W USB Power Delivery on compatible equipment.
10Gbps active USB-C
An integrated active retimer supports a 3m bi-directional USB-C connection at up to 10Gbps.
High-resolution video
Supports DisplayPort 1.4 Alt Mode with up to 8K 60Hz or 4K 144Hz on compatible hosts and displays.
60W Power Delivery
USB Power Delivery 3.0 support provides up to 60W with a certified E-marker.
2-year warranty
Covered by the verified two-year StarTech.com manufacturer warranty.
Key highlights
- USB 3.2 Gen 2 data rate up to 10Gbps.
- DisplayPort 1.4 Alt Mode with HBR3, HDR10, MST, DSC 1.2 and HDCP 2.2 support.
- USB-C male connectors at both ends and a 3m (9.8ft) cable length.
- Active electronics use Analogix ANX7411 and ANX7451 controllers.
Compatibility and charging conditions
Maximum data rate, video mode and charging depend on the connected USB-C host, display/device and power source supporting the required USB, DisplayPort Alt Mode and Power Delivery capabilities.
Australian version and official StarTech.com warranty
This is the Australian version supplied by DeviceDeal and is covered by the official StarTech.com 2 years manufacturer warranty in Australia. Retain your DeviceDeal tax invoice as proof of purchase. Warranty coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.
What is the StarTech UCC-3M-10G-USB-CABLE?
It is a 3m active USB-C to USB-C cable for compatible data, DisplayPort Alt Mode video and USB Power Delivery connections.
What USB data speed does the cable support?
It supports USB 3.2 Gen 2 data rates up to 10Gbps on compatible equipment.
What video resolution is supported?
The verified specification supports up to 8K 60Hz or 4K 144Hz through DisplayPort 1.4 Alt Mode when the connected equipment supports the required capabilities.
How much USB Power Delivery can it provide?
It supports USB PD 3.0 up to 60W with a certified E-marker, subject to compatible host, device and power-source capabilities.
Why is this described as an active cable?
The 3m cable uses active retimer electronics to support its long USB-C connection; the verified chipset is Analogix ANX7411 plus ANX7451.
How long is UCC-3M-10G-USB-CABLE?
The cable is 3 m (9.8 ft) long.
What is included in the package?
The package includes one 3m active USB-C cable.
What warranty applies to UCC-3M-10G-USB-CABLE in Australia?
UCC-3M-10G-USB-CABLE is covered by the official StarTech.com two-year manufacturer warranty in Australia, subject to StarTech.com warranty terms, eligibility requirements and product assessment.
(UCC-3M-10G-USB-CABLE)
Features and highlights
10Gbps active USB-C
An integrated active retimer supports a 3m bi-directional USB-C connection at up to 10Gbps.
High-resolution video
Supports DisplayPort 1.4 Alt Mode with up to 8K 60Hz or 4K 144Hz on compatible hosts and displays.
60W Power Delivery
USB Power Delivery 3.0 support provides up to 60W with a certified E-marker.
2-year warranty
Covered by the verified two-year StarTech.com manufacturer warranty.
Key highlights
- USB 3.2 Gen 2 data rate up to 10Gbps.
- DisplayPort 1.4 Alt Mode with HBR3, HDR10, MST, DSC 1.2 and HDCP 2.2 support.
- USB-C male connectors at both ends and a 3m (9.8ft) cable length.
- Active electronics use Analogix ANX7411 and ANX7451 controllers.
Official StarTech.com manufacturer warranty in Australia, subject to warranty terms and product assessment.
Specifications
StarTech UCC-3M-10G-USB-CABLE 3m Active USB-C 10Gbps Cable
General
| Warranty | 2 Years |
|---|---|
| Cable Type | Active USB-C to USB-C |
| Cable Length | 3 m [9.8 ft] |
| Data Rate | Up to 10Gbps |
| Power Delivery | USB PD 3.0 up to 60W |
Hardware and Performance
| USB Standard | USB 3.2 Gen 2 (10Gbps) |
|---|---|
| Video Protocol | DisplayPort Alt Mode 1.4; backward compatible with DisplayPort 1.2 |
| Maximum Video | Up to 8K 60Hz or 4K 144Hz on compatible equipment |
| Display Features | HBR3, HDR10, MST, DSC 1.2, HDCP 2.2 |
| Active Chipset | Analogix ANX7411 + ANX7451 |
| Connector Insertion Rating | More than 10,000 insertions |
Connectors
| Connector A | 1 × USB-C 24-pin Male (power/data, 10Gbps) |
|---|---|
| Connector B | 1 × USB-C 24-pin Male (power/data, 10Gbps) |
Construction
| Connector Plating | Nickel |
|---|---|
| Cable Jacket | PVC |
| Shielding | Aluminum-mylar foil with braid |
| Wire Gauge | 29 AWG |
| Enclosure Material | ABS |
| Cable Outer Diameter | 6.2 mm |
| Colour | Black |
Physical and Environmental
| Product Length | 3 m |
|---|---|
| Product Width | 1.5 cm |
| Product Height | 1.0 cm |
| Product Weight | 194 g |
| Operating Temperature | 0°C to 45°C |
| Storage Temperature | -10°C to 70°C |
| Humidity | 10% to 85% non-condensing |
Packaging
| Package Quantity | 1 |
|---|---|
| Package Width | 14.8 cm |
| Package Length | 19.8 cm |
| Package Height | 4.1 cm |
| Shipping Weight | 198 g |
What's in the Box
| Included | 1 × 3m active USB-C cable |
|---|
| SKU | UCC-3M-10G-USB-CABLE |
| Barcode # | 65030895842 |
| Brand | Startech |
| Shipping Weight | 0.2000kg |
| Shipping Width | 0.180m |
| Shipping Height | 0.020m |
| Shipping Length | 0.200m |
StarTech UCC-3M-10G-USB-CABLE is the Australian version supplied by DeviceDeal and is covered by the official StarTech.com 2 years manufacturer warranty in Australia.
Please retain your DeviceDeal tax invoice as proof of purchase.
Warranty coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.
