StarTech.com · CC1M80GUSB4CABLE

StarTech 1m USB4 80Gbps USB-C Cable - 240W - Black

Connect USB4 and Thunderbolt 4 equipment with a USB-IF-certified 1m USB-C cable supporting up to 80Gbps data, 240W charging and 8K video.

USB4 · 80Gbps240W PDUp to 8K 120HzUSB-IF certified

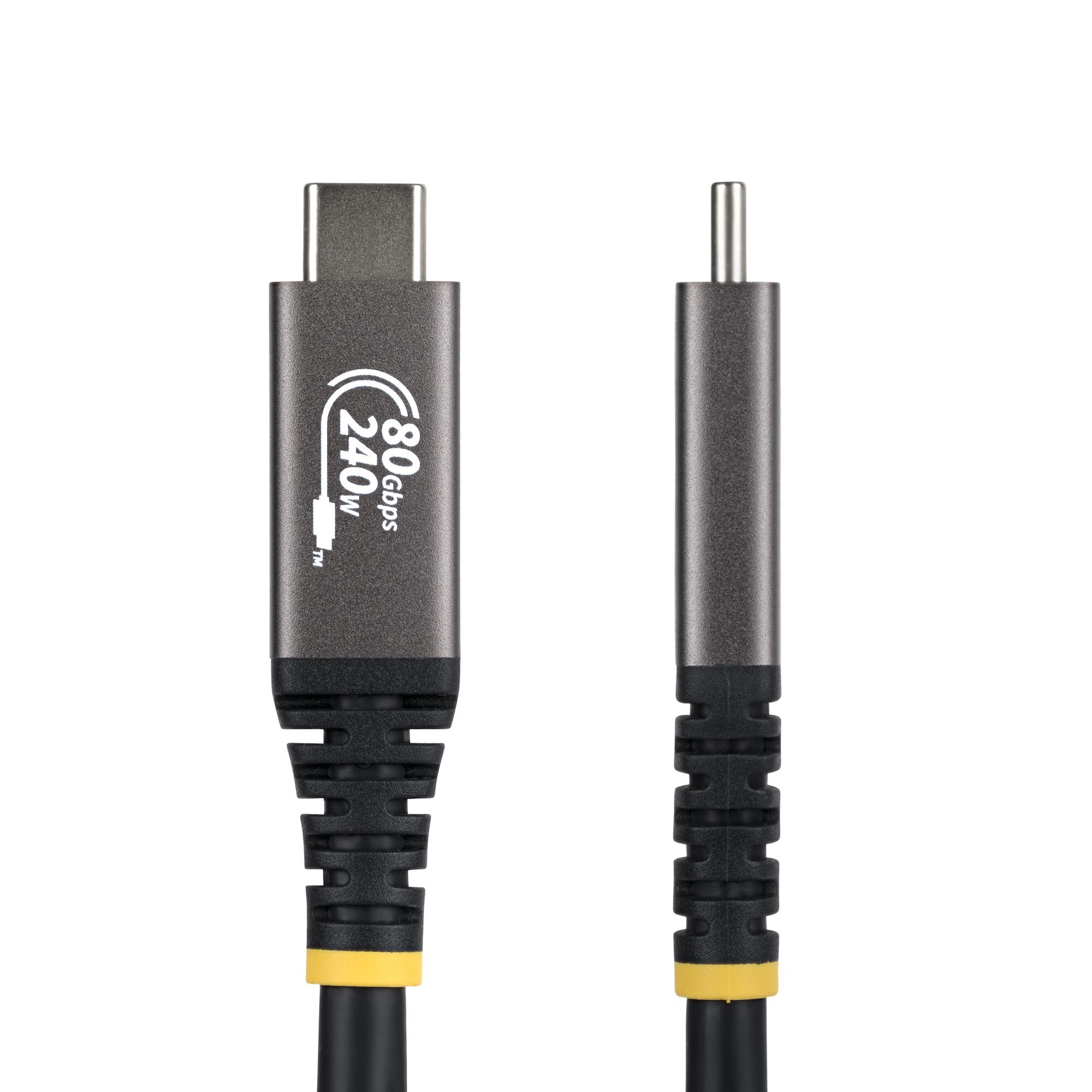

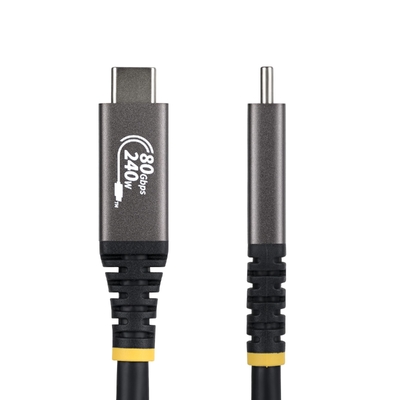

StarTech CC1M80GUSB4CABLE 1m (3.3ft) black USB4 80Gbps USB-C cable

Product overview

CC1M80GUSB4CABLE combines high-speed data, DisplayPort 2.1 video and USB PD 3.1 EPR over one passive black cable. Quick ID markings show the rated capabilities at a glance.

Features that matter

USB4 80Gbps data

USB-IF-certified USB4 operation supports data transfer up to 80Gbps with compatible hosts and devices.

Up to 240W charging

An integrated E-marker supports USB Power Delivery 3.1 EPR up to 240W at 5A with compatible charging equipment.

DisplayPort 2.1 video

Supports DisplayPort 2.1 DP80 Alt Mode with DSC, up to 8K 120Hz or dual 4K 120Hz, plus HDR10+ where the complete setup supports it.

Identifiable, shielded design

Laser-etched Quick ID connector markings, a flexible TPE jacket and shielded conductors support reliable deployment.

What to know before ordering

Choose it for

USB-C and Thunderbolt 4 docks, storage, displays and laptops requiring 1m (3.3ft) reach for data, video and charging.

End-to-end support required

The cable cannot add USB4, DisplayPort Alt Mode, DSC or EPR capabilities. Performance is limited to the modes supported by every connected component.

Charging equipment required

240W charging requires a compatible USB PD 3.1 EPR source and device; actual power is negotiated by the connected equipment.

Warranty confidence in Australia

Australian version · Official StarTech.com warranty

This item is the Australian version supplied by DeviceDeal and is covered by the official lifetime StarTech.com manufacturer warranty in Australia. Retain your DeviceDeal tax invoice as proof of purchase. Coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.

Frequently asked questions

What is StarTech CC1M80GUSB4CABLE?

CC1M80GUSB4CABLE is a 1m (3.3ft) black USB-C to USB-C passive cable for USB4 data, USB Power Delivery and DisplayPort Alt Mode.

What is the maximum data-transfer rate?

The cable supports USB4 data rates up to 80Gbps when both connected devices support that USB4 mode.

How much charging power can it carry?

It supports up to 240W at 5A using USB Power Delivery 3.1 EPR with compatible charging equipment.

What video resolutions are supported?

The verified specification lists up to 8K 120Hz and dual 4K 120Hz through DisplayPort 2.1 DP80 Alt Mode with DSC. Actual output depends on the full connected setup.

Is the cable Thunderbolt compatible?

Yes. It works with compatible USB-C and Thunderbolt 4 equipment. Data, video and charging remain limited to the capabilities shared by the connected devices.

Is this an active cable?

No. The official specification identifies it as a passive cable with an integrated E-marker for power negotiation.

What is included in the package?

The package contains one 1m (3.3ft) USB4 USB-C cable.

What warranty applies in Australia?

CC1M80GUSB4CABLE is the Australian version supplied by DeviceDeal and is covered by the official lifetime StarTech.com manufacturer warranty in Australia, subject to StarTech.com terms, eligibility and product assessment.

(CC1M80GUSB4CABLE)

Features and highlights

CC1M80GUSB4CABLE key capabilities

Product-specific highlights verified for this exact StarTech.com model.

USB4 80Gbps data

USB-IF-certified USB4 operation supports data transfer up to 80Gbps with compatible hosts and devices.

Up to 240W charging

An integrated E-marker supports USB Power Delivery 3.1 EPR up to 240W at 5A with compatible charging equipment.

DisplayPort 2.1 video

Supports DisplayPort 2.1 DP80 Alt Mode with DSC, up to 8K 120Hz or dual 4K 120Hz, plus HDR10+ where the complete setup supports it.

Identifiable, shielded design

Laser-etched Quick ID connector markings, a flexible TPE jacket and shielded conductors support reliable deployment.

Key highlights

1m (3.3ft) black USB-C to USB-C passive cable
USB4 data transfer up to 80Gbps
USB PD 3.1 EPR up to 240W at 5A
DisplayPort 2.1 DP80 Alt Mode with up to 8K 120Hz
Official lifetime StarTech.com manufacturer warranty in Australia

Technical specifications

StarTech CC1M80GUSB4CABLE

Verified specifications and package details for the exact model.

General and Connectivity

Product type

USB4 USB-C cable

Cable length

1m (3.3ft)

Connectors

USB-C male to USB-C male

USB certification

USB-IF Certified

Active or passive

Passive

Warranty

Lifetime

Performance and Power

Maximum data-transfer rate

80Gbps

Supported protocols

USB4; USB 3.2; DisplayPort 2.1 DP80 Alt Mode; Power Delivery 3.1 EPR

Maximum digital resolution

8K 120Hz

Additional display support

Dual 4K 120Hz; 4K 240Hz where the connected setup supports the required mode

HDR support

HDR10+

Audio support

DisplayPort 32-channel audio

Power Delivery

Up to 240W

Input current

Physical and Environmental

Colour

Black

Jacket material

TPE thermoplastic elastomer

Connector plating

Nickel

Cable shielding

Aluminium-Mylar foil with braid

Wire gauge

30/34 AWG

Cable outside diameter

5.0mm

Product dimensions (L x W x H)

1000 x 12.8 x 6.9mm

Product weight

57g

Operating temperature

060°C

Storage temperature

-2060°C

Humidity

4065% RH

Packaging and In the Box

Package dimensions (W x D x H)

80 x 230 x 30mm

Shipping weight

66g

Package contents

1 x USB4 80Gbps cable
