10m active USB extension
Built-in active circuitry carries a compatible USB 3.2 Gen 1 connection beyond the length of a standard passive cable.
StarTech 10m USB 3.0 Active Extension Cable, M/F - USB3AAEXT10M
Model # USB3AAEXT10M
-
SKU: USB3AAEXT10M
- Pick Up Available
- Australian Warranty
- Checkout Securely
StarTech.com | USB3AAEXT10M
StarTech 10m USB 3.0 Active Extension Cable
Extend a USB-A 5Gbps connection by 10m with active signal circuitry, optional included AC power and support for cascading two cables to reach up to 20m.
10m active extensionUSB 5GbpsAC adapter included
Key features at a glance
Direct, product-specific information to help confirm whether this model fits the intended setup.
Up to 5Gbps
Extend compatible USB 5Gbps peripherals while retaining backward compatibility with USB 2.0 and USB 1.1 devices.
Optional external power
Use USB bus power for suitable devices or connect the included universal 5V 2A adapter when extra device power is required.
Cascade up to two cables
Connect up to two USB3AAEXT10M cables for a total active extension of up to 20m.
Australian version with official 2 Years warranty
Supplied by DeviceDeal and covered by the official StarTech.com manufacturer warranty in Australia. Retain your DeviceDeal tax invoice; coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.
Still comparing options? Visit the DeviceDeal Buying Guides for practical product-selection help.
Frequently asked questions
Quick answers based on the supplied product information and specifications.
What does the StarTech USB3AAEXT10M do?
It actively extends a compatible USB-A connection by 10m while supporting USB 5Gbps and optional external device power.
How far can the USB connection be extended?
One cable adds 10m. StarTech states that up to two USB3AAEXT10M cables can be cascaded for a total extension of up to 20m.
What USB data rate is supported?
It supports USB 3.2 Gen 1 data rates up to 5Gbps and is backward compatible with USB 2.0 and USB 1.1 devices.
Which connectors does the cable use?
It has one USB Type-A male 5Gbps connector and one USB Type-A female 5Gbps connector.
Does it require drivers or a particular operating system?
No driver is required. StarTech lists the cable as operating-system independent.
When should I use the included power adapter?
Use the included universal 5V 2A adapter when the connected USB device needs more power than the extended bus-powered connection can reliably provide.
What should I check before installing it?
Confirm that 10m or a maximum two-cable 20m cascade is suitable, that the device uses USB-A and that the included adapter can be placed near the device if extra power is needed.
What warranty applies in Australia?
The Australian-version product supplied by DeviceDeal is covered by a 2 years official StarTech.com manufacturer warranty in Australia, subject to StarTech.com terms, eligibility and product assessment.
(USB3AAEXT10M)
Features and highlights
StarTech USB3AAEXT10M
10m active USB extension
Built-in active circuitry carries a compatible USB 3.2 Gen 1 connection beyond the length of a standard passive cable.
Up to 5Gbps
Extend compatible USB 5Gbps peripherals while retaining backward compatibility with USB 2.0 and USB 1.1 devices.
Optional external power
Use USB bus power for suitable devices or connect the included universal 5V 2A adapter when extra device power is required.
Cascade up to two cables
Connect up to two USB3AAEXT10M cables for a total active extension of up to 20m.
- USB-A male to USB-A female
- Plug-and-play and operating-system independent

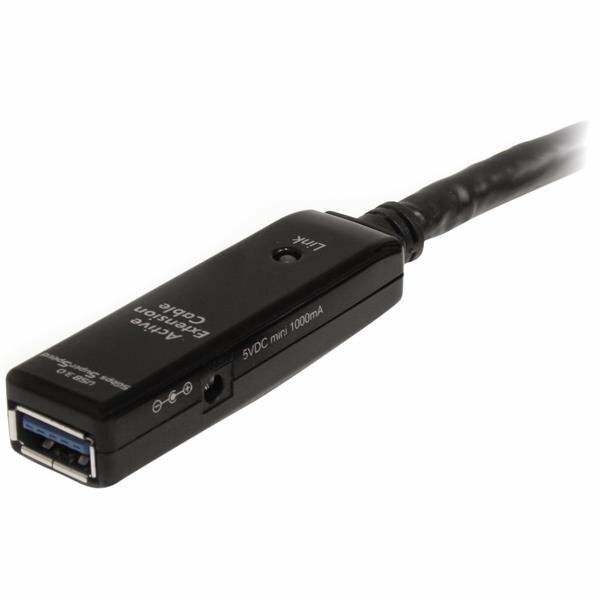

- Blue connection-status LED
- Includes Australian and international plug adapters
Warranty confidence: Australian-version product with a 2 years official StarTech.com manufacturer warranty in Australia, subject to StarTech.com terms and assessment.
Technical specifications
StarTech USB3AAEXT10M specifications organised from the supplied product data.
Warranty Information
| Warranty | 2 Years |
|---|
Hardware
| Type | Active USB 3.2 Gen 1 extension cable |
|---|---|
| Maximum Data Rate | 5Gbps |
| Connector Plating | Nickel |
| Cable Jacket Material | PVC |
Connector(s)

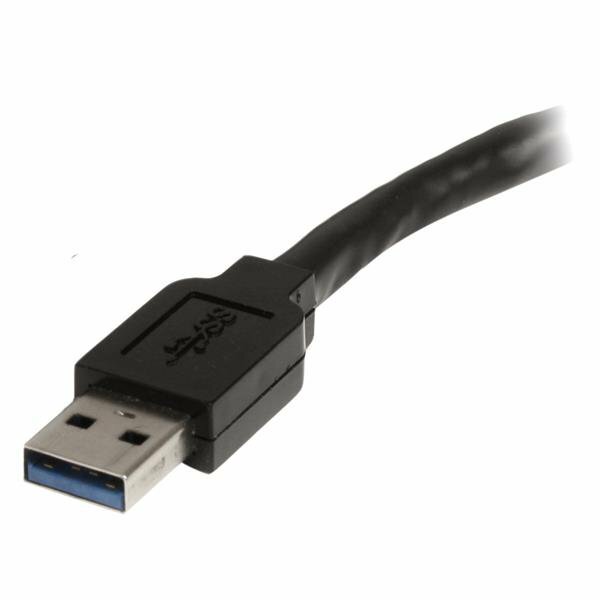

| Connector A | 1 × USB Type-A male (9 pin, 5Gbps) |
|---|---|
| Connector B | 1 × USB Type-A female (9 pin, 5Gbps) |
Special Notes / Requirements
| Maximum Cascade | Up to two USB3AAEXT10M cables |
|---|---|
| Maximum Extended Length | 20m when two cables are cascaded |
| Driver / OS | Plug-and-play; operating-system independent |
| Indicator | 1 × blue USB connection-status LED |
Power
| Power Source | USB bus power or included AC adapter |
|---|---|
| AC Input | 100240V AC, 0.35A |
| DC Output | 5V, 2A |
| Plug Type / Polarity | Type H / centre positive |
| Maximum Consumption | 10W |
Physical Characteristics
| Color | Black |
|---|---|
| Cable Length | 32.8ft [10m] |
| Repeater Housing Size | 3.4 × 0.9 × 0.5 in [86.5 × 22 × 12mm] |
| Weight | 1.0 lb [0.4kg] |
What's in the Box

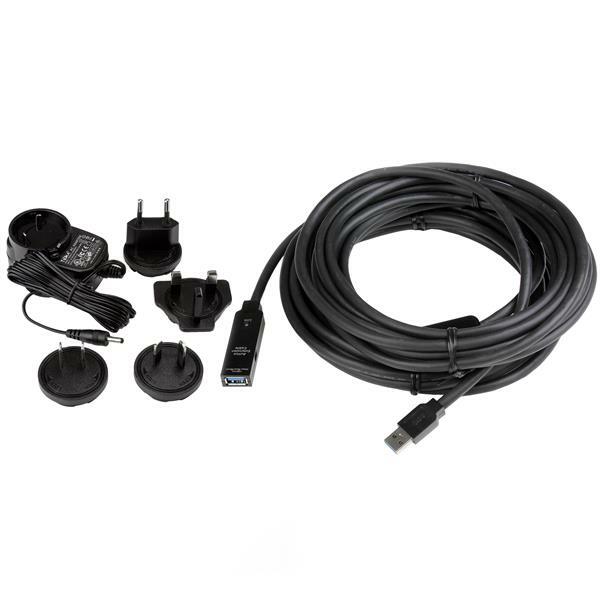

| Included | 1 × 10m USB 3.0 active extension cable; 1 × universal power adapter; plug adapters for Australia, North America, UK and Europe |
|---|
| SKU | USB3AAEXT10M |
| Barcode # | 65030846318 |
| Brand | STARTECH |
| Shipping Weight | 0.7900kg |
| Shipping Width | 0.100m |
| Shipping Height | 0.050m |
| Shipping Length | 0.220m |
| Shipping Cubic | 0.001100000m3 |
Australian version and official StarTech.com warranty
This is the Australian-version product supplied by DeviceDeal and is covered by the official StarTech.com manufacturer warranty in Australia for 2 years.
Please retain the DeviceDeal tax invoice as proof of purchase. Warranty coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.
