StarTech.com · CC150CM80GUSB4CABLEW

StarTech 1.5m USB4 80Gbps USB-C Cable - 240W - White

Connect compatible USB4 and Thunderbolt 4 equipment with a white USB-IF-certified 1.5m USB-C cable supporting up to 80Gbps data, 240W PD 3.1 EPR and DisplayPort 2.1 video.

USB4 · 80Gbps240W PD 3.1 EPR8K 120HzUSB-IF certified

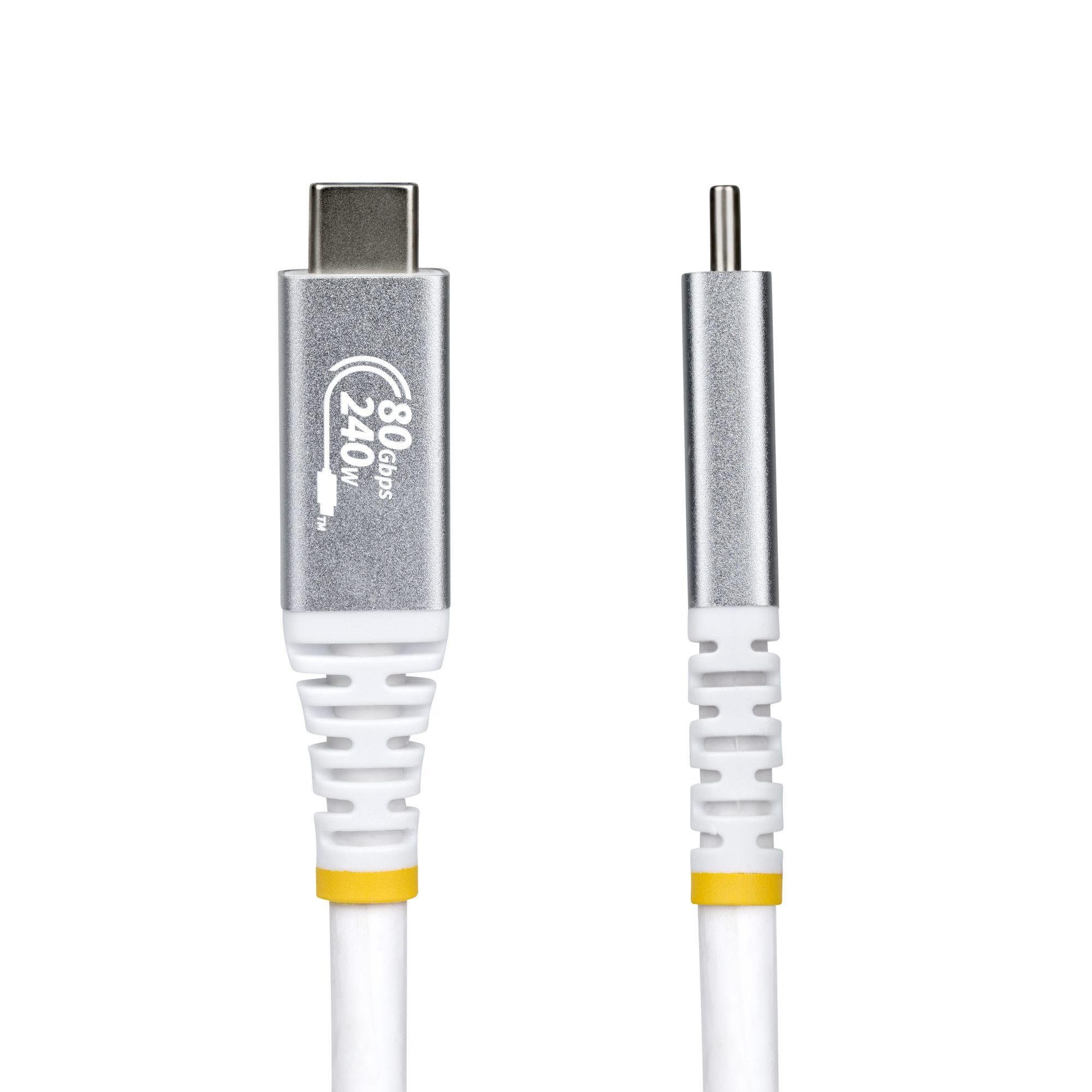

StarTech CC150CM80GUSB4CABLEW 1.5m white USB4 80Gbps USB-C cable

Product overview

CC150CM80GUSB4CABLEW combines high-speed data, charging and video over one passive USB-C connection. Quick ID markings identify the rated capabilities, while an E-marker manages compatible power negotiation.

Features that matter

USB4 80Gbps data

USB-IF certification supports full USB4 operation up to 80Gbps with compatible USB4 hosts and devices.

Up to 240W charging

An integrated E-marker supports USB Power Delivery 3.1 EPR up to 240W with a compatible charger, host and device.

DisplayPort 2.1 video

Supports DP 2.1 DP80 Alt Mode with DSC, up to 8K 120Hz or dual 4K 120Hz, plus HDR10+ where the complete setup supports it.

Identifiable, shielded design

Laser-etched Quick ID connector markings, a flexible TPE jacket and shielded 30/34AWG coaxial conductors support reliable deployment.

What to know before ordering

Choose it for

High-performance USB-C or Thunderbolt 4 docks, storage, displays and laptops requiring one cable for data, video and charging.

Host support required

The cable cannot add USB4, DP Alt Mode, DSC, Thunderbolt or EPR capabilities to connected equipment. Every required capability must be supported end to end.

Charging equipment required

240W charging requires a compatible USB PD 3.1 EPR power source and device; actual charging is negotiated by the connected equipment.

Warranty confidence in Australia

Australian version · Official StarTech.com warranty

This item is the Australian version supplied by DeviceDeal and is covered by the official lifetime StarTech.com manufacturer warranty in Australia. Retain your DeviceDeal tax invoice as proof of purchase. Coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.

Frequently asked questions

What is StarTech CC150CM80GUSB4CABLEW?

CC150CM80GUSB4CABLEW is a 1.5m USB-IF-certified USB-C to USB-C cable supporting USB4 data, USB Power Delivery and DisplayPort Alt Mode.

What is the maximum data-transfer rate?

The cable supports USB4 data rates up to 80Gbps when both connected devices support the required USB4 mode.

How much charging power can it carry?

It supports up to 240W at 5A using USB Power Delivery 3.1 EPR with a compatible charger and device.

What video resolutions are supported?

The verified specification lists up to 8K 120Hz and dual 4K 120Hz via DisplayPort 2.1 DP80 Alt Mode with DSC. Actual output depends on the host, dock, display and configuration.

Is the cable Thunderbolt compatible?

Yes. It is designed to work with compatible USB-C and Thunderbolt 4 devices and supports backward-compatible USB modes. Performance is limited to the capabilities shared by the connected equipment.

Is this an active cable?

No. The official specification identifies it as a passive cable with an integrated E-marker for power negotiation.

What is included in the package?

The package contains one 1.5m USB4 80Gbps USB-C cable.

What warranty applies in Australia?

CC150CM80GUSB4CABLEW is the Australian version supplied by DeviceDeal and is covered by the official lifetime StarTech.com manufacturer warranty in Australia, subject to StarTech.com terms, eligibility and product assessment.

(CC150CM80GUSB4CABLEW)

Features and highlights

CC150CM80GUSB4CABLEW key capabilities

Product-specific highlights verified for this exact StarTech.com model.

USB4 80Gbps data

USB-IF certification supports full USB4 operation up to 80Gbps with compatible USB4 hosts and devices.

Up to 240W charging

An integrated E-marker supports USB Power Delivery 3.1 EPR up to 240W with a compatible charger, host and device.

DisplayPort 2.1 video

Supports DP 2.1 DP80 Alt Mode with DSC, up to 8K 120Hz or dual 4K 120Hz, plus HDR10+ where the complete setup supports it.

Identifiable, shielded design

Laser-etched Quick ID connector markings, a flexible TPE jacket and shielded 30/34AWG coaxial conductors support reliable deployment.

Key highlights

1.5m USB-C to USB-C passive cable
USB4 data transfer up to 80Gbps
USB PD 3.1 EPR up to 240W and 5A
DisplayPort 2.1 DP80 Alt Mode with up to 8K 120Hz
Official lifetime StarTech.com manufacturer warranty in Australia

Technical specifications

StarTech CC150CM80GUSB4CABLEW

Verified specifications and package details for the exact model.

General and Connectivity

Product type

USB4 USB-C cable

Cable length

1.5m (5ft)

Connectors

USB-C male to USB-C male

USB certification

USB-IF Certified

Active or passive

Passive

Warranty

Lifetime

Performance and Power

Maximum data-transfer rate

80Gbps

Supported protocols

USB4; USB 3.2; DisplayPort 2.1 DP80 Alt Mode; Power Delivery 3.1 EPR

Maximum digital resolution

8K 120Hz

Additional verified display support

Dual 4K 120Hz; 4K 240Hz where the connected setup supports the required mode

HDR support

HDR10+

Audio support

DisplayPort 32-channel audio

Power Delivery

Up to 240W

Input current

Physical and Environmental

Colour

White

Jacket material

TPE thermoplastic elastomer

Connector plating

Nickel

Cable shielding

Aluminium-Mylar foil with braid

Wire gauge

30/34 AWG

Cable outside diameter

5.5mm

Product dimensions (L x W x H)

1500 x 12.8 x 6.9mm

Product weight

93g

Operating temperature

060°C

Storage temperature

-2060°C

Humidity

4065% RH

Packaging and In the Box

Package dimensions (L x W x H)

80 x 230 x 30mm

Shipping weight

105g

Package contents

1 x USB4 80Gbps cable

SKU	CC150CM80GUSB4CABLEW
Barcode #	65030921527
Brand	STARTECH
Shipping Weight	0.1050kg
Shipping Width	0.003m
Shipping Height	0.023m
Shipping Length	0.008m
