Active USB extension
Integrated active circuitry supports a 10m USB 2.0 extension beyond the normal passive-cable limit.
StarTech 10m USB 2.0 Active Extension Cable (M/F) - USB2AAEXT10M
Model # USB2AAEXT10M
-
SKU: USB2AAEXT10M
- Pick Up Available
- Australian Warranty
- Checkout Securely
StarTech.com | USB2AAEXT10M
StarTech 10m USB 2.0 Active Extension Cable
Extend a USB 2.0 Type-A connection by 10m (32.8ft) with active signal circuitry, bus power and an included universal power adapter for compatible devices that need additional power.
10m active extensionUp to 480MbpsAC adapter included
Key features at a glance
Direct, product-specific information to help confirm whether this model fits the intended setup.
Flexible power options
The cable is bus powered for compatible devices and includes a universal 5V/1A AC adapter when additional device power is required.
Daisy-chain reach
Up to four identical USB2AAEXT10M cables can be cascaded for a stated total extension of 40m.
Simple deployment
USB Type-A male-to-female connectivity, plug-and-play operation and a blue status LED simplify installation.
Australian version with official 2 Years warranty
Supplied by DeviceDeal and covered by the official StarTech.com manufacturer warranty in Australia. Retain your DeviceDeal tax invoice; coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.
Frequently asked questions
Quick answers based on the supplied product information and specifications.
How long is the StarTech USB2AAEXT10M?
It provides a 10m (32.8ft) active USB 2.0 extension.
Which connectors does it use?
It has one USB 2.0 Type-A male connector and one USB 2.0 Type-A female connector.
What is the maximum data rate?
The cable supports USB 2.0 data rates up to 480Mbps.
Does it require a driver?
No. The StarTech specification describes plug-and-play operation with no driver required.
Is an external power adapter included?
Yes. A universal 5V/1A AC adapter and regional plug adapters, including Australia, are included for devices that need additional power.
Can multiple cables be connected together?
Yes. Up to four identical USB2AAEXT10M cables can be cascaded for a stated total extension of 40m.
What is included in the package?
The package includes the 10m active extension cable, a universal power adapter and plug adapters for North America, UK, Europe and Australia.
What warranty applies in Australia?
The Australian-version product supplied by DeviceDeal is covered by a two-year official StarTech.com manufacturer warranty in Australia, subject to StarTech.com terms, eligibility and product assessment.
(USB2AAEXT10M)
Features and highlights
StarTech USB2AAEXT10M
Active USB extension
Integrated active circuitry supports a 10m USB 2.0 extension beyond the normal passive-cable limit.
Flexible power options
The cable is bus powered for compatible devices and includes a universal 5V/1A AC adapter when additional device power is required.
Daisy-chain reach
Up to four identical USB2AAEXT10M cables can be cascaded for a stated total extension of 40m.
Simple deployment
USB Type-A male-to-female connectivity, plug-and-play operation and a blue status LED simplify installation.
- USB 2.0 bandwidth up to 480Mbps
- USB Type-A male to USB Type-A female
- Fully shielded cable construction
- Regional plug adapters include Australia
Warranty confidence: Australian-version product with a 2 years official StarTech.com manufacturer warranty in Australia, subject to StarTech.com terms and assessment.
Technical specifications
StarTech USB2AAEXT10M specifications organised from the supplied product data.
Warranty Information
| Warranty | 2 Years |
|---|
Hardware
| Connector Plating | Nickel |
|---|---|
| Cable Jacket Material | PVC - Polyvinyl Chloride |
Performance
| Maximum Data Transfer Rate | 480Mbps |
|---|---|
| Maximum Daisy Chain | Up to four USB2AAEXT10M cables for 40m |
Connector(s)

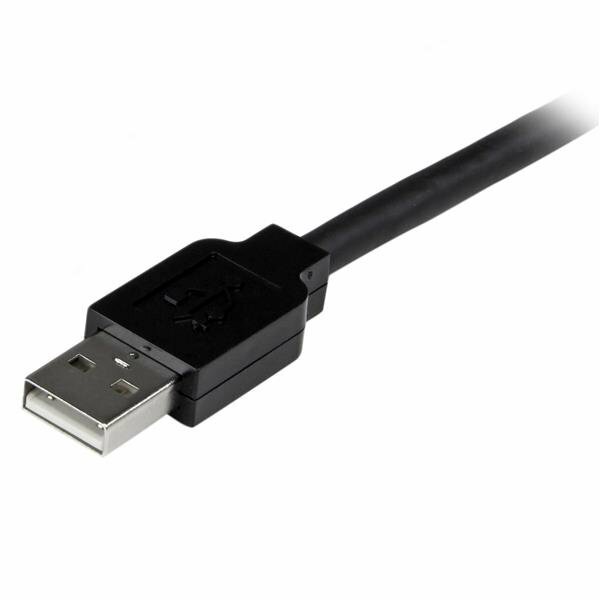

| Connector A | 1 × USB 2.0 Type-A male (4 pin, 480Mbps) |
|---|---|
| Connector B | 1 × USB 2.0 Type-A female (4 pin, 480Mbps) |
Special Notes / Requirements
| Installation | Plug-and-play; no driver required |
|---|---|

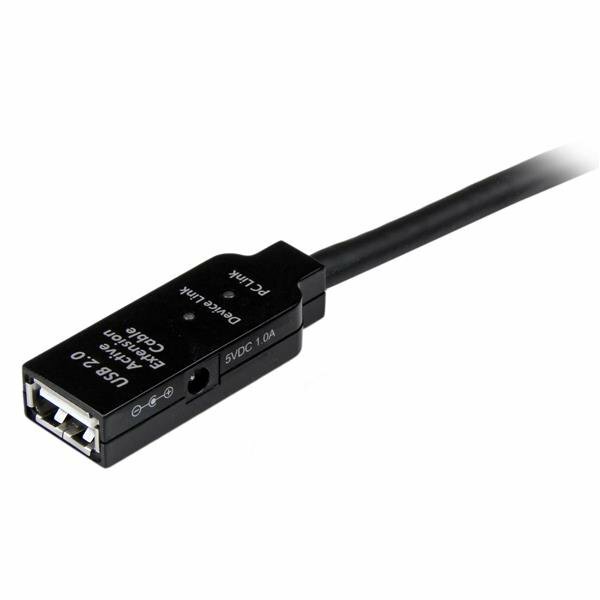

| Status Indicator | 1 × blue LED |
| Cascade Note | Cascade up to four USB2AAEXT10M cables; attached-device operation depends on the host, total cable run and available power. |
Power
| Power Source | USB bus-powered active circuitry; AC adapter included |
|---|---|
| Input | 100240V AC, 0.35A |
| Output | 5V DC, 1A |
| Power Consumption | 5W |
| Plug Type | H; regional plug adapters included |
Physical Characteristics
| Color | Black |
|---|---|
| Cable Length | 10m |
| Repeater Housing | 86.5 × 22 × 12mm |
| Weight of Product | 0.7kg |
Packaging Information
| Package Information | Official datasheet lists a shipping weight of 0.7kg |
|---|---|
| Package Quantity | 1 |
What's in the Box

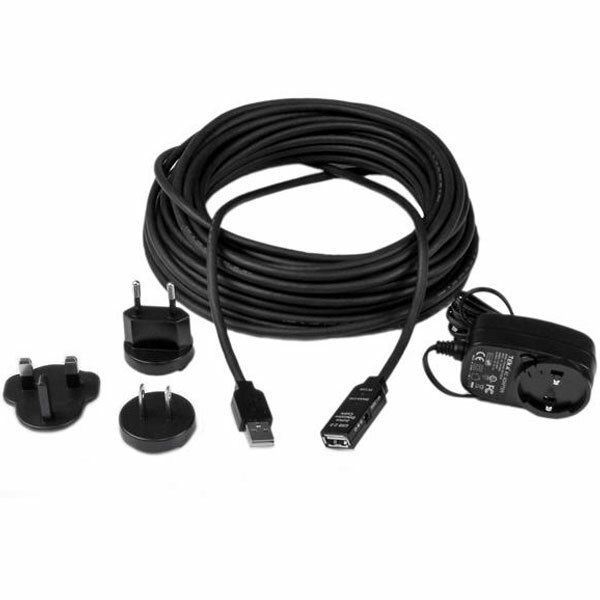

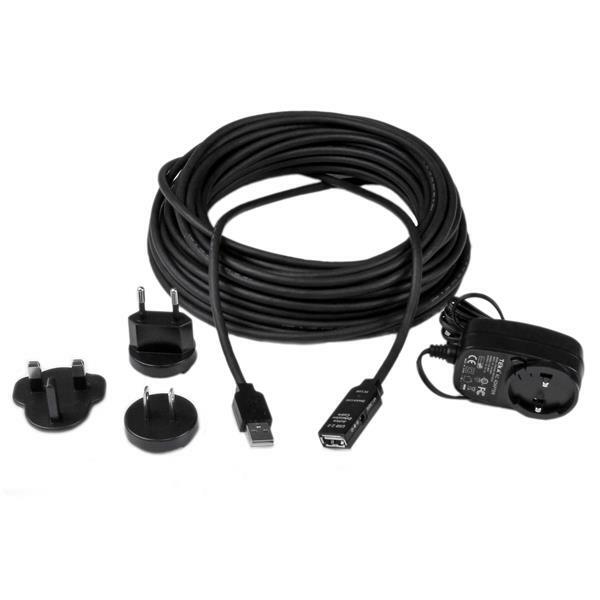

| Included in Package | 1 × 10m USB 2.0 active extension cable; 1 × universal power adapter; plug adapters for North America, UK, Europe and Australia |
|---|
| SKU | USB2AAEXT10M |
| Barcode # | 65030854344 |
| Brand | STARTECH |
| Shipping Weight | 0.6600kg |
| Shipping Width | 0.210m |
| Shipping Height | 0.060m |
| Shipping Length | 0.226m |
| Shipping Cubic | 0.002848000m3 |
Australian version and official StarTech.com warranty
This is the Australian-version product supplied by DeviceDeal and is covered by the official StarTech.com manufacturer warranty in Australia for 2 years.
Please retain the DeviceDeal tax invoice as proof of purchase. Warranty coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.
