StarTech 1 ft Panel Mount USB Cable A to A, F/M - USBPNLAFAM1
Model # USBPNLAFAM1
-
SKU: USBPNLAFAM1
Stock Availability
🟢Live
Allow 1–2 business days for stock transfer
- Pick Up Available
- Australian Warranty
- Checkout Securely

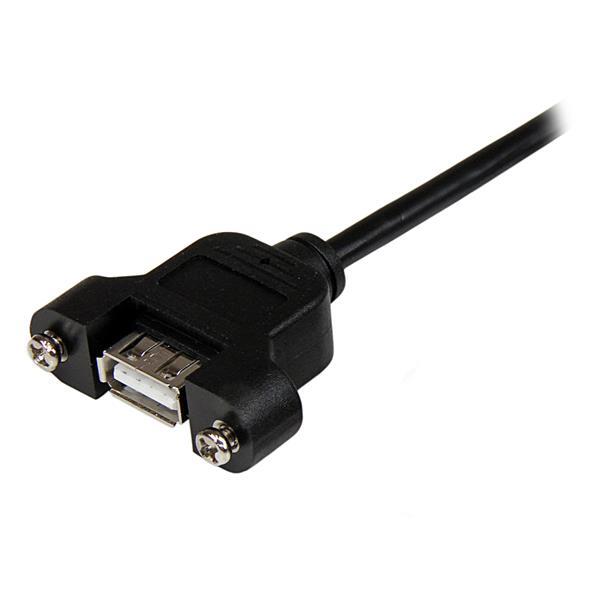

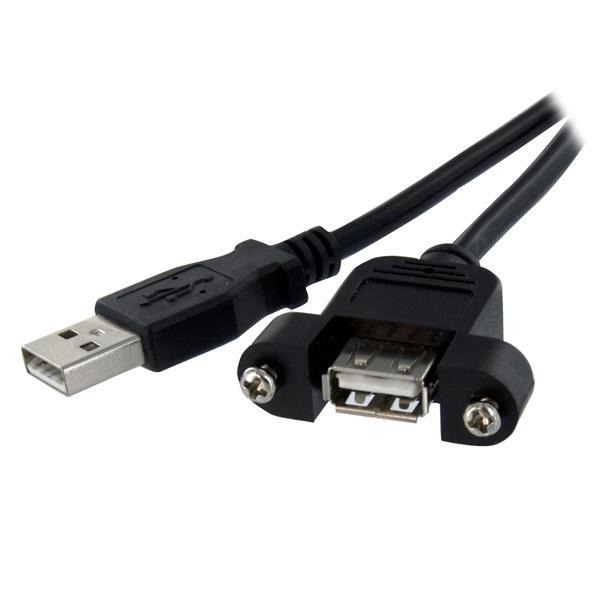

StarTech 30cm USB-A Male to Panel-Mount USB-A Female Cable
Create a secure, accessible USB-A port on a panel, faceplate, kiosk or enclosure using a 30cm male-to-female USB 2.0 extension cable.
Why choose USBPNLAFAM1?
USB-A male to panel-mount USB-A female.
30cm (1ft) cable for internal routing.
Supports USB 2.0 connections up to 480Mbps.
Best-fit applications
- Adding accessible USB to a kiosk or podium
- Bringing an internal USB-A connection to a faceplate
- Building custom computers, control panels and enclosures
Australian warranty assurance
Australian version supplied by DeviceDeal. Covered by the official StarTech.com manufacturer warranty in Australia for lifetime. Retain your DeviceDeal tax invoice. Warranty service is subject to StarTech terms, eligibility and product assessment.
Information verified against the supplied DeviceDeal source workbook, the exact DeviceDeal product page and exact-SKU official StarTech.com product data.
Read DeviceDeal buying guidesFrequently asked questions
What does USBPNLAFAM1 do?
It extends a USB-A male connection to a secure panel-mounted USB-A female port.
How long is the cable?
It is approximately 30cm, or 1 foot, long.
What data rate is supported?
It supports USB 2.0 connections up to 480Mbps with compatible hardware.
Where can it be installed?
Typical uses include computer faceplates, kiosks, podiums and custom equipment enclosures.
Is mounting hardware included?
Confirm the supplied package and your panel design; the installation requires an appropriate opening and secure mounting method.
Does it add another USB controller?
No. It extends one existing USB-A connection.
Is it an active extension?
No. It is a passive panel-mount cable without external power or signal regeneration.
What warranty applies in Australia?
This Australian version is supplied by DeviceDeal with the official lifetime StarTech.com manufacturer warranty in Australia, subject to StarTech terms and assessment.
(USBPNLAFAM1)
Features and highlights
- USB-A male to panel-mount USB-A female
- 30cm (1ft) cable for internal routing
- Supports USB 2.0 connections up to 480Mbps
- Secure female port for faceplates and custom enclosures
- 24/28 AWG black PVC cable
- Lifetime StarTech.com manufacturer warranty
StarTech 30cm USB-A Male to Panel-Mount USB-A Female Cable
Product ID: USBPNLAFAM1
Connections and performance
| Connector A | USB 2.0 Type-A male |
|---|---|
| Connector B | Panel-mount USB 2.0 Type-A female |
| Maximum data rate | 480Mbps |
| Cable length | 0.3m (1ft) |
Physical
| Colour | Black |
|---|---|
| Wire gauge | 24/28 AWG |
| Jacket | PVC |
| Product dimensions | 310 x 38 x 11mm |
| Weight | 24g |
Environment and package
| Operating temperature | -20 to 60°C |
|---|---|
| Storage temperature | -10 to 30°C |
| Humidity | 30% to 75% RH |
| Included | 30cm panel-mount USB-A cable |
| Warranty | Lifetime |
| SKU | USBPNLAFAM1 |
| Barcode # | 65030835404 |
| Brand | Startech |
| Shipping Weight | 0.0300kg |
| Shipping Width | 0.110m |
| Shipping Height | 0.010m |
| Shipping Length | 0.180m |
| Shipping Cubic | 0.000198000m3 |
Lifetime StarTech.com warranty
Australian version supplied by DeviceDeal. Covered by the official StarTech.com manufacturer warranty in Australia for lifetime. Retain your DeviceDeal tax invoice. Warranty service is subject to StarTech terms, eligibility and product assessment.
Keep your proof of purchase: retain the DeviceDeal tax invoice supplied with your order.
