StarTech.com · CC2M20GUSB4TP

StarTech 2m USB4 20Gbps USB-C Cable - 240W - Black

Connect compatible USB4 equipment over 2m with a USB-IF-certified black USB-C cable supporting up to 20Gbps data, 240W charging and 4K 120Hz video.

USB4 · 20Gbps240W PDUp to 4K 120HzUSB-IF certified

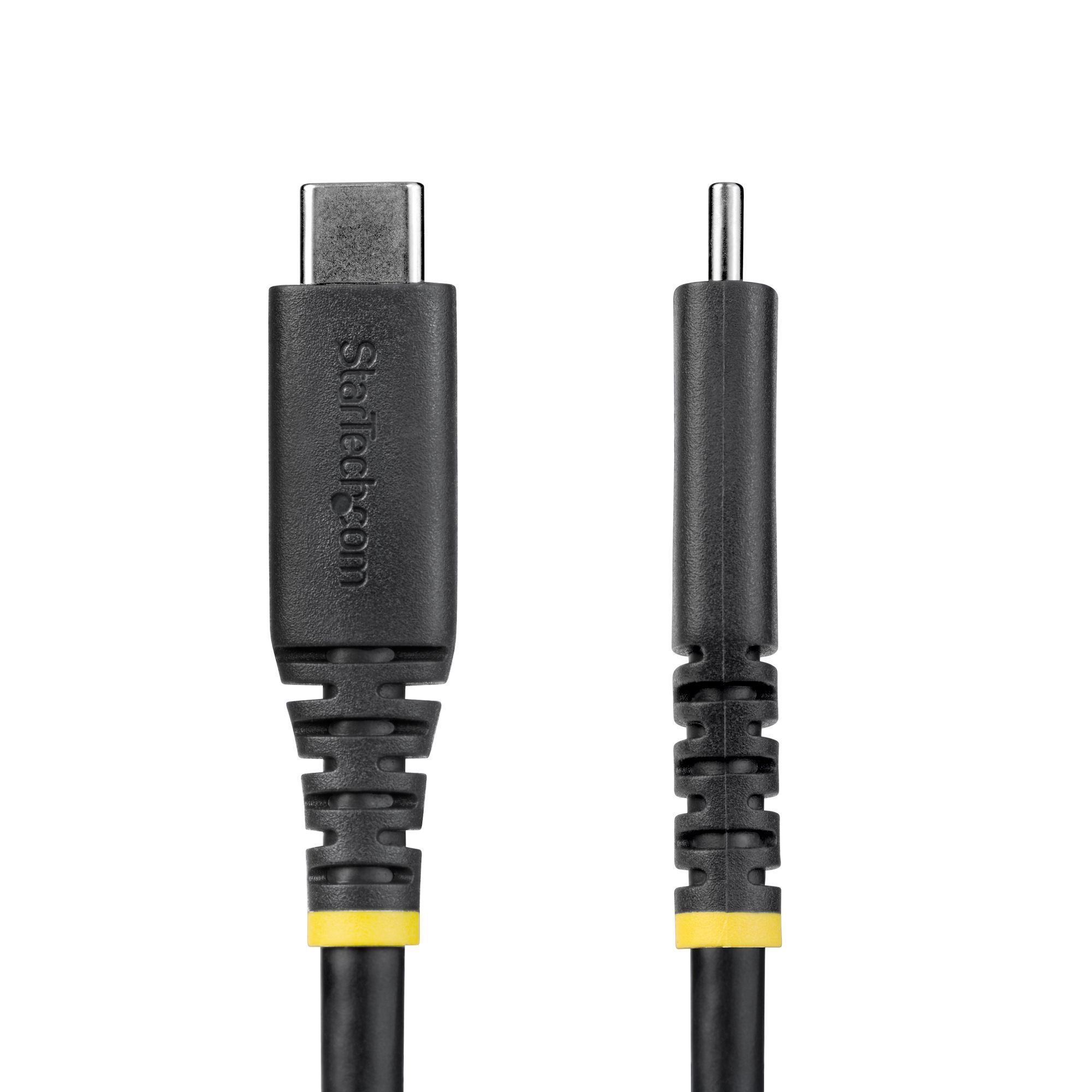

StarTech CC2M20GUSB4TP 2m (6.6ft) black USB4 20Gbps USB-C cable

Product overview

CC2M20GUSB4TP combines USB4 data, DisplayPort 2.1 Alt Mode and USB PD 3.1 EPR in a passive braided cable. Quick ID markings help identify its capabilities during deployment.

Features that matter

USB4 20Gbps data

USB-IF-certified USB4 operation supports data transfer up to 20Gbps with compatible hosts and devices.

Up to 240W charging

An integrated E-marker supports USB Power Delivery 3.1 EPR up to 240W at 5A with compatible charging equipment.

DisplayPort 2.1 video

Supports DisplayPort 2.1 Alt Mode with DSC, up to 4K 120Hz or dual 4K 60Hz, plus HDR10+ where the complete setup supports it.

Identifiable, shielded design

Laser-etched Quick ID connector markings, a flexible TPE jacket and shielded conductors support reliable deployment.

What to know before ordering

Choose it for

USB-C and Thunderbolt 4 docks, storage, displays and laptops requiring 2m (6.6ft) reach for data, video and charging.

End-to-end support required

The cable cannot add USB4, DisplayPort Alt Mode, DSC or EPR capabilities. Performance is limited to the modes supported by every connected component.

Charging equipment required

240W charging requires a compatible USB PD 3.1 EPR source and device; actual power is negotiated by the connected equipment.

Warranty confidence in Australia

Australian version · Official StarTech.com warranty

This item is the Australian version supplied by DeviceDeal and is covered by the official lifetime StarTech.com manufacturer warranty in Australia. Retain your DeviceDeal tax invoice as proof of purchase. Coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.

Frequently asked questions

What is StarTech CC2M20GUSB4TP?

CC2M20GUSB4TP is a 2m (6.6ft) black USB-C to USB-C passive cable for USB4 data, USB Power Delivery and DisplayPort Alt Mode.

What is the maximum data-transfer rate?

The cable supports USB4 data rates up to 20Gbps when both connected devices support that USB4 mode.

How much charging power can it carry?

It supports up to 240W at 5A using USB Power Delivery 3.1 EPR with compatible charging equipment.

What video resolutions are supported?

The verified specification lists up to 4K 120Hz and dual 4K 60Hz through DisplayPort 2.1 Alt Mode with DSC. Actual output depends on the full connected setup.

Is the cable Thunderbolt compatible?

Yes. It works with compatible USB-C and Thunderbolt 4 equipment. Data, video and charging remain limited to the capabilities shared by the connected devices.

Is this an active cable?

No. The official specification identifies it as a passive cable with an integrated E-marker for power negotiation.

What is included in the package?

The package contains one 2m (6.6ft) USB4 USB-C cable.

What warranty applies in Australia?

CC2M20GUSB4TP is the Australian version supplied by DeviceDeal and is covered by the official lifetime StarTech.com manufacturer warranty in Australia, subject to StarTech.com terms, eligibility and product assessment.

(CC2M20GUSB4TP)

Features and highlights

CC2M20GUSB4TP key capabilities

Product-specific highlights verified for this exact StarTech.com model.

USB4 20Gbps data

USB-IF-certified USB4 operation supports data transfer up to 20Gbps with compatible hosts and devices.

Up to 240W charging

An integrated E-marker supports USB Power Delivery 3.1 EPR up to 240W at 5A with compatible charging equipment.

DisplayPort 2.1 video

Supports DisplayPort 2.1 Alt Mode with DSC, up to 4K 120Hz or dual 4K 60Hz, plus HDR10+ where the complete setup supports it.

Identifiable, shielded design

Laser-etched Quick ID connector markings, a flexible TPE jacket and shielded conductors support reliable deployment.

Key highlights

2m (6.6ft) black USB-C to USB-C passive cable
USB4 data transfer up to 20Gbps
USB PD 3.1 EPR up to 240W at 5A
DisplayPort 2.1 Alt Mode with up to 4K 120Hz
Official lifetime StarTech.com manufacturer warranty in Australia

Technical specifications

StarTech CC2M20GUSB4TP

Verified specifications and package details for the exact model.

General and Connectivity

Product type

USB4 USB-C cable

Cable length

2m (6.6ft)

Connectors

USB-C male to USB-C male

USB certification

USB-IF Certified

Active or passive

Passive

Warranty

Lifetime

UPC

065030919746

Performance and Power

Maximum data-transfer rate

20Gbps

Supported protocols

USB4; USB 3.2; DisplayPort 2.1 Alt Mode with DSC and HBR3; Power Delivery 3.1 EPR

Maximum digital resolution

4K 120Hz

Additional display support

Dual 4K 60Hz

HDR support

HDR10

Audio support

DisplayPort 32-channel audio

Power Delivery

Up to 240W

Physical and Environmental

Colour

Black

Jacket material

TPE inner jacket with braided exterior

Connector plating

Nickel

Cable shielding

Aluminium-Mylar foil with braid

Wire gauge

23/31 AWG

Cable outside diameter

5.1mm

Product dimensions (L x W x H)

2013.3 x 12.8 x 6.9mm

Product weight

99g

Packaging and In the Box

Package dimensions (W x D x H)

80 x 230 x 30mm

Shipping weight

111g

Package contents

1 x USB4 20Gbps cable
