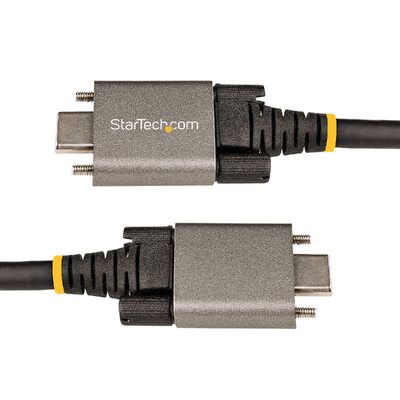

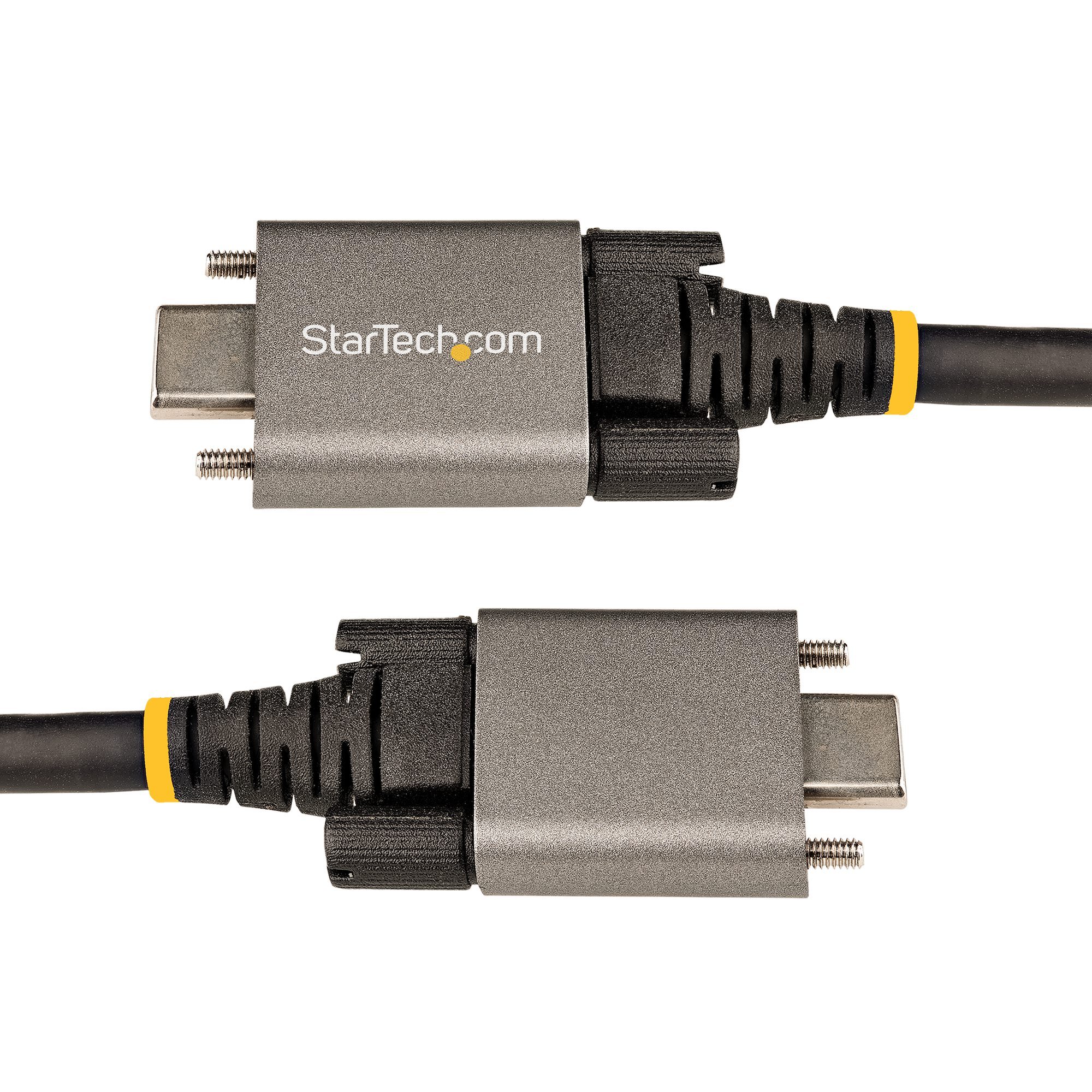

Dual side-screw locking
Fasten the cable to a compatible side-screw-locking USB-C port to reduce accidental disconnection from docks, drives and other equipment.
Startech USB31CCSLKV1M 1m Side Screw Locking USB C Cable 10Gbps
Model # USB31CCSLKV1M
-
SKU: USB31CCSLKV1M
- Pick Up Available
- Australian Warranty
- Checkout Securely
StarTech.com | USB31CCSLKV1M

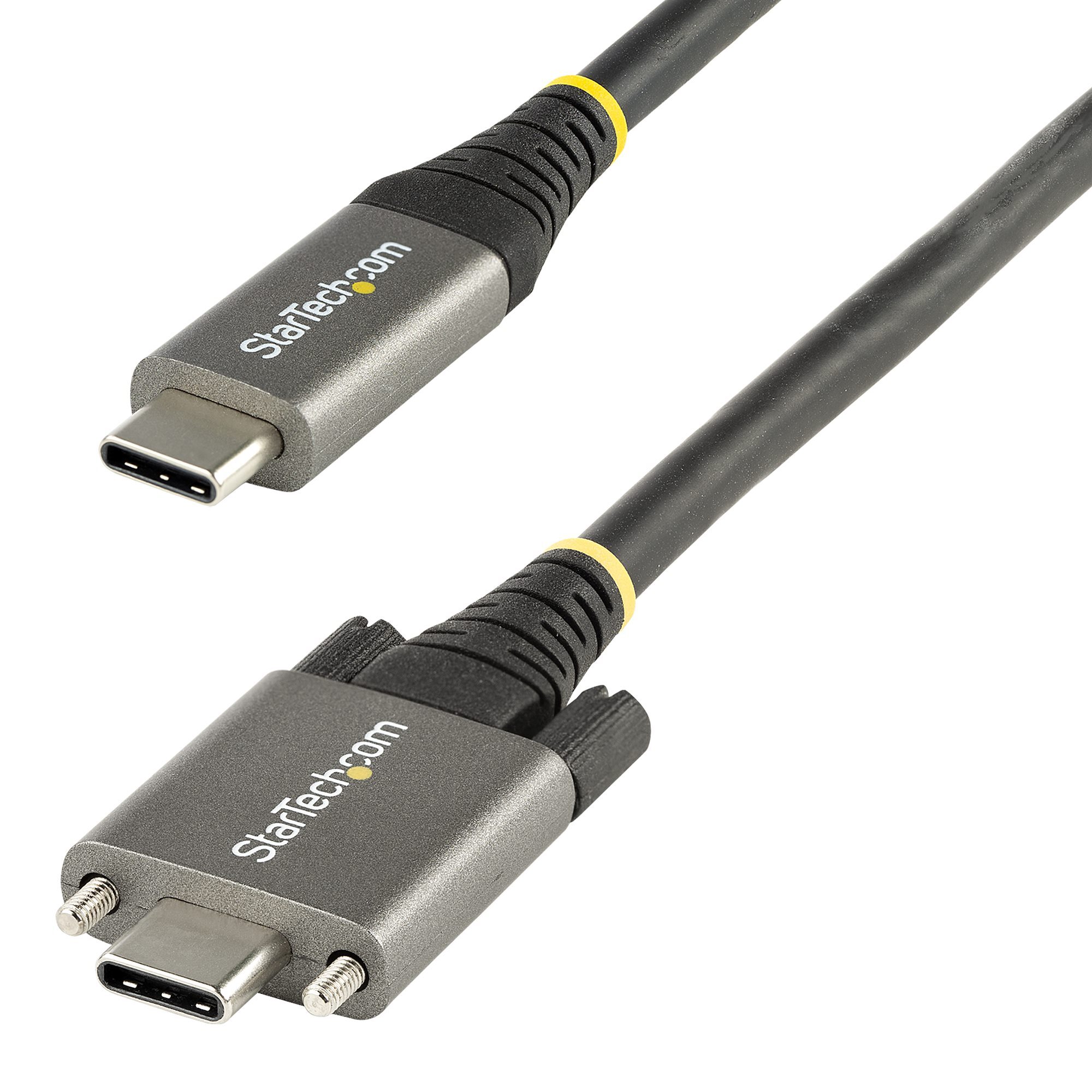

StarTech 1m Side-Screw Locking USB-C 100W 8K Cable
Secure compatible USB-C equipment with dual M2 side screws while carrying USB 10Gbps data, up to 100W Power Delivery and DisplayPort 1.4 video up to 8K 60Hz.
Dual side-lock screws100W PD 3.08K 60Hz / 4K 144Hz
Key features at a glance
Direct, product-specific information to help confirm whether this model fits the intended setup.
USB 10Gbps data
Transfer data at USB 3.2 Gen 2 rates up to 10Gbps with compatible USB-C hosts and peripherals.
100W Power Delivery
Charge or power a compatible USB-C laptop or device at up to 20V, 5A and 100W from a suitable PD 3.0 source.
8K 60Hz DP 1.4 Alt Mode
Carry video up to 8K 60Hz or 4K 144Hz through a compatible DisplayPort 1.4 Alt Mode path.
Australian version with official 2 Years warranty
Supplied by DeviceDeal and covered by the official StarTech.com manufacturer warranty in Australia. Retain your DeviceDeal tax invoice; coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.
Still comparing options? Visit the DeviceDeal Buying Guides for practical product-selection help.
Product videos
Verified videos shown on this exact DeviceDeal product page.
Product video High-Performance USB-C Cables
Frequently asked questions
Quick answers based on the supplied product information and specifications.
What is the StarTech USB31CCSLKV1M?
It is a 1m USB-C cable with dual removable M2 side-locking screws for compatible equipment, plus USB 10Gbps data, 100W PD 3.0 and 8K video support.
Which connectors does the cable use?
It has USB-C male connectors at both ends; the locking end uses dual M2 side screws with 30.5mm spacing.
What data-transfer rate is supported?
It supports USB 10Gbps with compatible USB 3.2 Gen 2 devices.
How long is the cable?
It is 3.3ft (1m) long.
What charging capability is supported?
It supports Power Delivery 3.0 up to 20V, 5A and 100W with a compatible power source and device.
What video capability is supported?
It supports DisplayPort 1.4 Alt Mode up to 8K 60Hz or 4K 144Hz with compatible source and display equipment.
What should I check before purchase?
Confirm the device uses the matching dual-side-screw M2 locking arrangement and supports the required USB-C data, power and video features.
What warranty applies in Australia?
The Australian-version product supplied by DeviceDeal is covered by a two-year official StarTech.com manufacturer warranty in Australia, subject to StarTech.com terms, eligibility and product assessment.
(USB31CCSLKV1M)
Features and highlights
StarTech USB31CCSLKV1M
Dual side-screw locking
Fasten the cable to a compatible side-screw-locking USB-C port to reduce accidental disconnection from docks, drives and other equipment.
USB 10Gbps data
Transfer data at USB 3.2 Gen 2 rates up to 10Gbps with compatible USB-C hosts and peripherals.
100W Power Delivery
Charge or power a compatible USB-C laptop or device at up to 20V, 5A and 100W from a suitable PD 3.0 source.
8K 60Hz DP 1.4 Alt Mode
Carry video up to 8K 60Hz or 4K 144Hz through a compatible DisplayPort 1.4 Alt Mode path.
- Two removable M2 side screws with 30.5mm spacing
- USB-IF certified and Thunderbolt 3 compatible
- Tested for 10,000+ insertions and 4,000+ bend cycles
- TPE jacket with 85% braid-coverage EMI shielding
Warranty confidence: Australian-version product with a 2 years official StarTech.com manufacturer warranty in Australia, subject to StarTech.com terms and assessment.
Technical specifications
StarTech USB31CCSLKV1M specifications organised from the supplied product data.
Warranty Information
| Warranty | 2 Years |
|---|
Hardware
| Connector Plating | Nickel |
|---|---|
| Cable Jacket Material | TPE - Thermoplastic Elastomers |
| Cable Shield Material | Aluminium-Mylar foil with braid |
Performance
| Maximum Data Transfer Rate | 10Gbps |
|---|---|
| Type and Rate | USB 10Gbps |
| Video Revision | DisplayPort 1.4 |
| Maximum Digital Resolution | 8K at 60Hz or 4K at 144Hz |
Connector(s)
| Connector A | 1 × USB 3.2 Type-C male (24-pin, Gen 2, 10Gbps) |
|---|---|
| Connector B | 1 × USB 3.2 Type-C male with dual M2 side screws (24-pin, Gen 2, 10Gbps) |
Power
| Power Delivery | 100W |
|---|---|
| Power Delivery Revision | PD 3.0 |
| Maximum Voltage / Current | 20V / 5A |
Environmental
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
|---|---|
| Storage Temperature | -20°C to 70°C (-4°F to 158°F) |
| Humidity | 0% to 95% RH, non-condensing at 25°C |
Physical Characteristics
| Color | Gray and Black |
|---|---|
| Connector Style | Straight |
| Wire Gauge | 30/32 AWG |
| Cable Length | 3.3ft [1m] |
| Cable OD | 0.2 in [4.8mm] |
| Product Length | 3.4ft [1.0m] |
| Product Width | 0.8 in [2.0cm] |
| Product Height | 0.3 in [0.7cm] |
| Weight of Product | 1.8 oz [50g] |
Packaging Information
| Package Quantity | 1 |
|---|---|
| Package Length | 5.2 in [13.1cm] |
| Package Width | 4.9 in [12.5cm] |
| Package Height | 0.6 in [1.5cm] |
| Shipping (Package) Weight | 1.8 oz [50g] |
What's in the Box
| Included in Package | 1 × 1m certified side-screw-locking USB-C 10Gbps cable |
|---|
| SKU | USB31CCSLKV1M |
| Barcode # | 65030893459 |
| Brand | STARTECH |
| Shipping Weight | 0.0500kg |
Australian version and official StarTech.com warranty
This is the Australian-version product supplied by DeviceDeal and is covered by the official StarTech.com manufacturer warranty in Australia for 2 years.
Please retain the DeviceDeal tax invoice as proof of purchase. Warranty coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.
