Extended 9m connection
Place a compatible USB Type-B peripheral up to 9m (30ft) from the host computer.
StarTech 10mActive USB 2.0 A to B Cable, M/M - USB2HAB30AC
Model # USB2HAB30AC
-
SKU: USB2HAB30AC
- Pick Up Available
- Australian Warranty
- Checkout Securely
StarTech.com | USB2HAB30AC

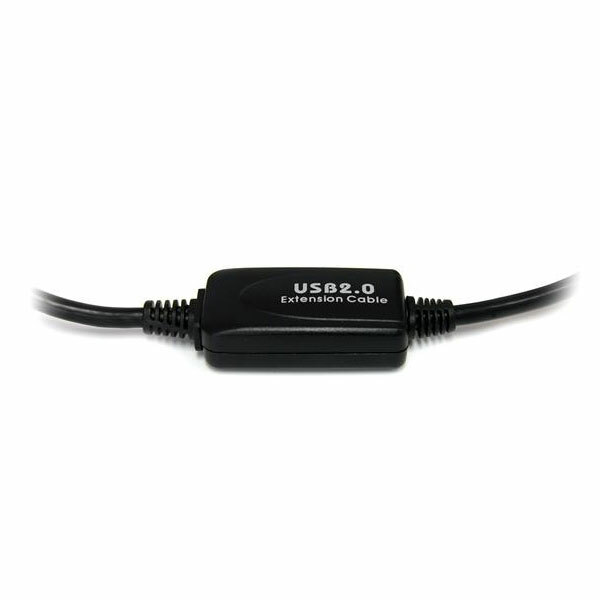

StarTech 9m (30ft) Active USB 2.0 A-to-B Cable
Connect a compatible USB 2.0 or USB 1.1 Type-B peripheral up to 9m (30ft) from a computer using an integrated equalising chip for the extended cable run.
9m / 30ftActive equalising chip480Mbps USB 2.0
Key features at a glance
Direct, product-specific information to help confirm whether this model fits the intended setup.
Integrated active circuitry
A built-in equalising chip supports communication beyond the length limits of a standard passive USB cable.
USB 2.0 performance
Support USB 2.0 transfer rates up to 480Mbps with compatible equipment.
USB-A to USB-B connection
Connect a USB Type-A host port to a 4-pin USB Type-B peripheral port.
Australian version with official 2 Years warranty
Supplied by DeviceDeal and covered by the official StarTech.com manufacturer warranty in Australia. Retain your DeviceDeal tax invoice; coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.
Still comparing options? Visit the DeviceDeal Buying Guides for practical product-selection help.
Frequently asked questions
Quick answers based on the supplied product information and specifications.
What is the StarTech USB2HAB30AC?
It is an active 9m (30ft) USB 2.0 Type-A to Type-B cable for connecting a compatible peripheral to a computer.
Why is this described as an active cable?
It includes an equalising chip that supports USB communication beyond the length limits of a standard passive cable.
What data rate is supported?
It supports USB 2.0 transfers up to 480Mbps with compatible equipment.
What is the verified cable length?
The exact StarTech datasheet lists 9m, equivalent to 29.5ft and marketed as a 30ft cable.
How much current does the active circuitry use?
The official specification states a maximum draw of 70mA for the internal active circuitry.
Which connectors are fitted?
It has one USB 2.0 Type-A male connector and one 4-pin USB Type-B male connector.
What is included?
The package includes one 9m/30ft high-speed USB 2.0 cable.
What warranty applies in Australia?
The Australian-version product supplied by DeviceDeal is covered by a two-year official StarTech.com manufacturer warranty in Australia, subject to StarTech.com terms, eligibility and product assessment.
(USB2HAB30AC)
Features and highlights
StarTech USB2HAB30AC
Extended 9m connection
Place a compatible USB Type-B peripheral up to 9m (30ft) from the host computer.
Integrated active circuitry
A built-in equalising chip supports communication beyond the length limits of a standard passive USB cable.
USB 2.0 performance
Support USB 2.0 transfer rates up to 480Mbps with compatible equipment.
USB-A to USB-B connection
Connect a USB Type-A host port to a 4-pin USB Type-B peripheral port.
- Official length: 9m (29.5ft / 30ft class)
- USB 2.0 Type-A male to USB Type-B male
- Internal active circuitry draws up to 70mA
- PVC jacket, braided shielding and nickel-plated connectors
Warranty confidence: Australian-version product with a 2 years official StarTech.com manufacturer warranty in Australia, subject to StarTech.com terms and assessment.
Technical specifications
StarTech USB2HAB30AC specifications organised from the supplied product data.
Warranty Information
| Warranty | 2 Years |
|---|
Hardware
| Active Circuitry | Integrated equalising chip |
|---|---|
| Connector Plating | Nickel |
| Cable Jacket Material | PVC - Polyvinyl Chloride |
| Cable Shield Material | Aluminium-Mylar foil with braid |
Performance
| Maximum Cable Length | 29.5ft [9m] |
|---|---|
| Type and Rate | USB 2.0 (480Mbps) |
Connector(s)
| Connector A | 1 × USB 2.0 Type-A male (4-pin, 480Mbps) |
|---|---|
| Connector B | 1 × USB Type-B male (4-pin) |
Special Notes / Requirements
| Active-Circuit Power Draw | Maximum 70mA from the USB connection |
|---|
Environmental
| Operating Temperature | 0°C to 75°C |
|---|---|
| Storage Temperature | 5°C to 35°C |
| Humidity | 60% to 90% RH |
Physical Characteristics
| Color | Black |
|---|---|
| Wire Gauge | 28 AWG |
| Cable Length | 29.5ft [9m] |
| Product Length | 29.5ft [9.0m] |
| Product Width | 1.0 in [2.6cm] |
| Product Height | 0.6 in [1.4cm] |
| Weight of Product | 14.3 oz [404g] |
Packaging Information
| Package Quantity | 1 |
|---|---|
| Package Length | 5.7 in [14.4cm] |
| Package Width | 5.6 in [14.1cm] |
| Package Height | 2.8 in [7.0cm] |
| Shipping (Package) Weight | 1.0 lb [0.5kg] |
What's in the Box
| Included in Package | 1 × 9m/30ft high-speed certified USB 2.0 cable |
|---|
| SKU | USB2HAB30AC |
| Barcode # | 65030845137 |
| Brand | STARTECH |
| Shipping Weight | 0.5100kg |
| Shipping Width | 0.100m |
| Shipping Height | 0.050m |
| Shipping Length | 0.140m |
| Shipping Cubic | 0.000700000m3 |
