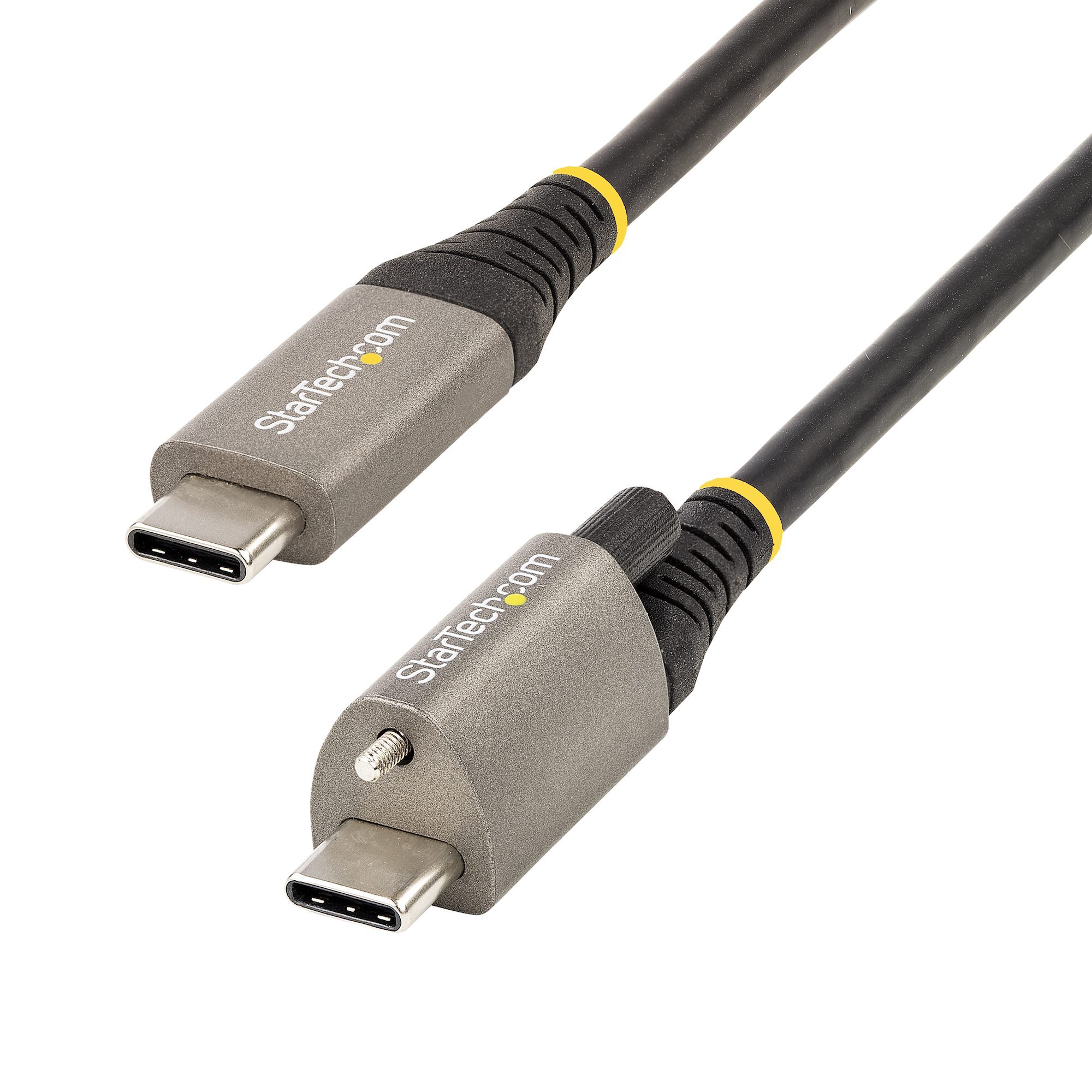

Top-screw locking connection

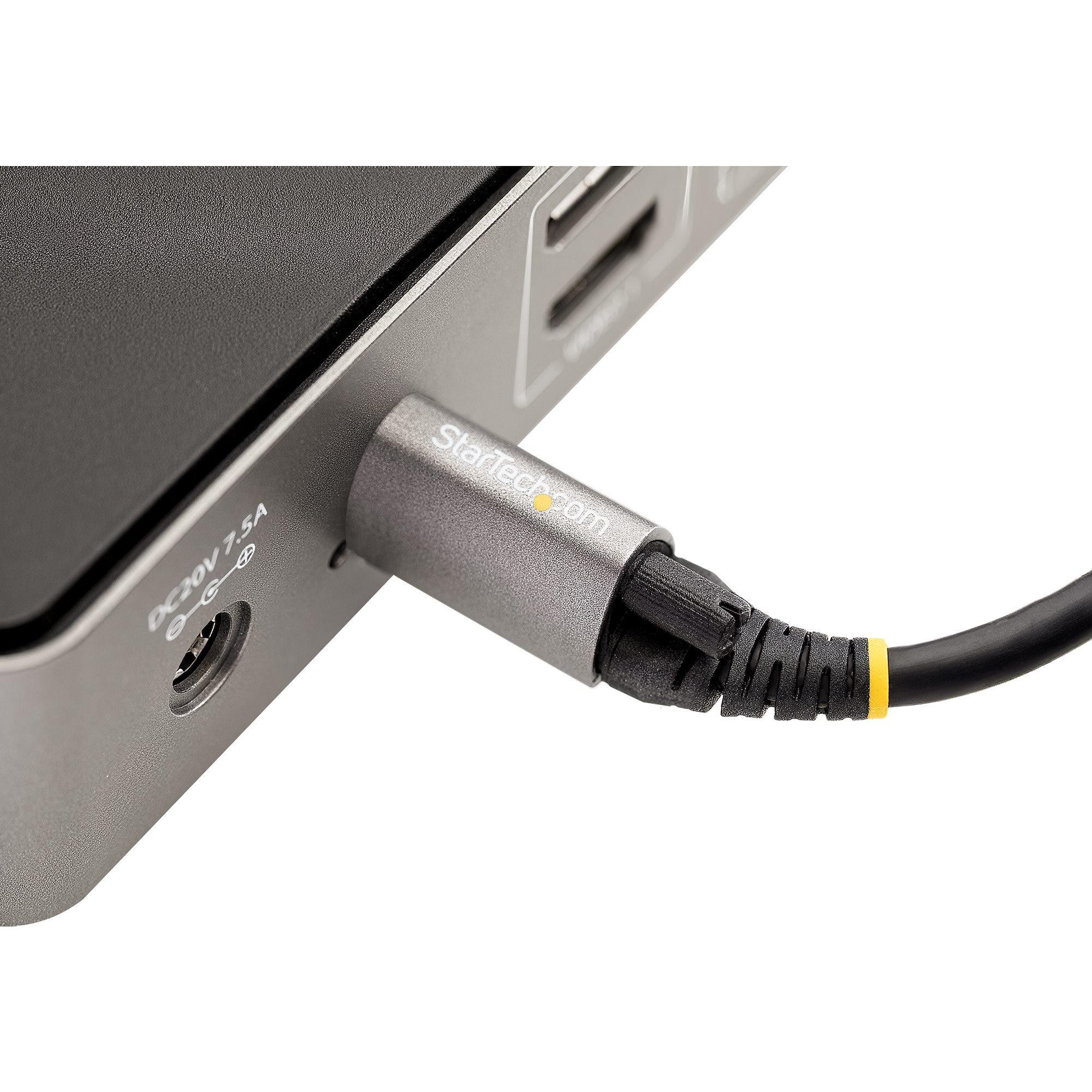

Fasten the cable to a compatible top-screw-locking USB-C port to reduce accidental disconnection from docks, drives and other equipment.
Startech USB31CCTLKV1M 3ft Top Screw Locking USB C Cable 10Gbps
Model # USB31CCTLKV1M
-
SKU: USB31CCTLKV1M
$36.00
Stock Availability
🟢Live
In Stock · 50+ available
Pickup from Vermont, VIC
Allow 1–2 business days for stock transfer
Allow 1–2 business days for stock transfer
- Pick Up Available
- Australian Warranty
- Checkout Securely
StarTech.com | USB31CCTLKV1M
StarTech 1m Top-Screw Locking USB-C 100W 8K Cable
Secure compatible USB-C equipment with a removable M2 top screw while carrying USB 10Gbps data, up to 100W Power Delivery and DisplayPort 1.4 video up to 8K 60Hz.
Single top-lock screw100W PD 3.08K 60Hz / 4K 144Hz
Key features at a glance
Direct, product-specific information to help confirm whether this model fits the intended setup.
USB 10Gbps data
Transfer data at USB 3.2 Gen 2 rates up to 10Gbps with compatible USB-C hosts and peripherals.
100W Power Delivery
Charge or power a compatible USB-C laptop or device at up to 20V, 5A and 100W from a suitable PD 3.0 source.
8K 60Hz DP 1.4 Alt Mode
Carry video up to 8K 60Hz or 4K 144Hz through a compatible DisplayPort 1.4 Alt Mode path.
Australian version with official 2 Years warranty
Supplied by DeviceDeal and covered by the official StarTech.com manufacturer warranty in Australia. Retain your DeviceDeal tax invoice; coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.
Still comparing options? Visit the DeviceDeal Buying Guides for practical product-selection help.
Product videos
Verified videos shown on this exact DeviceDeal product page.
Product video High-Performance USB-C Cables
Frequently asked questions
Quick answers based on the supplied product information and specifications.
What is the StarTech USB31CCTLKV1M?
It is a 1m USB-C cable with a removable M2 top-locking screw for compatible equipment, plus USB 10Gbps data, 100W PD 3.0 and 8K video support.
Which connectors does the cable use?
It has USB-C male connectors at both ends; the locking end uses one removable M2 top screw.
What data-transfer rate is supported?
It supports USB 10Gbps with compatible USB 3.2 Gen 2 devices.
How long is the cable?
It is 3.3ft (1m) long.
What charging capability is supported?
It supports Power Delivery 3.0 up to 20V, 5A and 100W with a compatible power source and device.
What video capability is supported?
The official technical Performance table lists DisplayPort 1.4 Alt Mode up to 8K 60Hz; the product heading also lists 4K 144Hz capability.
What should I check before purchase?
Confirm the device uses the matching single M2 top-screw locking arrangement and supports the required USB-C data, power and video features.
What warranty applies in Australia?
The Australian-version product supplied by DeviceDeal is covered by a two-year official StarTech.com manufacturer warranty in Australia, subject to StarTech.com terms, eligibility and product assessment.
(USB31CCTLKV1M)
Features and highlights
StarTech USB31CCTLKV1M
Top-screw locking connection
Fasten the cable to a compatible top-screw-locking USB-C port to reduce accidental disconnection from docks, drives and other equipment.
USB 10Gbps data
Transfer data at USB 3.2 Gen 2 rates up to 10Gbps with compatible USB-C hosts and peripherals.
100W Power Delivery
Charge or power a compatible USB-C laptop or device at up to 20V, 5A and 100W from a suitable PD 3.0 source.
8K 60Hz DP 1.4 Alt Mode
Carry video up to 8K 60Hz or 4K 144Hz through a compatible DisplayPort 1.4 Alt Mode path.

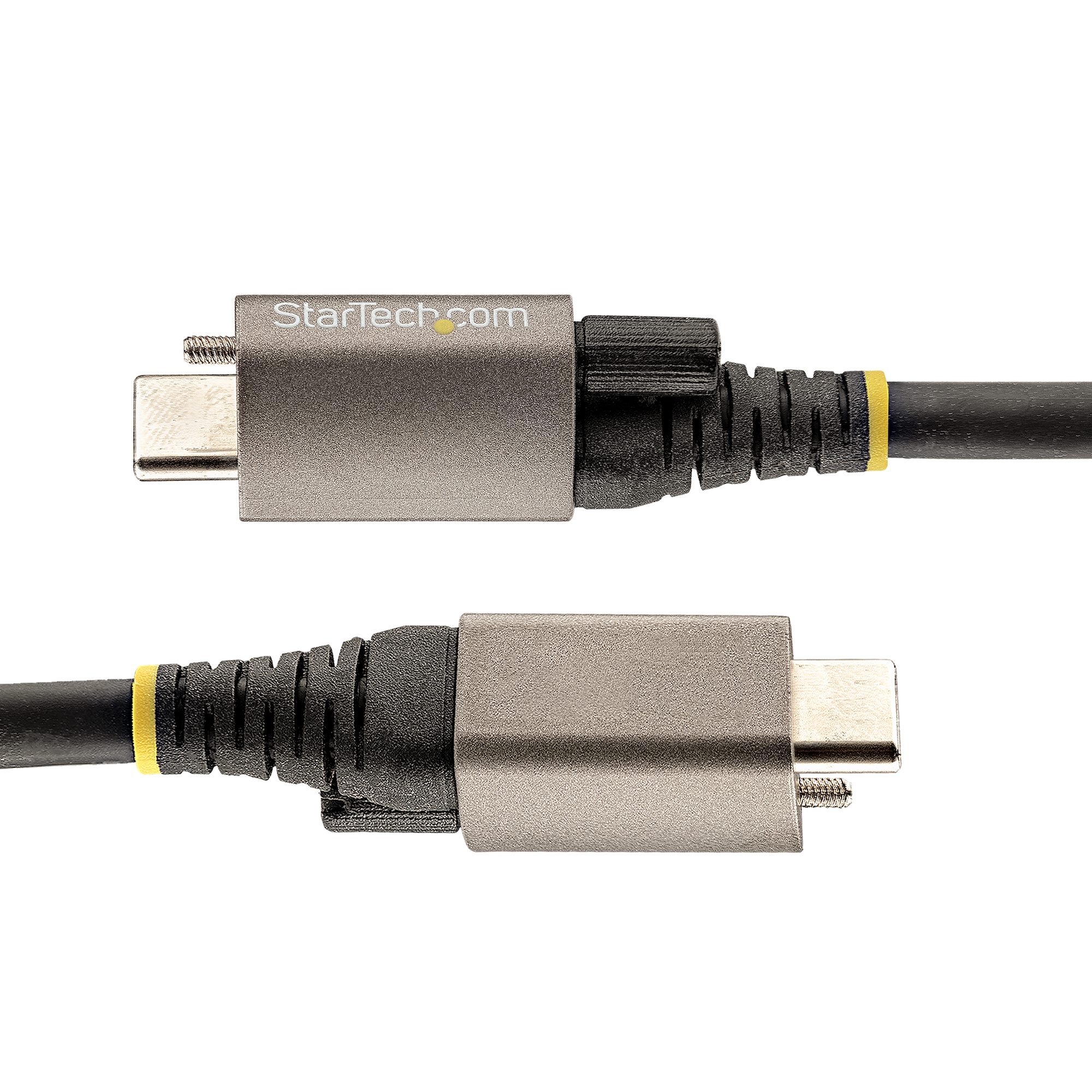

- Single removable M2 top screw
- USB-IF certified and Thunderbolt 3 compatible
- Tested for 10,000+ insertions and 4,000+ bend cycles
- TPE jacket with 85% braid-coverage EMI shielding
Warranty confidence: Australian-version product with a 2 years official StarTech.com manufacturer warranty in Australia, subject to StarTech.com terms and assessment.
Technical specifications
StarTech USB31CCTLKV1M specifications organised from the supplied product data.
Warranty Information
| Warranty | 2 Years |
|---|
Hardware
| Connector Plating | Nickel |
|---|---|
| Cable Jacket Material | TPE - Thermoplastic Elastomers |
| Cable Shield Material | Aluminium-Mylar foil with braid |
Performance
| Maximum Data Transfer Rate | 10Gbps |
|---|---|
| Type and Rate | USB 10Gbps |
| Video Revision | DisplayPort 1.4 |
| Maximum Digital Resolution | 8K at 60Hz or 4K at 144Hz |
Connector(s)
| Connector A | 1 × USB 3.2 Type-C male (24-pin, Gen 2, 10Gbps) |
|---|---|
| Connector B | 1 × USB 3.2 Type-C male with M2 top screw (24-pin, Gen 2, 10Gbps) |
Power
| Power Delivery | 100W |
|---|---|
| Power Delivery Revision | PD 3.0 |
| Maximum Voltage / Current | 20V / 5A |
Physical Characteristics
| Color | Gray and Black |
|---|---|
| Connector Style | Straight |
| Wire Gauge | 30/32 AWG |
| Cable Length | 3.3ft [1m] |
| Cable OD | 0.2 in [4.8mm] |
| Product Length | 3.3ft [1.0m] |
| Product Width | 0.5 in [1.2cm] |
| Product Height | 0.5 in [1.3cm] |
| Weight of Product | 1.7 oz [47g] |
Packaging Information
| Package Quantity | 1 |
|---|---|
| Package Length | 5.8 in [14.7cm] |
| Package Width | 5.0 in [12.6cm] |
| Package Height | 0.6 in [1.4cm] |
| Shipping (Package) Weight | 1.8 oz [50g] |
What's in the Box
| Included in Package | 1 × 1m top-screw-locking USB-C 10Gbps cable |
|---|
| SKU | USB31CCTLKV1M |
| Barcode # | 65030891974 |
| Brand | Startech |
| Shipping Weight | 0.3000kg |
| Shipping Width | 0.120m |
| Shipping Height | 0.010m |
| Shipping Length | 0.130m |
Australian version and official StarTech.com warranty
This is the Australian-version product supplied by DeviceDeal and is covered by the official StarTech.com manufacturer warranty in Australia for 2 years.
Please retain the DeviceDeal tax invoice as proof of purchase. Warranty coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.
