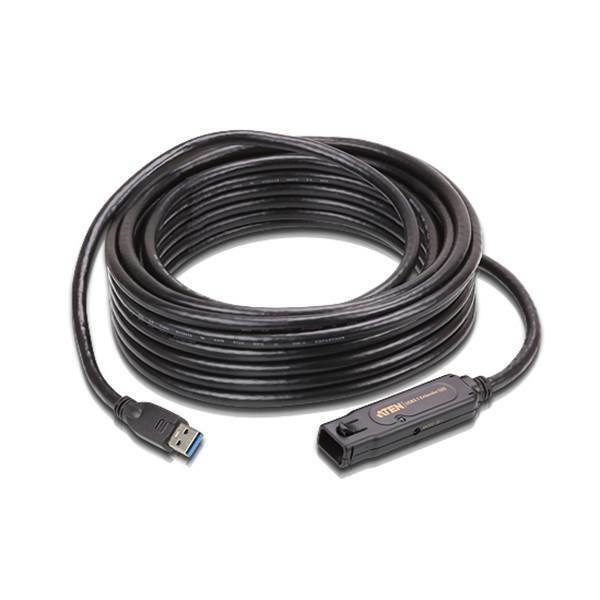

The ATEN UE3310 USB3.1 Gen1 Extender Cable allows users to extend the distance between the computer and USB devices up to 10 m. The UE3310 provides a reliable, high performance data transmission that utilizes USB 3.1 Gen1 data bandwidth up to 5Gb/s and also backward compatible with USB 2.0/1.1 standard. It’s plug and play and no additional software installation required, easy to deploy and operate on the fields.

The UE3310 provides a quick and high quality cost effective solution for all kinds of professional environments like: hospitals, factories, or business facilities.

Package Contents

1x UE3310 USB3.1 Gen1 Extender Cable
1x AC Power Adapter
1x USB Extension Cable

Supports USB 3.1 Gen1 Specification (5 Gbps)
Ultra slim design and unique locker head design
Daisy-chainable, maximum distance of up to 50 m
Multiplatform support – Windows and Mac
Additional power adapter included

Connectors
USB Port	1 x USB3.1 Gen1 Type A Male
Downstream	1 x USB3.1 Gen1 Type A Female
USB Specification	USB3.1 Gen1/ 2.0 / 1.1 for Super / High / Full or Low speed
Cable Length	10 m
Data Rate	Up to 5 Gbps
Power Consumption	5V, 4.5W
Environmental
Operating Temperature	0–40°C
Storage Temperature	-20–60°C
Humidity	0-80% RH, Non-condensing
Physical Properties
Housing	Plastic
Weight	0.76 kg ( 1.67 lb )
Dimensions (L x W x H)	8.19 x 22.20 x 1.75 cm (3.22 x 8.74 x 0.69 in.)
Note	For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.

(UE3310-AT-U)

Specifications

Length	USB Extender
Product Type	USB 3.1 Gen 1 Extender with AC Adapter
Warranty	2 Years
Cable Length	10 m
Data Rate	Up to 5 Gbps
USB Specification	USB3.1 Gen1/ 2.0 / 1.1 for Super / High / Full or Low speed

SKU	UE3310-AT-U
Barcode #	672792007279
Brand	ATEN
Shipping Weight	1.2900kg
Shipping Width	0.220m
Shipping Height	0.018m
Shipping Length	0.080m
Shipping Cubic	0.000308000m3
