OKI ML720 9 PIN 80 COLUMN (PR720)

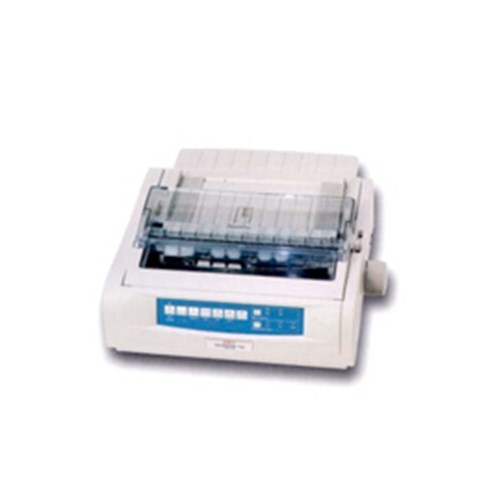

Oki Microline 720

Superior throughput, versatility and reliability for dedicated forms printing

The Microline 720 has been designed for use in the harshest of operating environments whilst offering the highest levels of flexibility and performance with unparalleled reliability.

Key Features:

80 column dot-matrix printer
High durability 9 pin print head
Up to 570 characters per second print speed
Multi-part paper handling (original + 5 copies)
Wide carriage (ML721) ideal for accounts and listings applications also available

Specifications:

Accoustic noise:55dBA, 51dBA in quiet-mode
Weight:7.5Kg
Dimensions(HxWxD):153 x 398 x 345mm
Frequency:50/60 Hz
Voltage requirements:230V AC
Memory:128Kb
Built in barcodes:Code 39, UPC-A, UPC-E, EAN 8, EAN 13, Interleaved 2 of 5, ZIP, Code 128
Graphic resolution:244 x 216 dpi (max)
Printing width:80 characters (10cpi), 160 characters (compressed mode)
Print speed: Fastest: 570 cps High speed draft @ 10cpi: 507 cps NLQ @ 10cpi: 380/95 cps
Printhead:High durability 9 pin print head

(42113932)

GENERAL
• 9 pins
• 6 multi-part forms (1 original and 5 copies)
SPEED & THROUGHPUT
• super speed draft (12cpi) 570cps
• high speed dradt (12cpi & 10cpi) 507cps
• utility (12cpi & 10cpi) 380cps
• near letter quality NLQ (12cpi & 10cpi) 95cps
FONT & PRINT FEATURES
• carriage width 80 columns
• max in compressed mode 160 columns
• Character pitch 10 / 12 / 15 / 17.1 / 20 pitch & proportional
• graphics resolution up to 240 x 216 dpi
• resident typefaces NLQ courier & sans serif, utility, HSD
• font styles italics, underline, superscript, subscript, enhanced, emphasized, double width, double height, bar codes
EMULATIONS & INTERFACES
• OKIDATA ML, Epson Esc P2, IBM 2480/2481
• standard interfaces – centronics parallel, USB1.1
• optional interfaces – serial RS 232C, RS244A, current loop, network, twinax, coax cards
PAPER HANDLING
• autoload single sheet
• continuous paper handling 3” to 10” (76 to 254mm)
• low tear-off
• bottom feed
• rear push tractors
• paper parking
OPTIONAL
• pull tractors
• single/dual bin sheet feeder
• roll paper stand (80 columns only)
• Bottom tractors with metal tear-off bar

SKU	42113932
Barcode #	4949443089752
Brand	OKI
Shipping Weight	7.7000kg
Shipping Width	0.540m
Shipping Height	0.240m
Shipping Length	0.520m
Shipping Cubic	0.067392000m3
