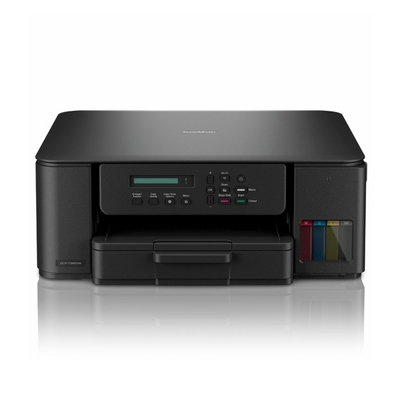

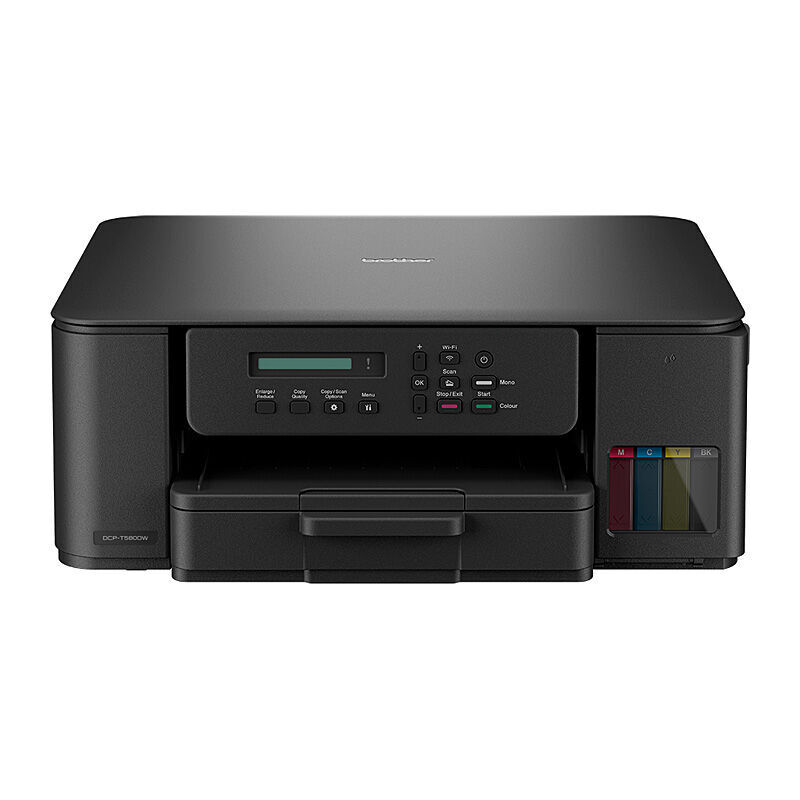

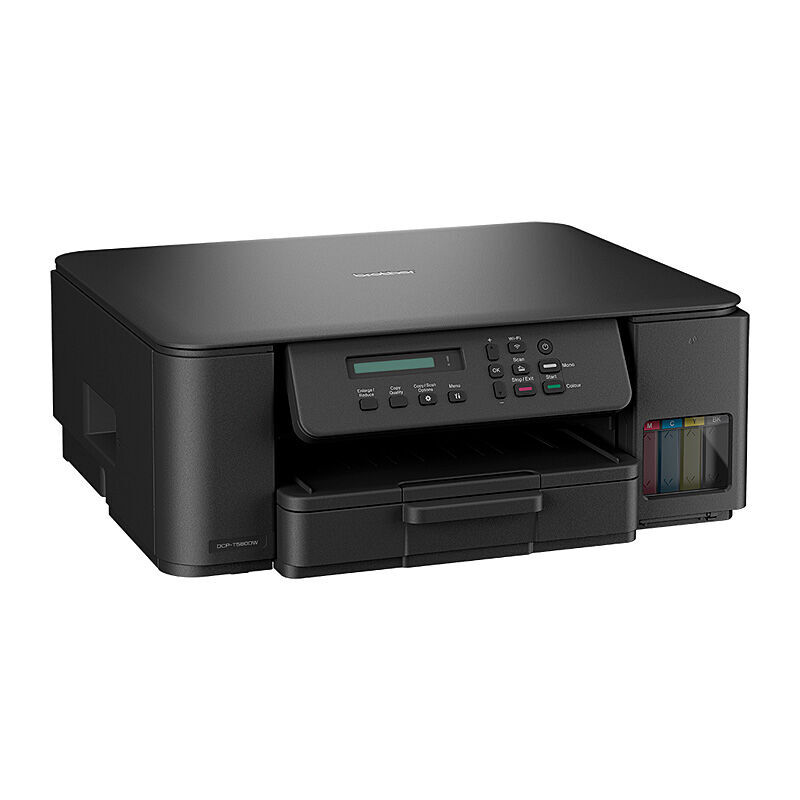

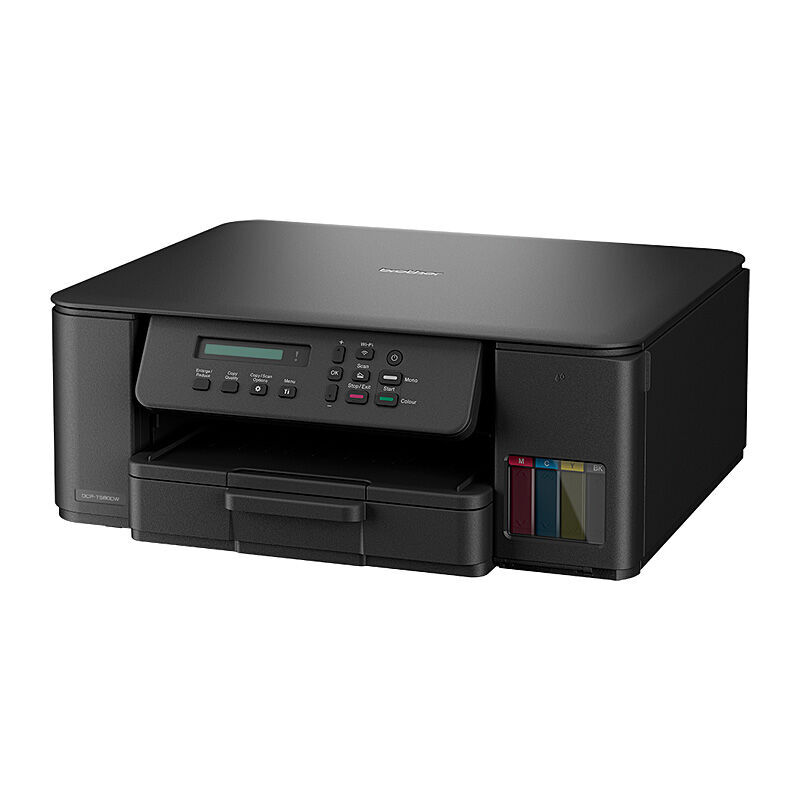

DCP-T580DW High-Yield, Wireless and Compact Refillable Inkjet Printer (Print/Scan/Copy)

Compact yet capable, the DCP-T580DW is a continuous ink printer delivering print, copy and scan functions with refillable ink tanks that significantly reduce running costs. Enjoy print speeds of up to 16 ppm², automatic duplex printing, a 150-sheet paper tray and affordable super-high yield replacement bottles of up to 7,500 black and 5,000 colour pages¹. Dual-band Wi-Fi, USB connectivity and the Mobile Connect app keep you connected whenever you need it.

¹: Approx. page yield is calculated in accordance with ISO/IEC 24711
²: Print Speeds based on ISO/IEC 24734
³: The first time you use a set of ink bottles the machine will use an amount of ink to fill the delivery tubes. This process will only
happen once. The amount of ink remaining will be approximately 7,125 pages BK and 4,450 pages CMY in accordance with ISO/IEC 24711

(DCP-T580DW)

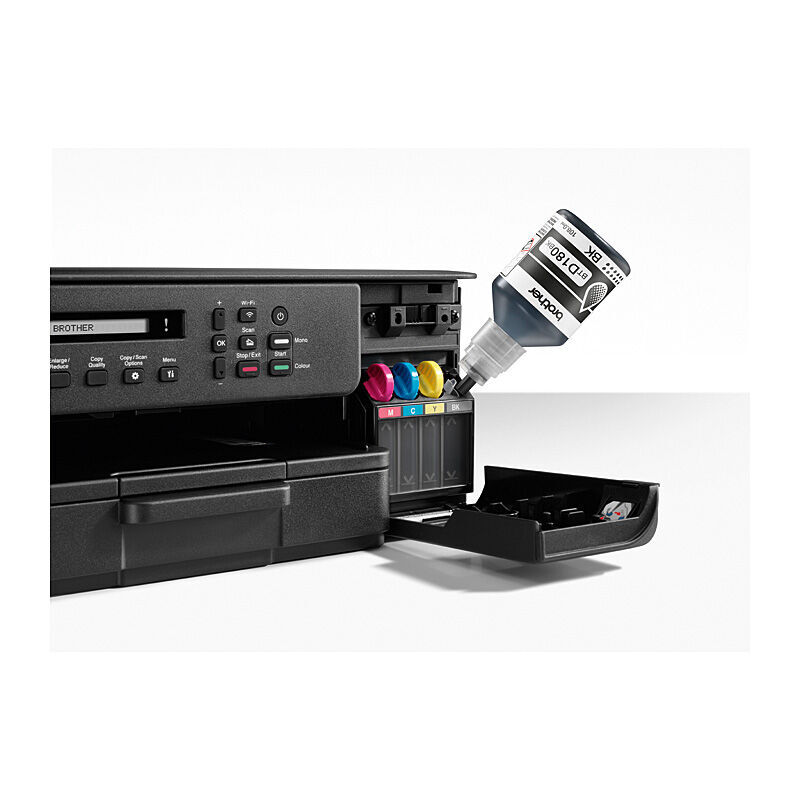

Refillable ink tank system with high page yields (7,500 black / 5,000 colour pages) for exceptional value
Fast 16ppm print speed with automatic duplex printing to save time and paper
Dual-band Wi-Fi connectivity for flexible wireless printing from anywhere in your office
3-in-1 functionality: print, scan, and copy in one compact device
Mobile printing support for seamless printing from smartphones and tablets
Reliable performance for everyday business document handling

Basic Specs

Functions

Print, Scan, Copy

Printer Type

Inkjet

Product Dimensions (Width X Depth X Height)

390 mm × 343 mm × 148.5 mm

Print Speed

16.0/9.0 ipm

Paper Type

Plain Paper, Inkjet Paper, Glossy Paper (cast/resin), Recycled Paper

Paper Size

A4, LTR, LGL, Folio, EXE, A5, A6, Photo(102x152mm/4x6"), Indexcard(127x203mm/5x8"), Photo-2L(127x178mm/5x7"), C5 Envelope, Com-10, DL Envelope, Monarch, Photo-L(89x127mm/3.5x5"), Mexico Legal, India Legal

Maximum Paper Capacity

150 (80 g/m2)

Warranty

2 years Return to Base Warranty

What's in The Box

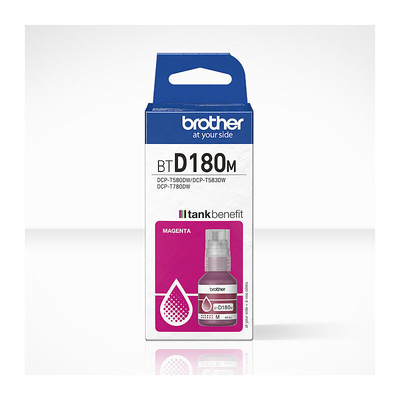

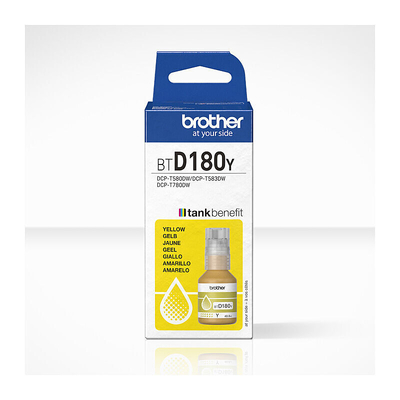

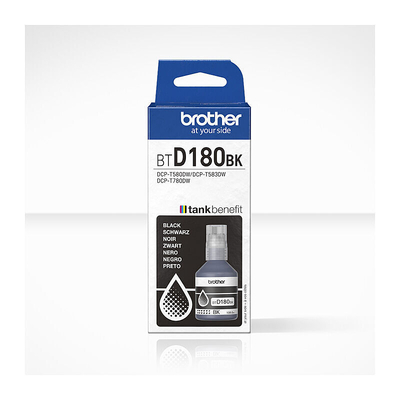

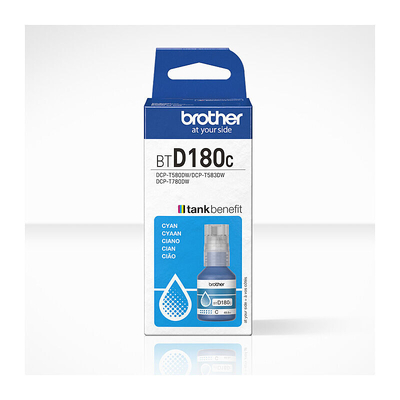

Printer, Quick Setup Guide, User's Guide, Power Cord, BTD180BK up to 95% of 7,500 pages, BTD180 C/M/Y up to 89% of 5,000 pages each based on ISO 24711 pattern/normal

Print

Resolution

Up to 1200x6000 dpi Windows® only (Mac: Up to 1200x3600 dpi)

Borderless

On: 0, 0, 0, 0 mm / 0, 0, 0, 0" (*) Off: 3, 3, 3, 3 mm / 0.12, 0.12, 0.12, 0.12" (**) (*) Borderless for A4, LTR, A6, Photo (102 x 152 mm / 4 x 6"), Indexcard (127 x 203 mm / 5 x 8"), Photo-L (89 x 127 mm / 3.5 x 5"), Photo-2L (127 x 178 mm / 5 x 7"), Only (**) 12, 12, 3, 3 mm / 0.47, 0.47, 0.12, 0.12" for Envelops

2-Sided (Duplex) - Paper Size

Yes (up to A4/LTR)

Paper handling

Tray #1 - Paper Type

Plain Paper, Inkjet Paper, Glossy Paper (cast/resin), Recycled Paper

Tray #1 - Maximum Paper Weight

64 to 220 g/m2 (17 to 58 lb.) *260 g/m2 with Brother BP71 glossy paper only

Tray #1 - Maximum Paper Capacity

150

Tray #1 - Paper Size

Manual Feed Slot - Paper Type

Plain, Inkjet, Glossy(cast/resin), Recycled

Manual Feed Slot - Maximum Paper Weight

64 to 300 g/m2 (17 to 79 lb.)

Manual Feed Slot - Paper Size

Manual Feed Slot - Maximum Paper Capacity

Automatic Document Feeder (ADF) Maximum Paper Capacity

Paper Output

50 (80 g/m2)

Copy

Colour/ Monochrome

YES/YES

Multiple Copies

YES

Enlarge/ Reduce

25% - 400% in 1% Increments

Resolution

Color: Print: Max. 1,200 x 1,800 dpi Scan: Max. 1,200 x 600 dpi Mono: Print: Max. 1,200 x 1,800 dpi Scan: Max. 1,200 x 1,200 dpi

Scan

Colour / Monochrome

YES/YES

Resolution - Interpolated

For Windows 10/Windows 11, up to 19200x19200 dpi with TWAIN

Resolution - Scanner Glass

1,200 x 2,400 dpi

Document Scanning Width / Length - Scanner Glass

FB: 213.9 mm (8.42 inch) / 295 mm (11.61 inch)

Connectivity

WiFi Direct

YES

Connectivity

Hi-Speed USB2.0, IEEE 802.11b/g/n (Infrastructure Mode), IEEE 802.11g/n (Wi-Fi Direct), IEEE 802.11a/n (Infrastructure Mode)

Network

Wireless Network Security

WEP 64/128bit, WPA-PSK(TKIP/AES), WPA2-PSK(TKIP/AES), WPA3-SAE (AES) *Wi-Fi Direct supports WPA2-PSK (AES) only.

Wireless Setup Support Utility - WPS

YES

Display & Memory

Display Type

1-Line (16 characters)

Memory Capacity

128 MB

Operation

Power Source

AC 220-240 V, 50/60 Hz

Power Consumption - Printing

Approx. 16W

Power Consumption - Ready

Approx. 2.5W

Power Consumption - Sleep

Approx. 0.6W

Power Consumption - Power Off

Approx. 0.15W

Noise Level

(Printing) Less than 56 dBA

Supported Operating Systems

Supported OS

01/11/2025

Windows 11, Windows 10 (32&64bit), Windows Server 2022, Windows Server 2019, Windows Server 2016 macOS 12-26 Linux rpm, deb

Software and Apps

Mobile Apps

01/11/2025

Brother Mobile Connect

SKU	DCP-T580DW
Barcode #	4977766841757
Brand	BROTHER
Shipping Weight	8.3000kg
Shipping Width	0.218m
Shipping Height	0.501m
Shipping Length	0.461m

Manufacturer Warranty
