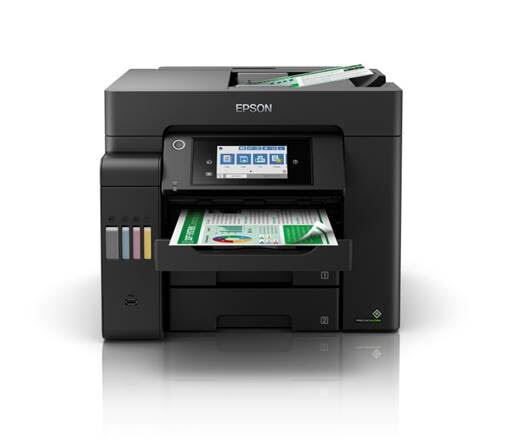

➤ The EcoTank Pro ET-5800 wireless all-in-one offers fast Cartridge-Free Printing with easy-to-fill supersized ink tanks. You can save up to 80 percent with low-cost replacement ink bottles vs. standard-capacity color laser toner cartridges1 – about 2 cents per color ISO page versus 14 cents with cartridges. PrecisionCore® Heat-Free Technology delivers high-volume, print-shop-quality output, plus speeds up to 25 ISO ppm black†. This all-in-one with Epson® DURABrite® pigment-based ink delivers vibrant borderless prints up to 21cm x 35cm. Each replacement ink set includes enough ink to print up to 6,000 pages. Plus, there’s zero cartridge waste and very low energy consumption. The ET-5800 features two 250-sheet front paper trays and a rear specialty-paper feed, plus a 4.3" color touchscreen and hands-free voice-activated printing.

Warning – Printer Designed For Use With Pigment Inks Only. Use of Dye Inks May Cause Damage not covered by the Epson Limited Warranty.

(C11CJ30501)

Eco Features

ENERGY STAR® qualified
RoHS compliant
Recyclable product13
Epson America, Inc. is a SmartWaySM Transport Partner14

What's In The Box:

EcoTank Pro ET-5800 all-in-one printer
CD-ROM for product setup
Power cord
Initial ink bottles: 1 x T542 (Black, Cyan, Magenta, Yellow)

PRINTER
PRODUCT NAME	EcoTank Pro ET-5800
PRODUCT CODE	C11CJ30501
PRINTING METHOD	On-demand Inkjet (piezoelectric)
NOZZLE CONFIGURATION	800 nozzles Black, 256 nozzles each colour (Cyan, Yellow, Magenta)
MINIMUM INK DROPLET VOLUME	3.8 Picolitres

RESOLUTION
4800 x 2400 optimised dpi with (with Variable Sized Droplet Technology)

PRINT SPEED
BLACK TEXT A4 (Normal)	25 ISO ppm¹
COLOUR TEXT A4 (Normal)	12 ISO ppm¹

PAPER HANDLING
PAPER FEED METHOD	Friction feed with paper feeder and automatic document feeder
PAPER SIZES	A4, A5, B5, B6, A6, Legal, 13 x 18cm, 10 x 15cm, 20 x 25cm Envelopes: C6, No 10, DL
PAPER HOLD CAPACITY	Paper tray input capacity: 2 x 250 sheet cassette, A4 Plain paper (80g/m2), Multipurpose Tray: 50 sheets Automatic Document Feeder: 50 Sheets 20 sheets-PGPP 10 sheets-Envelope
OUTPUT CAPACITY	125 sheets
DOUBLE-SIDED PRINTING	Yes
MONTHLY DUTY CYCLE	Up to 3,300 pages recommended / max 66,000 pages per month ⁴

SCANNERS
SCANNER TYPE	A4 Flatbed colour image scanner
MAX. DOCUMENT SIZE	216 x 297 mm (Up to A4)
PIXEL DEPTH	Input 48bits colour (16bits/greyscale) / output 24bits colour (8bits/greyscale)
SCANNING RESOLUTION	1200 x 2400 dpi

COPY FUNCTION
COPY SPEED BLACK TEXT NORMAL (A4)	23.0 ISO ipm¹
COPY SPEED COLOUR TEXT MEMO (A4)	10.0 ISO ipm¹
COPY PAPER SIZE (FLATBED)	Letter, A4, B5, A5, A6, 13x18cm, 16:9, 10x15cm, #10, DL, C4, C6
REDUCTION/ENLARGEMENT	Auto Fit Function

FAX - TRANSMISSION & RECEPTION
TYPE	Colour and mono support
LINES	PSTN (general phone lines)
TRANSMISSION SPEED	Up to 33.6kbs (approx. 3 secs per page)
SPEED DIAL	Up to 200 Names & Numbers
MEMORY	Up to 550 pages (ITU-T No.1 chart)
FAX RESOLUTION (MONO)	Standard (8pels/mm x 3.85lines/mm), Fine (8pels/mm x 7.7lines/mm), Super Fine (8pels/mm x 15.4lines/mm), Ultra Fine (16pels/mm x 15.4lines/mm)
FAX RESOLUTION (COLOUR)	Fine (200x200), Photo (200x200 with error diffusion)
ERROR CORRECTION MODE	ITU Group3 fax with Error Correction Mode
PC FAX* Windows only	Yes
GROUP DIAL	Yes (up to 199 groups)
BROADCAST FAX	Yes (mono only)
AUTO REDIAL	Yes
RING DETECTION	Yes - Duet

AUTOMATIC DOCUMENT FEEDER FUNCTION
MAXIMUM DOCUMENT SIZE	A4
PAPER TYPES SUPPORTED	Plain paper 64~95g/m2
DUPLEX	Yes - for two sided scanning, copying and faxing
CAPACITY	50 pages (75g/m2) or 3.5mm (A4, Legal, Letter, B5, A5)

GENERAL
WHAT'S IN THE BOX	- EcoTank Pro ET-5800 EcoTank™ All-in-One Printer - Instruction manual - CD-ROM for product setup - Power cord - USB cable not included (Optional extra) - Initial ink bottles: 1 x T542 (Black, Cyan, Magenta, Yellow)
PRODUCT DIMENSIONS	425mm(W) x 500mm(D) x 350mm(H)
WEIGHT	17.5kg

OPERATING SYSTEMS
PRINTER DRIVERS^*	Windows^® XP/XP Professional x64 Edition/Vista/7/8/8.1/10/11, Windows^® Server 2003 SP2 or later Windows Server 2003 R2, Windows Server 2008, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019 *Under Windows^® Server OS, only printing and scanning are supported. Mac OS X 10.6.8, 10.7.x, 10.8.x, 10.9.x, 10.10.x, 10.11.x, 10.12.x, 10.13.x, 10.14.x
* Drivers if available are downloadable from Epson Support

OPERATING SYSTEMS

PRINTER DRIVERS^*

Windows^® XP/XP Professional x64 Edition/Vista/7/8/8.1/10/11, Windows^® Server 2003 SP2 or later

Windows Server 2003 R2, Windows Server 2008, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019

*Under Windows^® Server OS, only printing and scanning are supported.
Mac OS X 10.6.8, 10.7.x, 10.8.x, 10.9.x, 10.10.x, 10.11.x, 10.12.x, 10.13.x, 10.14.x

* Drivers if available are downloadable from Epson Support

ELECTRICAL SPECIFICATIONS
RATED VOLTAGE	AC 100 ~ 240V
RATED FREQUENCY	50 ~ 60Hz
POWER CONSUMPTION	Approx. 19W Standalone copying (ISO/IEC 24712 Pattern) 8.9W (Ready Mode) 0.8W (Sleep Mode)

NOISE LEVEL
NOISE LEVEL²	LwAd B(A): 6.46 (Plain paper default) LpAm dB(A): 51db (Plain paper default)
* Default mode is in accordance with ISO7779

INTERFACES
CONNECTIVITY	High Speed USB — Compatible with the USB 2.0 Specification.
MOBILE AND CLOUD PRINTING SERVICES	Epson Connect (iPrint, Email Print, Remote Print Driver, Scan-to-Cloud), Apple AirPrint, Epson Smart Panel App
NETWORKING	802.11b/g/n Wi-Fi Direct^® 10-Base-T, 100 Base-TX Ethernet
LCD SCREEN	4.3" TFT Colour LCD with keypad and gesture navigation

CARD SLOTS
Built in	USB

WARRANTY
STANDARD	12 months return to base
BONUS	Additional 12 months return to base warranty upon registration³

INK BOTTLES & YIELDS
INK BOTTLES	T542 (Black, Cyan, Magenta, Yellow)
INK BOTTLES BUNDLED WITH PRINTER YIELDS²	4,500 Pages Blk / 2,800 Pages Clr
REPLACEMENT INK BOTTLES YIELDS²	Blk 7,500 Pages Blk / 6,000 Pages Clr

Usage Conditions
Epson products are designed and manufactured to be highly reliable and last a long time when used according to their specifications. With any system, product or device used in situations where human life may be involved or at risk, Epson advises that you should take all necessary steps to ensure the suitability of your Epson product for inclusion in your system, and recommends that you include fail-safe procedures and redundancy support or backup equipment in your system, to maintain the maximum safety margin and optimum system reliability. Examples include but are not limited to – do not interfere with any electrical components within the device, do not use items supplied with the product for purposes other than as intended by Epson (e.g. power cords, inks, CDs, plastic wrapping), do not make modifications to the product and avoid the use of third party consumables. Consult Epson if you have any questions or concerns.

Usage Conditions

Epson products are designed and manufactured to be highly reliable and last a long time when used according to their specifications. With any system, product or device used in situations where human life may be involved or at risk, Epson advises that you should take all necessary steps to ensure the suitability of your Epson product for inclusion in your system, and recommends that you include fail-safe procedures and redundancy support or backup equipment in your system, to maintain the maximum safety margin and optimum system reliability. Examples include but are not limited to – do not interfere with any electrical components within the device, do not use items supplied with the product for purposes other than as intended by Epson (e.g. power cords, inks, CDs, plastic wrapping), do not make modifications to the product and avoid the use of third party consumables. Consult Epson if you have any questions or concerns.

SKU	C11CJ30501
Barcode #	9314020632297
Brand	EPSON
Shipping Weight	22.0000kg
Shipping Width	0.550m
Shipping Height	0.450m
Shipping Length	0.580m
Shipping Cubic	0.143550000m3
