View PDF BrochureCompact 8.2L Design
The small form factor chassis is designed to provide desktop capability in a compact footprint.
Lenovo ThinkCentre M70s Gen 5 SFF Desktop 12U30018AU
Model# 12U30018AU
-
SKU: 12U30018AU
Don't pay: $2,199.00
$1,766.00
SAVE $433.00 (20%)
- Pick Up Available
- Australian Warranty
- Checkout Securely
Small Form Factor Business Desktop

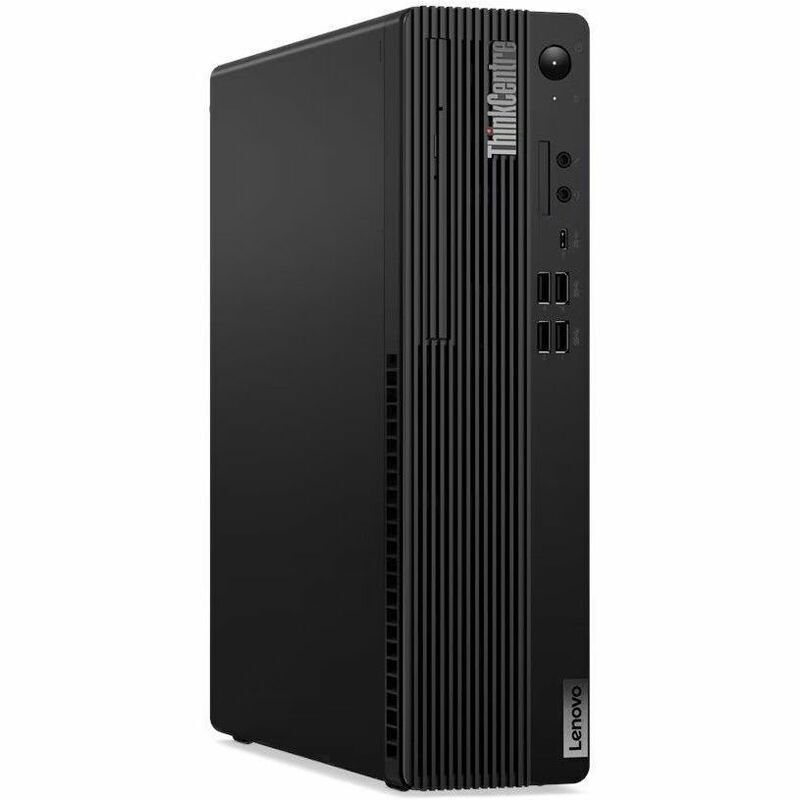

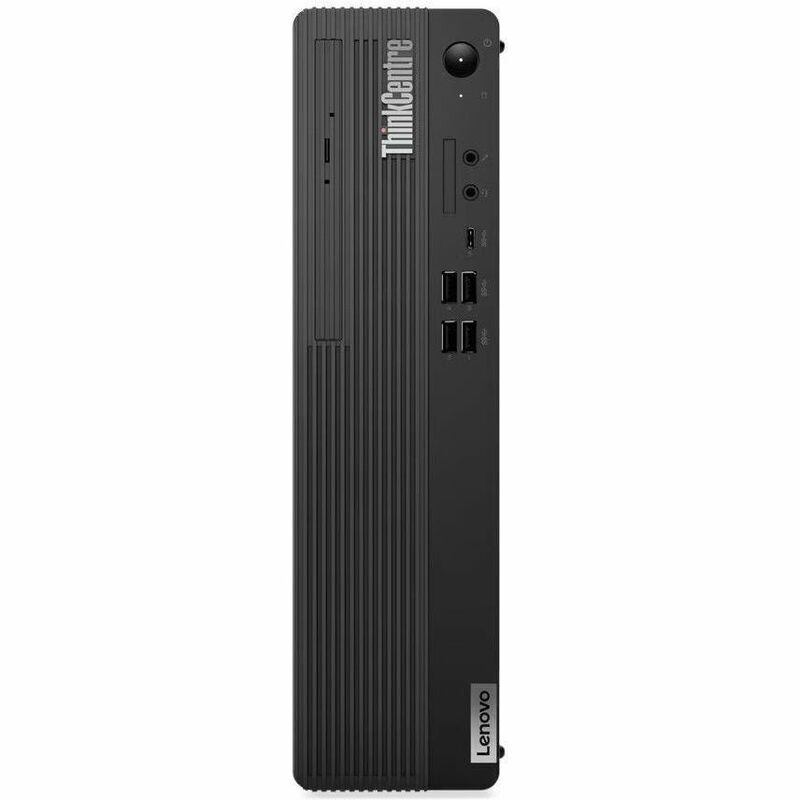

Lenovo ThinkCentre M70s Gen 5 Small Form Factor Desktop
The Lenovo ThinkCentre M70s Gen 5 12U30018AU combines an Intel Core i7-14700 processor, 16GB memory, a 512GB SSD and Windows 11 Pro in an 8.2-litre small form factor chassis. The supplied platform description also highlights extensive connectivity, ThinkShield security features and tool-less serviceability.
Intel Core i7-14700Processor configuration stated for SKU 12U30018AU
16GB MemoryInstalled memory capacity stated in the supplied configuration
512GB SSDSolid-state storage capacity
3-Year OnsiteThree-year onsite warranty stated by 3YOS
Designed Around the Supplied Configuration
Key product details based on the two descriptions provided for this SKU.
Connectivity and Expansion

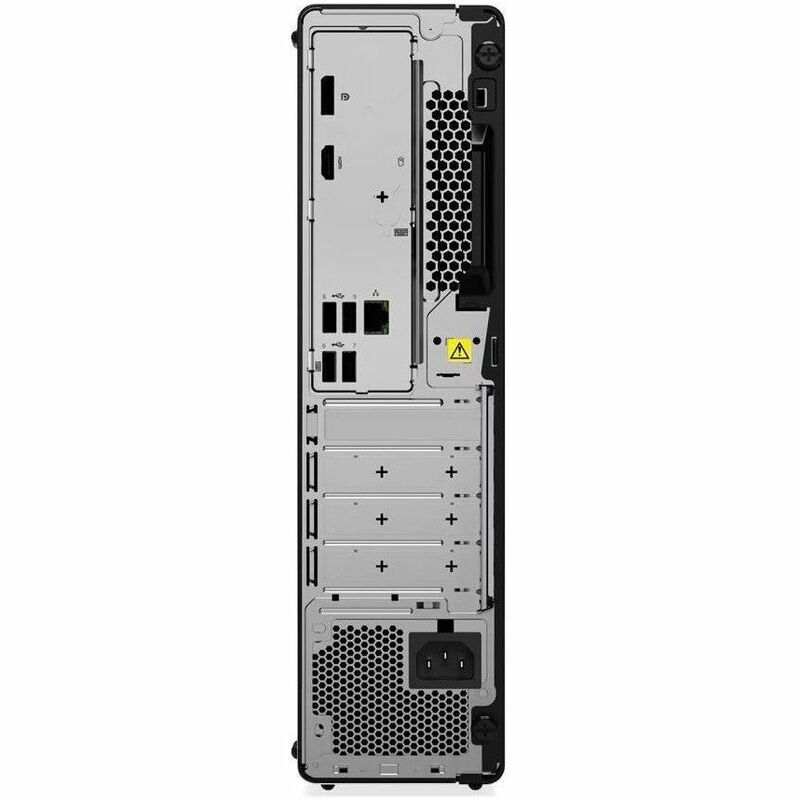

The platform description lists front and rear USB, HDMI 2.1 TMDS, DisplayPort 1.4a, Ethernet, low-profile PCIe slots and two M.2 slots. Optional connections vary by model.
Security and Serviceability
Supplied ThinkShield features include discrete TPM 2.0, physical security provisions, password controls, self-healing BIOS and USB protection. The cover, disk, optical drive and extension card are described as tool-less to service.
Technical Specifications
Configuration details supplied for SKU 12U30018AU.
| Processor | Intel Core i7-14700 |
|---|---|
| Memory | 16GB |
| Storage | 512GB SSD |
| Operating System | Windows 11 Pro |
| Form Factor | Small form factor desktop; 8.2-litre chassis |
| Standard Display Outputs | HDMI 2.1 TMDS; DisplayPort 1.4a |
| Standard Networking | Integrated Ethernet RJ45 |
| Expansion | Low-profile PCIe x16 and PCIe x1; two M.2 slots (one WLAN and one SSD) |
| Security Features | Discrete TPM 2.0, Kensington Security Slot, padlock loop, chassis intrusion detection, password controls, self-healing BIOS and USB protection |
| Warranty | 3 years onsite (3YOS) |
| SKU | 12U30018AU |
Frequently Asked Questions
Quick answers based only on the supplied product information.
Which processor is installed in SKU 12U30018AU?
The second supplied description identifies an Intel Core i7-14700 processor.
How much memory and storage are included?
The supplied configuration states 16GB memory and a 512GB SSD.
What form factor is the ThinkCentre M70s Gen 5?
It is a small form factor desktop with an 8.2-litre chassis.
Which operating system is supplied?
Windows 11 Pro is supplied.
What warranty is listed?
The supplied configuration states 3YOS, meaning three years onsite.
(12U30018AU)
Lenovo ThinkCentre M70s Gen 5 12U30018AU Specifications
Detailed hardware, connectivity, physical, software, warranty and certification information for model 12U30018AU.
| Specification | Details |
|---|---|
| General Information | |
| Brand Name | Lenovo |
| Manufacturer | Lenovo Group Limited |
| Manufacturer Part Number | 12U30018AU |
| Product Model | 12U30018AU |
| Product Name | ThinkCentre M70s Gen 5 12U30018AU |
| Product Line | ThinkCentre |
| Product Series | M70s Gen 5 |
| Product Type | Desktop Computer |
| Release Year | 2024 |
| Manufacturer Website Address | http://www3.lenovo.com/au/en |
| Processor and Chipset | |
| Processor Manufacturer | Intel |
| Processor Type | Core i7 |
| Processor Model | i7-14700 |
| Processor Generation | 14th Gen |
| Processor Core | Icosa-core (20 Core) |
| Processor Threads | 28 |
| Processor Speed | 2.10 GHz |
| Maximum Turbo Speed | 5.40 GHz |
| vPro Technology | No |
| Chipset Manufacturer | Intel |
| Chipset Model | Q670 |
| Memory | |
| Standard Memory | 16 GB |
| Memory Configuration | 2 x 8GB |
| Memory Technology | DDR5 SDRAM |
| Maximum Memory Supported | 64 GB |
| Total Number of Memory Slots | 2 |
| Number of Occupied Memory Slots | 2 |
| Storage | |
| Drive Type | SSD |
| Total Solid State Drive Capacity | 512 GB |
| Solid State Drive Interface | PCI Express NVMe 4.0 x4 |
| SSD Form Factor | M.2 |
| Display and Graphics | |
| Graphics Controller Manufacturer | Intel |
| Graphics Controller Model | UHD Graphics 770 |
| Graphics Memory Technology | DDR5 SDRAM |
| Graphics Memory Accessibility | Shared |
| Operating System | |
| Operating System | Windows 11 Pro |
| Operating System Platform | Windows |
| Operating System Language | English |
| Network and Communication | |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11ax |
| Bluetooth | Yes |
| Ethernet Technology | Gigabit Ethernet |
| Interfaces and Ports | |
| Total Number of USB Ports | 9 |
| USB Type-C Detail | 1 x USB-C® (USB 5Gbps / USB 3.2 Gen 1), with 15W charging |
| USB Type-C (Front) | Yes |
| Number of USB 3.2 Gen 1 Ports | 4 |
| Number of USB 2.0 Ports (Rear) | 4 |
| HDMI (Rear) | Yes |
| DisplayPort (Rear) | Yes |
| Number of DisplayPort Outputs (Rear) | 1 |
| Number of Ethernet Ports | 1 |
| Input Devices | |
| Keyboard Localization | English |
| Physical Characteristics | |
| Form Factor | Small Form Factor |
| Height | 339.5 mm |
| Width | 92.5 mm |
| Depth | 297.7 mm |
| Weight (Approximate) | 5.30 kg |
| Product Color | Black |
| Color Family | Black |
| Power Description | |
| Maximum Power Supply Wattage | 260 W |
| Security and Systems Management | |
| Features | Security Slot |
| Systems Management | No vPro Support |
| Package Contents | |
| Included Items |
|
| Environmental and Energy Certifications | |
| Environmentally Friendly | Yes |
| Environmental Certification |
|
| Energy Star | Yes |
| TCO Certified | Yes |
| Energy Efficiency Certification | ENERGY STAR 8.0 |
| Energy Efficiency Compliance | Energy-related Products Directive Lot 3 (ErP Lot 3) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Additional Warranty Information | 3-year, Onsite |
| SKU | 12U30018AU |
| Barcode # | 198154493110 |
| Brand | LENOVO |
| Shipping Weight | 6.3500kg |
| Shipping Width | 0.530m |
| Shipping Height | 0.190m |
| Shipping Length | 0.400m |
| Shipping Cubic | 0.040280000m3 |
