View PDF BrochureIntel Core 7 Processing
The Intel Core 7 240H has 10 cores in a 6 performance-core plus 4 efficient-core design, 16 threads and 24MB Intel Smart Cache.
Lenovo ThinkCentre neo 50a 24 Gen 5 12SD00AJAU All-in-One PC
Model# 12SD00AJAU
-
SKU: 12SD00AJAU
- Pick Up Available
- Australian Warranty
- Checkout Securely
23.8-inch All-in-One Computer
Lenovo ThinkCentre neo 50a 24 Gen 5
The ThinkCentre neo 50a 24 Gen 5 combines an Intel Core 7 240H processor, 16GB DDR5 memory, a 512GB PCIe 4.0 NVMe SSD and a 23.8-inch Full HD IPS display in a Luna Grey all-in-one design.
Model: 12SD00AJAU | Operating system: Windows 11 Pro, English
What is the Lenovo ThinkCentre neo 50a 24 Gen 5 12SD00AJAU?
It is a 23.8-inch all-in-one desktop computer with an Intel Core 7 240H processor, 16GB of DDR5-5200 memory, a 512GB M.2 PCIe 4.0 x4 NVMe SSD, integrated Intel graphics, Wi-Fi 6, Gigabit Ethernet and Windows 11 Pro.
Intel Core 7 240H10 cores, 16 threads and up to 5.20GHz maximum turbo speed
16GB DDR52 x 8GB DDR5-5200 SODIMM memory configuration
512GB NVMe SSDM.2 2280 PCIe 4.0 x4 NVMe Opal 2.0 storage
23.8-inch Full HDIPS anti-glare display with 250-nit brightness and 99% sRGB
Time Honoured, Yet Future Ready
Classic styling meets a modern all-in-one workplace design.
The Lenovo ThinkCentre Neo Series combines powerful, smart and stylish desktop computing with a design intended for the modern workplace. This all-in-one configuration places the computer and 23.8-inch display in one desktop unit and uses Luna Grey finishing.
The supplied information also identifies energy-efficient technology, post-consumer content materials and recycled plastic packaging as elements of the Neo Series approach.
Performance, Memory and Storage
Core hardware for productivity, graphics work and high-definition multimedia.
Dual-Channel DDR5 Memory
Two 8GB DDR5-5200 SODIMMs provide 16GB of installed memory. The two memory slots are occupied, and the platform supports up to 32GB.
PCIe 4.0 NVMe Storage
The installed 512GB M.2 2280 PCIe 4.0 x4 NVMe Opal 2.0 SSD supports fast data access and storage for essential files and media.
Full HD IPS Display and Built-in Collaboration
A clear 23.8-inch screen with integrated camera, microphones and speakers.
23.8-inch IPS Display
The Full HD 1920 x 1080 anti-glare display uses IPS technology, provides 250-nit brightness and covers 99% sRGB. This model is non-touch.
5MP + IR Camera
A 5-megapixel camera with infrared capability is built in, together with a dual-array microphone.
Integrated Audio
High Definition audio uses a Realtek ALC233-CG codec and two integrated 3W speakers.
Connectivity and Everyday Device Access
Wired, wireless and display connections are integrated into the all-in-one chassis.
Wi-Fi 6 and Bluetooth 5.2
Intel Wi-Fi 6 AX201 supports 802.11ax 2x2 wireless networking, while Bluetooth 5.2 supports wireless peripherals and communication.
USB-C with Charging
The left-side USB-C port supports USB 10Gbps data transfer and up to 15W charging.
HDMI Input and Output
Rear connectivity includes one HDMI-in 1.4 port and one HDMI-out 2.1 TMDS port, plus integrated Gigabit Ethernet.

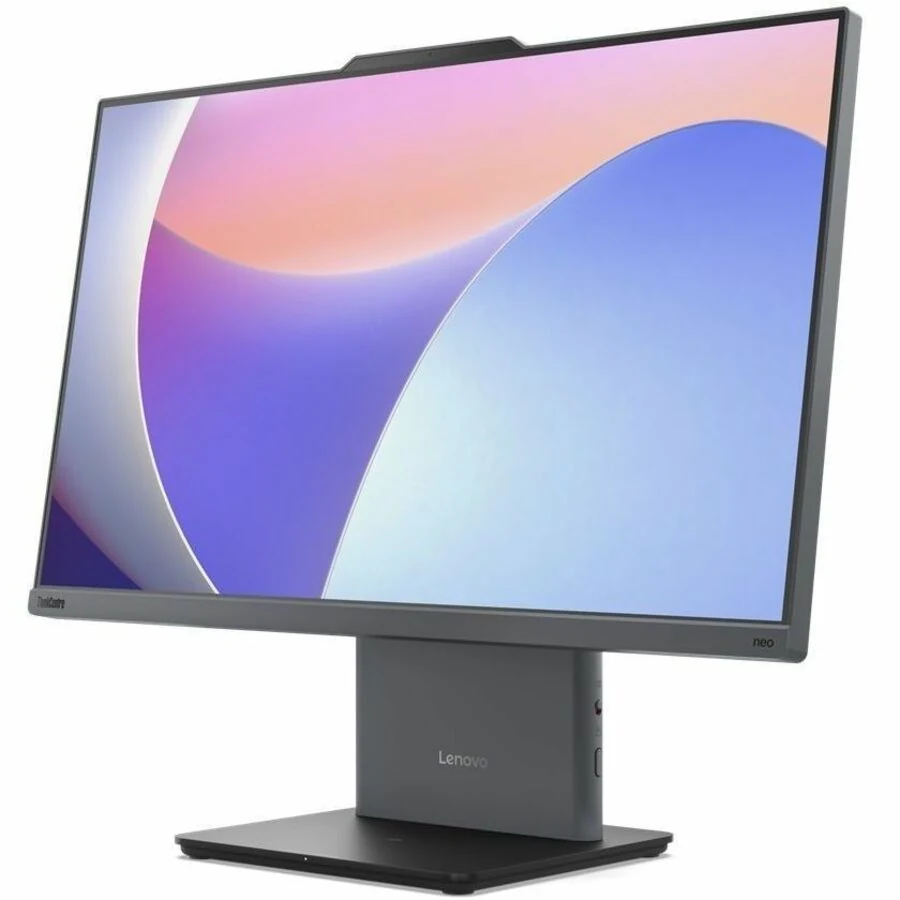

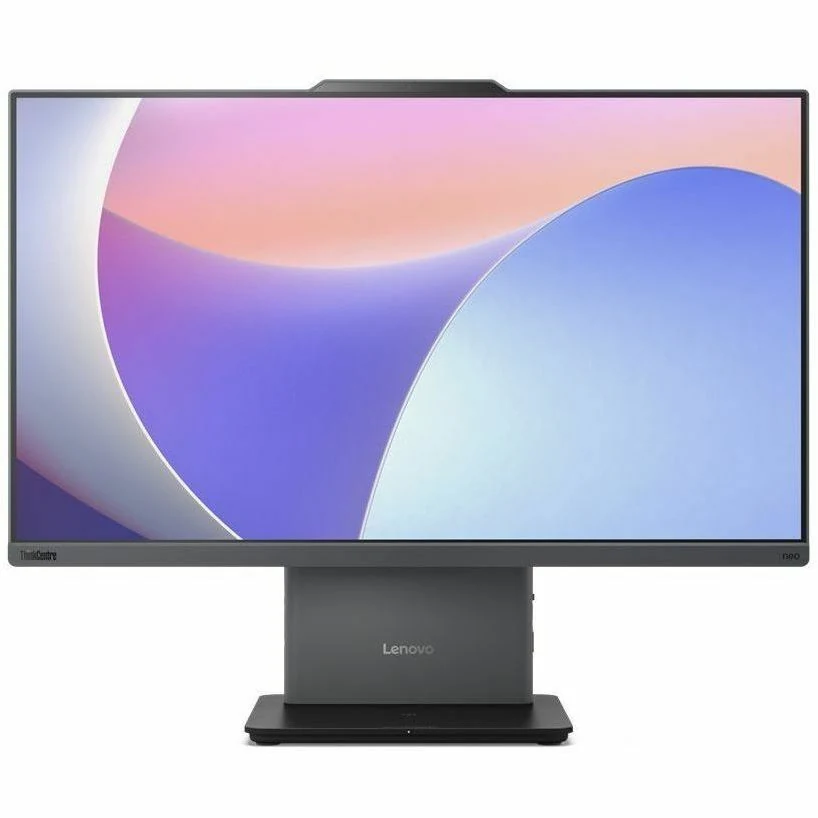

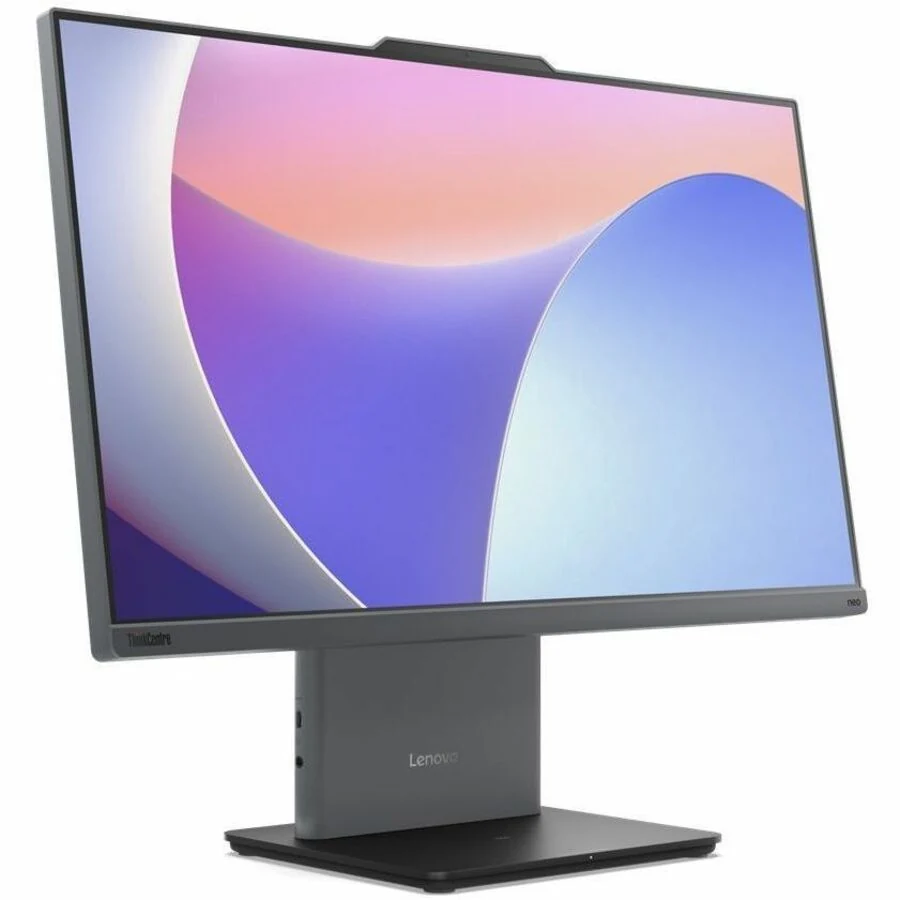

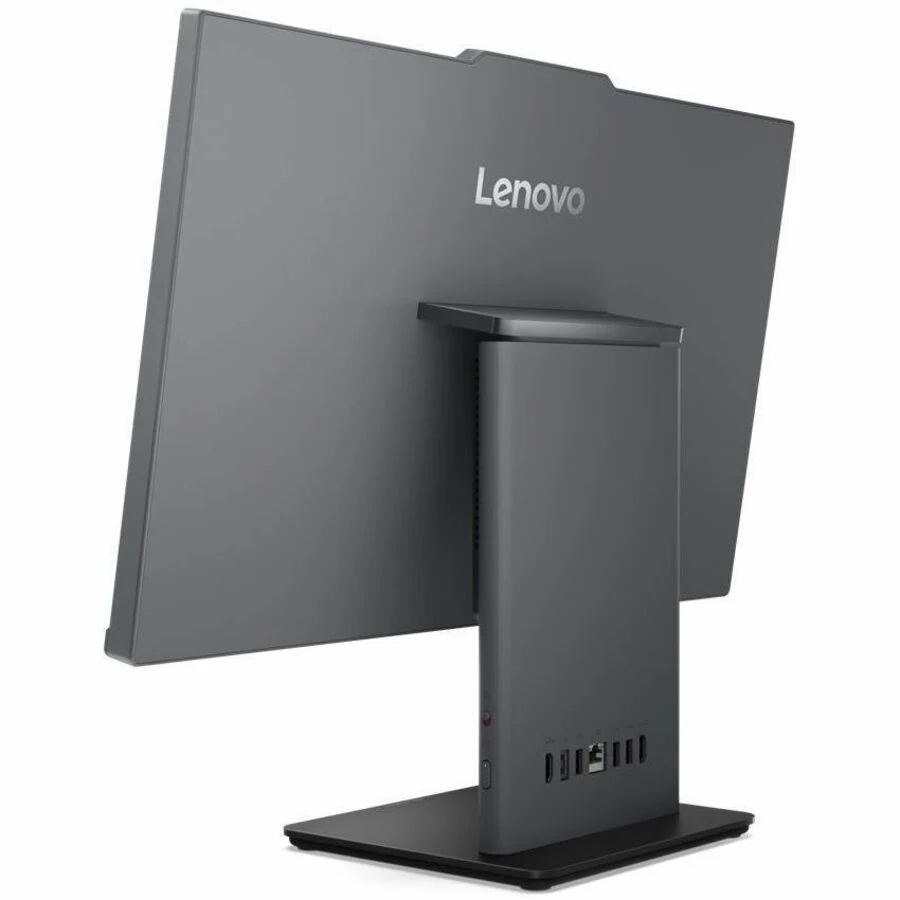

Product Images
Views of the supplied Luna Grey all-in-one configuration.
Included in the Package
Items listed in the supplied product information.
- ThinkCentre neo 50a 24 Gen 5
- USB keyboard
- USB mouse
- 90W power adapter
- Monitor stand
Frequently Asked Questions
Quick answers based on the supplied product information and brochure.
What processor is installed in model 12SD00AJAU?
It includes an Intel Core 7 240H processor with 10 cores, 16 threads and a maximum turbo speed of 5.20GHz.
How much memory and storage does it include?
It includes 16GB of DDR5-5200 memory in a 2 x 8GB configuration and a 512GB M.2 PCIe 4.0 x4 NVMe SSD.
Is the 23.8-inch display touchscreen?
No. The supplied specifications state that this Full HD IPS display is non-touch.
Which operating system is supplied?
Windows 11 Pro in English is supplied.
Does it include Wi-Fi and Bluetooth?
Yes. It includes Intel Wi-Fi 6 AX201 with 802.11ax 2x2 support and Bluetooth 5.2.
What warranty is listed?
The supplied product information lists a one-year onsite base warranty.
Image note: Product images are for illustration purposes. Actual appearance, ports, keyboard layout and accessories may vary by model.
(12SD00AJAU)
Lenovo ThinkCentre neo 50a 24 Gen 5 12SD00AJAU Specifications
Processor, memory, storage, display, connectivity, physical, software, warranty and environmental details.
| Specification | Details |
|---|---|
| Product Details | |
| Brand | Lenovo |
| Product Name | ThinkCentre neo 50a 24 Gen 5 12SD00AJAU |
| Manufacturer Part Number | 12SD00AJAU |
| Product Type | All-in-One Computer |
| Product Line / Series | ThinkCentre / neo 50a 24 Gen 5 |
| Release Year | 2025 |
| Announce Date | 30 September 2025 |
| EAN / UPC / JAN | 199273172818 |
| Processor and Graphics | |
| Processor | Intel Core 7 240H |
| Core / Thread Count | 10 cores (6 performance + 4 efficient) / 16 threads |
| Processor Speed | P-core: 2.5GHz; E-core: 1.8GHz |
| Maximum Turbo Speed | P-core: 5.2GHz; E-core: 4.0GHz |
| Cache | 24MB Intel Smart Cache |
| Chipset | Intel SoC Platform |
| Graphics | Integrated Intel Graphics |
| Graphics Memory | Shared DDR5 SDRAM |
| Memory | |
| Installed Memory | 16GB |
| Memory Configuration | 2 x 8GB SODIMM |
| Memory Type / Speed | DDR5-5200 |
| Memory Slots | Two DDR5 SODIMM slots, dual-channel capable |
| Occupied / Free Slots | 2 occupied / 0 free |
| Maximum Supported Memory | Up to 32GB DDR5-5200Maximum memory is based on test results with current Lenovo memory offerings. |
| Storage and Expansion | |
| Installed Storage | 512GB SSD |
| SSD | M.2 2280 PCIe 4.0 x4 NVMe Opal 2.0 |
| Maximum Storage Support | One drive, up to 1TB M.2 2280 SSDMaximum capacity is based on test results with current Lenovo storage offerings. |
| Expansion Slots | Two M.2 slots: one for WLAN and one for SSD |
| Card Reader | None |
| Optical Drive | None |
| Display | |
| Screen Size | 23.8 inches |
| Resolution / Mode | 1920 x 1080 / Full HD |
| Panel Technology | IPS, anti-glare |
| Brightness | 250 nits |
| Colour Gamut | 99% sRGB |
| Touchscreen | No |
| Camera and Audio | |
| Camera | 5.0MP + IR |
| Microphone | 2 x array microphones |
| Audio | High Definition audio, Realtek ALC233-CG codec |
| Speakers | 2 x 3W |
| Network and Wireless | |
| Wireless LAN | Intel Wi-Fi 6 AX201, IEEE 802.11ax 2x2 |
| Bluetooth | Bluetooth 5.2 |
| Ethernet | Integrated 100/1000M Gigabit Ethernet |
| WWAN | Not supported |
| Ports | |
| Left Ports | 1 x USB-C (USB 10Gbps / USB 3.2 Gen 2), data transfer and 15W charging 1 x 3.5mm headphone / microphone combo jack |
| Rear USB Ports | 1 x USB-A (USB 10Gbps / USB 3.2 Gen 2) 2 x USB-A (Hi-Speed USB / USB 2.0) |
| Rear Display Ports | 1 x HDMI-in 1.4 1 x HDMI-out 2.1 TMDS |
| Other Rear Connections | 1 x Ethernet RJ-45 1 x power connector |
| Total USB Ports | 4 |
| Design and Physical | |
| Form Factor | 23.8-inch all-in-one desktop |
| Case Colour | Luna Grey |
| Stand | Monitor stand |
| Dimensions (W x D x H) | 540 x 192 x 431mm |
| Weight | Approximately 6.0kgSystem weight is approximate and may vary by component source and manufacturing process. |
| Shipping Weight | 11.8kg |
| Power, Input and Security | |
| Power Adapter | 90W, 89% adapter |
| Keyboard | USB Calliope Keyboard, black, English |
| Mouse | USB Calliope Mouse, black |
| Security Chip | Firmware TPM 2.0 integrated in SoC |
| Physical Lock | Kensington Security Slot, 3 x 7mmThe brochure notes that this slot is standard on models manufactured on or after 10 February 2025. |
| Chassis Intrusion Switch | No |
| Software and Warranty | |
| Operating System | Windows 11 Pro, English |
| Bundled Software | None |
| Base Warranty | 1-year onsite |
| Included Upgrade | CO2 Offset 0.5 ton (2nd Generation Carbon Offset Projects) |
| Environmental and Other Certifications | |
| Green Certifications | ENERGY STAR 8.0 EPEAT Gold Registered ErP Lot 3/7 GREENGUARD RoHS / WEEE / REACH |
| Other Certifications | TÜV Rheinland Flicker Free TÜV Rheinland Low Blue Light TÜV Rheinland Ultra Low Noise |
| Package Contents | |
| Included Items | ThinkCentre neo 50a 24 Gen 5 12SD00AJAU USB keyboard USB mouse Power adapter Monitor stand |
| SKU | 12SD00AJAU |
| Brand | LENOVO |
| Shipping Weight | 11.8000kg |
| Shipping Width | 0.660m |
| Shipping Height | 0.230m |
| Shipping Length | 0.550m |
| Shipping Cubic | 0.083490000m3 |
