8.2L Small Form Factor Desktop

Lenovo ThinkCentre Neo 50s Gen 5 Small Form Factor Desktop

The Lenovo ThinkCentre Neo 50s Gen 5 12XF0019AU combines an Intel Core i5-13400 processor, 16GB DDR5 memory, a 512GB PCIe 4.0 NVMe SSD and integrated Intel UHD Graphics 730 in a compact Raven Black small form factor chassis with Windows 11 Pro.

Intel Core i5-1340010 cores, 16 threads and 20MB Intel Smart Cache

16GB DDR52 x 8GB installed memory

512GB NVMeM.2 2280 PCIe 4.0 x4 SSD

3-Year OnsiteIncluded upgrade from one-year onsite base warranty

Designed Around the Supplied Configuration

Key product details based on the two descriptions provided for this SKU.

Compact 8.2L Chassis

The small form factor chassis measures 92.5 x 291.4 x 339.5mm, weighs around 4.2kg and is finished in Raven Black.

Storage and Expansion

The supplied description states support for one 3.5-inch HDD and one M.2 SSD, with low-profile PCIe x16 and PCIe x1 slots plus separate WLAN and SSD M.2 slots.

Wired Desktop Configuration

The supplied description lists Gigabit Ethernet and no WLAN or Bluetooth for this SKU, together with USB, HDMI, DisplayPort and VGA connectivity.

Technical Specifications

Configuration details supplied for SKU 12XF0019AU.

Processor	Intel Core i5-13400; 10 cores; 16 threads; 20MB Intel Smart Cache
Memory	16GB DDR5 (2 x 8GB)
Storage	512GB M.2 2280 PCIe 4.0 x4 NVMe SSD
Graphics	Integrated Intel UHD Graphics 730
Networking	Integrated 100/1000M Ethernet; no WLAN or Bluetooth stated
Ports	1 x USB-C; 6 x USB-A; headphone/microphone combo jack; microphone; HDMI; DisplayPort; VGA; RJ45; line-out
Drive Support	Up to one 3.5-inch HDD and one M.2 SSD; HDD installation requires a separate screw and grommet kit
Expansion	Low-profile PCIe 3.0 x16; low-profile PCIe 3.0 x1; two M.2 slots
Dimensions	92.5 x 291.4 x 339.5mm
Weight	Approximately 4.2kg
Colour	Raven Black
Operating System	Windows 11 Pro 64, English
Included Accessories	Black English USB Traditional Keyboard; black USB Calliope Mouse
Warranty	1-year onsite base warranty with upgrade to 3-year onsite
SKU	12XF0019AU

Frequently Asked Questions

Quick answers based only on the supplied product information.

Which processor is installed?

The desktop is configured with an Intel Core i5-13400 processor with 10 cores, 16 threads and 20MB Intel Smart Cache.

How much memory and storage are included?

It includes 16GB DDR5 memory configured as 2 x 8GB and a 512GB M.2 PCIe 4.0 x4 NVMe SSD.

Does this SKU include Wi-Fi or Bluetooth?

No. The supplied product description lists WLAN and Bluetooth as none.

Which display connections are included?

The supplied ports include HDMI, DisplayPort and VGA.

Can storage be expanded?

The supplied description states support for one 3.5-inch HDD and one M.2 SSD. A separate HDD screw and grommet kit is required for HDD installation.

What warranty is listed?

The supplied description states a one-year onsite base warranty with an upgrade to three-year onsite coverage.

(12XF0019AU)

Lenovo ThinkCentre neo 50s Gen 5 12XF0019AU Specifications

Processor, memory, storage, connectivity, security, physical and service details.

Specification	Details
Performance
Processor	Intel Core i5-13400, 10C (6P + 4E) / 16T, P-core 2.5 / 4.6GHz, E-core 1.8 / 3.3GHz, 20MB Intel Smart Cache
Graphics	Integrated Intel UHD Graphics 730
Chipset	Intel B760 Chipset
Memory	2 x 8GB UDIMM DDR5-4800
Memory Slots	Two DDR5 UDIMM slots, dual-channel capable
Maximum Memory	Up to 64GB DDR5-5600Maximum memory is based on Lenovo testing with current memory offerings.
Storage	512GB SSD M.2 2280 PCIe 4.0 x4 NVMe
Maximum Storage Support	Up to two drives: 1 x 3.5-inch HDD + 1 x M.2 SSD; 3.5-inch HDD up to 2TB; M.2 SSD up to 1TBA 3.5-inch HDD screw and grommet kit is required to install an HDD.
Card Reader	No card reader
Optical Drive	None
Audio	High Definition Audio, Realtek ALC623-CG codec
Speaker	1W x 1
Power Supply	180W, 85%
Design and Expansion
Keyboard	USB Traditional Keyboard, black, English
Mouse	USB Calliope Mouse, black
Expansion Slots	1 x PCIe 3.0 x16, low-profile, length ≤ 155mm, height ≤ 70mm 1 x PCIe 3.0 x1, low-profile, length ≤ 155mm, height ≤ 70mm 2 x M.2 slots, one for WLAN and one for SSD
Case Colour	Chassis: Black; Bezel: Grey
Stand	None
Pen	Not supported
Form Factor	SFF, 8.2L
Dimensions	92.5 x 291.4 x 339.5mm
Weight	Around 4.2kg
Connectivity
WLAN and Bluetooth	None
WWAN	Not supported
Ethernet	Integrated 100/1000M
Front Ports	1 x USB-C (USB 5Gbps / USB 3.2 Gen 1), with 15W charging 2 x USB-A (USB 5Gbps / USB 3.2 Gen 1) 1 x headphone/microphone combo jack, 3.5mm 1 x microphone, 3.5mm

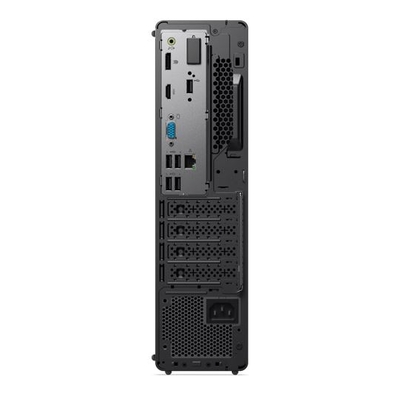

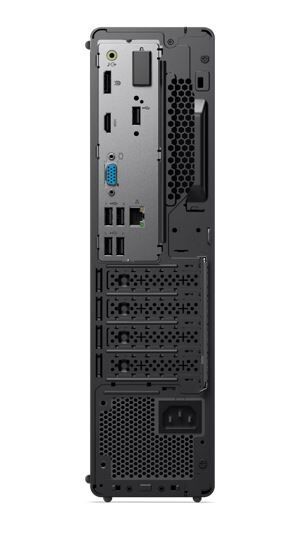

Rear Ports	4 x USB-A (Hi-Speed USB / USB 2.0), one supports Smart Power On 1 x HDMI 2.1 TMDS 1 x DisplayPort 1.4 1 x VGA 1 x Ethernet (RJ-45) 1 x line-out, 3.5mm
Optional Rear Ports	None configured
Monitor Cable	None
Security and Privacy
Security Chip	Discrete TPM 2.0, TCG certified, FIPS 140-2 certified
Fingerprint Reader	No fingerprint reader
Physical Lock	Kensington Security Slot, 3 x 7mm
Smart Cable Clip	None
Chassis Intrusion Switch	None
Additional Security	None
Software and Service
Operating System	Windows 11 Pro, English
Bundled Software	Bufferzone Standard Plus, 1-year
Base Warranty	1-year, onsite
Included Upgrade	3-year onsite upgrade from 1-year onsite
Bundled Accessories	None
Certifications and Model Details
Green Certifications	RoHS / WEEE / REACH; TCO Certified, generation 9
Model	12XF0019AU
TopSeller	Yes
EAN / UPC / JAN	198156512635
Announce Date	2024-12-27
End of Support	2031-04-30

SKU	12XF0019AU
Barcode #	198156512635
Brand	LENOVO
Shipping Weight	6.0000kg
Shipping Width	0.395m
Shipping Height	0.530m
Shipping Length	0.195m
Shipping Cubic	0.040823250m3
